Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.
Hebei Xinnuo Roll Forming Machine Co., Ltd. (XINNUO), established in 1998, is a leading Chinese manufacturer of cold roll forming equipment. From a 100,000 square-meter production base in Botou, Hebei, the company builds single-layer roof sheet machines, purlin lines, and complete metal building systems that have been exported to more than 180 countries since 2002. As a professional IBR roof sheeting machine manufacturer, XINNUO combines 25+ years of roll forming technology with factory-direct pricing and global spare parts service.

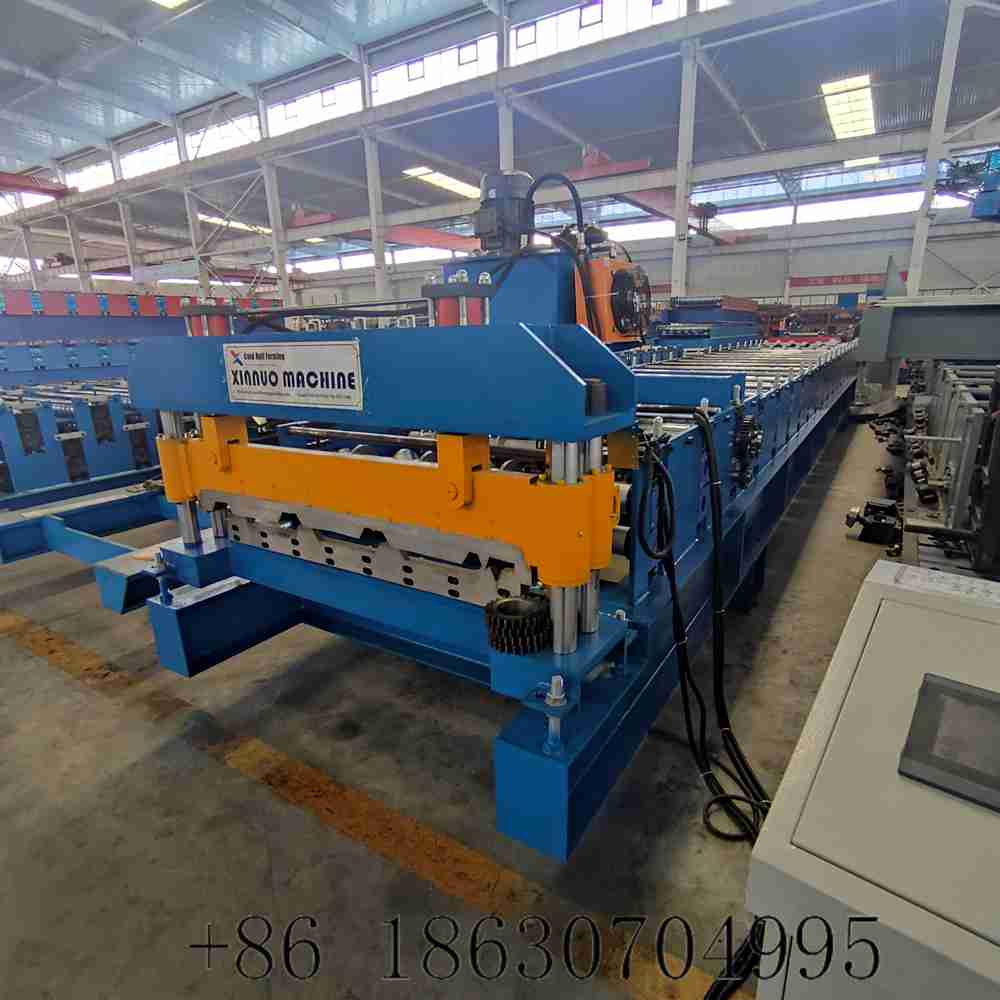

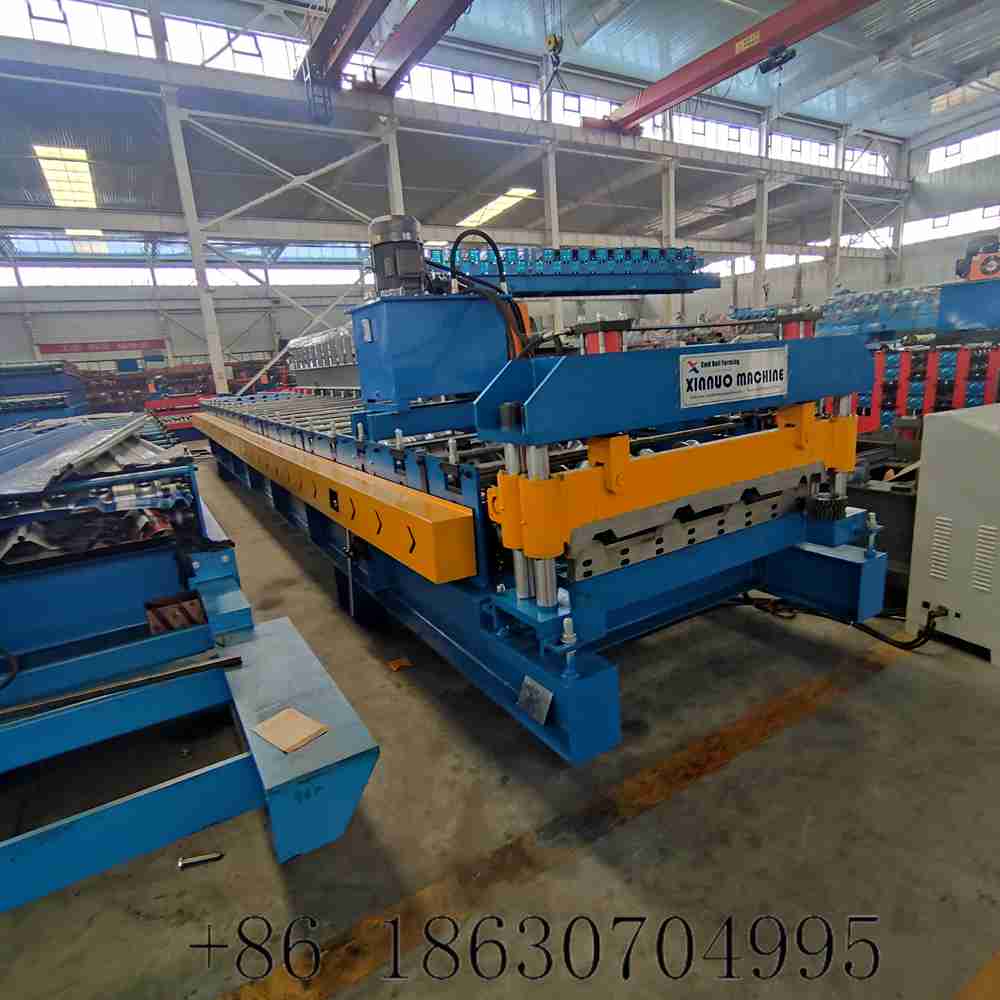

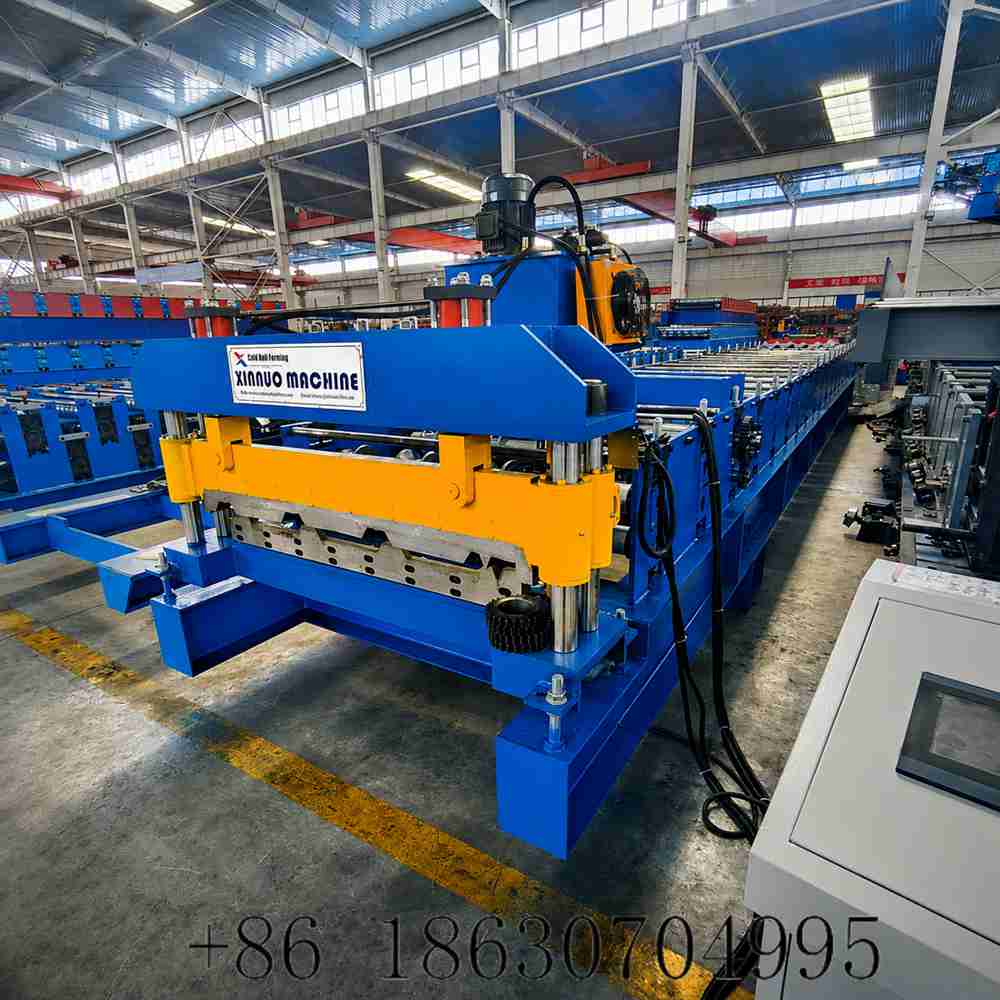

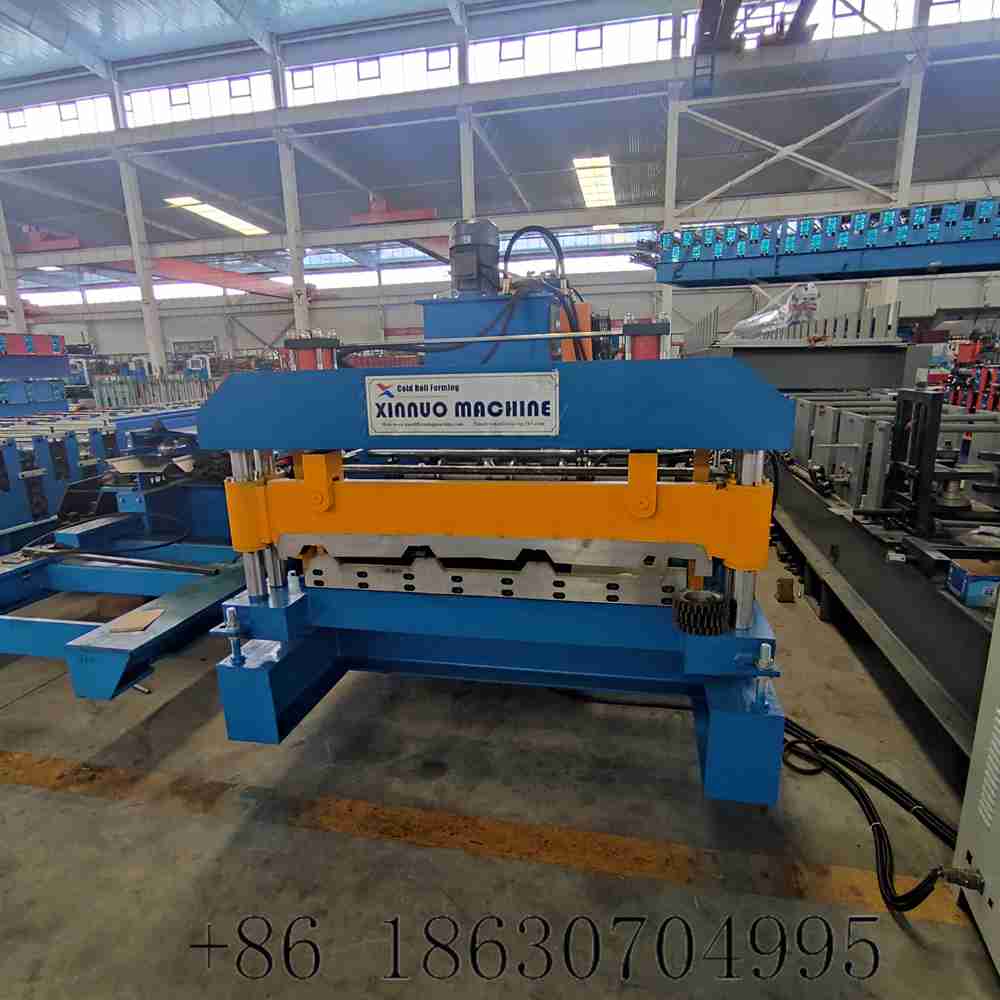

Built for roofing manufacturers who need higher output, lower waste, and reliable long-term performance, the 1000 Single Layer Roofing Sheet Roll Forming Machine delivers precision forming, automatic hydraulic cutting, and stable continuous production, making it an ideal solution for metal roofing factories and building material manufacturers worldwide. The machine forms 1000 mm effective-width trapezoidal profiles with sharp, uniform geometry and clean cut edges, sheet after sheet.

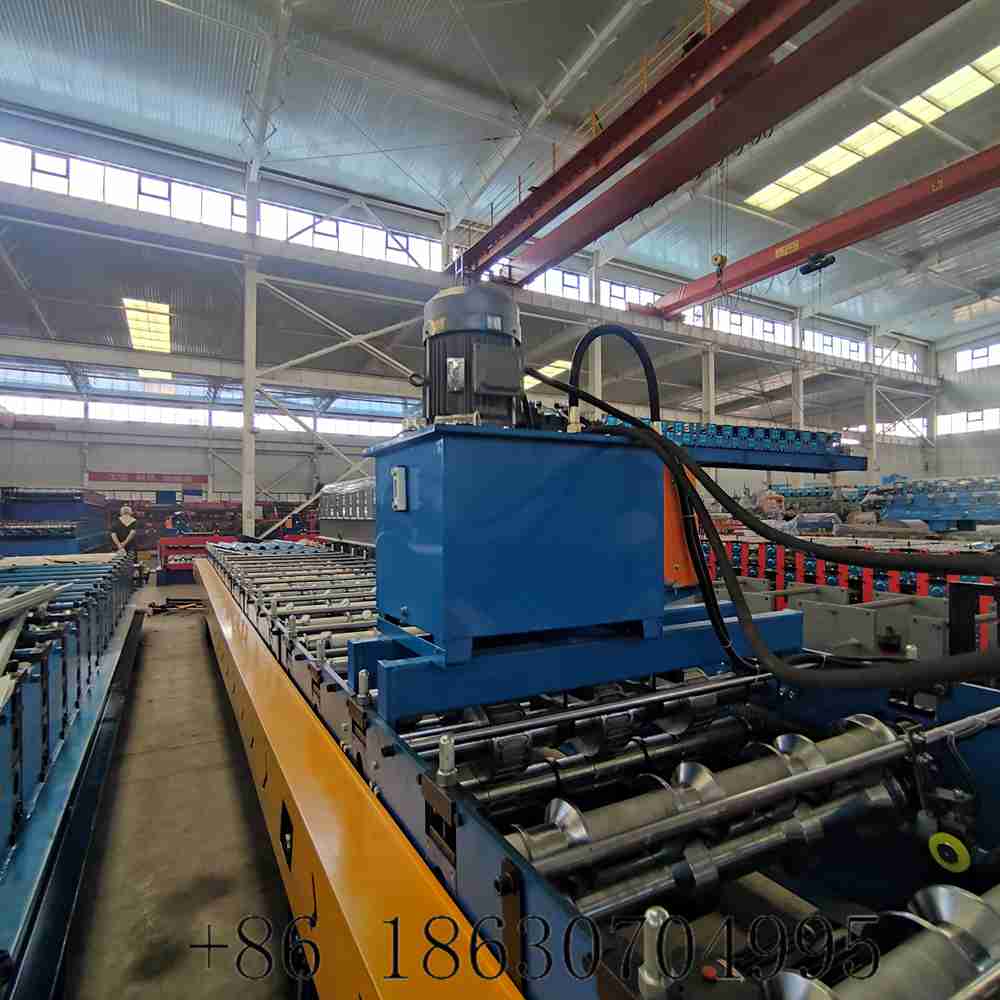

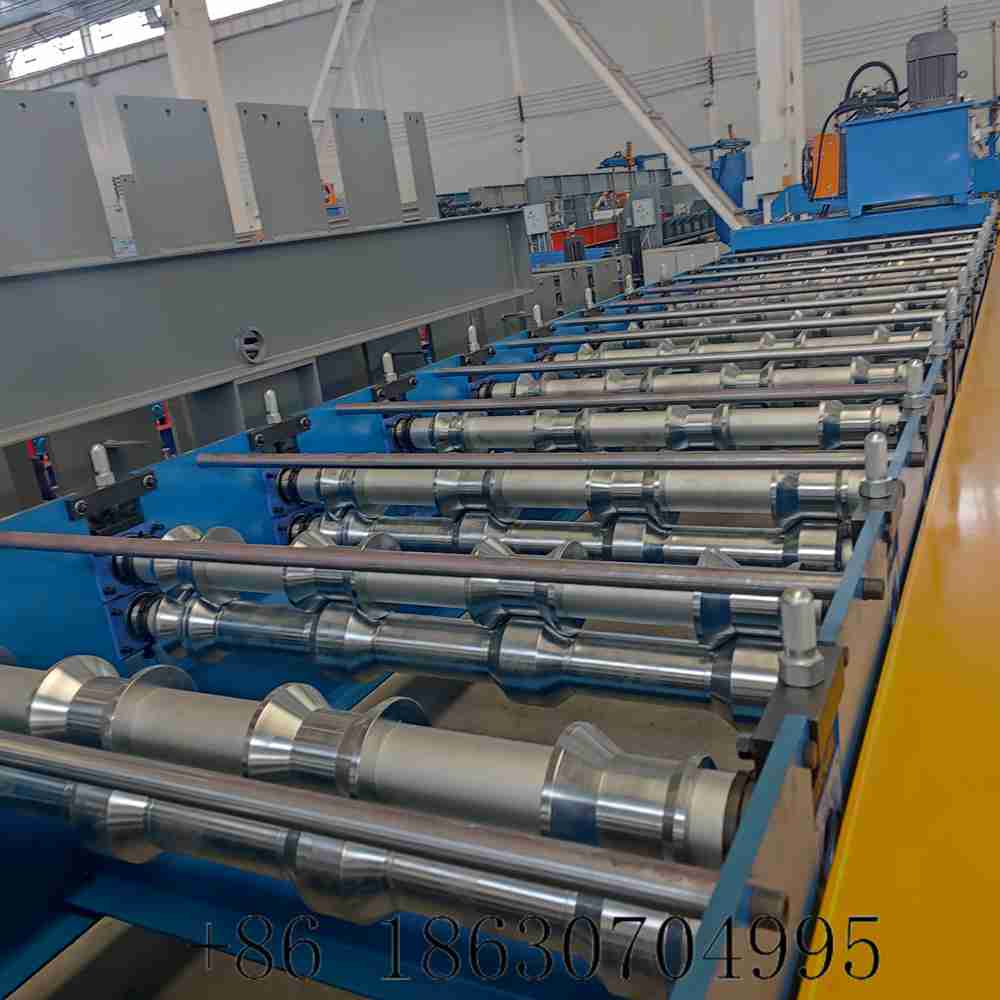

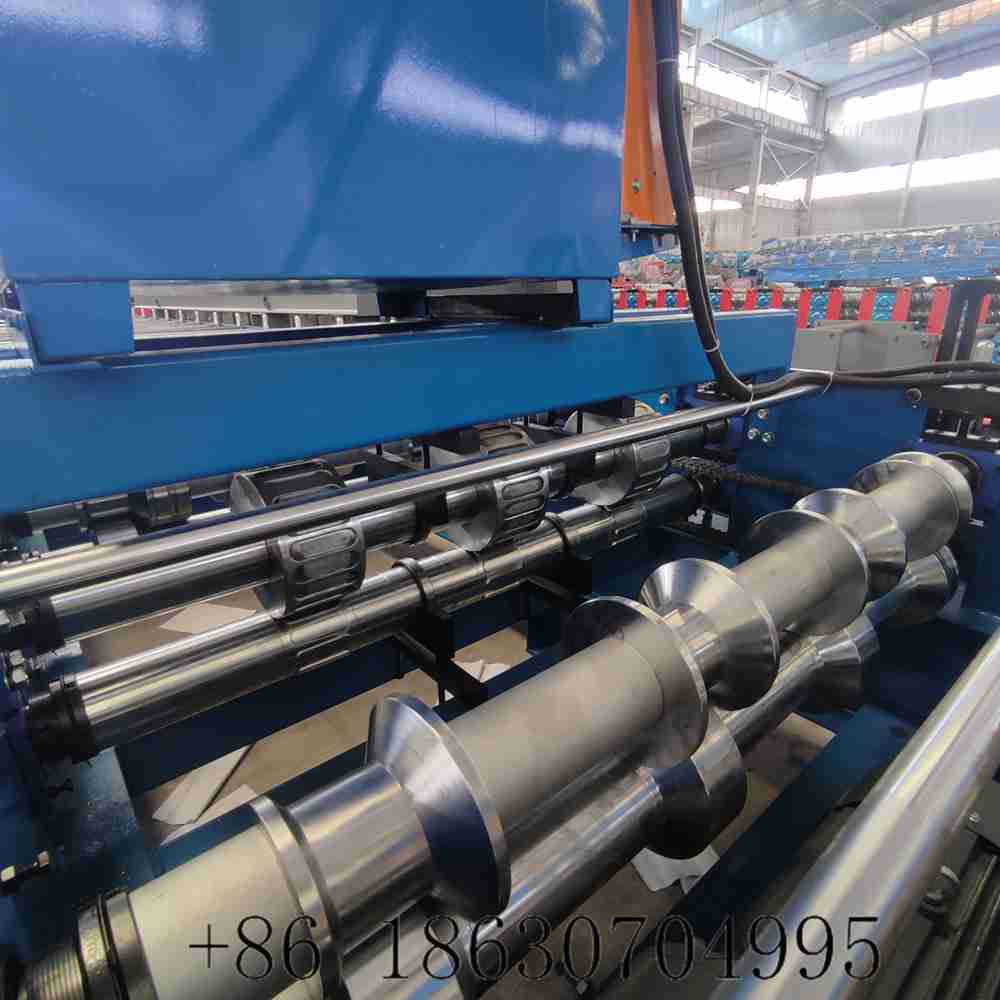

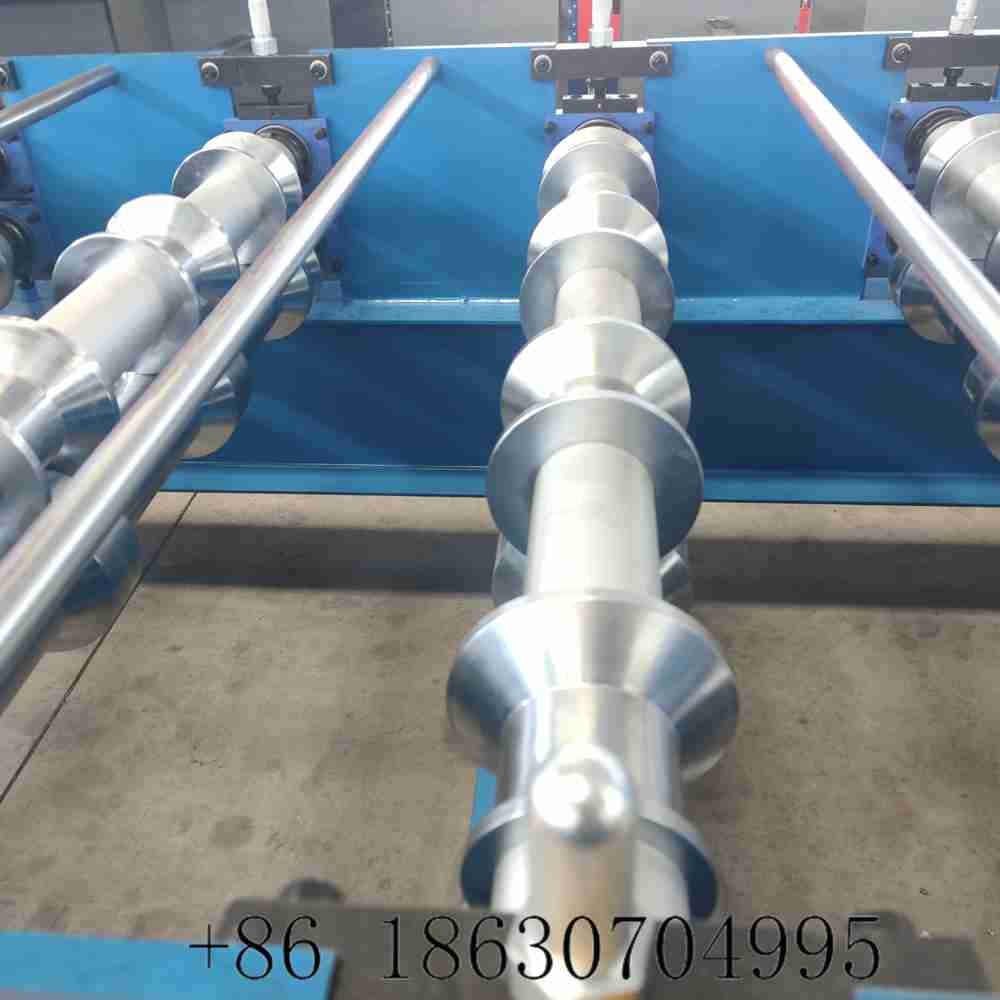

Progressive multi-pass forming rollers, precision-ground and high-frequency quenched, shape the metal sheet gradually and evenly, preventing surface scratches, wave edges, torsion, and internal stress deformation. The heavy-duty welded steel frame provides the rigidity to run continuously for 24 hours without frame deflection or loss of profile accuracy. An automatic hydraulic cutting die is synchronized with the PLC control system, cutting panels to fixed length on the fly with high repeatability.
The machine processes color-coated steel, galvanized steel, and aluminum sheets from 0.25 mm to 0.8 mm thick, and is widely used for industrial roofs, warehouse cladding, farm buildings, and residential roofing projects. For other profile styles, browse our Trapezoidal Sheet Roll Forming Machine collection and the complete Roof Sheet Making Machine range. Custom coil widths, voltages, forming speeds, and cutting lengths are available on request, and our engineers provide installation guidance and operator training with every order.
| Parameter | Specification |
|---|---|
| Effective forming width | 1000 mm |
| Material thickness | 0.25 – 0.8 mm |
| Suitable material | Color-coated steel / galvanized steel / aluminum |
| Forming speed | 10 – 20 m/min (up to 30 m/min optional) |
| Roller stations | 14 – 18 rows (customizable) |
| Main motor power | 3 kW |
| Hydraulic cutting motor power | 3 kW |
| Cutting type | Automatic hydraulic die cutting |

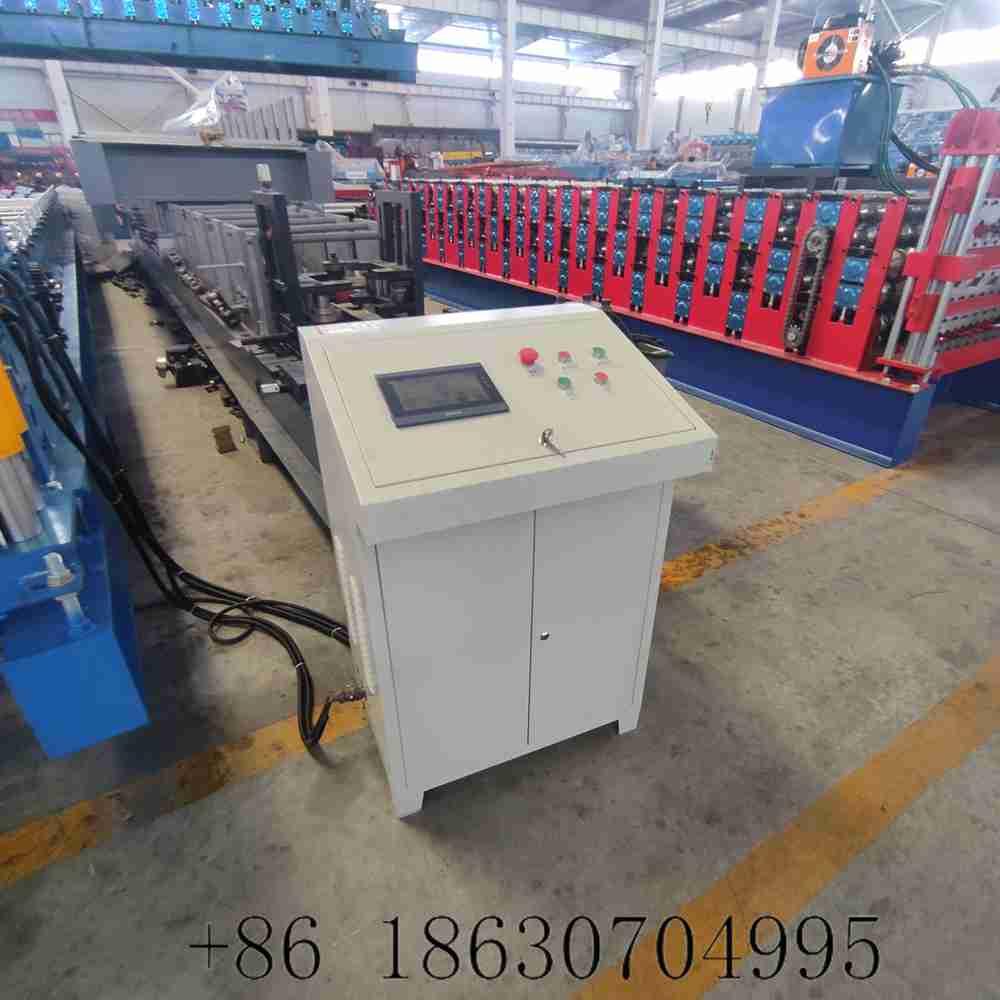

| Control system | PLC + encoder fixed-length control |
| Voltage | 380 V / 50 Hz (customizable) |
| Overall dimensions (approx.) | 9.0 × 1.4 × 1.4 m |
| Machine weight (approx.) | 3.5 – 4.5 t |
Swipe horizontally to view full parameters.
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
