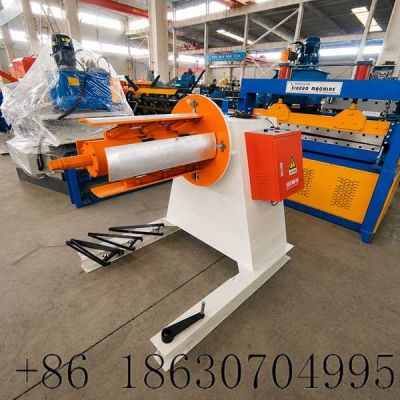

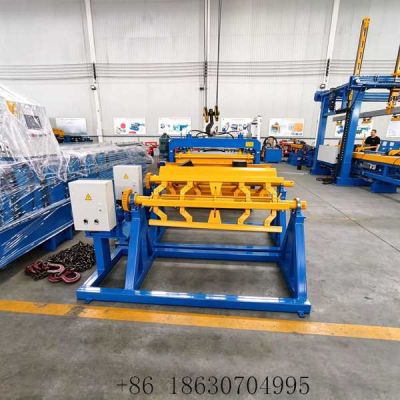

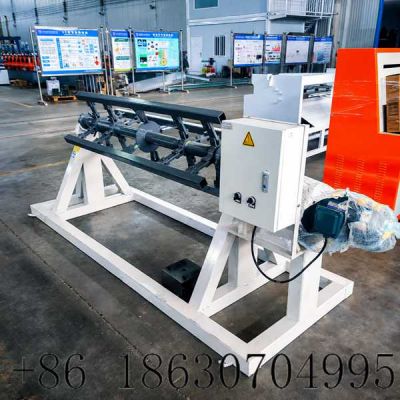

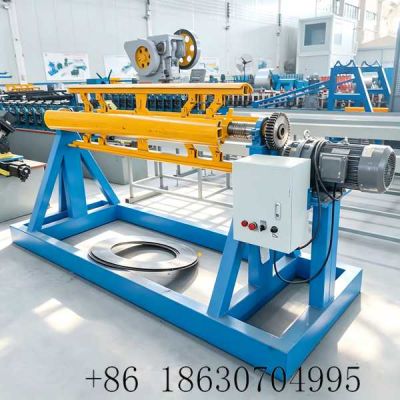

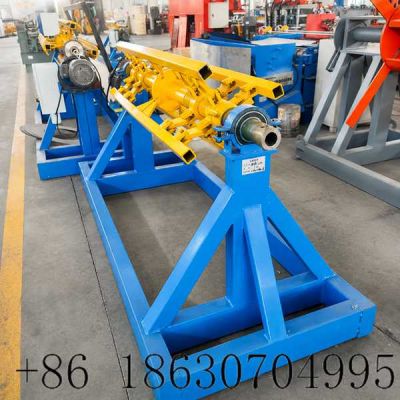

Our Electric Decoiler Machine is designed to provide efficient, stable, and automatic coil feeding solutions for modern roll forming production lines. As an essential component of metal sheet processing systems, this advanced Automatic Decoiler Machine helps improve productivity, reduce labor costs, and ensure smooth coil unwinding during continuous manufacturing operations.
Whether you are producing roofing sheets, wall panels, floor decking, C/Z purlins, shutter doors, or other metal profiles, our Motorized Decoiler delivers reliable performance and precise coil feeding. Equipped with a powerful electric motor and durable expansion mechanism, the machine can easily handle steel coils of various widths and thicknesses. The stable unwinding speed ensures consistent material feeding and protects the roll forming machine from unnecessary stress or material damage.
As a professional Sheet Metal Decoiler and Coil Uncoiler Machine, it supports different coil capacities including 3 Ton, 5 Ton, 10 Ton, and 15 Ton models. The user-friendly control system allows operators to adjust feeding speed according to production requirements. Optional hydraulic expansion and automatic feeding systems are also available for higher automation demands.
Our Electric Uncoiler Machine is widely used in roofing sheet manufacturing plants, steel service centers, metal fabrication workshops, and industrial roll forming factories worldwide. With robust construction, low maintenance requirements, and long service life, it provides an ideal solution for efficient coil handling and continuous production.
As a trusted manufacturer from China, we provide customized Coil Feeding Machine and Steel Coil Decoiler solutions according to customer specifications. Voltage, coil width, coil weight capacity, and control configurations can all be tailored to meet local industrial standards. Our commitment to quality, competitive pricing, and professional after-sales support has earned the trust of customers across Europe, South America, the Middle East, Africa, and Southeast Asia.
| Parameter | Specification |
|---|---|
| Machine Type | Electric Decoiler / Coil Uncoiler |
| Coil Capacity | 3T / 5T / 10T / 15T (Optional) |
| Coil Width | Max. 1250 mm |
| Coil Inner Diameter | 450–550 mm |
| Coil Outer Diameter | Max. 1500 mm |
| Material Thickness | 0.3–3.0 mm |
| Expansion Type | Manual / Electric / Hydraulic |
| Feeding Speed | Adjustable |
| Motor Power | 3KW–7.5KW |
| Control System | PLC Optional |
| Voltage | 380V/50Hz/3Phase or Customized |
| Application | Roll Forming Line, Roofing Sheet Production, Metal Processing |
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
