10 Ton Electric Decoiler Heavy-Duty Automatic Uncoiler for Color Steel & Sheet Metal Line

Product Introduction

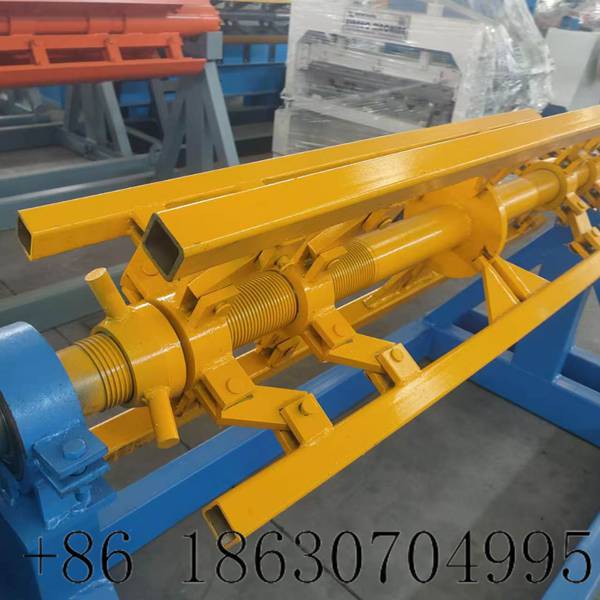

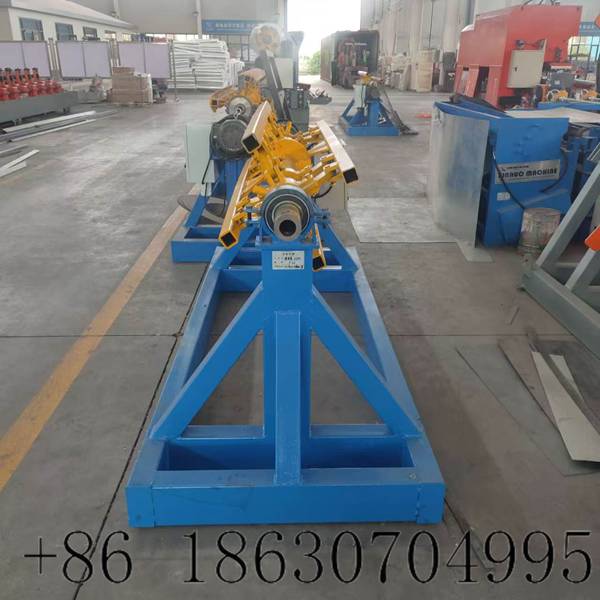

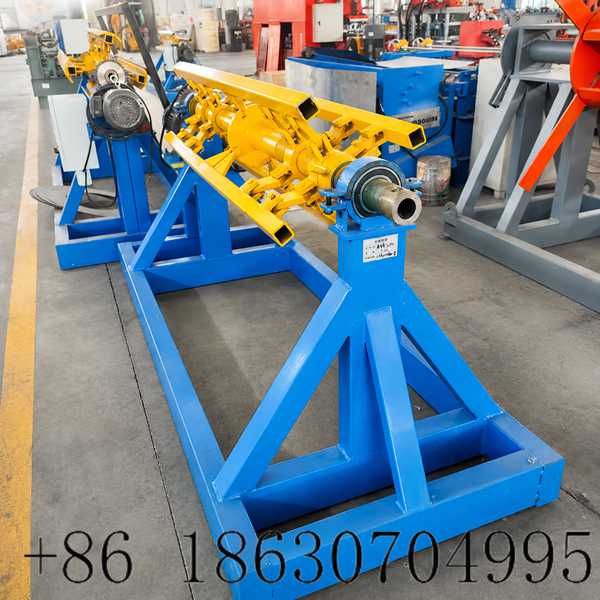

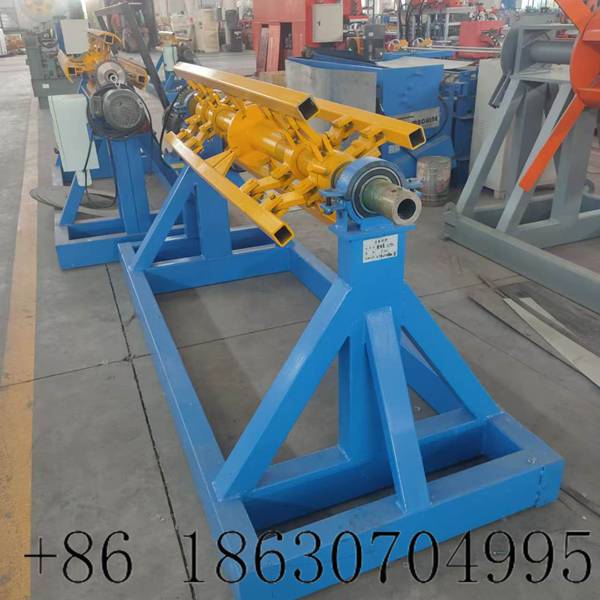

Manufactured by Hebei Xinnuo Roll Forming Machine Co., Ltd., the 10 Ton Electric Decoiler is a core supporting unwinding equipment matched with all kinds of roll forming lines, color steel tile machines, sheet metal bending and slitting production lines. Founded in 1995, Xinnuo owns a 100,000 ㎡ manufacturing base in Botou City, Cangzhou, with complete cold bending processing workshops and precision CNC machining equipment, focusing on developing stable, labor-saving automatic decoiler solutions for global metal processing factories.

Different from traditional manual decoilers that rely on workers to drag and lift heavy steel coils, our 10 ton electric decoiler adopts one-button automatic unwinding design as the core competitive advantage. The whole unwinding process can be completed by only one operator, which thoroughly eliminates heavy manual pulling and lifting work, and greatly cuts down labor intensity and staffing cost of color steel and sheet metal production lines. For small and medium processing workshops with insufficient workers, this automatic unwinding structure can reduce 1-2 operators on one complete forming line, effectively saving long-term labor expenditure for factory owners.

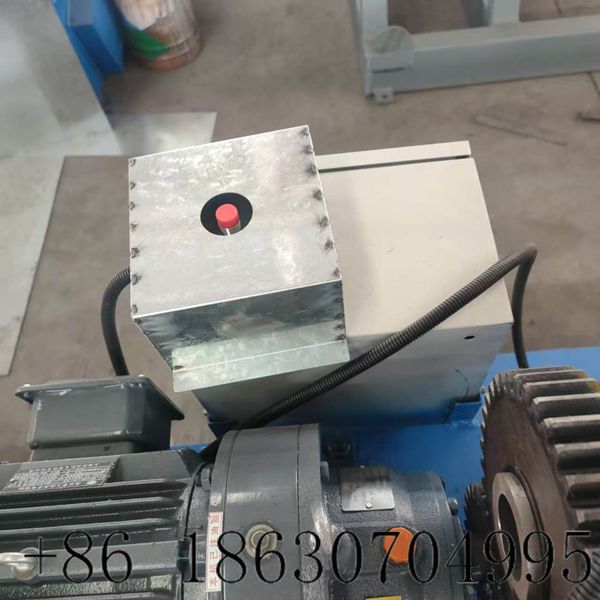

Equipped with standard frequency conversion driving motor and matched gear reducer, this decoiler realizes stepless speed regulation, perfectly synchronizing unwinding speed with downstream roll forming host. It avoids over-stretching or scratching metal sheets, protecting the surface of galvanized coil, color coated steel, aluminum coil and stainless steel raw materials. The heavy-duty welded frame adopts stress relief annealing treatment, which can bear full 10-ton weight of steel coil without deformation during long-time continuous production.

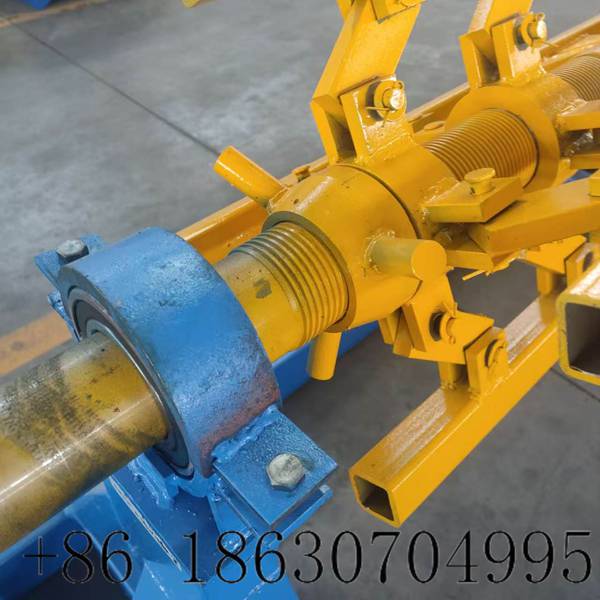

Adjustable bilateral limit baffles are installed on both sides of the mandrel, which can limit the horizontal movement of steel strip in real time to avoid size deviation caused by coil wandering. The matched hydraulic coil car supports automatic lifting and feeding, no need for frequent forklift alignment. Meanwhile, the built-in electromagnetic brake locks the mandrel instantly when emergency stop or power failure, preventing loose coil rebound and meeting international workshop safety operation standards.

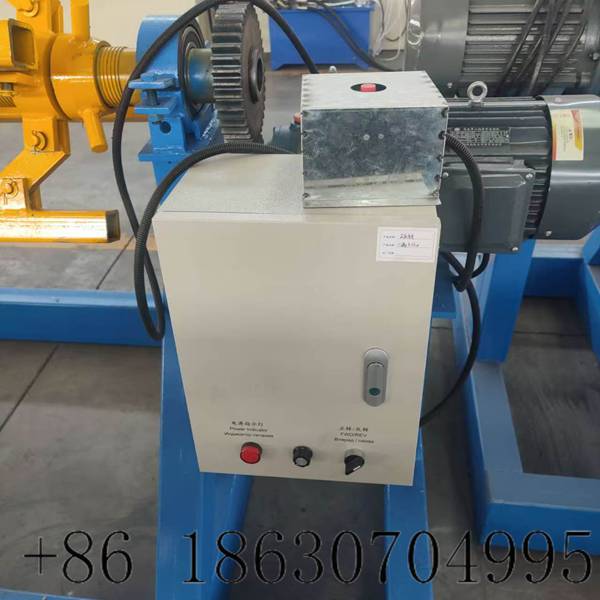

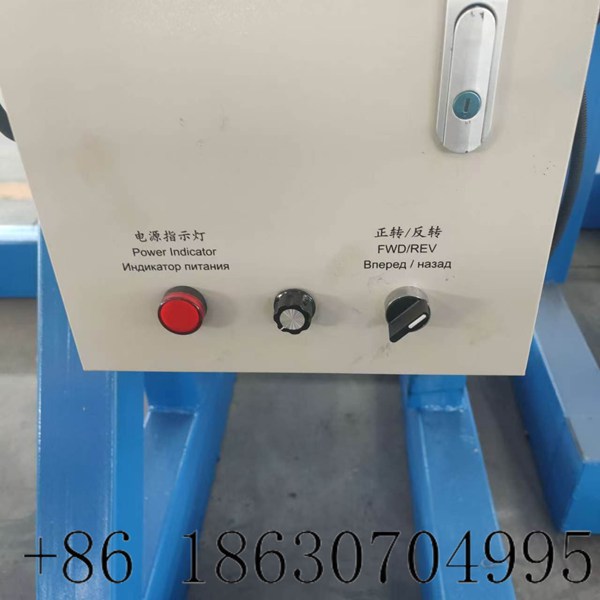

The independent electric control box centralizes all operation buttons, realizing simple one-click start, stop and speed adjustment. All electrical components adopt well-known domestic and international standard parts, with low failure rate and convenient after-sales replacement. This 10-ton electric decoiler is widely compatible with double-layer color steel tile forming machines, sandwich panel production lines, solar bracket roll formers and metal slitting lines. Xinnuo provides customized width, voltage and extra auto coil tail detection function according to clients’ local production demands, with 12-month whole machine warranty and lifelong technical support for overseas customers.

10 Ton Electric Decoiler Technical Parameter Table
