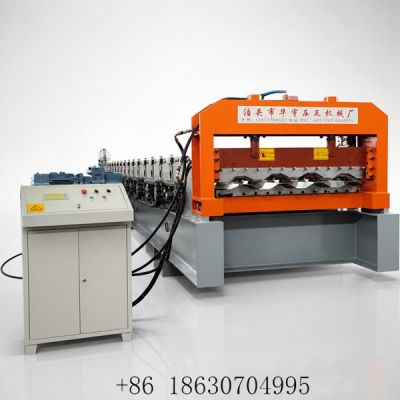

Engineered specifically for commercial vehicle bodybuilding, freight trailer fabrication, and global intermodal logistics container production, our high-precision Truck & Container Panel Roll Forming Machines deliver superior structural strength, strict dimensional repeatability, and high-speed automated forming. Built with heavy-duty cast-iron archway stands or reinforced wall-plate steel structures, these specialized forming lines mass-produce premium corrugated truck box boards, freight car side walls, cargo container side plates, and roof panels from high-yield galvanized steel, cold-rolled carbon steel, and weathering Corten steel coils.
Designed to handle heavy sheet thicknesses ranging from 0.8 mm up to 3.0 mm, each machine incorporates multi-stage progressive CNC-machined forming rollers that ensure crack-free bending on deep-profile corrugations. Advanced servo feeding, hydraulic pre-punching units, and high-precision synchronized hydraulic post-shearing guarantee clean, burr-free cuts and strict length tolerances within ±1.0 mm. Industrial Mitsubishi or Siemens PLC systems provide intuitive touchscreen operation, multi-batch job scheduling, and comprehensive real-time fault monitoring for continuous multi-shift industrial fabrication.
Investing in automated Truck & Container Panel Roll Forming Machines enables fleet equipment manufacturers, container fabricators, and specialized transport bodybuilders to substantially lower labor costs, minimize raw material scrap rates, and maintain consistent quality across large-scale production runs. With modular roller tooling designs, our equipment offers rapid profile changeovers and customized rib configurations to meet diverse commercial carriage standards across North America, Europe, South America, the Middle East, Africa, and Southeast Asia.
From standalone roll forming units to fully integrated turnkey production lines featuring automatic heavy-duty decoilers, hydraulic coil loading cars, precision straighteners, and powered runoff stacking tables, we engineer complete manufacturing systems tailored to your specific workshop layout, steel yield strength requirements, and annual output targets.
| Parameter | Specification Details |
|---|---|
| Raw Material | Galvanized Steel, Cold Rolled Steel, Corten Steel |
| Sheet Thickness | 0.8 mm – 2.5 mm (Optional up to 3.0 mm) |
| Forming Stations | 18 – 24 progressive roller stations |
| Shaft Diameter | Φ75 mm – Φ85 mm 40Cr solid quenched steel |
| Line Speed | 10 – 15 m/min (adjustable via VFD) |
| Cutting Method | Hydraulic post-cut with Cr12Mov quenched blade |
Established in 1995 with over 30 years of manufacturing excellence, our nearly 100,000 m² modern facility and 11 specialized workshops provide robust machinery, custom roll tooling, and responsive technical support worldwide.
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
