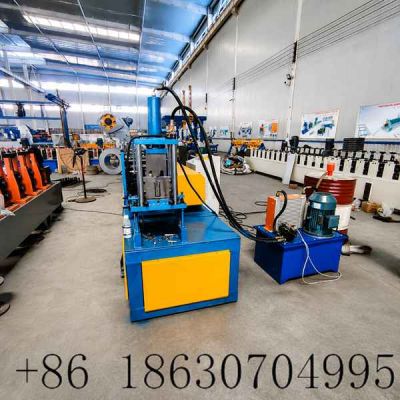

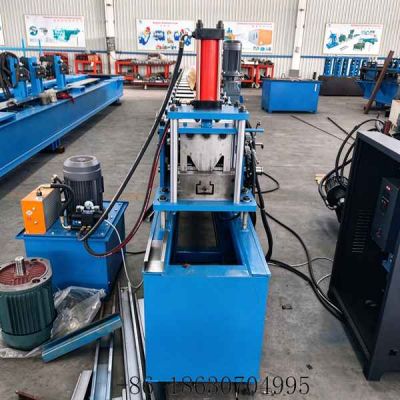

The Roller Shutter Guide Rail Roll Forming Machine is a highly efficient production solution designed for
manufacturing precision guide rails used in commercial, industrial, and residential roller shutter door systems.
As an advanced roller shutter guide rail machine, it delivers consistent profile accuracy, excellent surface
quality, and stable production performance. Manufactured with heavy-duty machine frames, precision-machined
rollers, and intelligent PLC control, this equipment ensures long-term reliability while minimizing maintenance costs.
Our guide rail roll forming machine supports galvanized steel, cold rolled steel, stainless steel, and other metal
materials. The complete production line integrates automatic decoiling, servo feeding, hydraulic punching,
precision roll forming, cutting, and automatic product collection into one continuous process. Whether you require
a standard roller shutter guide channel machine or a customized steel guide rail forming machine, our
engineering team can design solutions according to your technical drawings and production requirements.
Compared with traditional manufacturing methods, this guide channel roll forming machine significantly
improves production efficiency while reducing labor costs and material waste. High-speed forming, accurate
punching positions, and stable cutting length ensure excellent dimensional consistency for every guide rail.
The machine is widely used for producing roller shutter guide rails, shutter guide channels, guide tracks,
and other metal profiles for warehouses, factories, shopping malls, garages, industrial buildings, and commercial
security doors.
As a professional Chinese manufacturer, we provide complete OEM and ODM services, including customized
profile design, tooling development, installation guidance, operator training, and lifetime technical support.
Every roller shutter guide rail making machine undergoes strict quality inspection before shipment to
guarantee stable operation and reliable performance. With CE-compliant components, user-friendly operation,
energy-efficient design, and worldwide after-sales service, our metal guide rail roll forming machine has
been successfully exported to Europe, the Middle East, Southeast Asia, South America, and Africa, helping
customers improve productivity and maximize investment returns.
| Item | Specification |
|---|---|
| Machine Name | Roller Shutter Guide Rail Roll Forming Machine |
| Material | GI, PPGI, Cold Rolled Steel, Stainless Steel |
| Material Thickness | 0.8–2.0 mm (Customizable) |
| Forming Speed | 15–30 m/min |
| Roller Material | Cr12Mov Heat Treated with Hard Chrome Coating |
| Shaft Material | 45# High Grade Steel |
| Main Motor Power | 7.5–15 kW |
| Hydraulic Power | 5.5 kW |
| Control System | PLC + Touch Screen + Encoder |
| Cutting Type | Hydraulic Flying Cutting |
| Drive System | Chain Drive or Gearbox (Optional) |
| Voltage | 380V / 415V / 440V / Customized |
| Machine Color | Blue, Green or Customized |
| Certification | CE / ISO9001 |
| Application | Roller Shutter Guide Rail, Guide Channel, Guide Track Production |
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
