Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.

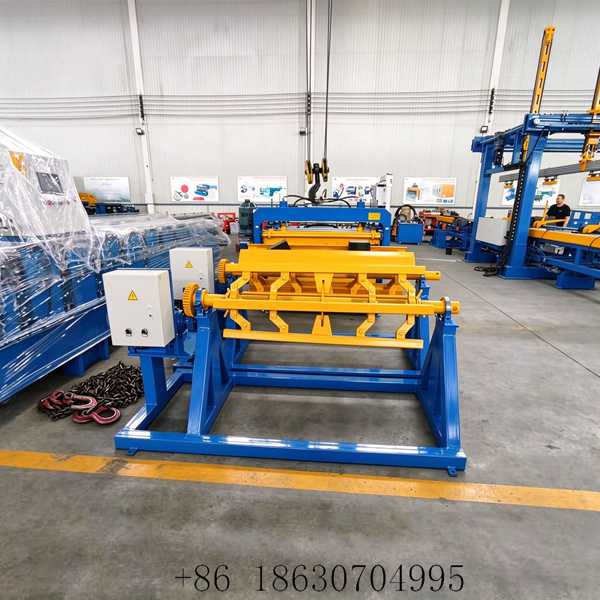

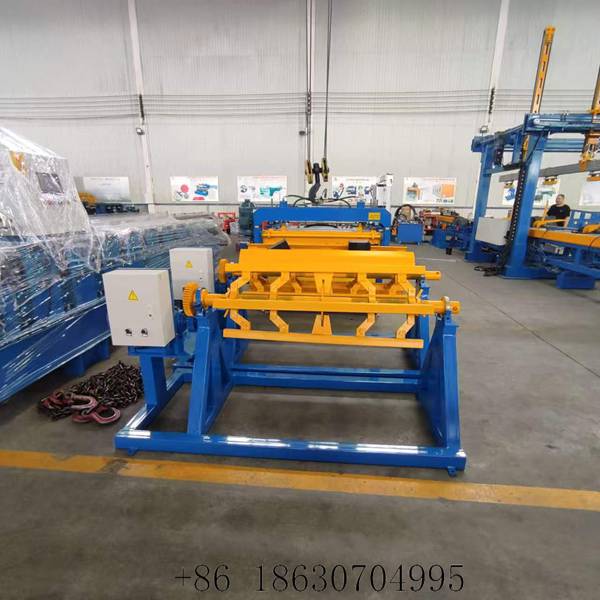

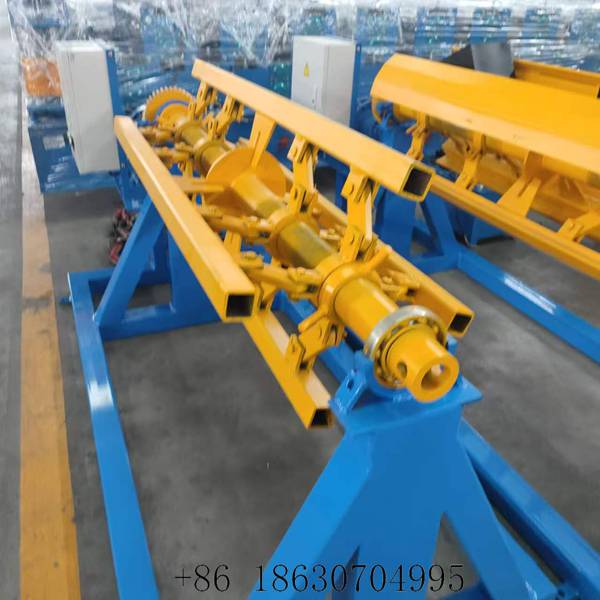

The 5-ton Powered Coil Decoiler is a high-efficiency electric uncoiler engineered by Hebei Xinnuo Roll Forming Machinery Co., Ltd. to feed color-coated, galvanized and aluminum coils continuously into downstream roll forming, color steel tile and sandwich panel production lines. By combining automatic start/stop logic with closed-loop tension control, it removes manual labor from the uncoiling stage and protects coil surface quality from the first turn to the last.

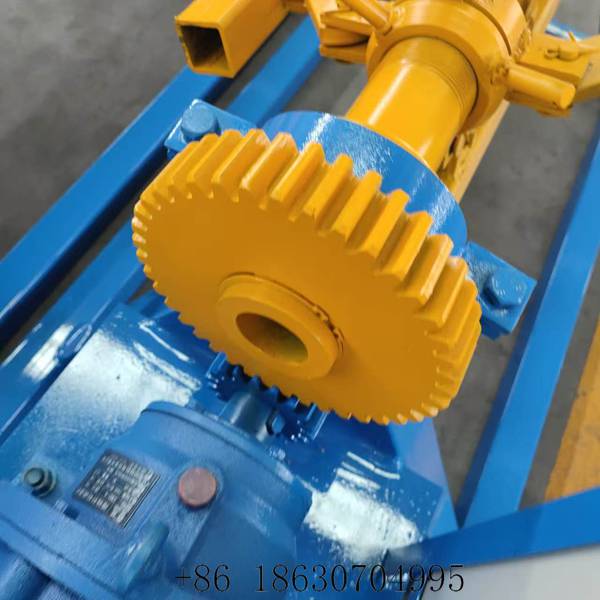

Driven by motors paired with induction frames or photoelectric sensors, the decoiler automatically starts and stops according to the running status of downstream roll forming machines, such as color steel tile or sandwich panel production lines. Compared with traditional manual decoilers, it eliminates the need for one or two dedicated workers to monitor the operation. It completely solves common problems such as delayed manual feeding, or inertial forward surging during shutdowns that cause coil loosening and surface scratches — significantly reducing labor costs while keeping the line running smoothly.
A closed-loop tension control system dynamically adjusts motor torque in real time as the coil diameter changes. When processing color-coated coils and sandwich panels, this prevents coil deviation, loose winding, surface scratches and indentations, ensuring the flatness of sheets entering the roll forming and sandwich panel machines. Stable feeding directly boosts finished product yield rates and delivers consistent, high-quality profiles batch after batch.
Engineered for versatility, the unit accepts a wide range of building material coils — color-coated steel, galvanized sheet, stainless steel and aluminum — across different widths, inner/outer diameters and strip thicknesses. Quick adjustment and re-tooling let one decoiler serve several production lines or specification changes, making it the ideal front-end feeding solution for a roll forming machine workshop or a sandwich panel production line.
This 5-ton electric decoiler pairs with our roll forming machines and sandwich panel lines as a matched feeding set. Rated coil weight reaches 5,000 kg with adjustable decoiling speed and constant tension — refer to the full parameters table below, or swipe horizontally on mobile to view every specification.
* Reference parameters; confirm with the actual product data sheet before publishing.
Swipe horizontally to view full parameters.
| Parameter | Specification |
|---|---|
| Model | XN-PD-5T |
| Rated Coil Weight | 5,000 kg (5 tons) |
| Coil Inner Diameter | Ø500 mm |
| Coil Outer Diameter (Max) | Ø1,500 mm |
| Coil Width | 100 – 1,000 mm |
| Strip Thickness | 0.2 – 1.5 mm |
| Decoiling Speed | 0 – 10 m/min (adjustable) |
| Motor Power | 4.0 kW |
| Expansion Mechanism | Hydraulic / Mechanical |
| Control Mode | Auto via induction frame / photoelectric sensor |
| Tension Control | Closed-loop constant tension |
| Power Supply | 380V / 50Hz / 3-Phase |
