Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.

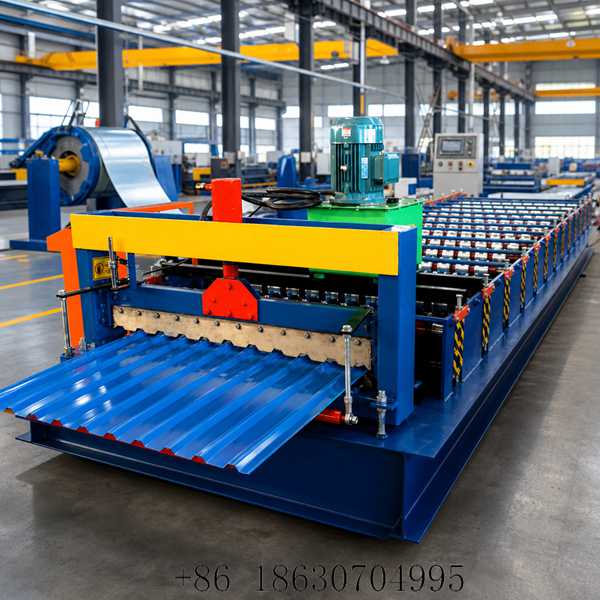

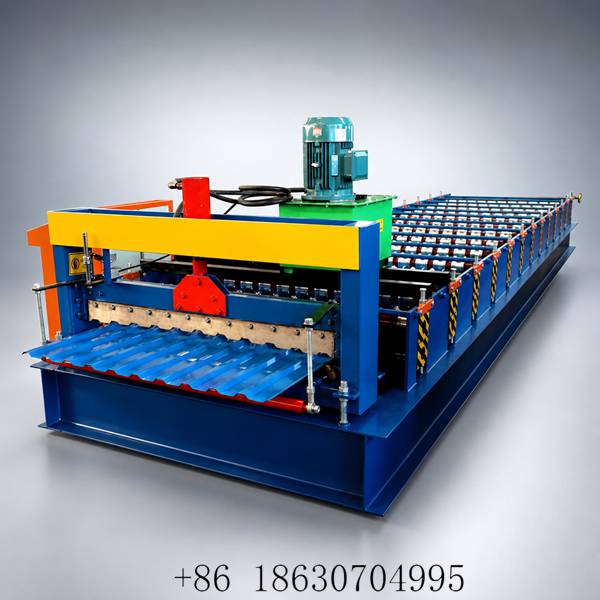

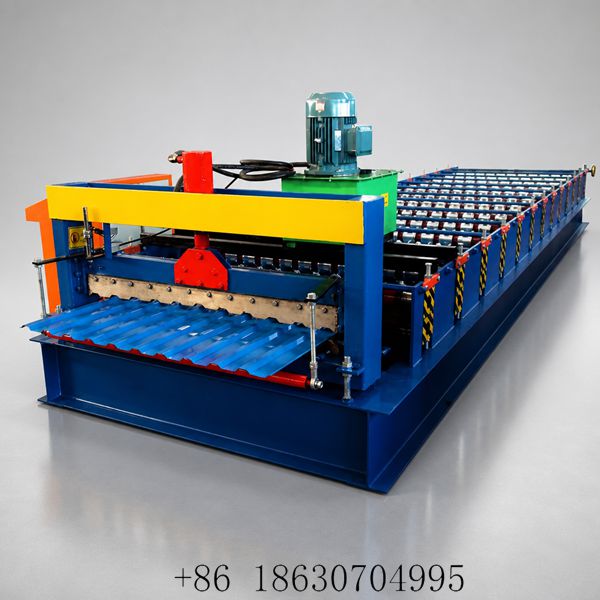

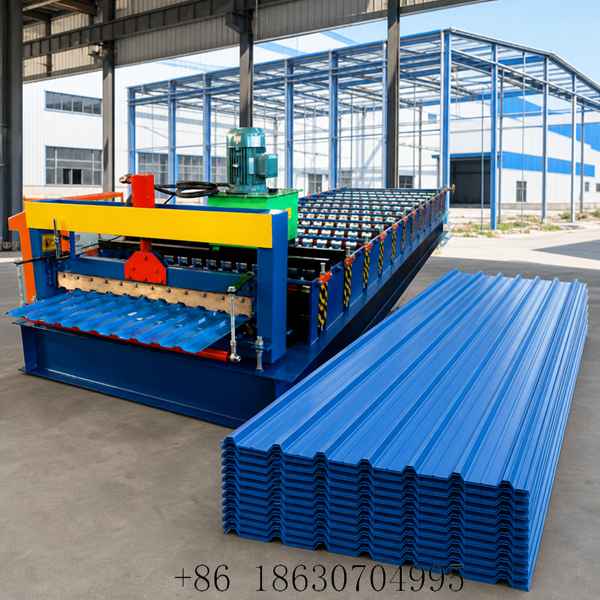

Hebei Xinnuo Roll Forming Machinery supplies premium trapezoidal roof panel roll forming machine for global metal roofing manufacturers. Our heavy-duty roll former is engineered to produce consistent trapezoidal metal roof sheets widely used in factories, warehouses, workshops and commercial building roofing projects.

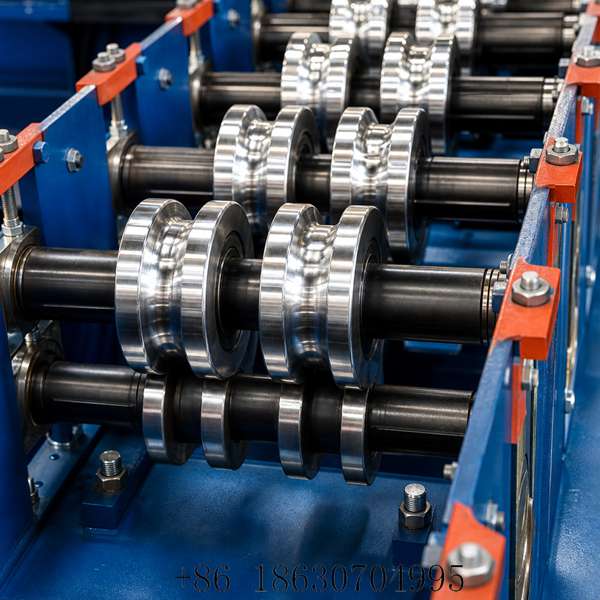

This trapezoidal panel machine adopts heavy-duty H-beam steel frame ensures stable and long-term continuous operation. Precision rollers with hard chrome plating effectively protect color-coated metal surface from scratches during forming. Progressive multi-pass forming structure creates uniform trapezoidal profile for every finished panel. It is equipped with PLC + HMI touch screen system for easy setting of cutting length, production quantity and running speed. Automatic encoder length measuring and hydraulic cutting unit delivers cutting accuracy within ±1-1.5mm to greatly reduce material waste.
The machine maintains stable forming speed to meet mass production demand of roofing sheets. It can process multiple raw materials including PPGI, GI, GL, aluminum coil and other metal coils. We support customizable trapezoidal profile, effective width and rib height according to client’s drawing requirements. Chain drive system with solid 45# steel shafts guarantees reliable power transmission during long-hour running. CE/ISO available configuration is optional for overseas markets.
We provide full set services: professional on-site installation guidance, operator training and complete after-sales support. You may also check our C/Z purlin roll forming machine and metal deck roll forming machine for more metal forming solutions.
Swipe horizontally to view full parameters.
| Item | Specification |
|---|---|
| Machine Name | Trapezoidal Roof Panel Roll Forming Machine |
| Frame | Heavy-duty H-beam steel |
| Rollers | Hard chrome plated precision rollers |

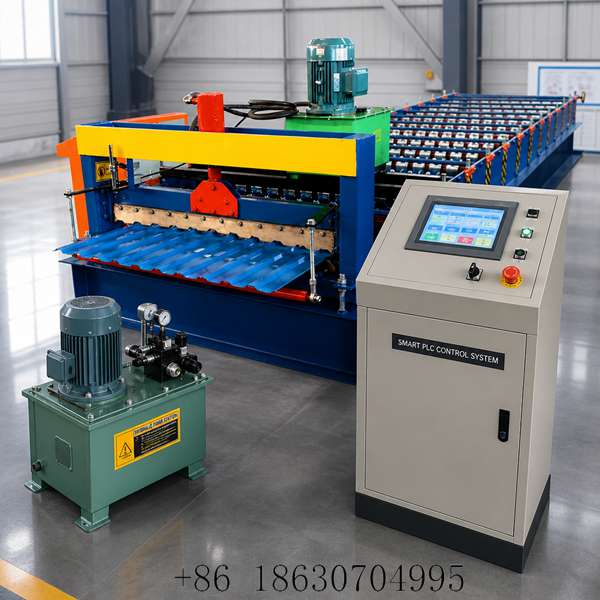

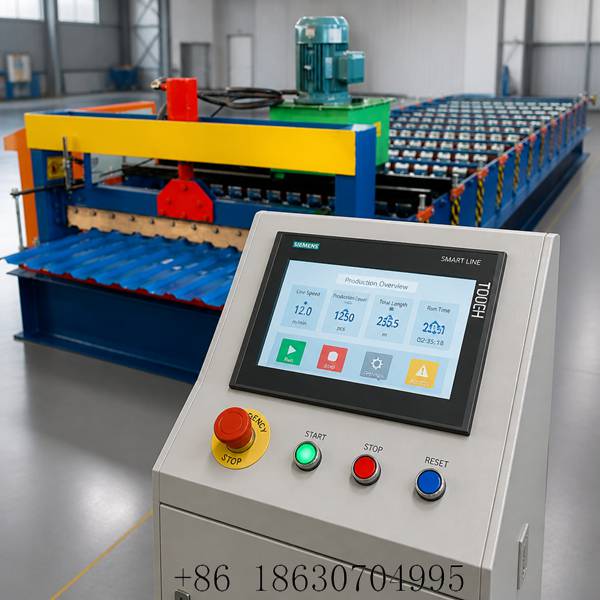

| Control System | PLC + HMI touch screen |

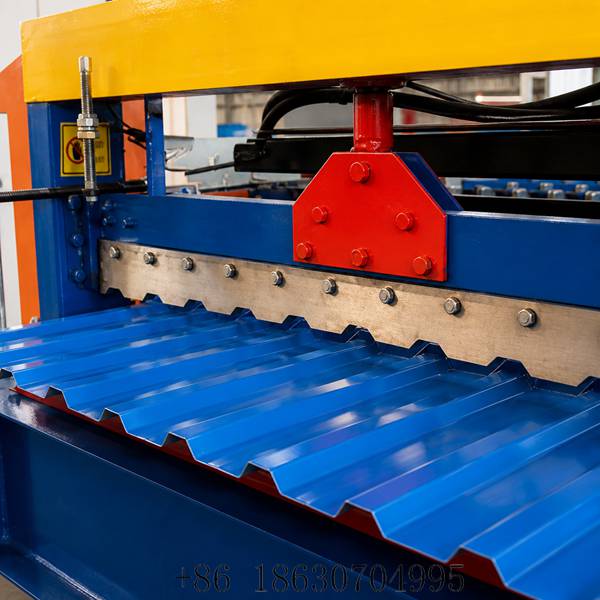

| Cutting Type | Hydraulic cutting with encoder length measurement |
| Cutting Tolerance | ±1~1.5 mm |
| Available Raw Material | PPGI, GI, GL, aluminum coil |

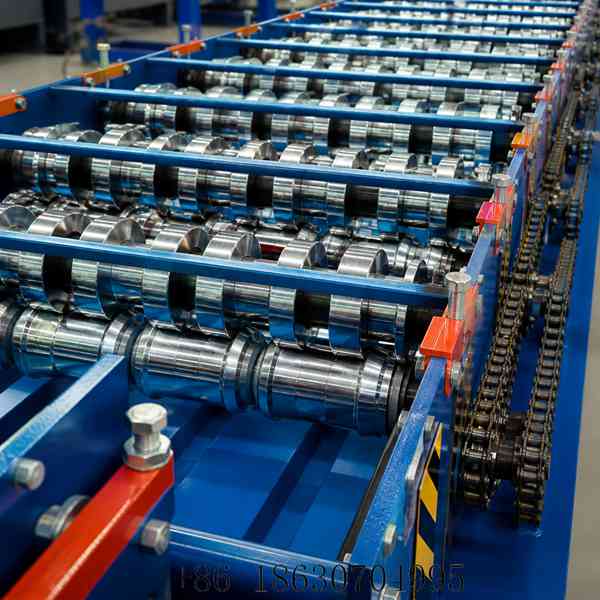

| Drive Type | Chain drive, solid 45# steel shafts |
| Certification | CE / ISO optional |
| Customization | Trapezoidal profile, effective width & rib height customizable |
Contact Hebei Xinnuo Roll Forming Machinery for detailed drawings, quotation and technical support of trapezoidal roof panel roll forming machine.
