Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.

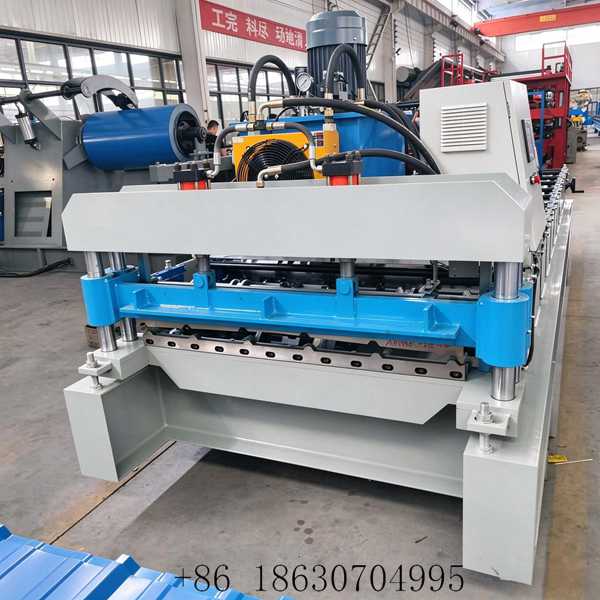

Hebei Xinnuo Roll Forming supplies reliable 1090 Trapezoid Roof Sheet Roll Forming Machine for industrial and commercial roofing projects. This equipment produces trapezoidal roof panels with a 1090mm effective covering width, which greatly reduces overlapping seams during large-area roof installation. Less overlaps mean lower raw material waste and fewer on-site workers, bringing outstanding cost advantages for warehouses, factories and commercial buildings. You can also check our C/Z purlin roll forming machine and downspout roll forming machine for complete metal roofing system solutions.

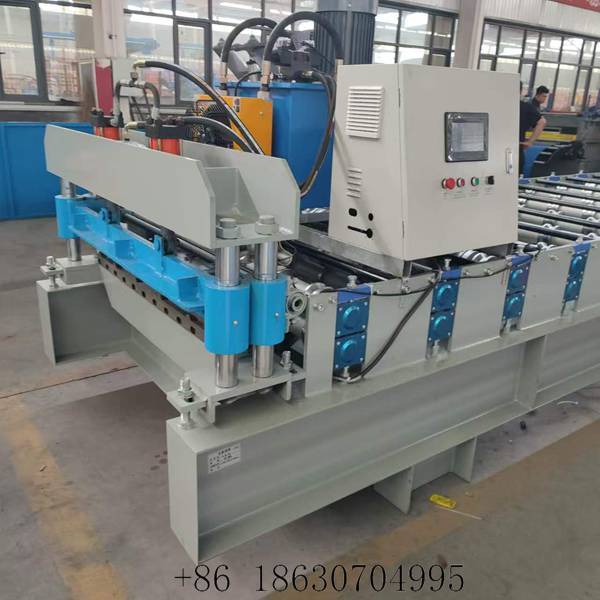

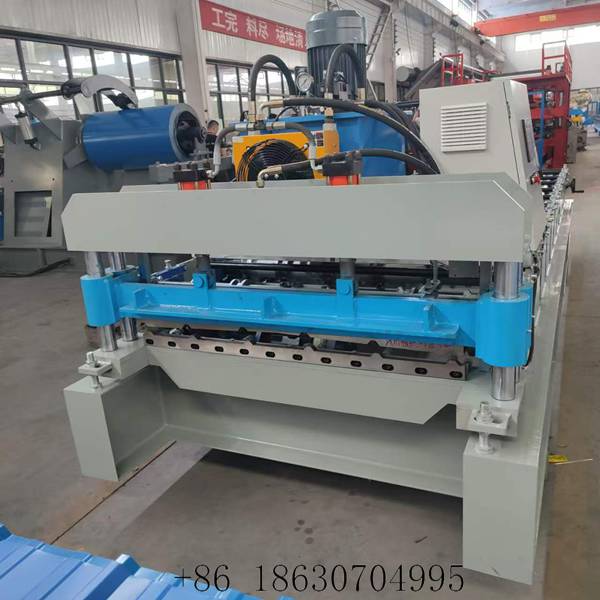

The machine adopts heavy-duty welded H-beam steel frame, optional 300-450H steel with stress-relief treatment. It keeps stable without shaking or deformation under continuous high-speed running, even forming thicker metal coils. 70-90mm diameter 45# forged steel shafts with double bearing support guarantee stable dimension accuracy and straight panels in long batch production.

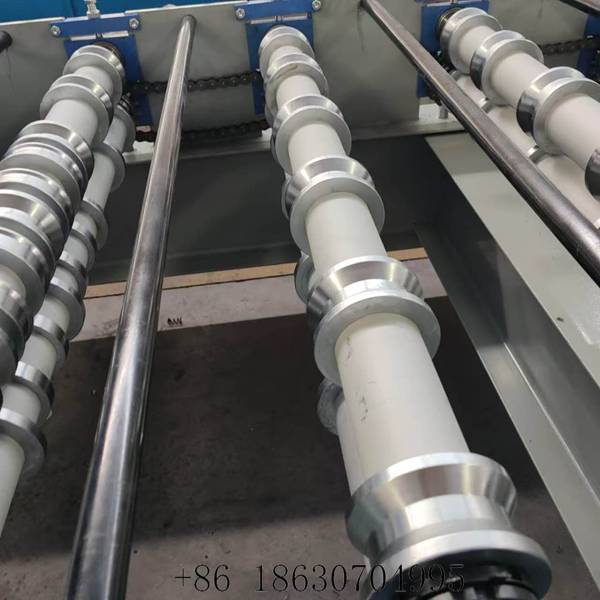

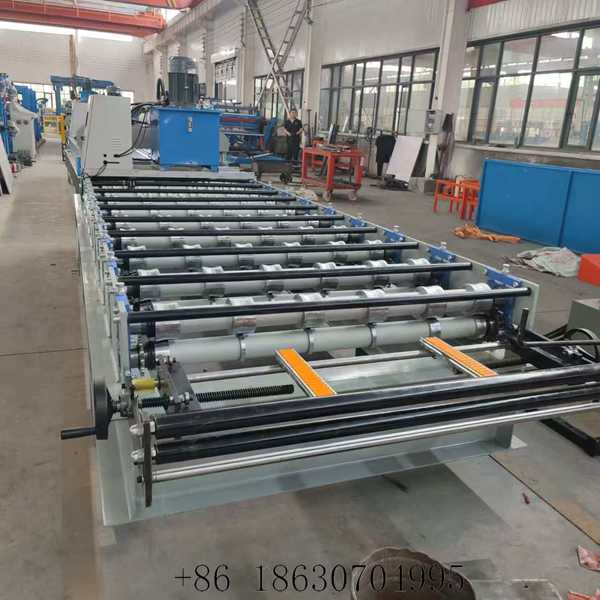

Forming rollers are precision CNC machined from high grade 45# forged steel or GCr15 bearing steel, coated with 0.05mm hard chrome. Progressive step forming design protects coated metal sheets. It avoids scratches, twisting and paint peeling on PPGI, PPGL and aluminum coils, making neat overlapping edges. Our roll forming equipment can handle different metal thickness according to your project requirements.
Swipe horizontally to view full parameters.
| Item | Specification |
|---|---|
| Product Name | 1090 Trapezoid Roof Sheet Roll Forming Machine |
| Effective Covering Width | 1090mm |
| Frame Material | 300-450H Welded H-beam, stress relieved |
| Shaft Diameter | 70~90mm, 45# forged steel |
| Roller Material | 45# forged steel / GCr15, hard chrome plated 0.05mm |
| Suitable Material | PPGI, PPGL, Aluminum coil |
All our machines are fully assembled and tested before shipment. Hebei Xinnuo provides after-sale support, installation guidance and technical consultation worldwide. Contact us for factory price and customized roll forming solutions.
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
