Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.
Hebei Xinnuo Roll Forming Machinery Co., Ltd. is a professional manufacturer specializing in customized cold roll

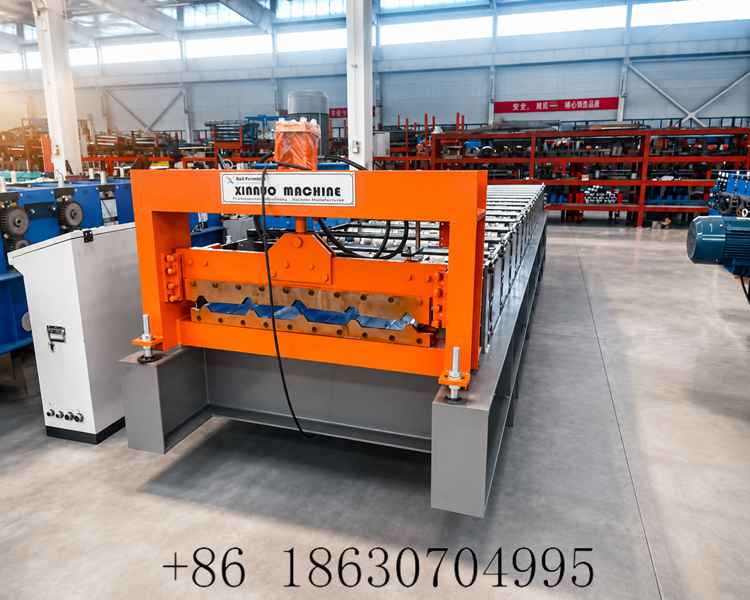

forming equipment for construction metal panels. Our 840 IBR roof sheeting machine is a mature trapezoidal metal
roof panel production line, widely recognized by global construction material manufacturers for stable running, simple
operation and long service life.

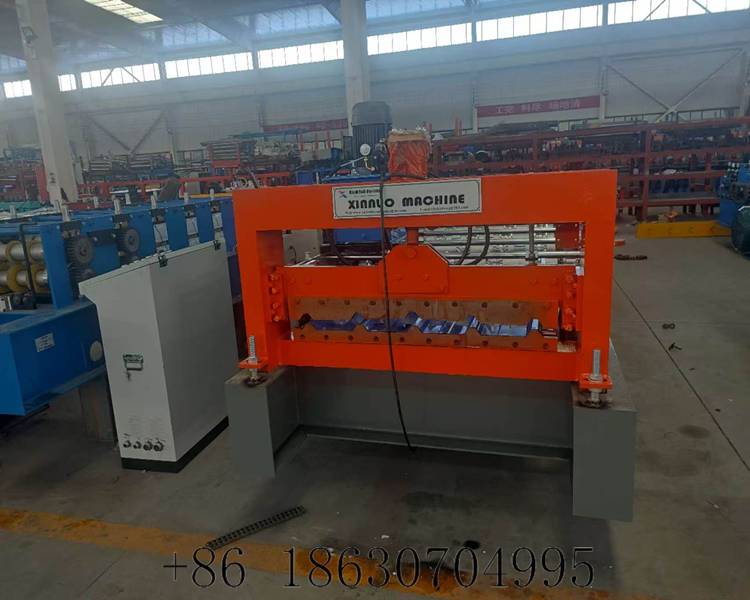

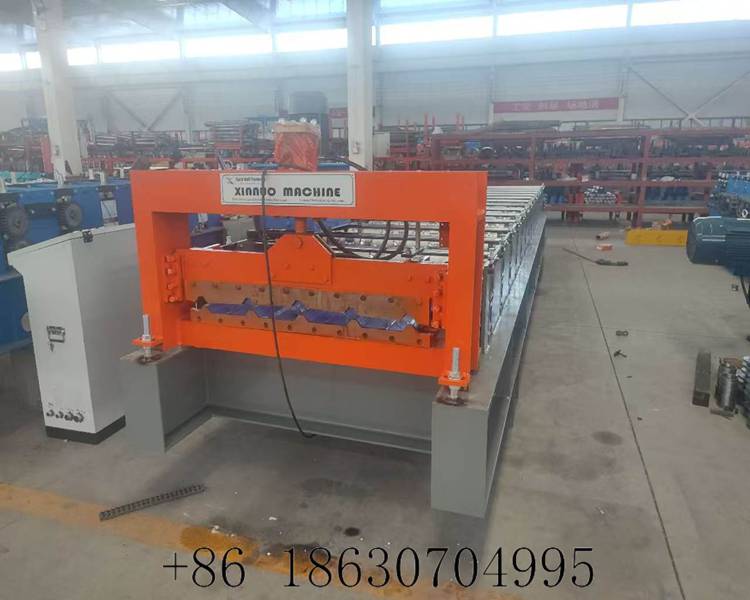

This IBR roll former produces standard 840mm width trapezoidal metal roof sheets with neat embossing, uniform
ripple height and smooth cutting surface. It supports raw materials including galvanized steel coil, color coated steel
coil and aluminum coil, with thickness ranging from 0.3mm to 0.8mm, fully meeting the production demands of most
building material factories.
The finished panels processed by our 840 IBR roof sheeting machine own extremely wide application scenarios. For
large-span steel structure buildings, such as industrial workshops, logistics warehouses and locomotive garages, the
trapezoidal roof sheets feature excellent waterproof, wind-resistant and load-bearing performance, perfectly serving
large-area roofing projects. Meanwhile, the metal panels also act as decorative wall and roof materials for civil buildings,
sports stadiums, exhibition halls and new rural villas, bringing neat and modern architectural visual effects.
One outstanding advantage of this equipment is its expandable matching function. When connected with an arch
bending machine, the 840 IBR roof sheets can be processed into beamless arched roofs, greatly enriching the diversity
of architectural styles and helping customers expand more business orders. The whole line adopts full hydraulic drive
system, controlled by PLC automatic program, which realizes automatic feeding, forming, counting and fixed-length
cutting without manual intervention.

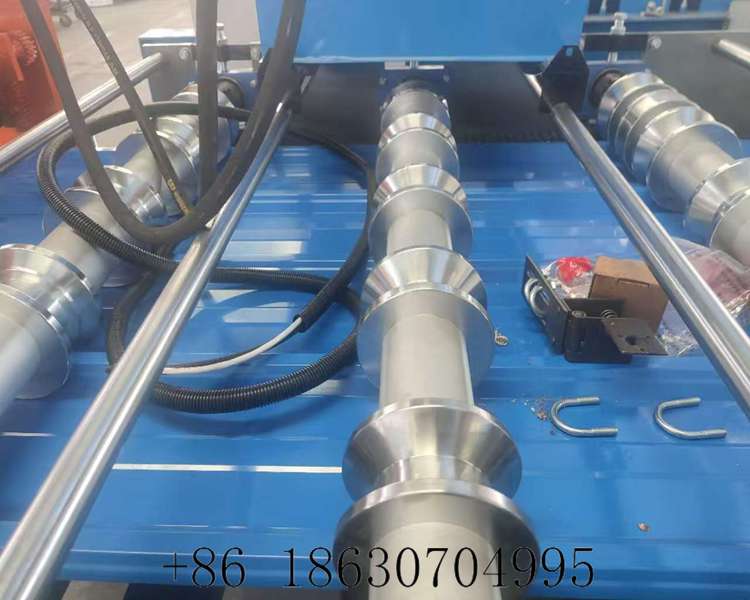

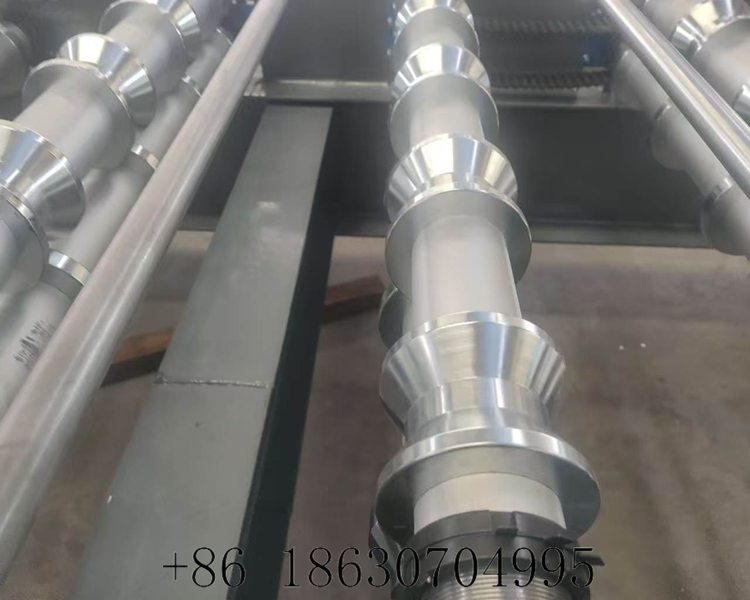

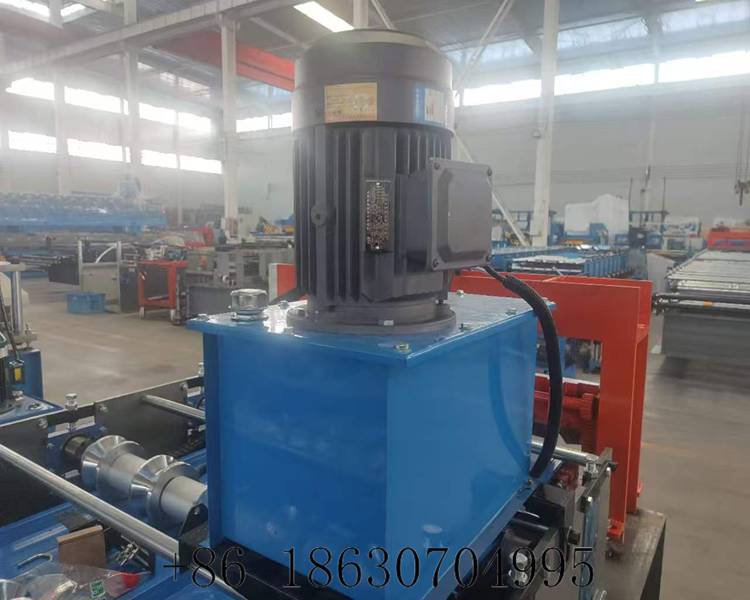

All core components such as forming rollers, cutting blades and hydraulic pump station are made of high-strength
alloy steel with quenching treatment, effectively reducing wear and lowering maintenance costs in long-term production.
Our factory provides one-stop services including machine design, production test, overseas installation guidance and
multi-year after-sales warranty, supporting global dealers and factory clients to build stable metal panel production lines.
| Item | Technical Specification |
|---|---|
| Product effective width | 840mm |
| Suitable raw material | Color steel coil, galvanized coil, aluminum coil |
| Material thickness range | 0.3–0.8 mm |
| Forming speed | 15–20 m/min |
| Main motor power | 5.5 KW |
| Hydraulic cutting power | 3 KW |
| Control system | PLC automatic control, touch screen operation |

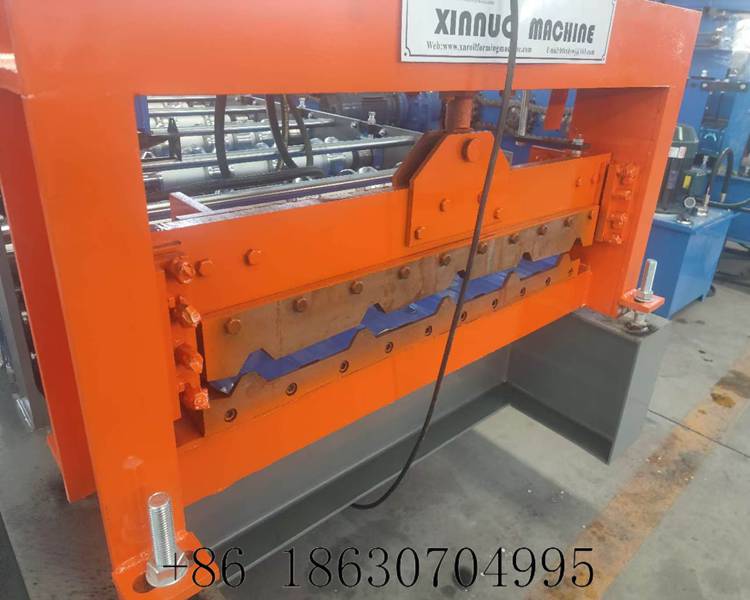

| Cutting way | Hydraulic fixed-length cutting |
| Roller material | 45# steel with hard chrome plating |
| Whole machine weight | About 3.2 Tons |
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
