Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.

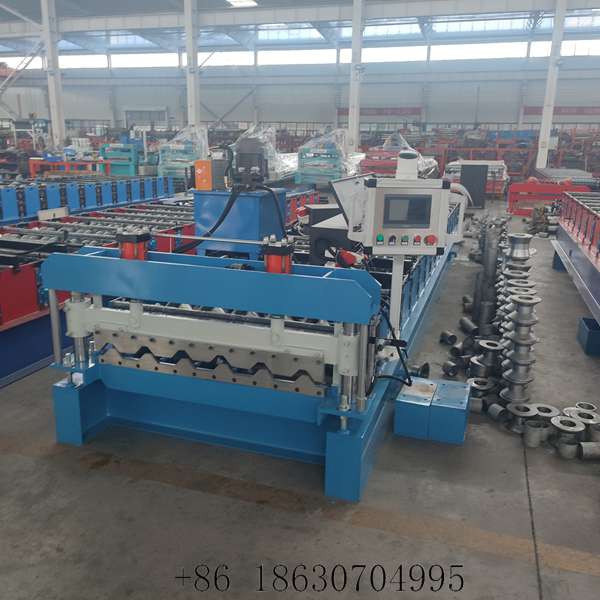

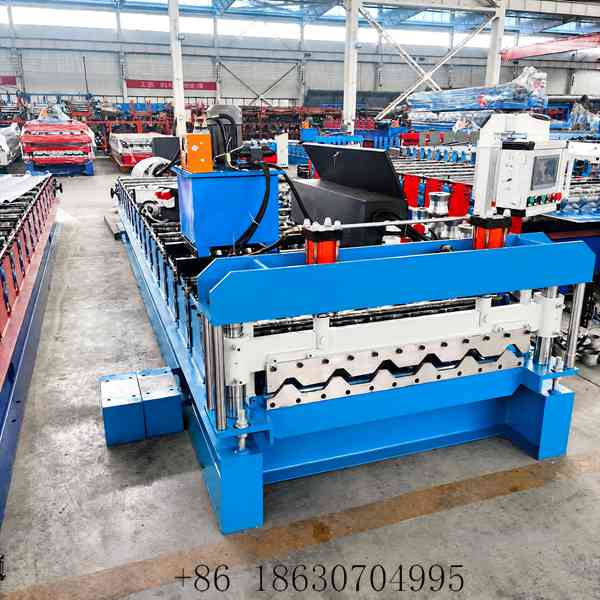

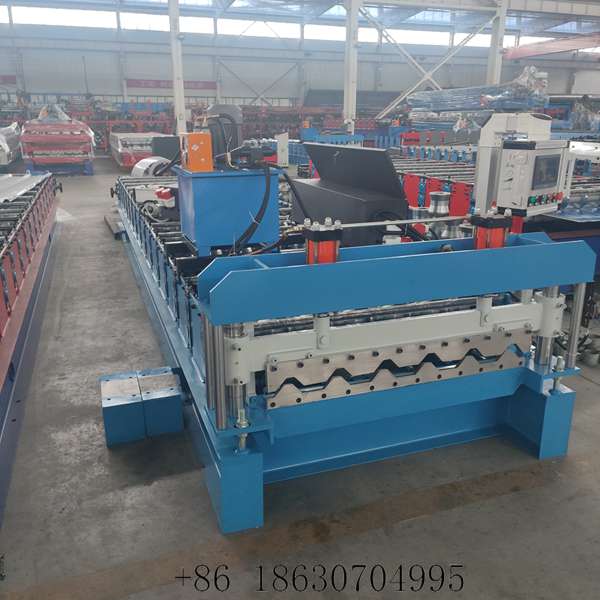

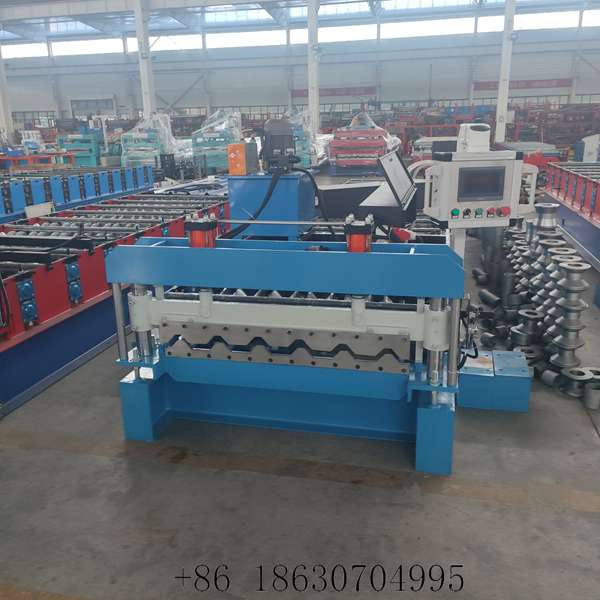

Hebei Xinnuo Roll Forming Machinery Co., Ltd. (XINNUO), located in Botou, Hebei — the heart of China's cold roll forming industry — has specialized in roll forming equipment for more than 30 years, with an annual output of over 3,000 sets and exports to more than 140 countries and regions. This 980 IBR roll forming machine for sale is specially designed for producing 980mm effective-width trapezoidal metal roofing panels with consistent profile dimensions, covering roofs, walls and cladding applications for warehouses, factories and residential buildings.

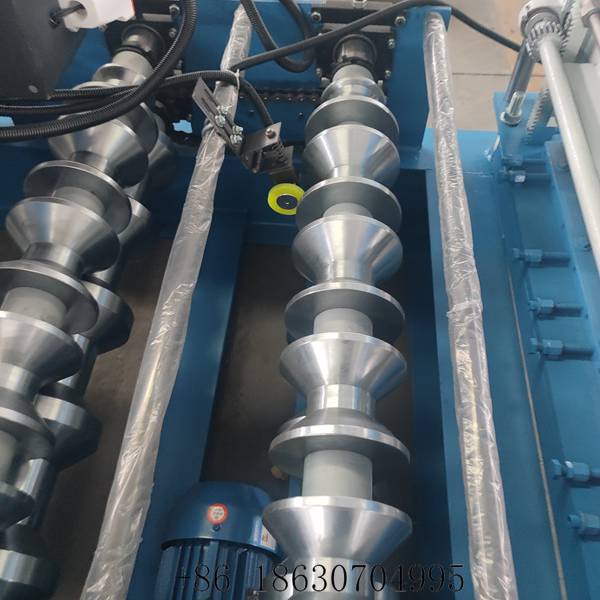

High-precision roll forming comes from precision-engineered forming rollers, which ensure smooth and accurate panel shaping with excellent dimensional consistency. Every panel leaves the machine with a clean, uniform trapezoidal profile that fits tightly with the next sheet on site, making installation faster and reducing material waste. The 980mm effective width matches standard purlin spacing, maximizing coverage per sheet and lowering overall roofing costs. Optimized forming stations provide efficient continuous production while maintaining stable forming quality, so the line keeps running at pace even on long working days.

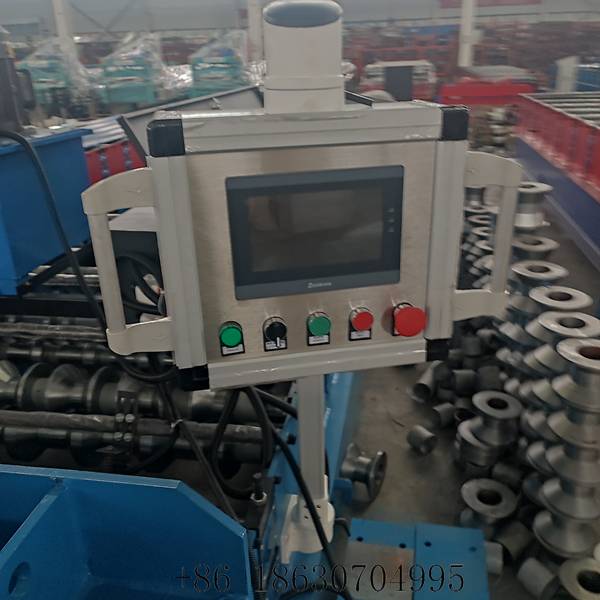

Built on a heavy-duty machine frame with high-quality components, the machine supports long-term continuous operation without frequent breakdowns. The forming rollers are mounted on precision shafts with reliable bearings, and the hydraulic cutting system trims each panel to the exact length set by the operator. PLC intelligent control with a touch screen allows easy setting of panel length, production quantity and operating parameters, so one worker can manage the whole line safely and conveniently. Simple parameter storage also lets operators recall previous job settings instantly, cutting setup time between orders.
The machine accepts galvanized or color-coated steel coil and is widely used in metal building projects. For related equipment, browse our Trapezoidal Sheet Roll Forming Machine category, or visit the Roof Sheet Making Machine collection for complete roofing production solutions.
Send us your coil width, material thickness and panel length requirements, and our engineers will configure the forming stations, cutting system and voltage for your project.
| Parameter | Specification |
|---|---|
| Machine type | 980 trapezoidal metal roof panel roll forming machine |
| Produced profile | 980mm effective-width trapezoidal (IBR) roofing panel |
| Effective width | 980 mm |
| Cover width (approx.) | 1000 mm |
| Suitable material | Galvanized / color-coated steel coil |
| Material thickness | 0.3 – 1.0 mm (customizable) |

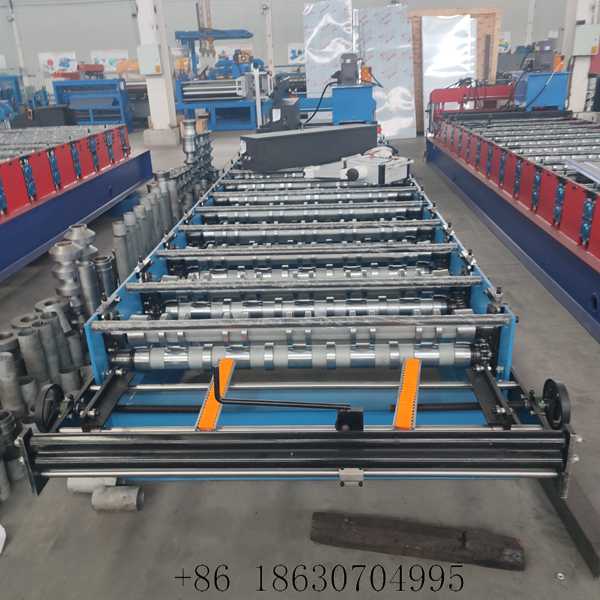

| Forming stations | 12 – 18 rows |
| Machine frame | Heavy-duty welded steel frame |
| Shaft diameter | Φ70 – Φ90 mm (45# steel) |
| Production speed | 15 – 25 m/min |
| Cutting method | PLC fixed-length hydraulic cutting |
| Control system | PLC + touch screen |

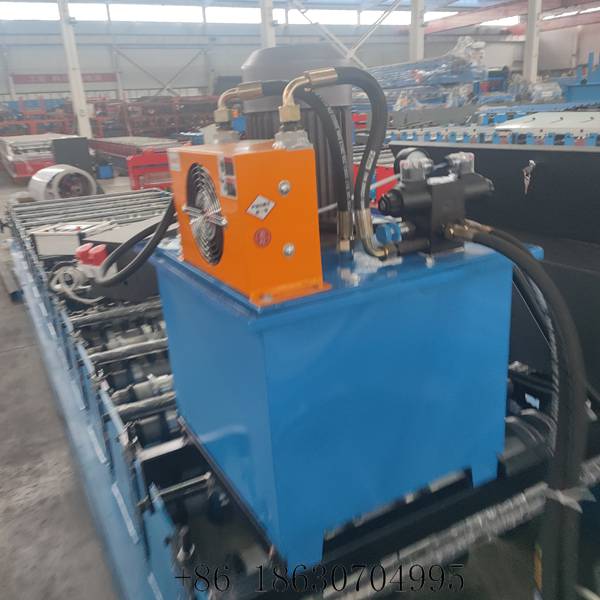

| Hydraulic system | Hydraulic pump station |
| Voltage | 380 V / 50 Hz (customizable) |
| Machine weight (approx.) | 6 – 8 t |
| Warranty | 1 year |
Swipe horizontally to view full parameters.
