Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.
A heavy-duty roll forming solution purpose-built for Brazil's tropical-rainy coastal climate. Sandblasted anti-corrosion frame, IP54-sealed electrics, and moisture-proof drive components ensure decades of uninterrupted production in high-humidity, salt-laden environments.

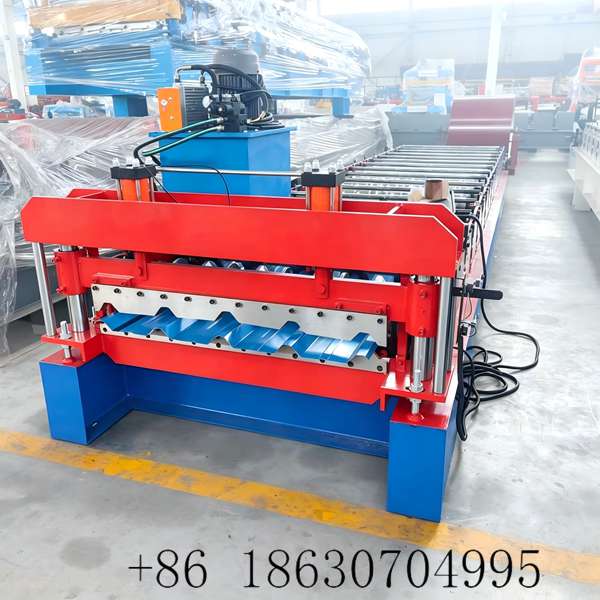

Brazil's construction market demands roofing profiles that combine structural strength with rapid installation. The 1020 IBR trapezoidal profile — with 1020 mm effective coverage and deep-rib geometry — delivers just that. Our 1020 IBR roll forming machine converts galvanized or color-coated steel coil (0.3–0.8 mm thickness, up to 1220 mm feed width) into finished roofing sheets at 10–20 m/min, making it the workhorse choice for warehouses, agricultural sheds, and large-scale residential projects across Brazil.
Browse our full metal roofing machine collection to compare models, or learn more about Xinnuo's 30-year manufacturing heritage and our presence in 140+ countries.
From Salvador to Recife, Brazil's coastal humidity, monsoon-intensity rainfall, and airborne salt put ordinary roll forming machines at severe risk of rust, electrical failure, and roller seizure. The Xinnuo 1020 IBR machine is engineered to defeat these conditions at every layer:

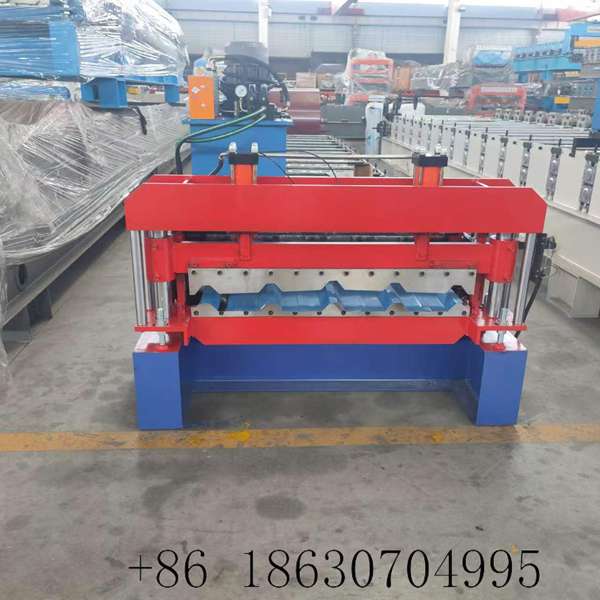

The entire 350H steel frame undergoes sandblasting to SA 2.5 grade, followed by two coats of high-adhesion anti-corrosion primer and finish paint. Rust penetration is blocked at the substrate level.

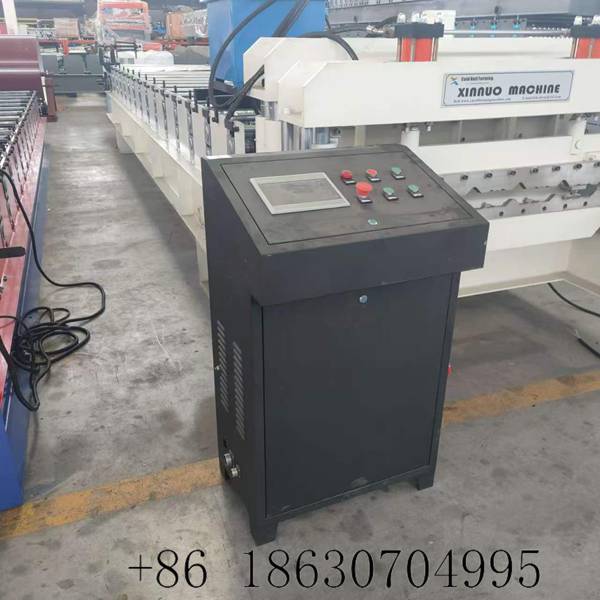

Dust-tight and protected against splashing water from any direction. Siemens/Mitsubishi PLC and all contactors operate in a dry, temperature-stable enclosure even during torrential rainy-season downpours.

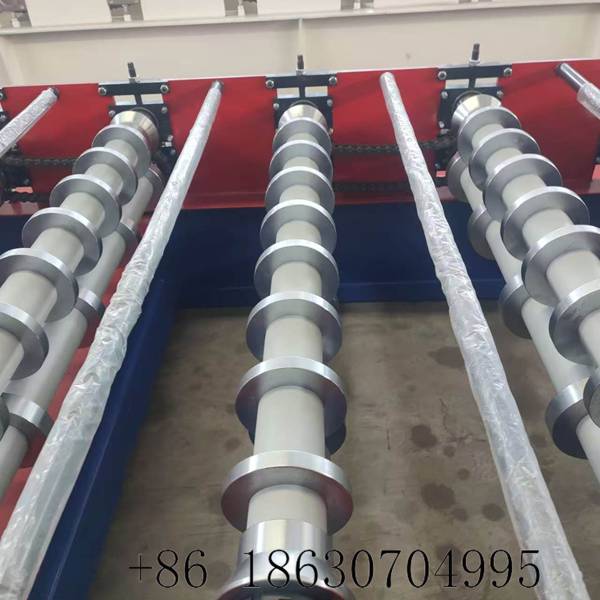

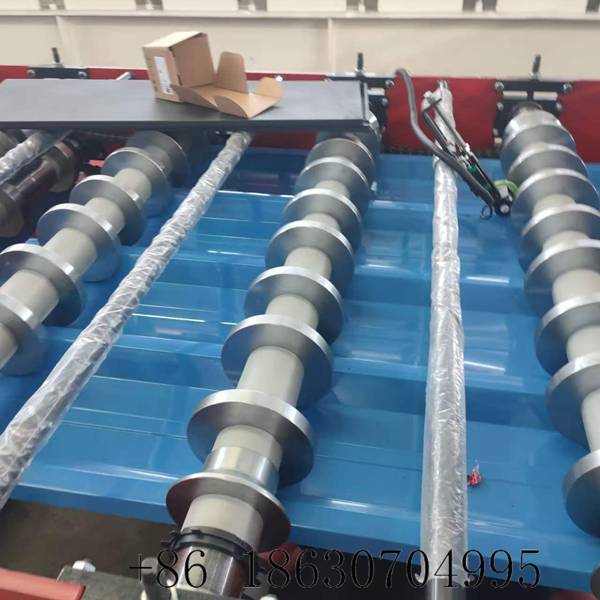

GCr15 bearing steel rollers with hard chrome plating (>0.05 mm) and mirror polishing create an impermeable surface. Chains and sprockets receive anti-rust oil treatment before shipping, ensuring smooth first-start in high-humidity workshops.
45# steel shafts (Φ75 mm), 1-inch double-row industrial chain, and sealed bearing housings resist the corrosive cocktail of heat, moisture, and coastal salt that destroys standard outdoor equipment within months.
The result: a machine that runs season after season in open-sided factory bays across Brazil's northeast coast — no rusted rollers, no seized chains, no electrical trip-outs. Just consistent, profitable output.
| Parameter | Specification |
|---|---|
| Profile Type | 1020 IBR trapezoidal (YX28-204-1020) |
| Effective Coverage Width | 1020 mm |
| Feed Coil Width | 1200–1220 mm |
| Material Thickness | 0.3–0.8 mm (galvanized / color-coated / Al-Zn steel) |

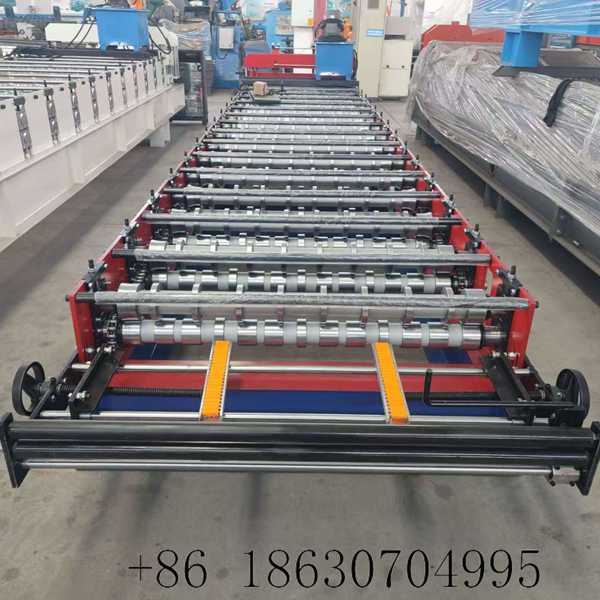

| Forming Rows | 14–16 rows |
| Frame | 350H structural steel, sandblasted + double-layer anti-rust paint |
| Shaft Diameter | Φ75 mm, 45# precision-ground steel |
| Roller Material | GCr15 bearing steel, HRC58–62, hard chrome plated ≥0.05 mm, mirror polished |
| Main Motor Power | 5.5 KW, 380V / 50Hz / 3-phase (customizable) |
| Transmission | 1-inch double-row industrial chain drive |

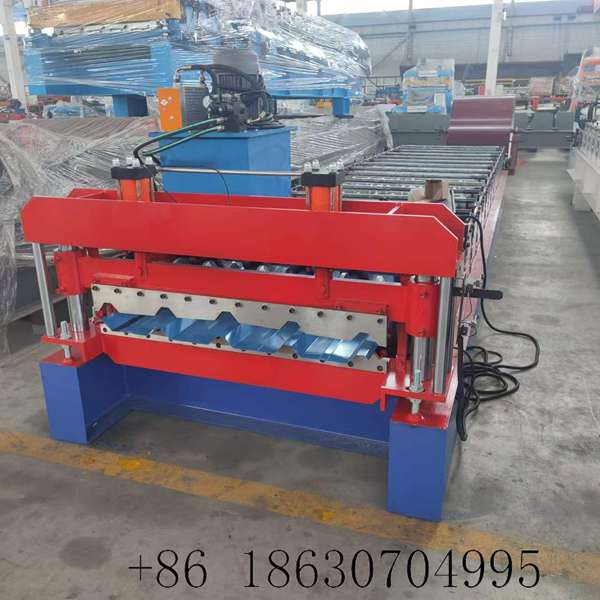

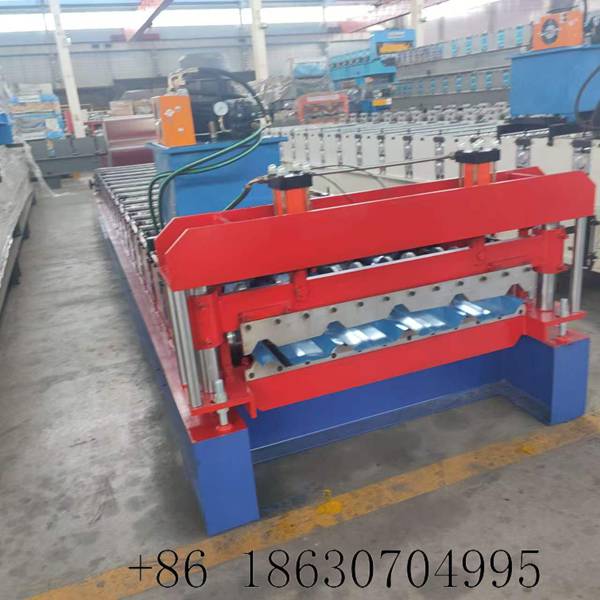

| Cutting System | Hydraulic shear, Cr12MoV blade, post-cutting (flying shear optional) |

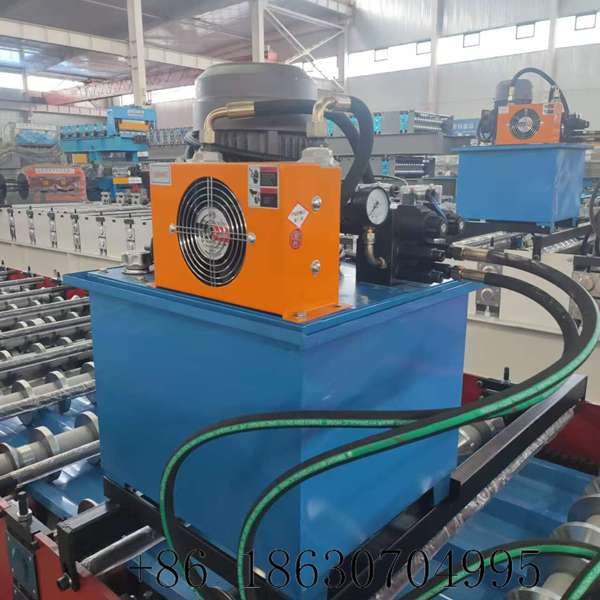

| Hydraulic Power | 4 KW hydraulic station |
| Control System | Siemens / Mitsubishi PLC + 7" touch screen HMI |
| Electrical Enclosure | IP54 dustproof & splash-water protected |
| Forming Speed | 10–20 m/min (high-speed 25–40 m/min optional) |

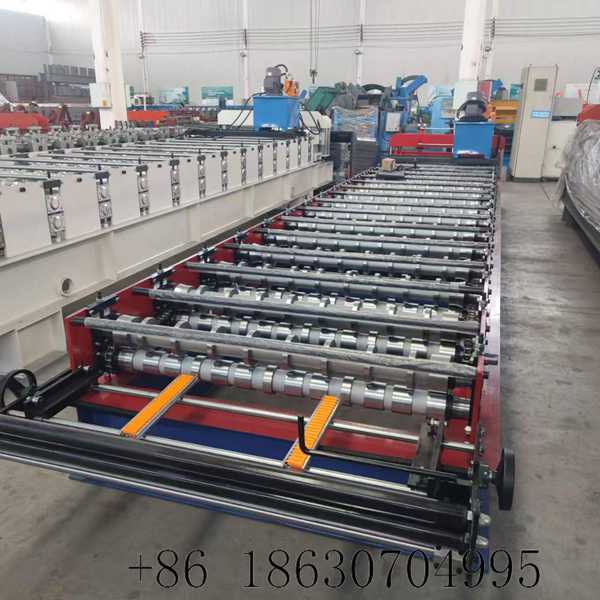

| Coil Capacity | 5-ton manual / hydraulic decoiler, ID 460–508 mm |
| Machine Dimensions (L×W×H) | Approx. 10,500 × 1,400 × 1,250 mm |
| Machine Weight | Approx. 6–7 tons |
| Certification | CE, ISO 9001 |
Switch between 1020 mm and 816 mm effective widths with minimal roller adjustment, giving you two roof profiles from a single machine investment.
Input sheet quantity and length on the touch screen — the PLC handles batch counting, auto-shearing, and fault diagnostics without operator intervention.
Cr12MoV tool steel blade with heat treatment to HRC60+ ensures clean, burr-free cuts through thousands of sheets before requiring sharpening.
Ships as a pre-assembled unit. Our engineers provide remote commissioning guidance and operator training, with optional on-site installation available for Brazil.
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
