Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.

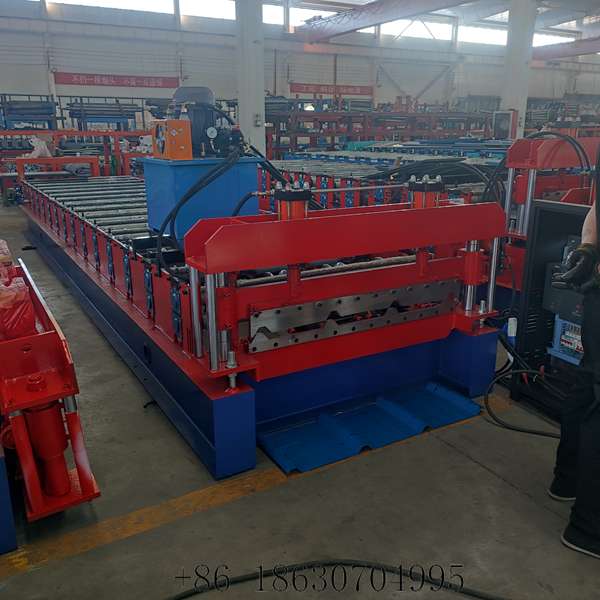

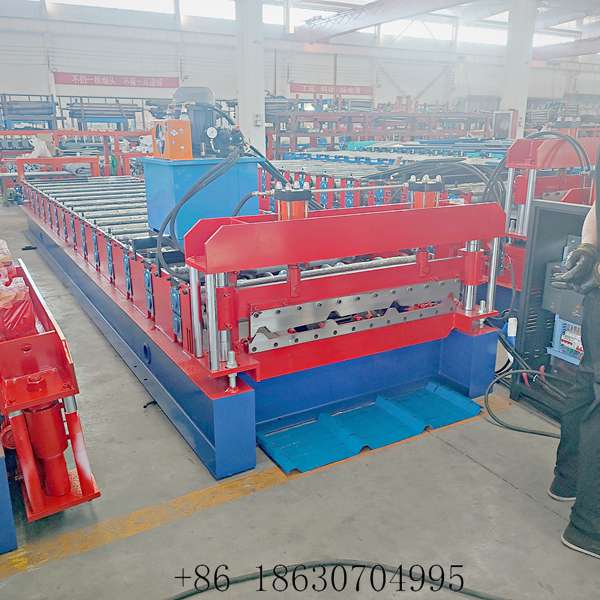

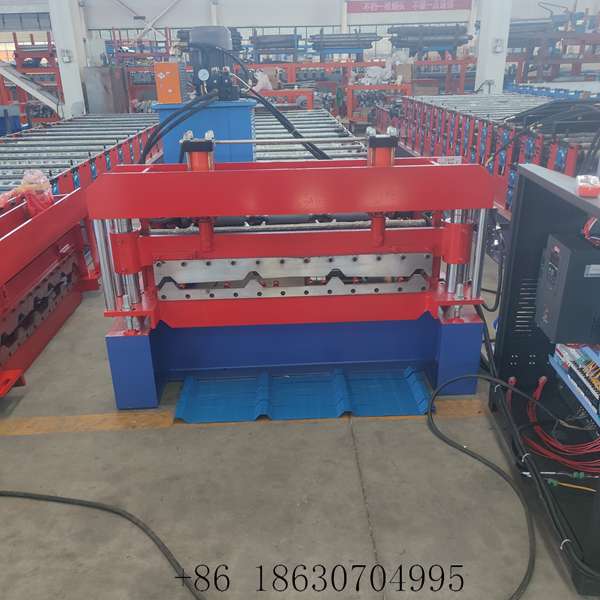

Hebei Xinnuo Roll Forming Machinery Co., Ltd. (XINNUO) has built cold roll forming equipment since 1995 and exported roofing machinery to more than 140 countries. This page introduces our 1050 trapezoidal metal roof panel forming machine — a heavy-duty IBR roof sheet forming machine for steel structure workshops, warehouses and prefabricated factory buildings.

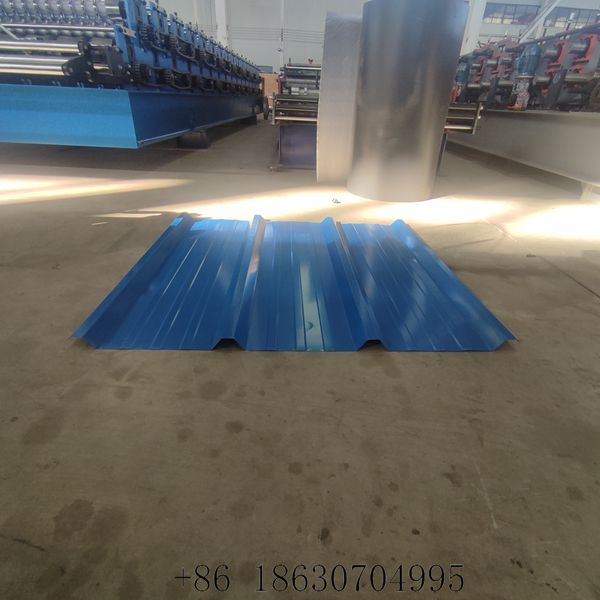

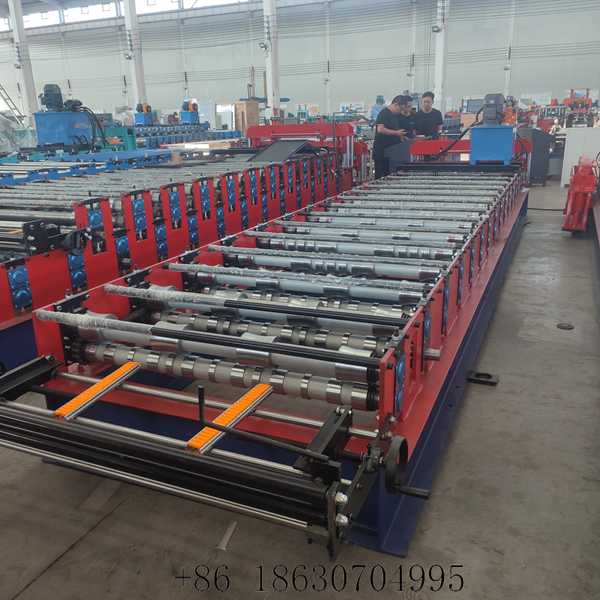

The line rolls a 1000 mm effective width trapezoidal panel from coated steel coil. Because the trapezoidal profile performs equally well as a roofing sheet and a wall panel, one machine supplies both the roof and the walls of the same project, so contractors keep fewer profiles on site and simplify stock planning.

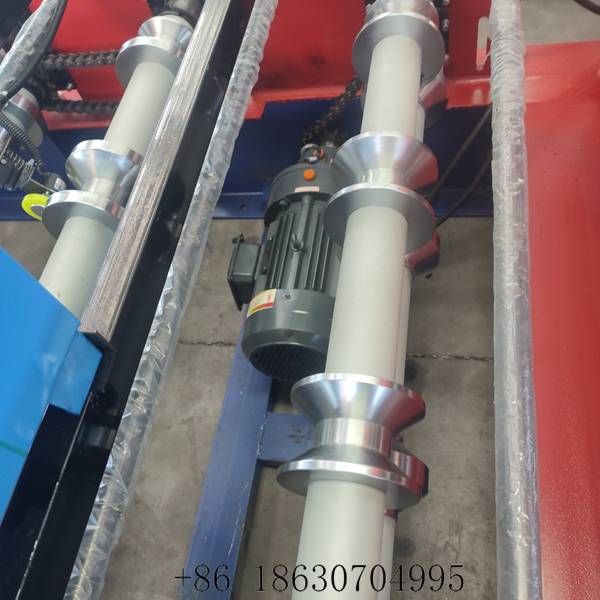

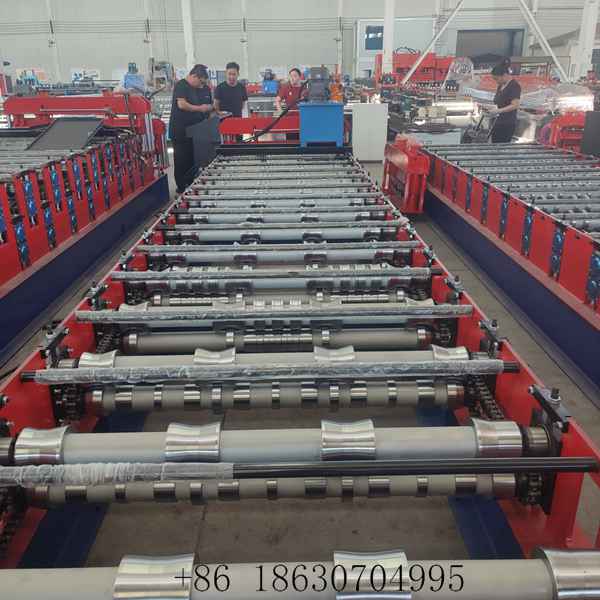

All forming rollers are hard chrome plated and precision ground, so they glide over the steel instead of biting into it. Pre-painted PPGI coil leaves the line unmarked — no roller marks, no scratches and no polishing lines on the finished sheet, which protects both the paint appearance and the cladding warranty.

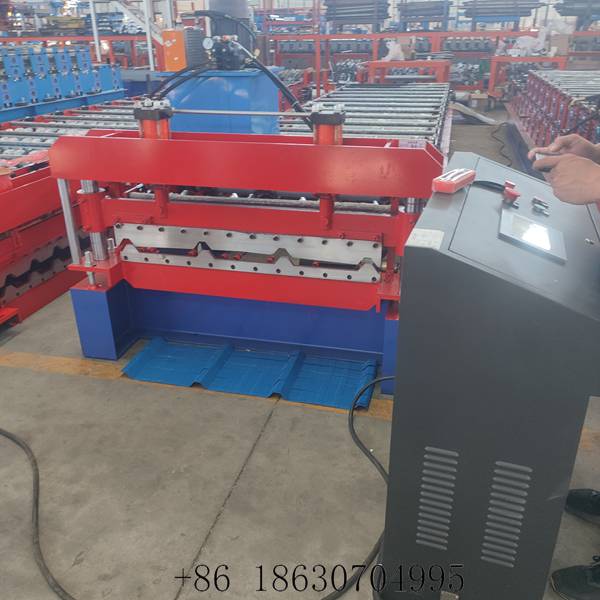

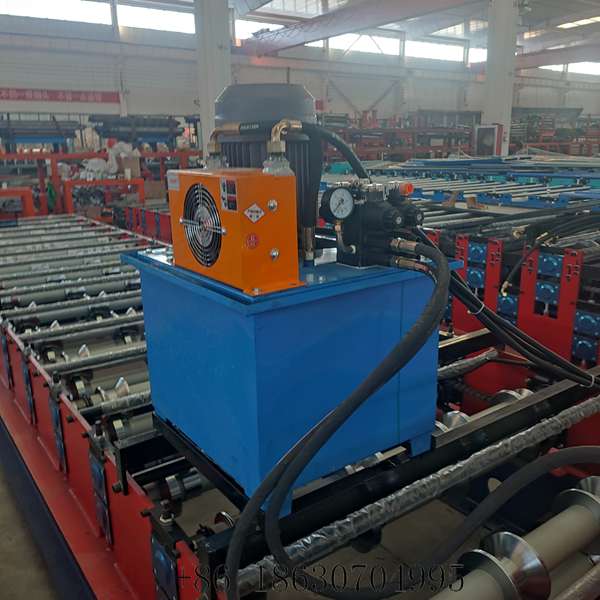

Operation is simple and repeatable. A PLC with touch screen control governs the line: the operator enters the panel length and quantity, then the machine cuts every sheet automatically and counts the finished pieces. Panels stay identical from the first sheet to the last, and a new operator can be trained within one shift.
The heavy welded steel frame carries the shaft and roller assemblies with minimal vibration, holding the profile accurate at full line speed and giving the machine a long service life. The line accepts PPGI, GI and GL steel from 0.3 mm to 0.8 mm thick. CE certification is available, and we support overseas installation, commissioning and operator training, with long-term spare parts supply.
To compare other profiles and complete production solutions, browse our full Trapezoidal Sheet Roll Forming Machine collection and the wider Roof Sheet Making Machine range. Send us your profile drawing, coil width, required panel length and daily output — our engineers will recommend the right configuration for your market.
| Parameter | Specification |
|---|---|
| Model | 1050 trapezoidal roof panel forming machine |
| Effective width | 1000 mm |
| Profile | Trapezoidal (IBR) roof and wall panel |
| Application | Steel structure workshop roof and wall |
| Suitable material | PPGI / GI / GL steel |
| Material thickness | 0.3 - 0.8 mm |
| Forming rollers | Hard chrome plated, no scratch |
| Control system | PLC touch screen, auto cutting and counting |
| Main frame | Heavy welded steel frame |
| Certification | CE available |
| After-sales | Overseas installation and training |
| Customization | Built to customer drawing |
Swipe horizontally to view full parameters.
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
