Hebei Xinnuo Roll Forming Machinery Co., Ltd. is a high-tech & specialized new enterprise with nearly 30 years of experience in metal cold-forming equipment. Founded in 1995 and located in Botou, Hebei, the company covers over 100,000 m² with two modern factories, more than 150 skilled employees, and a professional R&D team of 12 engineers. It has passed ISO certification and holds 10+ invention patents, being honored as a National High-Tech Enterprise and Hebei Provincial Specialized & Innovative SME.

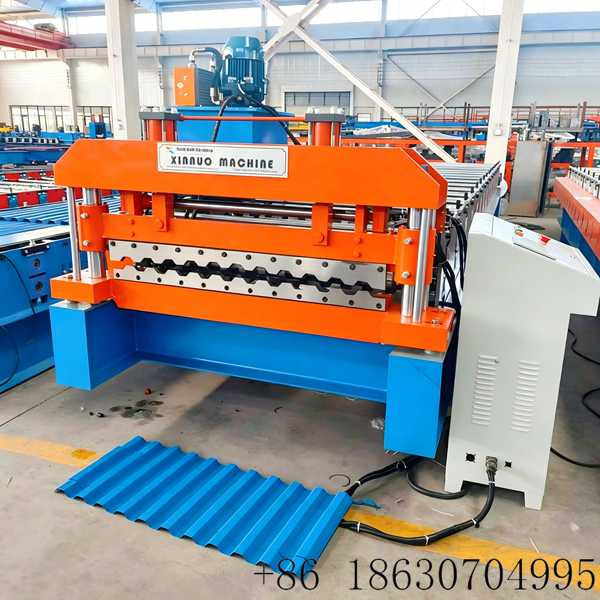

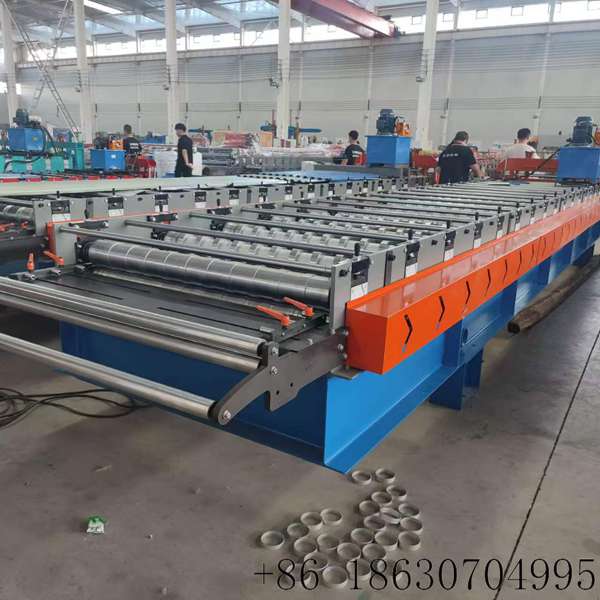

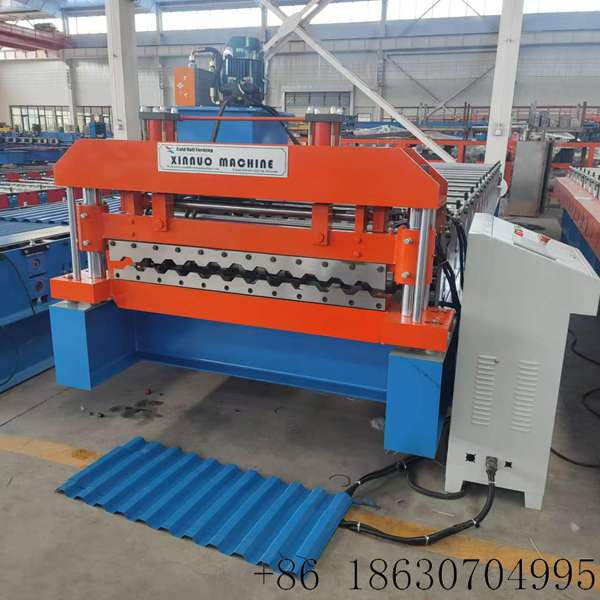

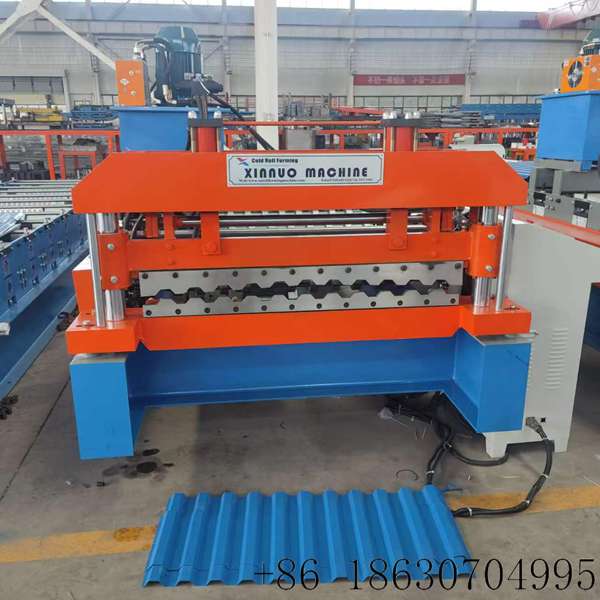

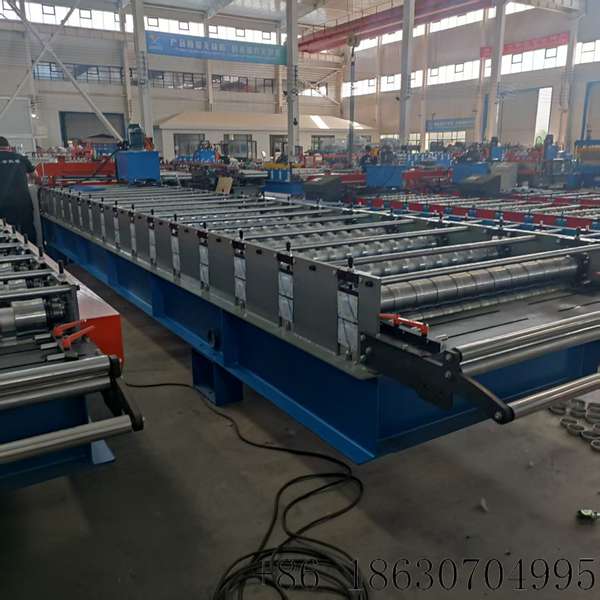

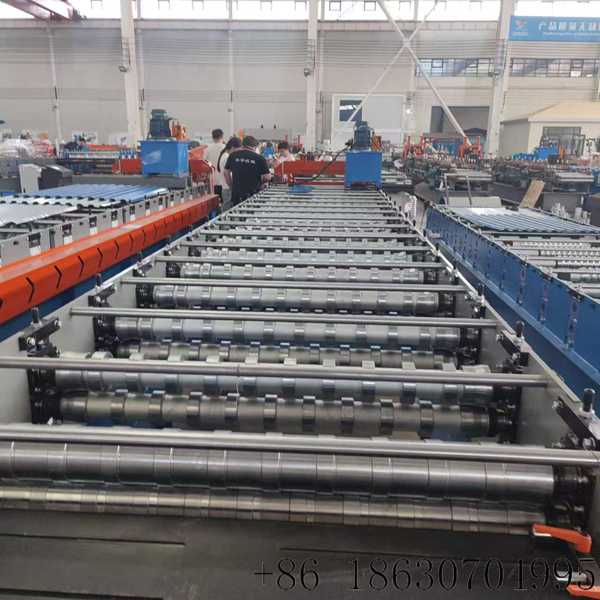

Our C20 trapezoidal roof panel roll forming machine is customized for Uzbekistan’s construction market, designed to produce standard C20 (20mm rib height) trapezoidal metal roof sheets widely used in industrial workshops, warehouses, logistics centers, and commercial buildings across Uzbekistan. The machine adopts heavy-duty 350mm H-beam frame and 18mm thick middle plate, ensuring stable, low-noise, long-life operation even under continuous high-load production.

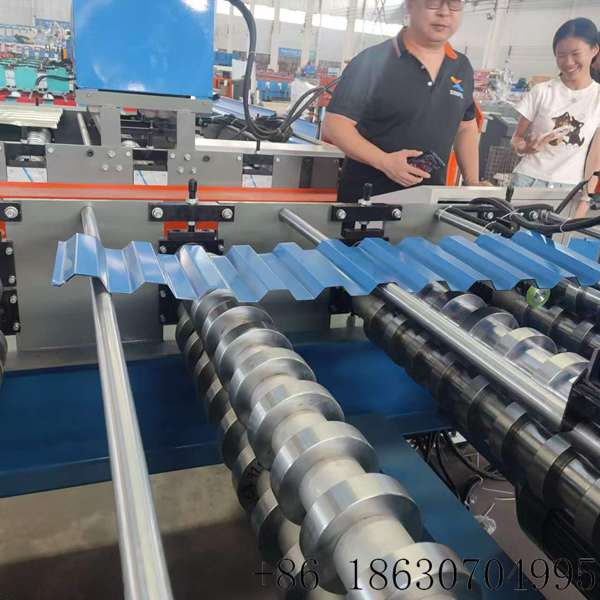

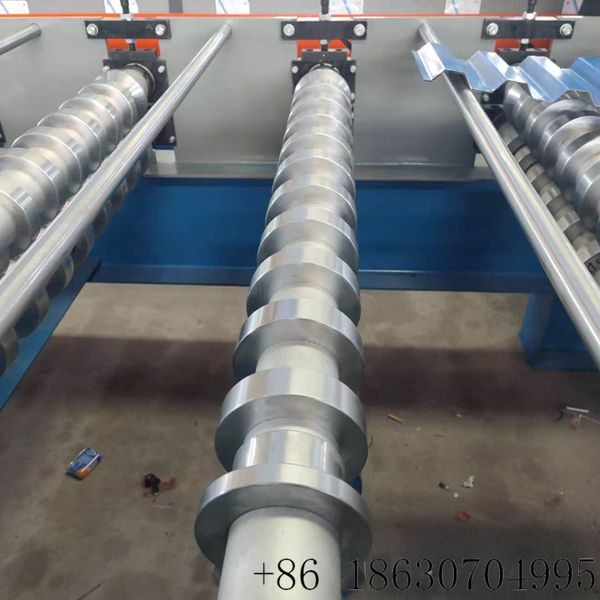

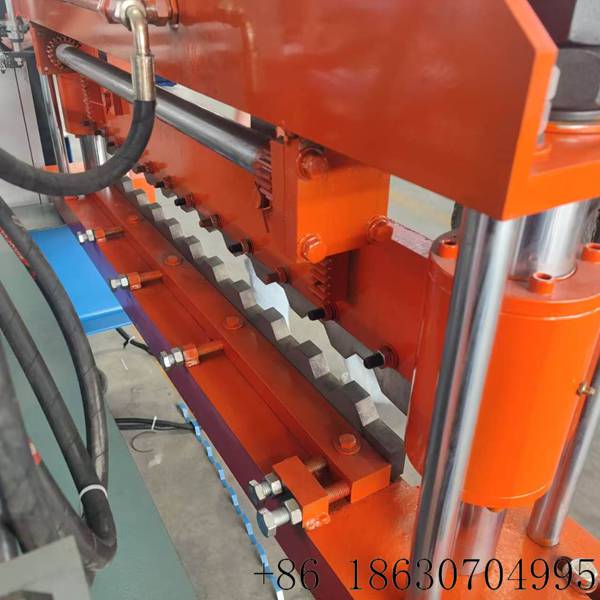

Equipped with PLC automatic control system and touch screen HMI, the C20 machine supports one-click length setting, automatic forming & cutting, with a forming speed of 8–12 m/min and precision controlled within ±1mm. Rollers are made of high-grade 45# forged steel with hard chrome plating, and the cutting blade uses Cr12MoV mold steel after quenching, offering excellent wear resistance and smooth panel surface.
It processes PPGI, GI, PPGL, and aluminum coils with thickness 0.3–0.8mm, matching the raw material standards commonly used in Uzbekistan. Xinnuo provides 3-year warranty, 24/7 online technical support, and overseas installation & training, making it a reliable choice for local contractors and manufacturers.
With 3,000+ sets of roll forming equipment exported annually to 141 countries, including Russia, Kazakhstan, and Uzbekistan, Xinnuo has rich experience in adapting machines to Central Asian climate and power conditions. Choosing Xinnuo means choosing stable quality, mature technology, and worry-free after-sales service for your C20 roof panel production in Uzbekistan.
| Item | Specification |
|---|---|
| Model | C20 Trapezoidal Roof Panel Machine |
| Applicable Country | Uzbekistan |
| Profile Height | 20mm (C20) |
| Forming Speed | 8–12 m/min |
| Material Thickness | 0.3–0.8mm (PPGI/GI/PPGL/Al) |
| Main Motor Power | 5.5kW–7.5kW |
| Voltage | 380V/3P/50Hz (customizable) |
| Control System | PLC + Touch Screen |
| Frame | 350mm H-beam, heavy duty |
| Warranty | 3 years |
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
