Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.

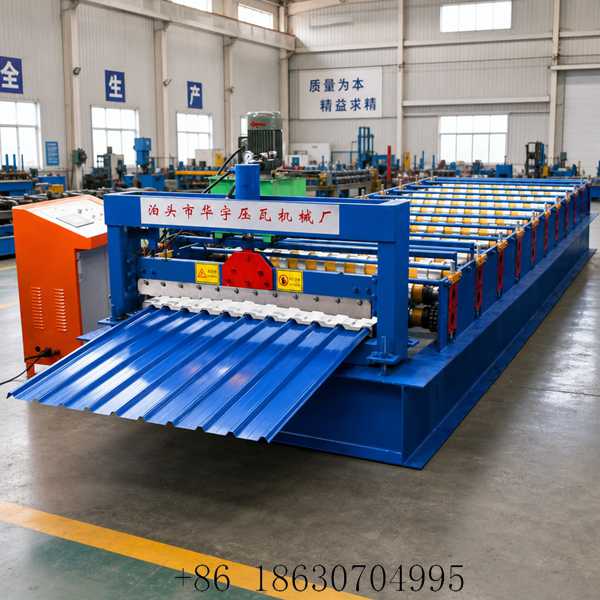

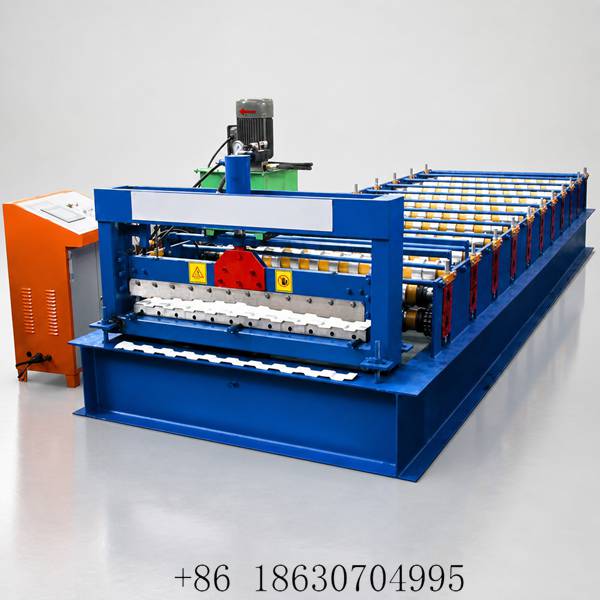

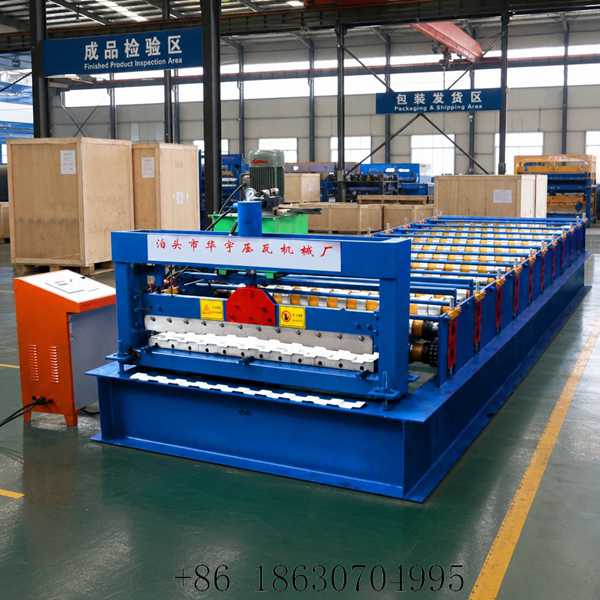

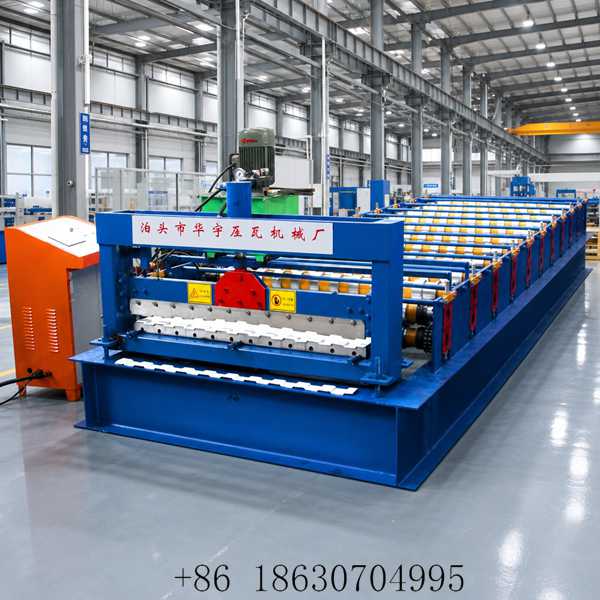

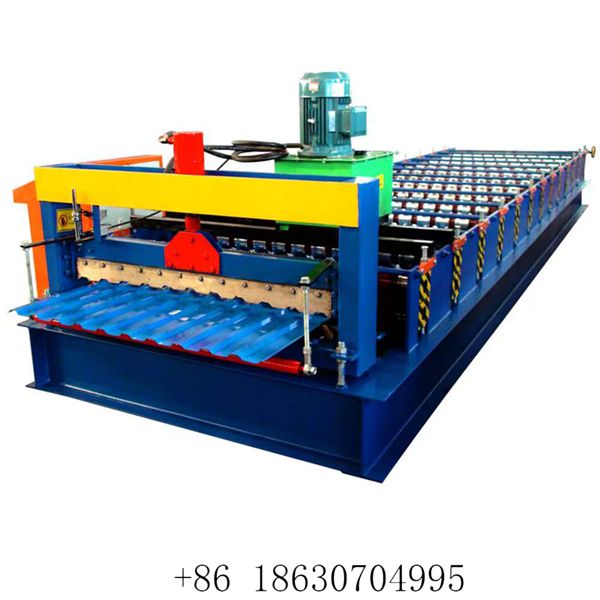

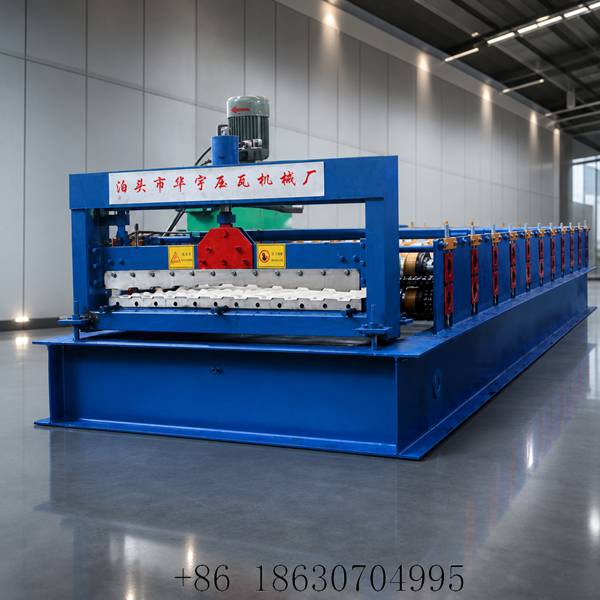

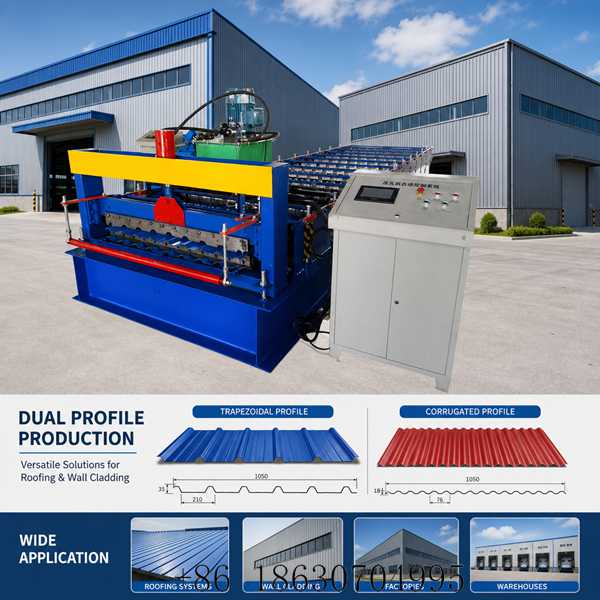

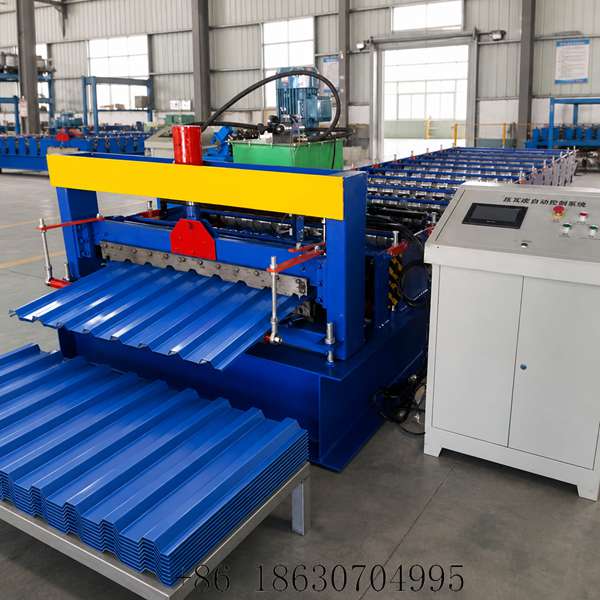

Hebei Xinnuo is a professional manufacturer of cold roll forming equipment. Our trapezoidal metal roof panel roll forming machine continuously produces uniform trapezoidal roofing sheets for steel structure buildings, warehouses and industrial workshops. You may also check our C/Z purlin roll forming machine and glazed tile roll former for full metal roofing production lines.

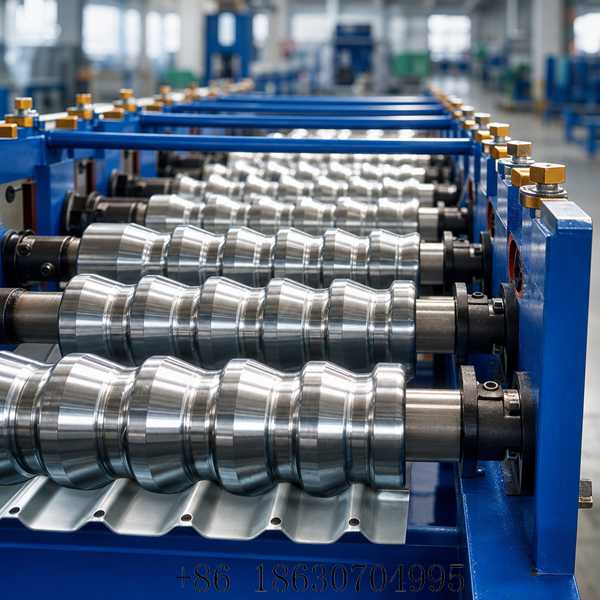

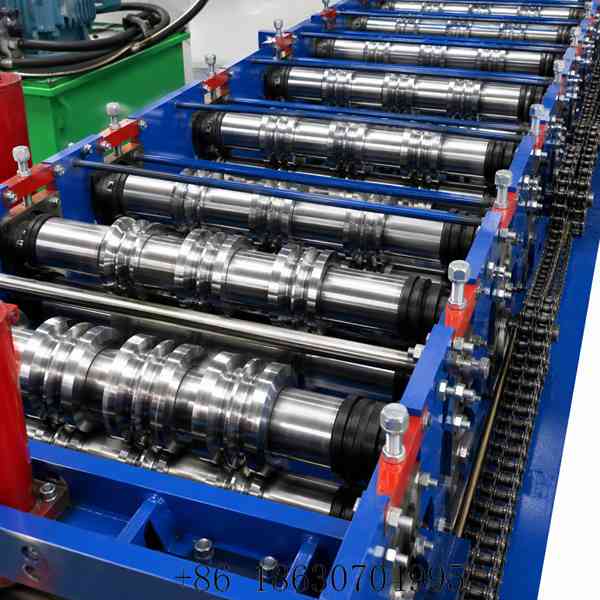

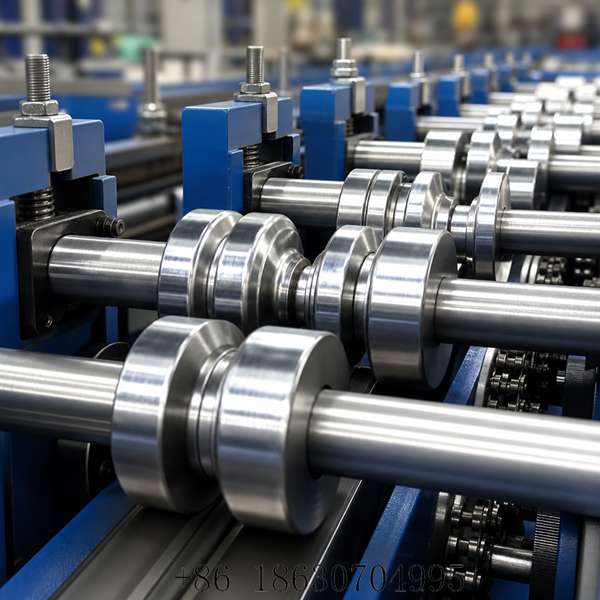

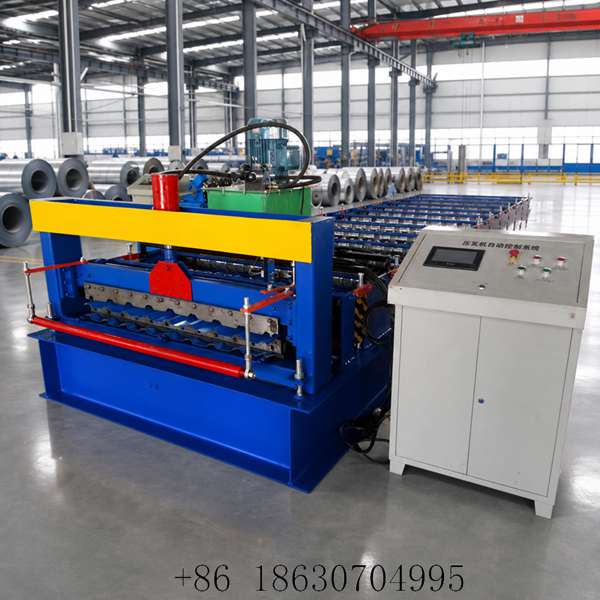

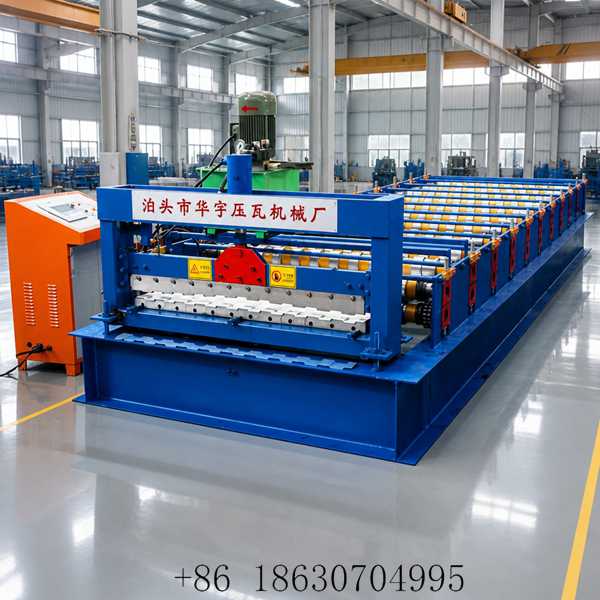

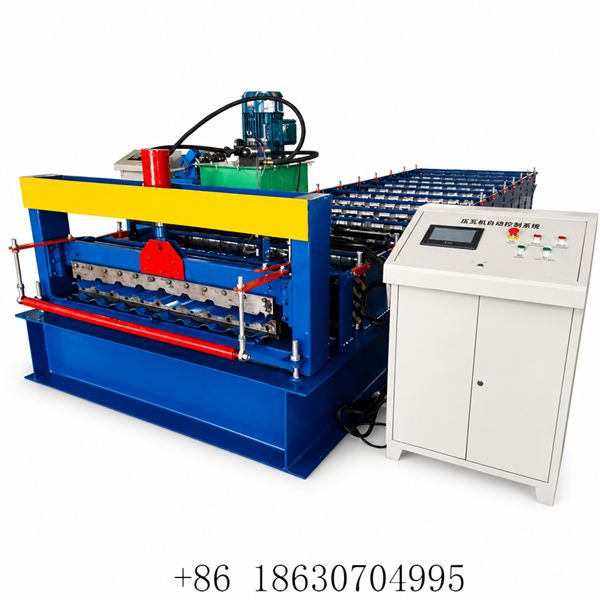

This trapezoidal roof panel machine adopts heavy-duty H-beam steel frame ensures stable and long-term operation. Precision rollers with hard chrome plating protect color-coated surface and avoid scratches on PPGI sheets. Progressive multi-pass forming creates uniform trapezoidal profile with neat ribs and consistent dimensions.

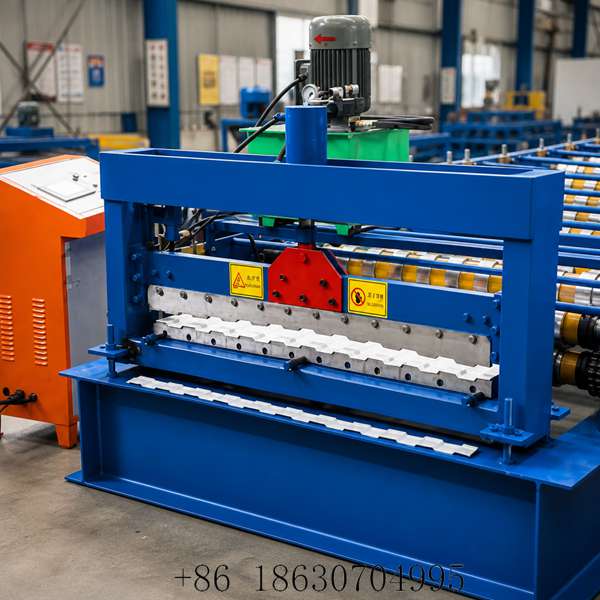

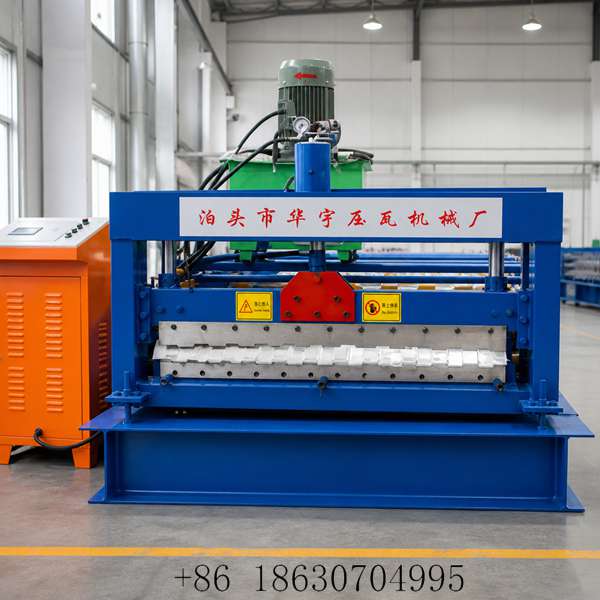

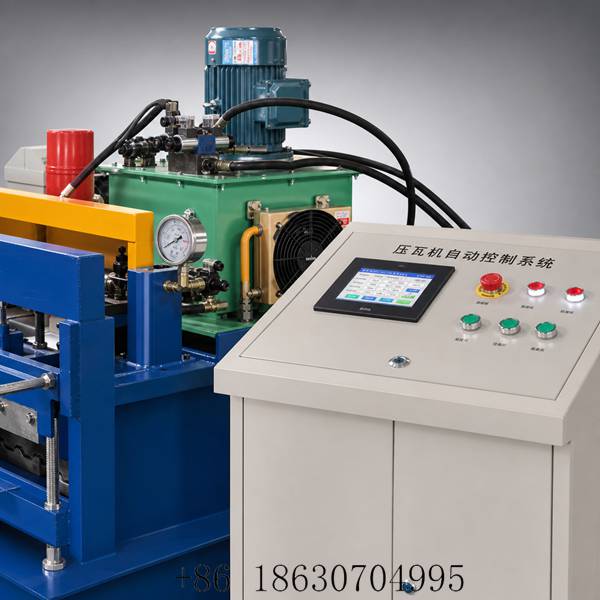

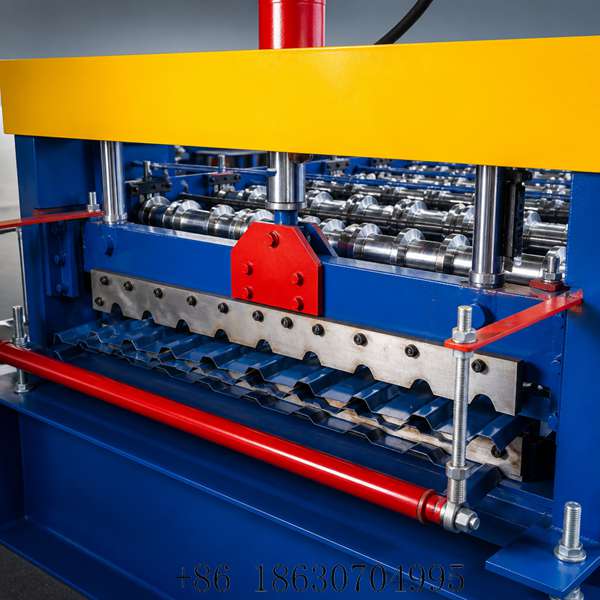

It is equipped with PLC + HMI touch screen for easy length, quantity and speed setting. Automatic encoder length measuring and hydraulic cutting deliver cutting accuracy within ±1-1.5mm to reduce material waste. Stable forming speed suitable for mass production of roofing sheets. This line works well for PPGI, GI, GL, aluminum coil and other metal coils. We support customizable trapezoidal profile, effective width and rib height according to client drawings.
The chain drive system with solid 45# steel shafts for reliable transmission and low failure rate. CE/ISO available configuration for overseas markets. Hebei Xinnuo provides professional installation guidance, operation training and complete after-sales support for global buyers. Our technical team can adjust machine parameters and profile moulds to match local building standards in different regions.
Contact us to get the trapezoidal panel drawing and factory quotation for your metal roofing project.
Swipe horizontally to view full parameters.
| Item | Specification | Remark |
|---|---|---|
| Machine Name | Trapezoidal Metal Roof Panel Roll Forming Machine | Custom profile available |
| Frame | Heavy-duty H-beam steel frame | Long stable running |
| Roller Material | Hard chrome plated roller | No scratch on PPGI surface |
| Shaft | Solid 45# steel shaft | Chain drive system |
| Control System | PLC + HMI touch screen | Set length, quantity, speed |
| Cutting Mode | Hydraulic cutting + encoder measuring | Accuracy ±1~1.5mm |
| Suitable Material | PPGI, GI, GL, aluminum coil | Custom thickness |
| Certification | CE / ISO optional | For overseas market |
| Service | Installation guidance, training, after-sales | Global support |
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
