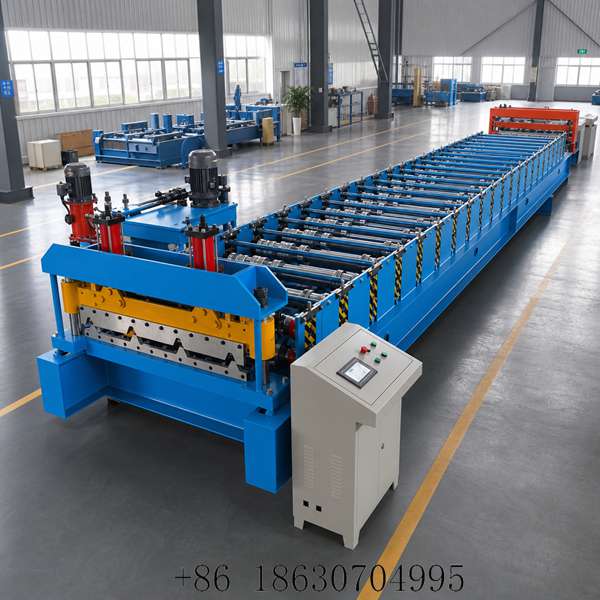

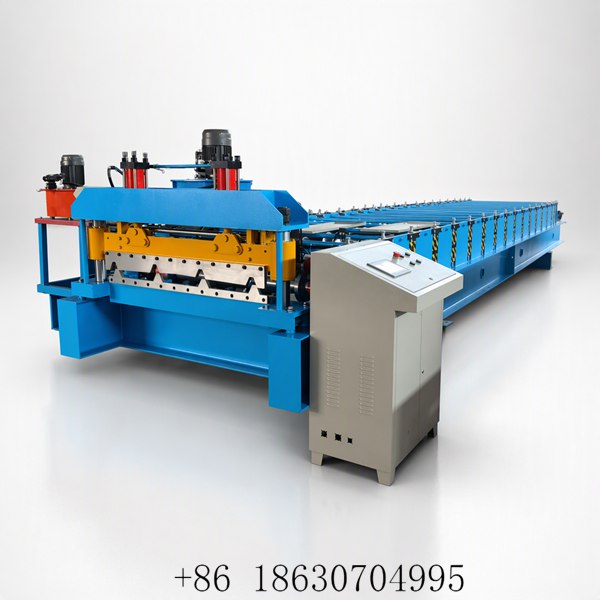

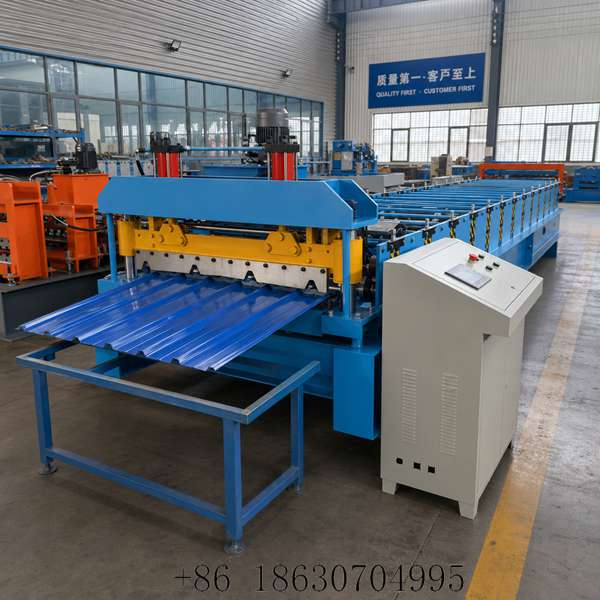

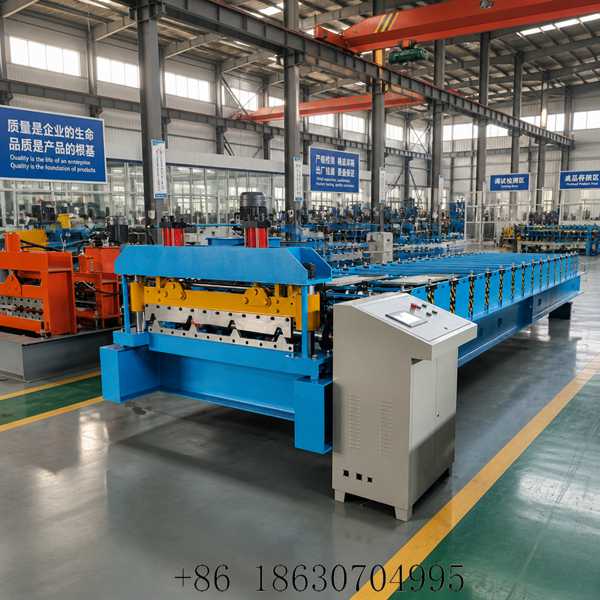

1000 Trapezoidal Single Panel Roll Forming Machine | Metal Roof Sheet Line

Hebei Xinnuo Roll Forming Machinery Co., Ltd. (XINNUO) has specialized in cold roll forming technology since 1995 in Botou, Hebei, China. Operating from an expansive factory area of nearly 100,000 m² with 11 large specialized workshops and over 50 sets of high-precision CNC machine tools, XINNUO provides durable roll forming solutions worldwide. Our advanced trapezoidal single panel roll forming machine is engineered to manufacture 1000mm effective width trapezoidal metal roof and wall cladding sheets for industrial workshops, warehouses and commercial steel buildings.

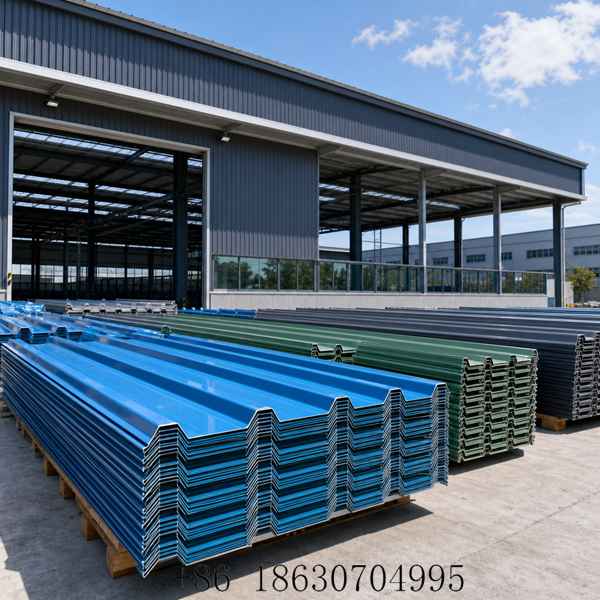

The machine produces standard 1000mm coverage trapezoidal roof panels with an optimized rib profile, delivering high structural rigidity and rapid water drainage during heavy rainstorms and humid coastal weather. It accommodates a wide material thickness range of 0.3–0.8mm across prepainted galvanized iron (PPGI), galvanized steel (GI) and galvalume (GL) coils. Precision-machined, mirror-polished hard chrome-plated rollers protect painted surfaces, guaranteeing that finished roofing sheets remain smooth and completely scratch-free even on ultra-thin 0.3mm coils.

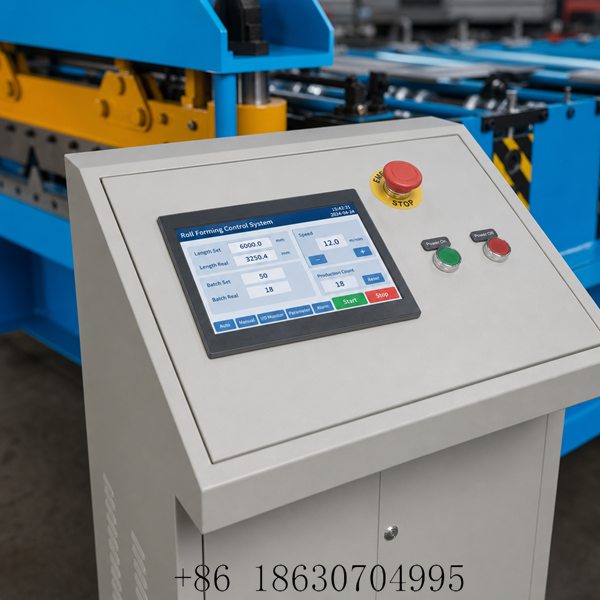

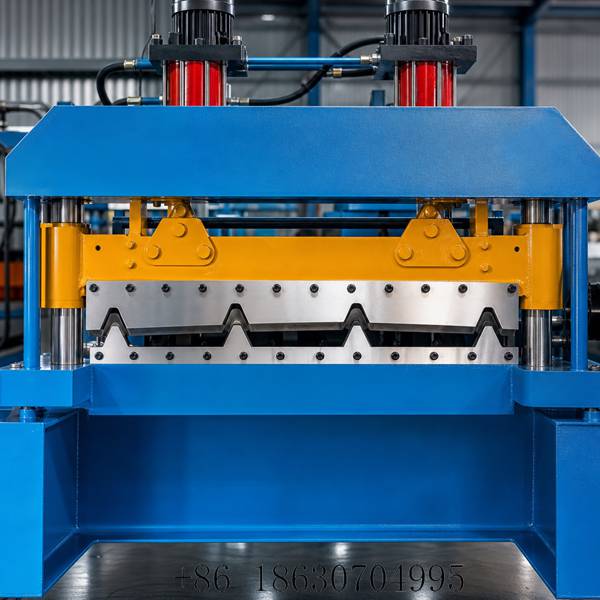

Equipped with an intelligent Siemens PLC control system and a user-friendly touch screen interface, the line automates sheet feeding, continuous multi-station forming and hydraulic stop-to-cut cycles. Operators simply input target lengths and batch quantities on the digital panel, achieving high dimensional precision with length tolerances controlled strictly within ±1mm. The synchronized hydraulic cutting mechanism provides clean, burr-free edges that eliminate secondary manual trimming and speed up on-site roof panel assembly.

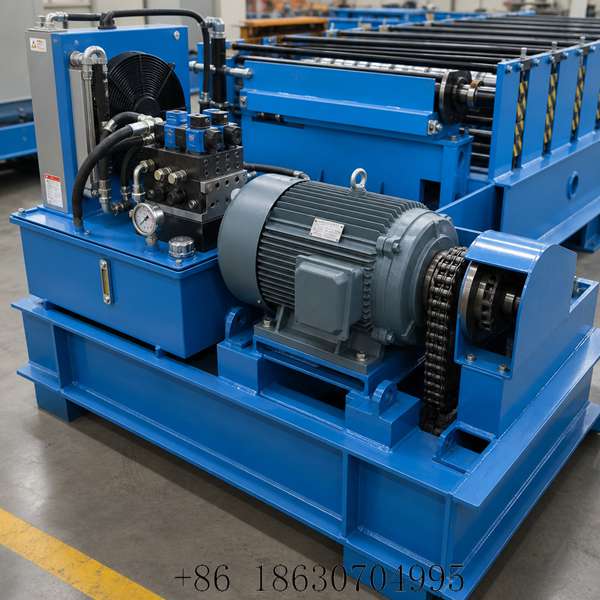

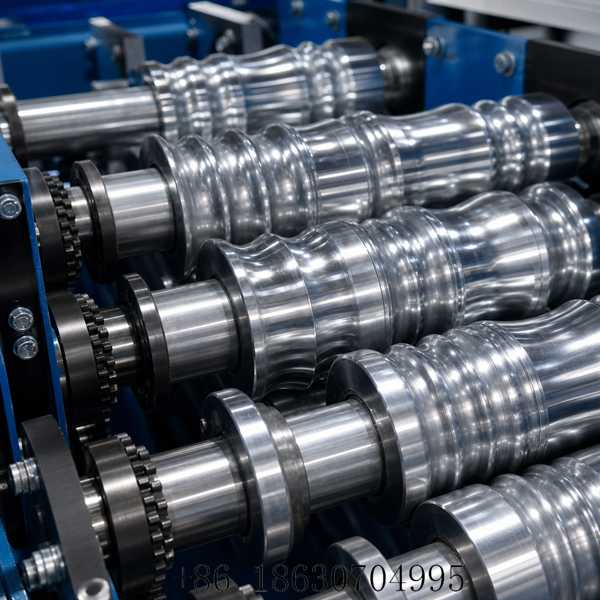

The robust machine base is fabricated from heavy welded steel, minimizing vibration during continuous high-speed production. Quenched and tempered Cr12MoV alloy steel forming rollers offer exceptional wear resistance for long-term mass production, substantially reducing maintenance downtime and operational costs. With an adjustable forming speed of 10–20 m/min, this trapezoidal single panel roll forming machine achieves high output efficiency with minimal scrap rates. Browse our Trapezoidal Sheet Roll Forming Machine series and Roof Sheet Making Machine category to customize hydraulic decoilers and automatic stackers.

Key Features & Advantages

• 1000mm Coverage Width: Optimized trapezoidal profile engineered for rapid water drainage.
• Wide Material Compatibility: Forms 0.3–0.8mm PPGI, GI and GL coils with scratch-free rollers.
• Siemens PLC Automation: Automatic length counting and hydraulic cutting with ±1mm accuracy.
• Heavy-Duty Frame: Solid welded base and Cr12MoV rollers provide lasting durability.
• High Efficiency: Stable 10–20 m/min forming speed with low scrap rate for mass production.
• Modular Options: Available with hydraulic decoilers, protective film applicators and stackers.

Technical Specifications

Swipe horizontally to view full parameters.
