Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.
Hebei Xinnuo Roll Forming Machinery Co., Ltd. (XINNUO) has manufactured cold roll forming equipment for more than 30 years in Botou, Hebei, China, with an annual output of over 3,000 sets and exports to more than 140 countries and regions. The 1000mm trapezoidal roofing sheet production line is a fully automatic solution for manufacturers who need high output of 1000mm effective-width trapezoidal panels. If you are comparing ibr sheet making machine price, XINNUO offers a factory-direct combination of competitive pricing, proven profiles and complete line integration.

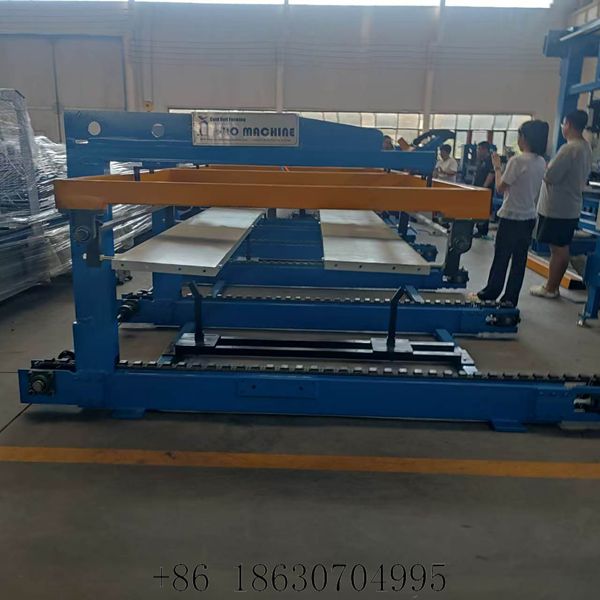

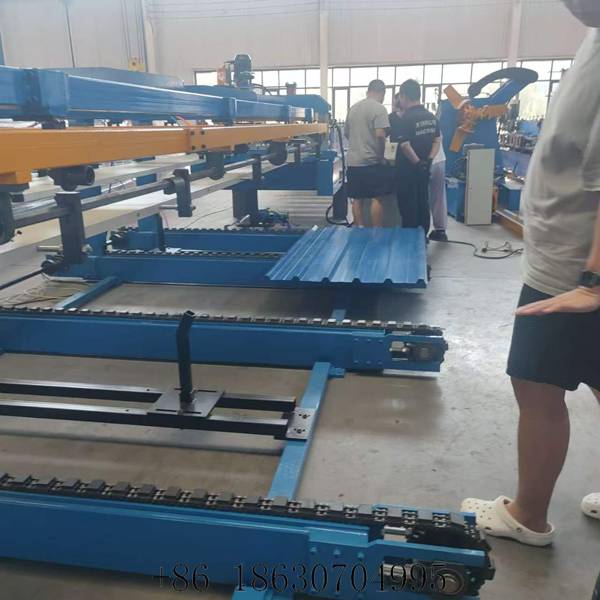

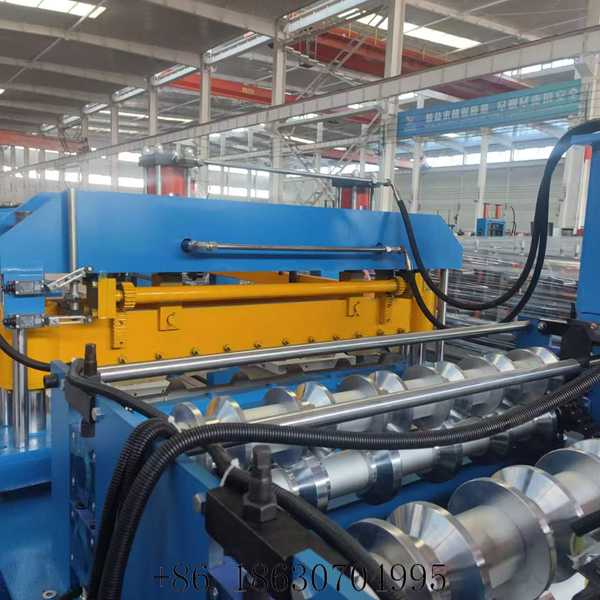

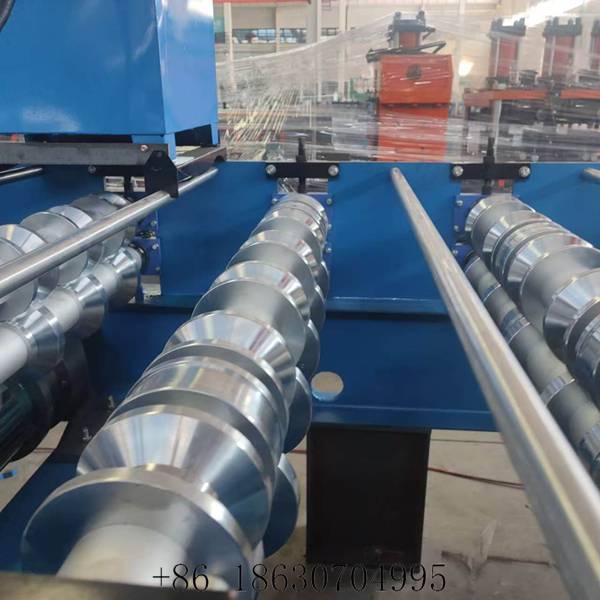

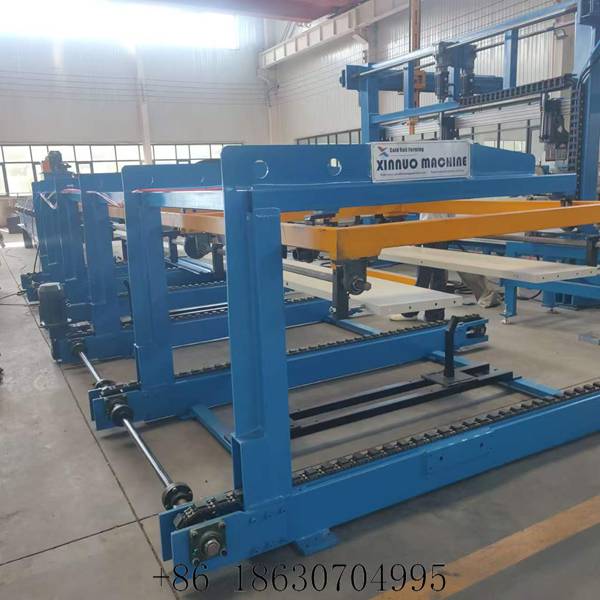

Designed around a 1000mm effective cover width, the line produces accurate, consistent trapezoidal panels with a standard 14–16 forming stations, 350H welded frame and precision-machined rollers. High-speed continuous production keeps output high, so roofing manufacturers can handle large-volume orders efficiently. The fully automatic production line integrates decoiling, feeding, roll forming, length measurement, cutting and panel output into one streamlined process, with an automatic stacking machine collecting finished sheets. High-precision roll forming ensures uniform trapezoidal profiles, accurate dimensions and smooth finished surfaces, while the stable and durable machine structure — reinforced frame and reliable transmission — minimizes vibration during continuous operation. Accurate automatic cutting is handled by a PLC-controlled system that measures panel length and cuts precisely according to preset parameters, minimizing material waste.
Ideal for workshops, warehouses, agricultural buildings and prefabricated construction, the line works with color-coated and galvanized steel coil. For single-machine options, browse our Trapezoidal Sheet Roll Forming Machine category, or explore the Roof Sheet Making Machine collection for complete roofing systems. Effective width, profile, sheet thickness and voltage can all be customized, and our engineers are ready to quote the right line configuration for your production volume.
| Parameter | Specification |
|---|---|
| Effective cover width | 1000 mm |
| Panel profile | Trapezoidal (5-peak typical) |
| Forming stations | 14 – 16 rows |
| Machine frame | 350H welded steel structure |
| Shaft diameter | Φ75 – 80 mm |
| Main motor power | 4 – 5.5 kW |

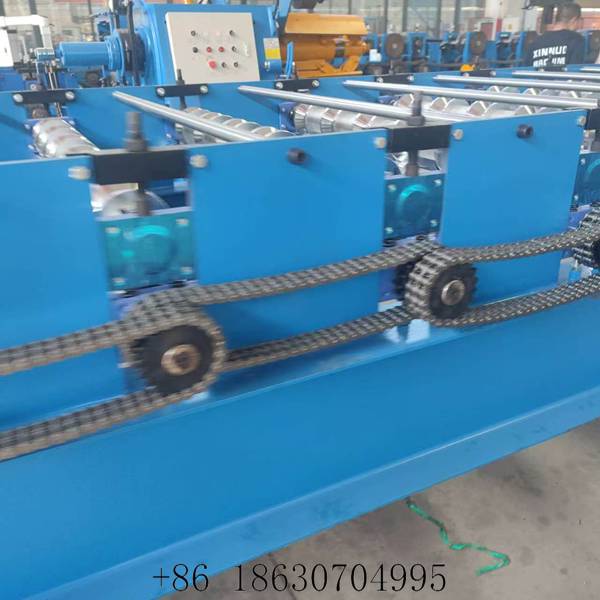

| Drive system | Heavy-duty double-row chain drive |

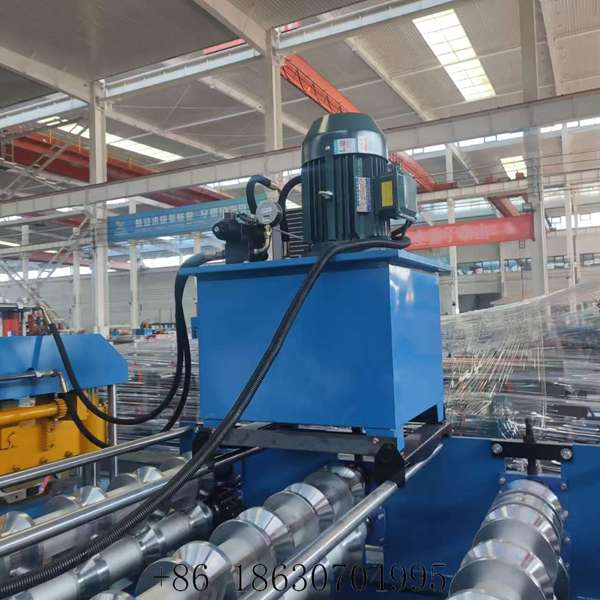

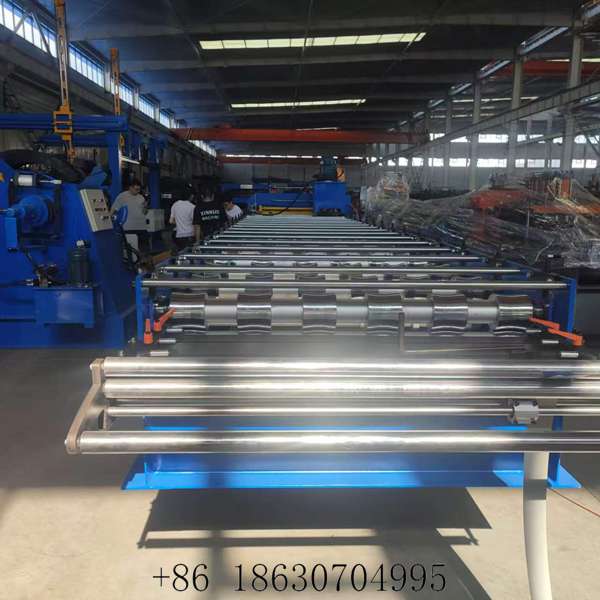

| Line components | Decoiler + feeding platform + forming unit + hydraulic cutting + automatic stacker |

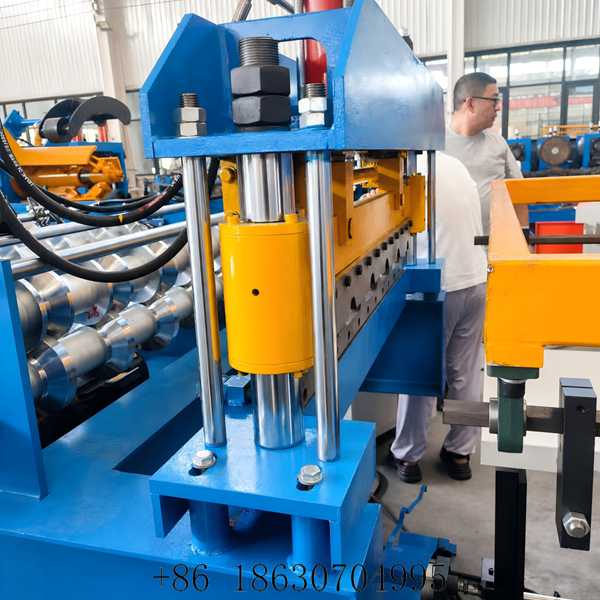

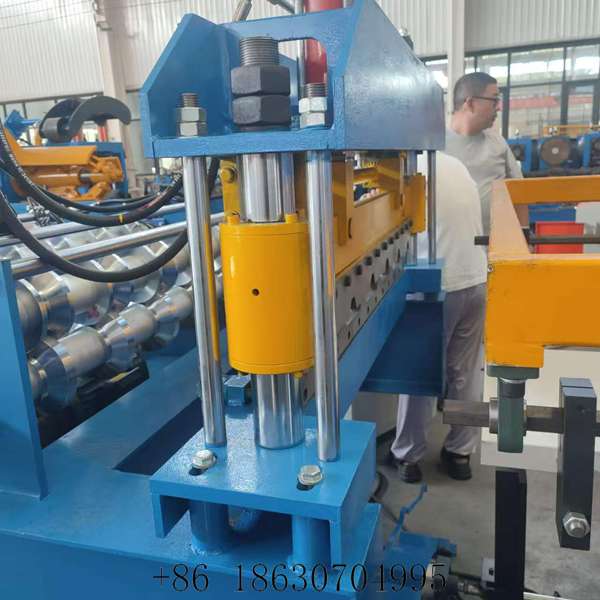

| Cutting method | PLC fixed-length hydraulic cutting |
| Control system | PLC + touch screen, one-operator automatic line |
| Suitable material | Color-coated / galvanized steel coil |
| Application | Roofing & wall cladding panels |
| Customization | Profile, sheet thickness, voltage, line configuration |
| Warranty | 1 year |
Swipe horizontally to view full parameters.
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
