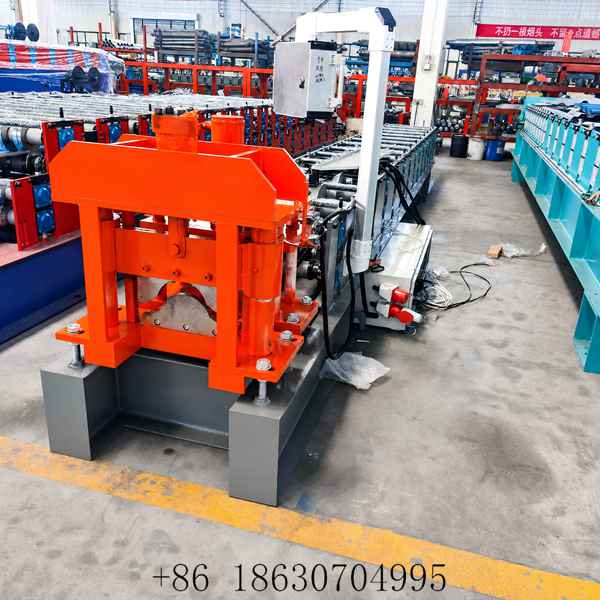

Ridge Cap Roll Forming Machine | Glazed Ridge Cap Machine

Hebei Xinnuo Roll Forming Machinery Co., Ltd. (XINNUO) has built cold roll forming equipment for more than 30 years in Botou, Hebei, China. With an annual output of over 3,000 sets of roll forming machines and related equipment, XINNUO has exported machinery to more than 140 countries and regions. Our product range covers cold roll forming lines, C/Z purlin machines, sandwich panel lines, and antique glazed tile equipment. The glazed ridge cap roll forming machine presented here is specially engineered to produce strong, waterproof ridge caps that finish the highest point of a metal roof.

In tropical climates such as the Solomon Islands, where heavy rain and high humidity put every roof joint to the test, a properly formed ridge cap is the first line of defense against leakage. Our ridge cap roll forming machine shapes color-coated steel coil into symmetrical V-shape, arc, or multi-angle ridge profiles with a coverage width of 175–600 mm, selected from 41 production-proven profiles (JW001–JW041) that can be matched to your existing roofing sheet. High-precision roll forming is guaranteed by precision-ground rollers mounted on a heavy welded frame, keeping every meter of profile consistent. Fully automatic production is achieved through PLC control with a touch screen: one operator feeds the coil, and the machine forms and cuts automatically at fixed lengths, boosting output while reducing labor cost.

To compare different models and profiles, browse our Ridge Cap Machine category; for complete roofing systems, explore the Roof Sheet Making Machine collection. Both categories list machines ready for customization — coverage width, sheet thickness, and voltage can all be adapted to the Solomon Islands market, and our engineers are available to help you match a ridge cap profile to your roofing panels and provide a tailored quotation.

Key Features

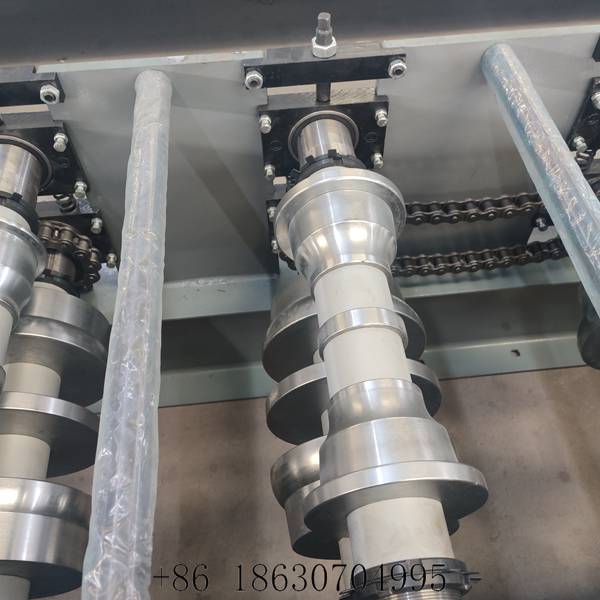

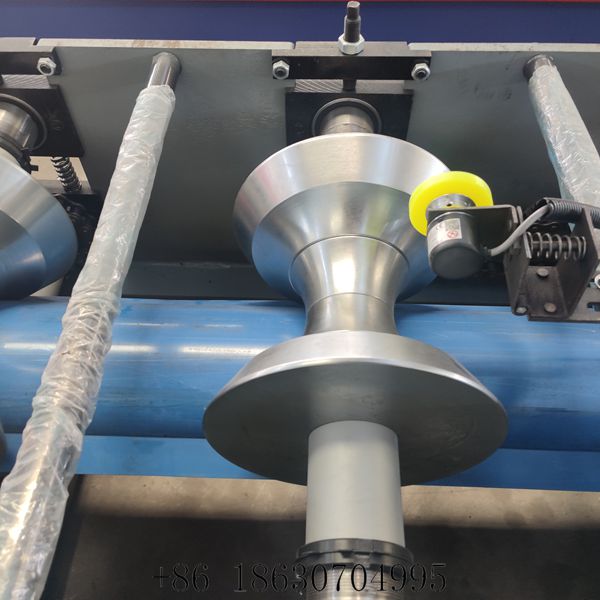

• High-precision roll forming: precision-ground rollers and heavy welded frame deliver consistent, symmetrical profiles

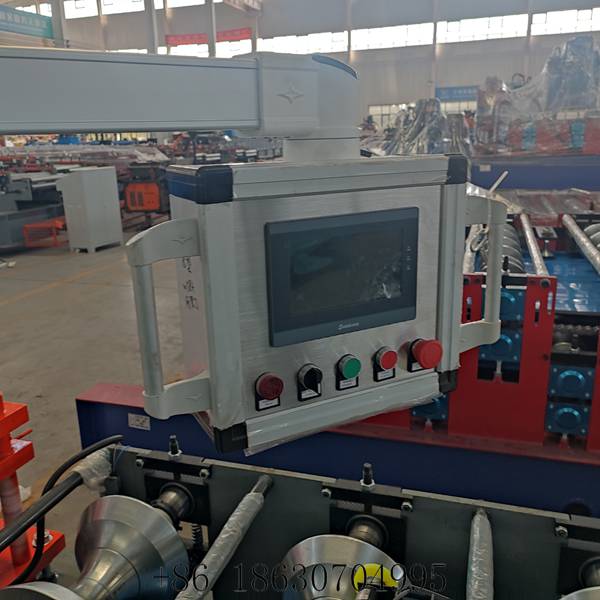

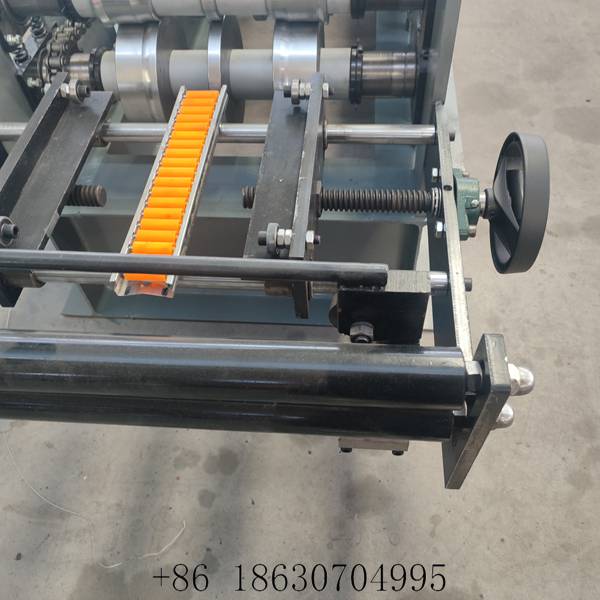

• Fully automatic production: PLC + touch screen, one-worker operation from coil feeding to automatic cutting
• 41 production-proven ridge cap profiles (JW001–JW041), coverage width 175–600 mm
• V-shape, arc and multi-angle ridge caps matched to your roofing sheet width
• PLC fixed-length automatic cutting for consistent, repeatable lengths
• Compact and energy-saving: only 2.2–5.5 kW main motor, low running cost
• Custom profile, material and voltage available for tropical markets such as the Solomon Islands

Technical Parameters

Swipe horizontally to view full parameters.
