Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.
Hebei Xinnuo Roll Forming Machinery Co., Ltd. supplies high-performance Roof Ridge Cap Roll Forming Machine with integrated punching function for metal roof ridge caps. This automatic roll former can finish roll forming, hydraulic punching and cutting in one continuous workflow, ideal for roofing manufacturers producing pre-punched ridge caps for metal building projects.
Integrated Punching & Forming for One-Step Production
This machine combines roll forming, hydraulic punching, and cutting into a single automated line, eliminating the need for separate punching equipment. It directly produces ridge caps with pre-drilled fixing holes or custom perforation patterns in one continuous process, saving floor space, reducing equipment investment, and cutting down secondary processing labor costs significantly. You can pair this ridge cap machine with our metal roof sheet roll forming machine for complete roofing panel production lines.

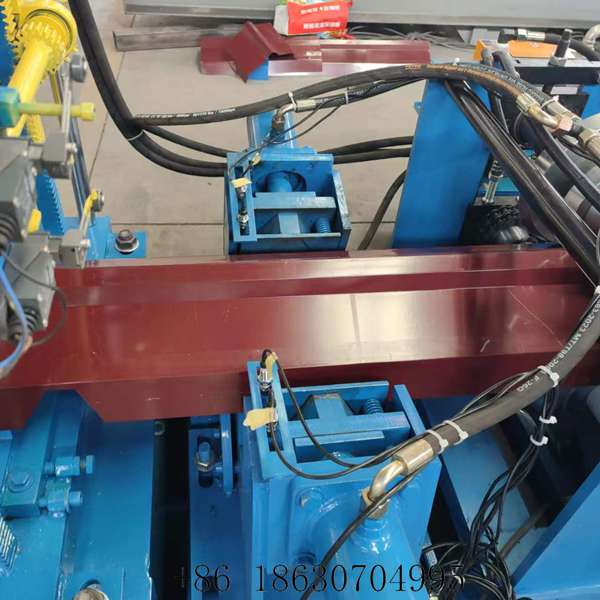

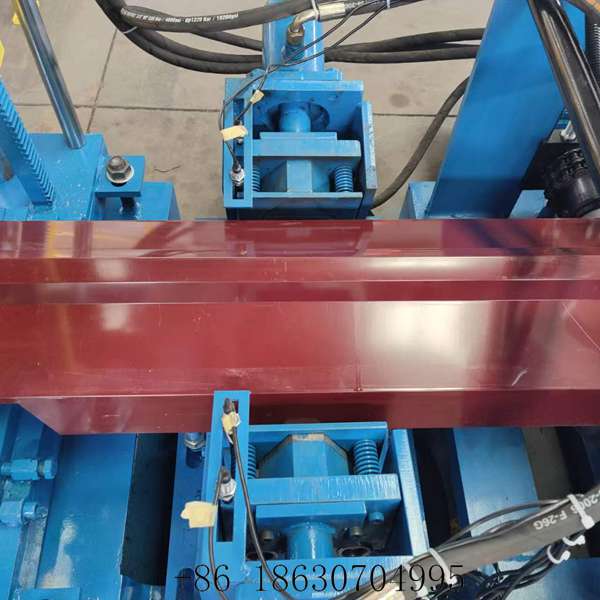

Precision Punching System for Consistent Hole Alignment
Equipped with a dedicated hydraulic punching unit using Cr40/Cr12 heat-treated molds (HRC 58-62 hardness), the machine delivers accurate, burr-free holes with consistent spacing and depth. The punching position is controlled by the PLC encoder system with ±1mm tolerance, ensuring ridge caps fit perfectly with roof panels during on-site installation without manual re-drilling.
Heavy-Duty Frame for Stable High-Precision Forming
Built with a welded 300-350H steel frame and 12-16mm thick middle plates, the machine maintains zero deformation or vibration even during long-hour continuous operation. Paired with 60-75mm diameter 45# forged steel shafts and double-bearing support, it ensures consistent profile straightness and dimensional accuracy across high-volume production runs.

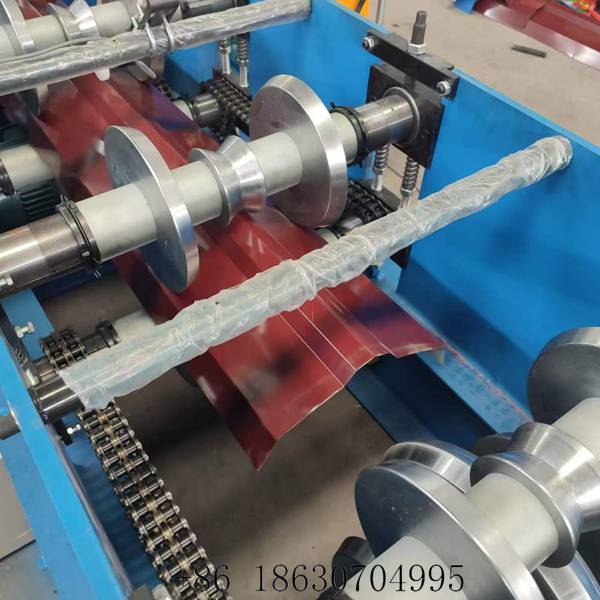

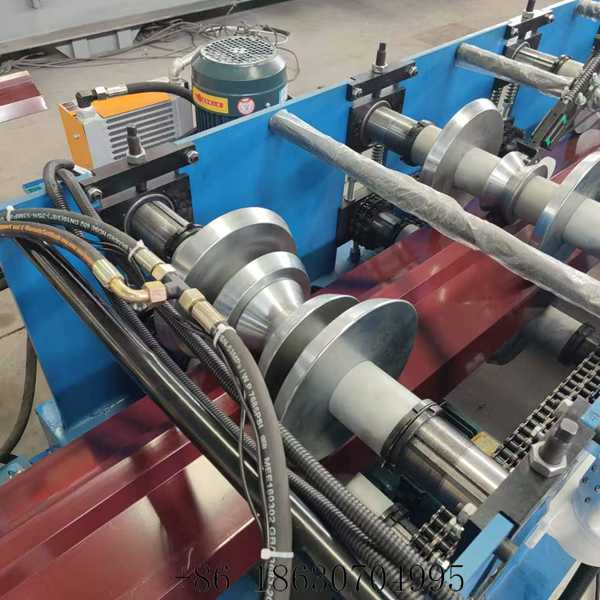

Premium Rollers to Protect Coated Coil Surfaces

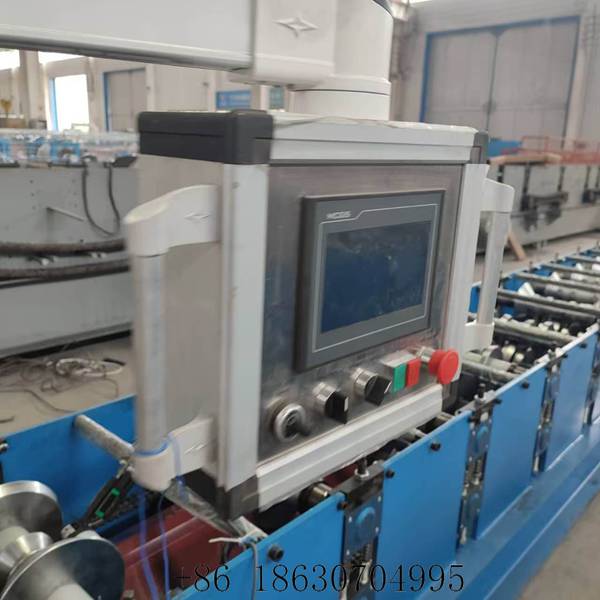

Our surface-treated forming rollers avoid scratches on PPGI and GI coated metal coils, keeping the finished ridge caps with intact paint layer and anti-corrosion performance. The whole line adopts PLC touchscreen control for simple operation and parameter adjustment. Check our C Z purlin roll forming machine for more building profile equipment solutions.
| Item | Specification |
|---|---|
| Product Name | Roof Ridge Cap Roll Forming Machine with Punching |
| Applicable Material | PPGI / GI, 0.3–0.8mm |
| Frame Material | 300-350H welded steel frame |
| Shaft Diameter | 60–75mm, 45# forged steel |
| Punching Mold | Cr40 / Cr12, HRC58-62 |
| Position Tolerance | ±1mm |
| Control System | PLC + Touch Screen |
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
