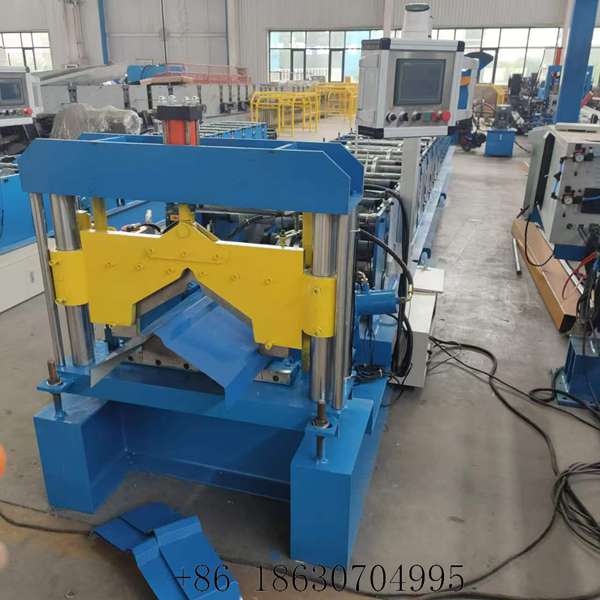

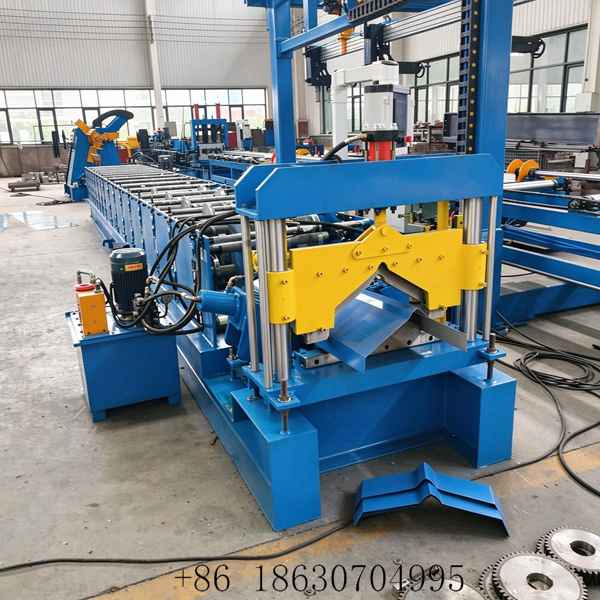

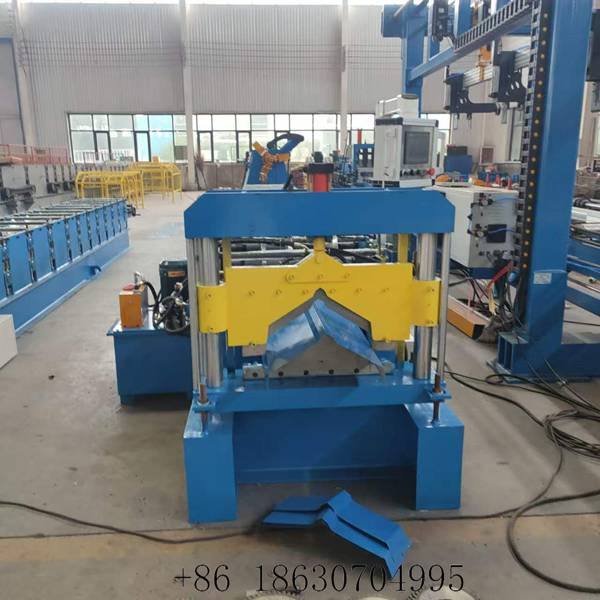

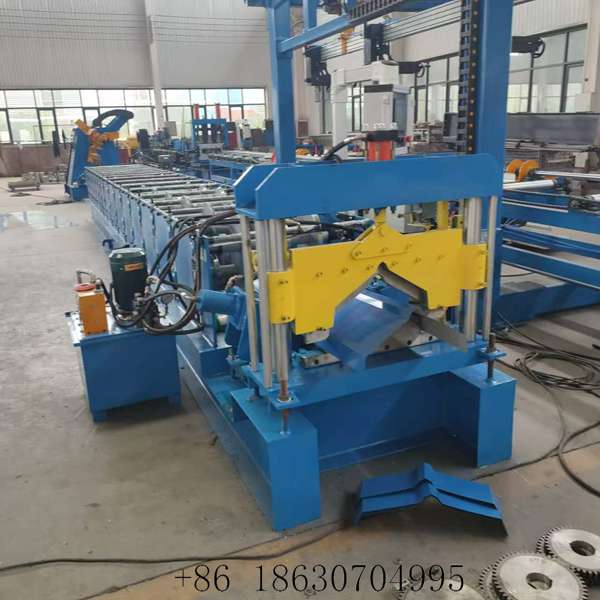

Our Ridge Tile Roll Forming Machine is a fully automated production line specially designed for manufacturing metal roof ridge caps. As a professional manufacturer Hebei Xinnuo Roll Forming Machinery integrates years of experience in cold roll forming equipment, delivering reliable, high-efficiency machinery for global metal roofing manufacturers.

Integrated Punching & Forming for One-Step Production
This machine combines roll forming, hydraulic punching, and cutting into a single automated line, eliminating the need for separate punching equipment. It directly produces ridge caps with pre-drilled fixing holes (or custom perforation patterns) in one continuous process, saving floor space, reducing equipment investment, and cutting down secondary processing labor costs significantly.

Precision Punching System for Consistent Hole Alignment

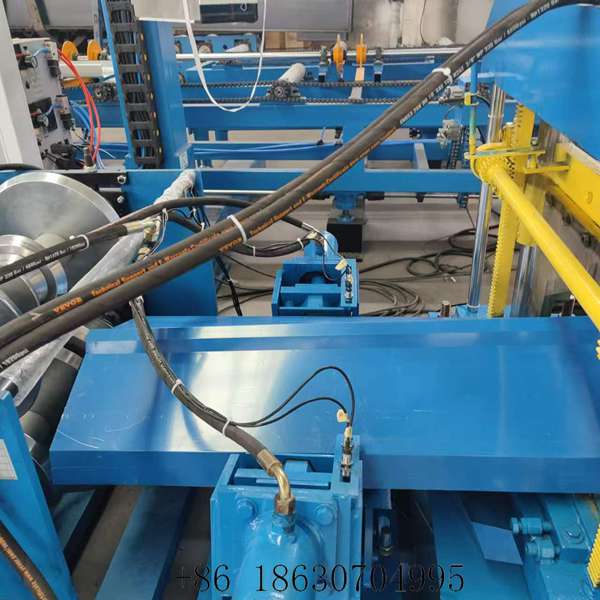

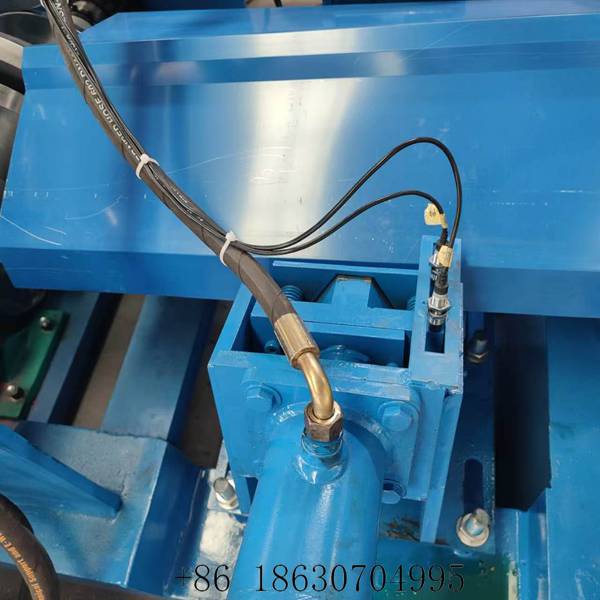

Equipped with a dedicated hydraulic punching unit using Cr40/Cr12 heat-treated molds (HRC 58-62 hardness), the machine delivers accurate, burr-free holes with consistent spacing and depth. The punching position is controlled by the PLC encoder system with ±1mm tolerance, ensuring ridge caps fit perfectly with roof panels during on-site installation without manual re-drilling.

Heavy-Duty Frame for Stable High-Precision Forming

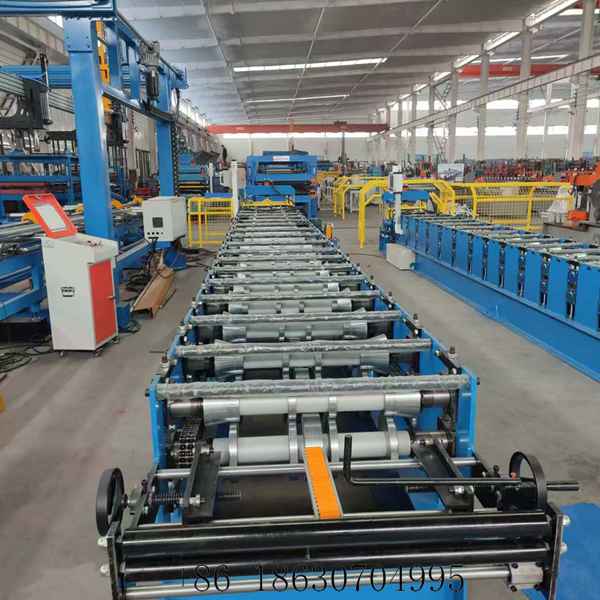

Built with a welded 300-350H steel frame and 12-16mm thick middle plates, the machine maintains zero deformation or vibration even during long-hour continuous operation. Paired with 60-75mm diameter 45# forged steel shafts and double-bearing support, it ensures consistent profile straightness and dimensional accuracy across high-volume production runs.

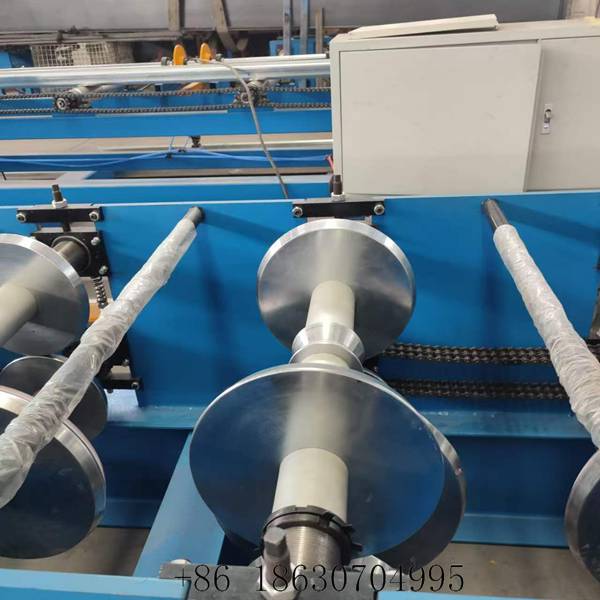

Premium Rollers to Protect Coated Coil Surfaces

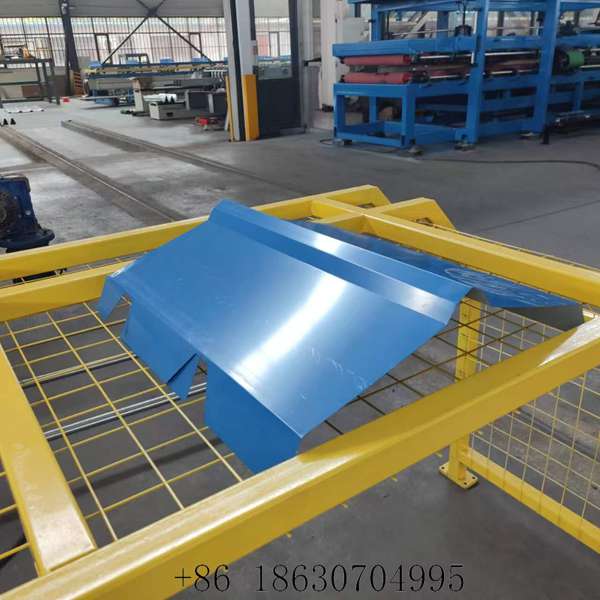

The forming rollers are treated with hard chrome plating to avoid scratching PPGI and GI coated sheets. The surface hardness of rollers reaches HRC55+, which extends service life and keeps the finished ridge tile surface smooth and intact. This equipment can work with 0.3–0.8mm metal coils, compatible with most common roofing raw materials. If you need matched roof panel equipment, check our double layer roof sheet roll forming machine.

This ridge tile machine adopts Siemens PLC control system for easy operation. Operators can set length, hole spacing and production quantity on the touch screen. It supports customization of ridge tile profiles, hole sizes and hole layouts according to customer drawings. Our factory provides on-site installation guidance, operator training and long-term after-sales support for overseas clients.
