Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.

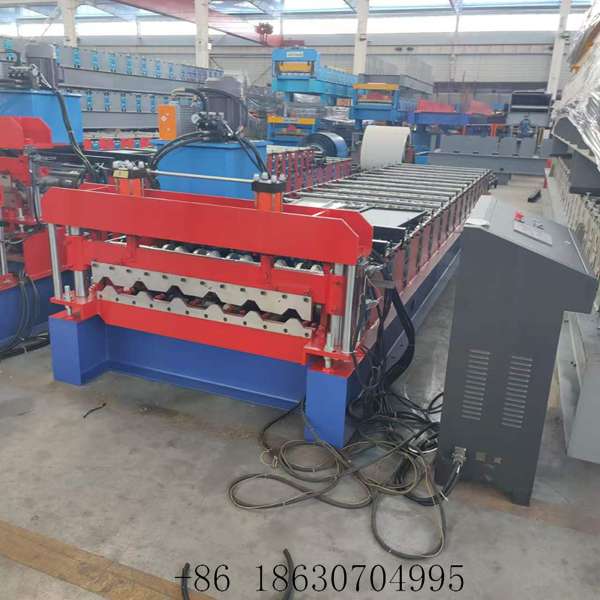

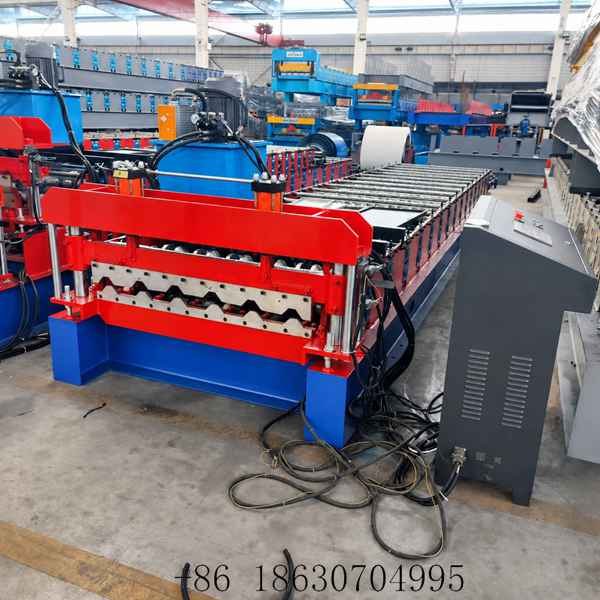

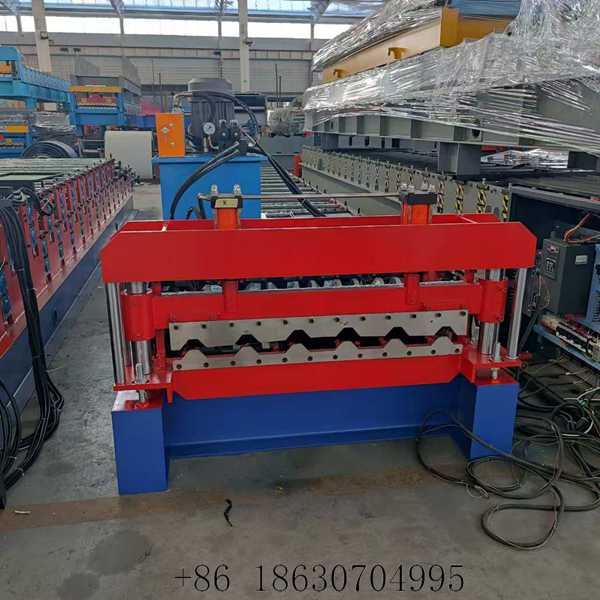

Hebei Xinnuo Roll Forming Machinery Co., Ltd. (XINNUO) is a professional cold roll forming equipment manufacturer with more than 30 years of experience dating back to 1995. From our production base in Botou, Hebei Province, China, XINNUO has exported roofing machinery to more than 140 countries and regions. This page introduces our 980 trapezoidal metal roof panel forming machine — a proven IBR rolling machine built for continuous production of the popular 980 mm trapezoidal roofing profile.

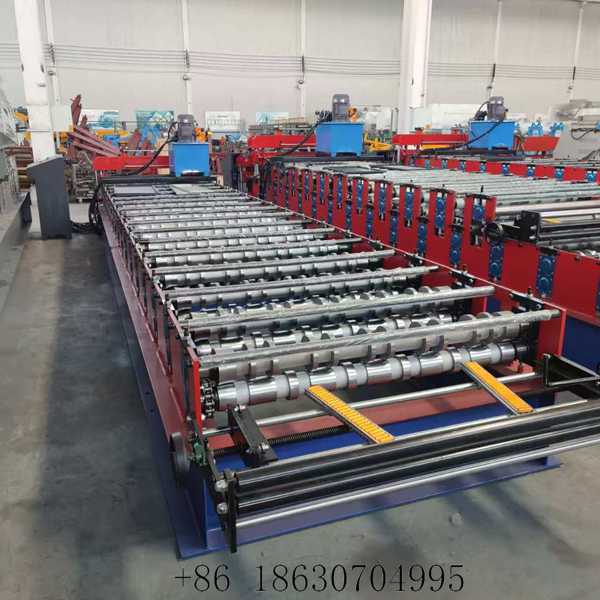

High material utilization cuts your roofing cost. The machine produces an effective covering width of 980 mm from a 1200 mm raw coil, so nearly every millimetre of purchased steel becomes usable roof area and edge scrap is minimized. Because less raw material is needed per square metre of finished roof, the total roofing material cost drops noticeably — a decisive advantage in markets where steel coil prices keep changing and every project budget must be strictly controlled.
The high-rib trapezoidal profile excels at water drainage. Deep, well-spaced ribs channel rainwater off the roof quickly, preventing water pooling and leakage even during intense downpours. This makes the 980 profile a dependable choice for the heavy-rain tropical climate of Brazil, where roofing systems must handle large volumes of water, season after season.
Optimized overlap joints resist coastal winds. The precisely rolled side lap locks adjacent sheets together tightly and consistently, forming a continuous, sealed roof surface. This robust connection provides strong wind resistance for coastal windy areas and greatly improves the overall sealing performance of the roof against driving rain and moisture.
Form straight panels today, arched panels tomorrow. Besides straight roofing panels, the 980 profile sheet can be further processed by an arch bending machine into curved arched panels, enabling beam-free, large-span warehouse and shed construction without heavy steel trusses. This forming flexibility lets a single machine serve many project types, from residential roofing to industrial buildings.
Every XINNUO machine is factory-tested before delivery and backed by installation guidance, operator training and long-term spare parts support. For other profiles and complete production solutions, browse our full Trapezoidal Sheet Roll Forming Machine collection and the wider Roof Sheet Making Machine range. Send us your target profile, coil width and daily output requirements — our engineers will recommend the right configuration for your local market.
| Parameter | Specification |
|---|---|
| Effective forming width | 980 mm |
| Raw coil width | 1200 mm |
| Material thickness | 0.3 – 0.8 mm |
| Suitable material | Color-coated steel / galvanized steel / aluminum |
| Forming speed | 10 – 20 m/min (up to 30 m/min optional) |

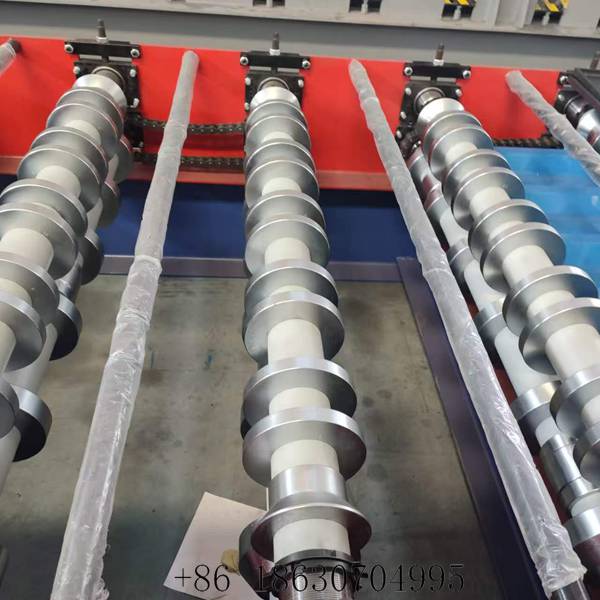

| Roller stations | 14 – 18 rows (customizable) |
| Main motor power | 4 kW |

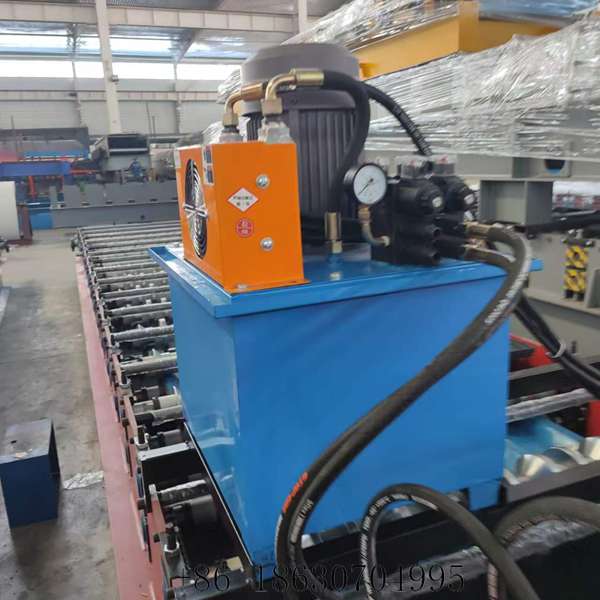

| Cutting type | Automatic hydraulic die cutting |

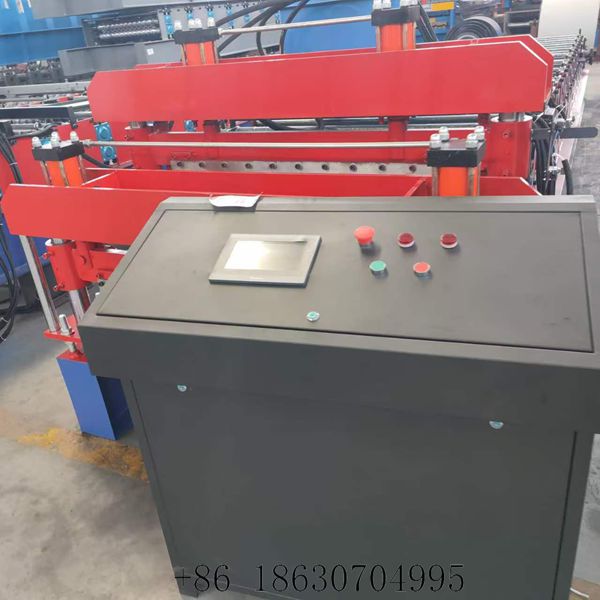

| Control system | PLC + touch screen |
| Voltage | 380 V / 50 Hz or 220 V / 60 Hz (customizable) |
| Overall dimensions (approx.) | 8.5 × 1.4 × 1.4 m |
| Machine weight (approx.) | 4.0 – 4.5 t |
