Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.

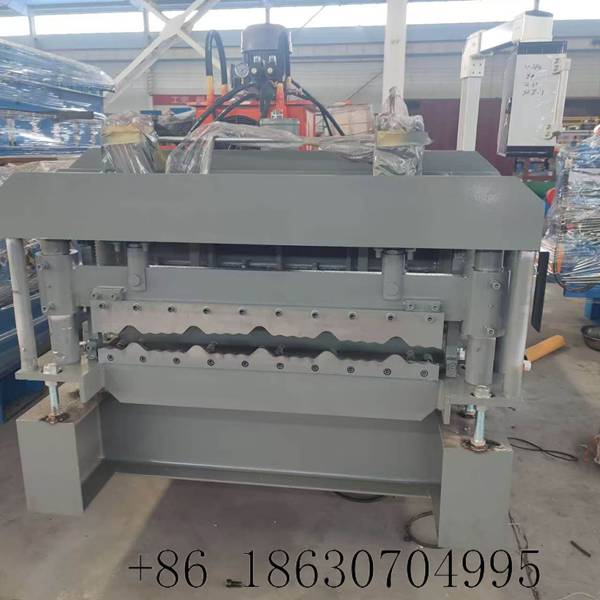

A custom-engineered roofing solution designed for the tropical rainforest climate of the Solomon Islands. Featuring a unique 748mm effective width and deepened drainage channels, this machine delivers unmatched rain protection and traditional architectural aesthetics.
In the Solomon Islands, metal roofing must endure monsoon-intensity rainfall while maintaining the beauty of traditional clay tiles. Our 748 multi-wave glazed tile profile has become the region's most popular choice for high-end houses, industrial factories, and logistics warehouses. The secret lies in the specialized 748mm effective width, which provides an ideal balance of installation speed and structural rigidity.
As a 30-year veteran in cold roll forming technology, Hebei Xinnuo has fine-tuned this glazed tile roll forming machine to provide a high-efficiency solution that satisfies local building codes and aesthetic preferences. Explore our manufacturing expertise and global project history.
The Solomon Islands is among the rainiest places on Earth. Standard glazed tiles often struggle with water backup during heavy storms. This machine produces a custom profile with deepened drainage channels that increase water discharge capacity by 30%:
The multi-wave design features deep valleys between peaks, ensuring torrential rain flows off the roof instantly. This prevents water accumulating under the laps, effectively eliminating the risk of roof leakage during storms.
This 748mm profile is the local favorite. By producing this specific width, your business gains immediate market entry for residential renovations, government projects, and new factory builds across the islands.
Integrated hydraulic stamping creates the characteristic "bamboo" or "antique" tile steps with perfect consistency. The PLC allows you to adjust step distance (from 200mm to 350mm) to match specific architectural designs.

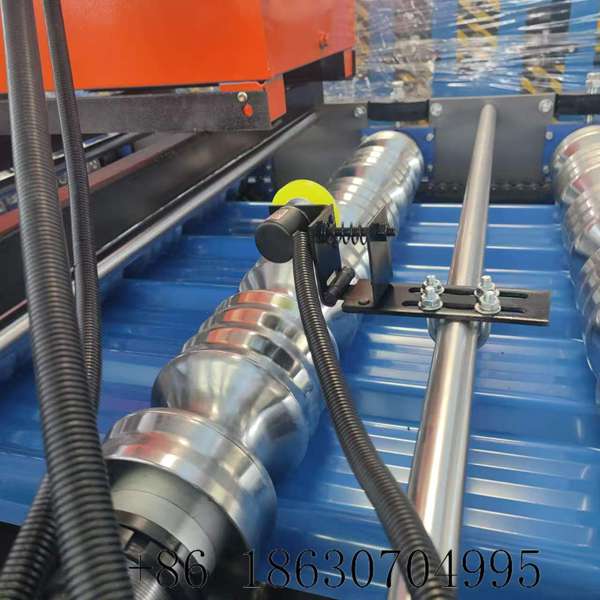

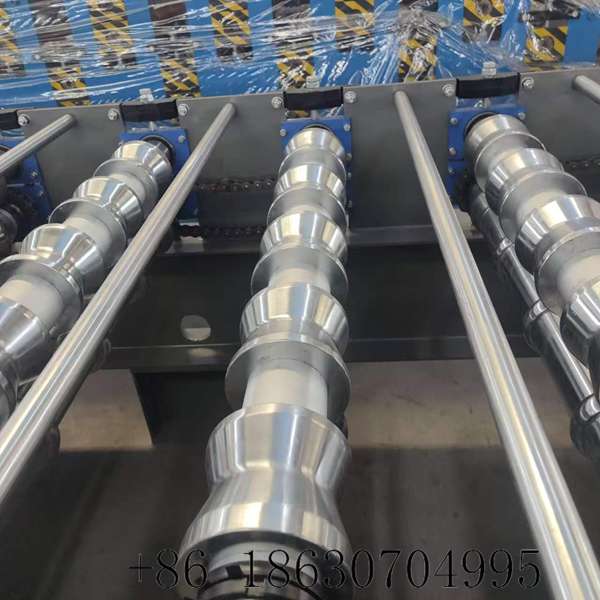

Rollers are hard-chrome plated (>0.05mm) to protect against the humid, salt-laden air common in Pacific island nations, ensuring the machine maintains accuracy for decades of production.
| Parameter | Specification |
|---|---|
| Profile Type | Multi-wave glazed tile (Custom Solomon 748) |
| Effective Coverage Width | 748 mm |
| Feeding Coil Width | 914 mm / 1000 mm / 1220 mm (Customizable) |
| Material Thickness | 0.3 mm – 0.8 mm (PPGI / PPGL steel) |
| Forming Rows | 16 – 18 rows (depending on profile depth) |
| Frame Construction | 350H – 400H structural steel base |
| Shaft Diameter | Φ75 mm – Φ85 mm, 45# precision steel |
| Roller Material | GCr15 bearing steel, mirror polished, hard chrome plated |
| Main Motor Power | 5.5 KW – 7.5 KW |
| Hydraulic Power | 4 KW – 5.5 KW station |
| Control System | Siemens / Mitsubishi PLC + Touch Screen HMI |

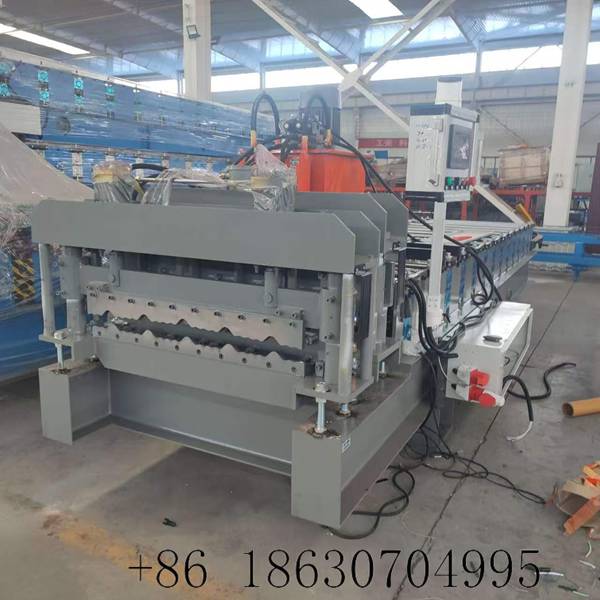

| Cutting Station | Hydraulic step-stamping & post-cutting station |
| Blade Material | Cr12MoV tool steel with heat treatment |
| Production Speed | Approx. 3 – 6 meters/min (including stamping) |

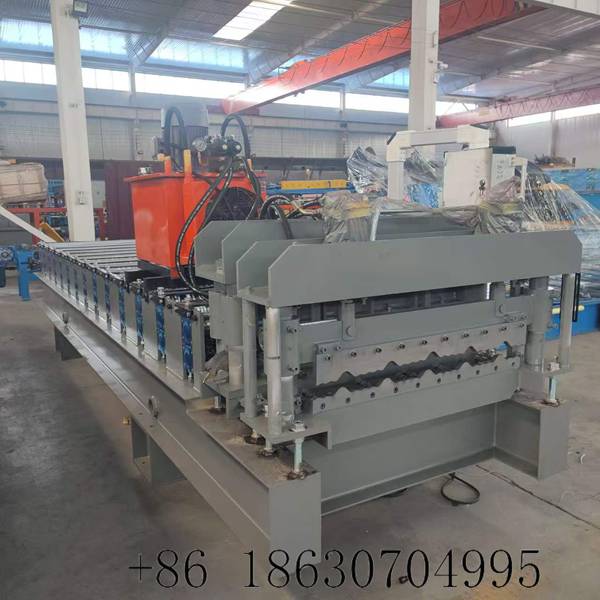

| Transmission | 1.0 – 1.2 inch double-row industrial chain |
| Weight / Dimensions | Approx. 6.5 tons / 9.5 × 1.5 × 1.3 meters |
| Compliance | CE, ISO 9001 certified |

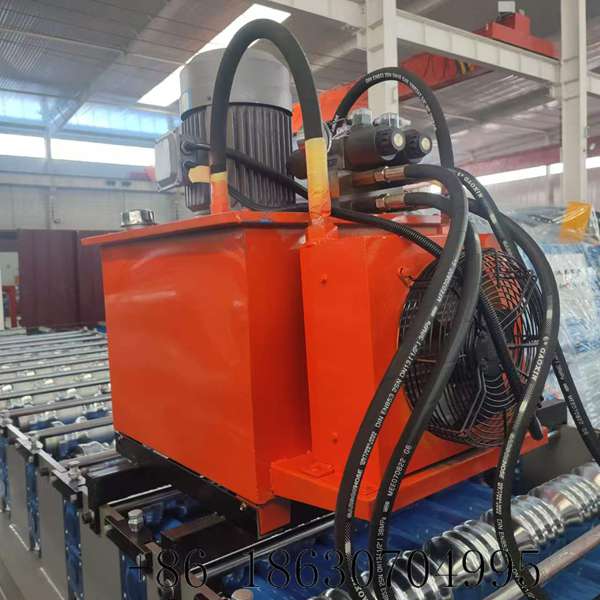

The stamping and cutting are powered by a high-pressure independent hydraulic station, ensuring clean tile edges and deep, sharp step impressions that don't flatten over time.

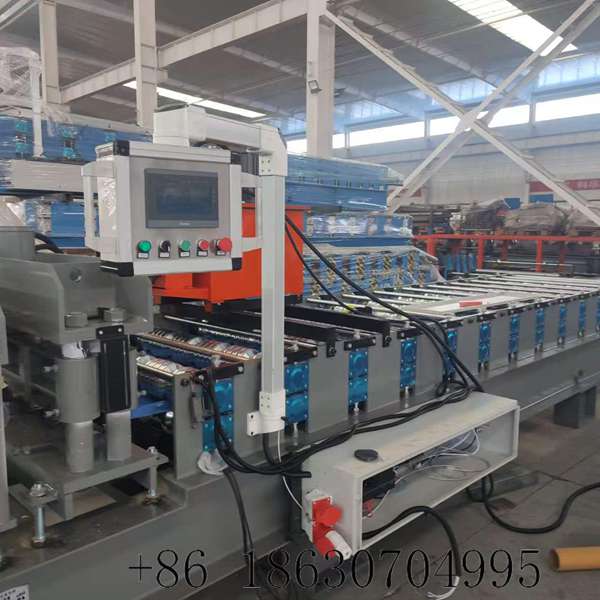

The HMI allows you to program 10+ different batch lengths. The machine automatically handles the count, slowing down before stamping to ensure millimeter-level precision.
Each shaft is supported by heavy-duty bearing pedestals rather than cheap sleeve bushings, reducing vibration and ensuring a perfectly flat tile profile every run.

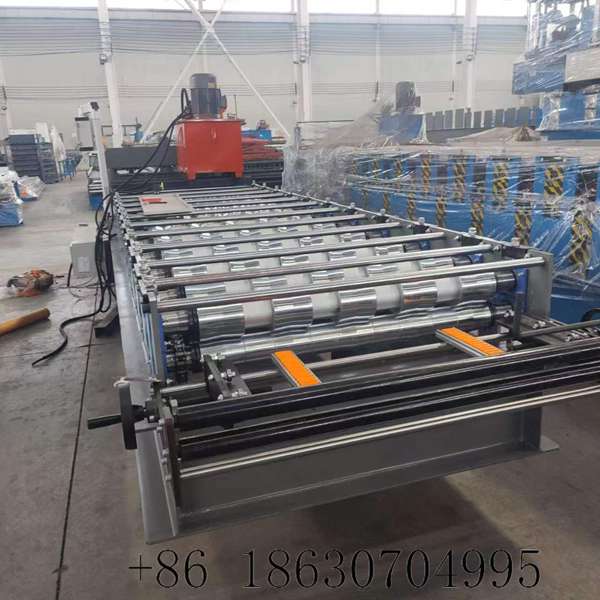

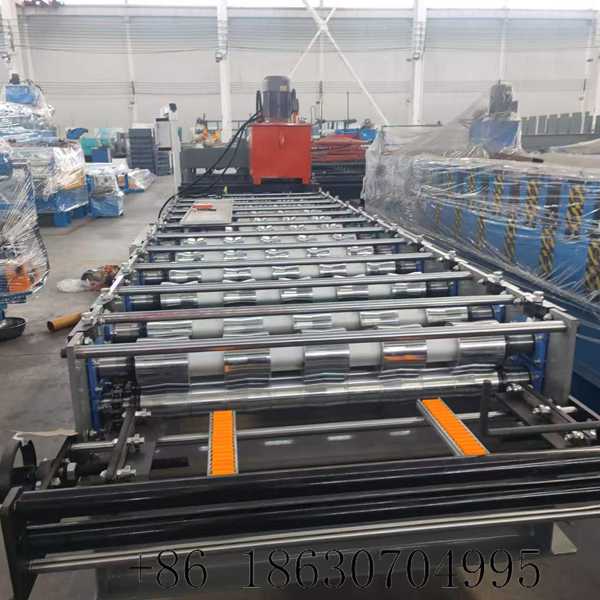

Entry guide rails are easily adjustable via a hand-wheel, allowing you to feed different coil widths (within the machine's range) without complex re-tooling.
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
