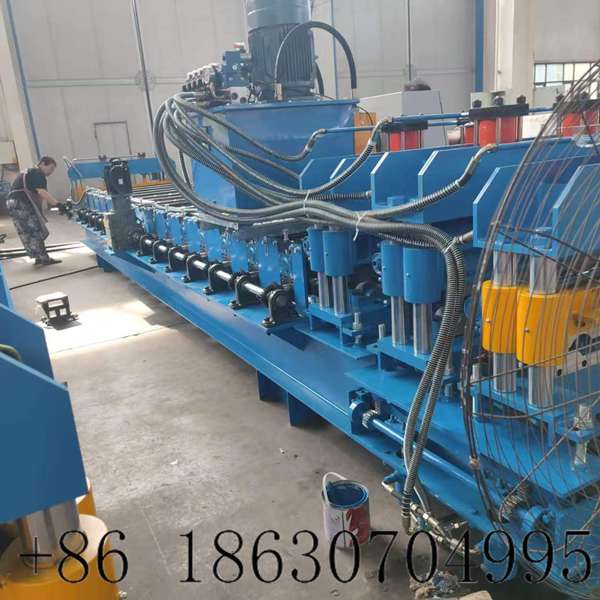

800 Glazed Tile Making Machine

Manufacturer: Hebei Xinnuo Roll Forming Machinery Co., Ltd.

The 800 Glazed Tile Roll Forming Machine is designed for high-speed production of beautiful and durable glazed roof panels. It provides continuous automatic forming with stable performance, meeting the needs of large-scale roofing material production. As a professional metal cold forming equipment manufacturer with over a decade of experience, Hebei Xinnuo Roll Forming Machinery Co., Ltd. independently develops and produces this 800 glazed tile making machine, which has become a mainstream processing device for villa roofs, rural construction, scenic spot roofing and prefab building projects worldwide.

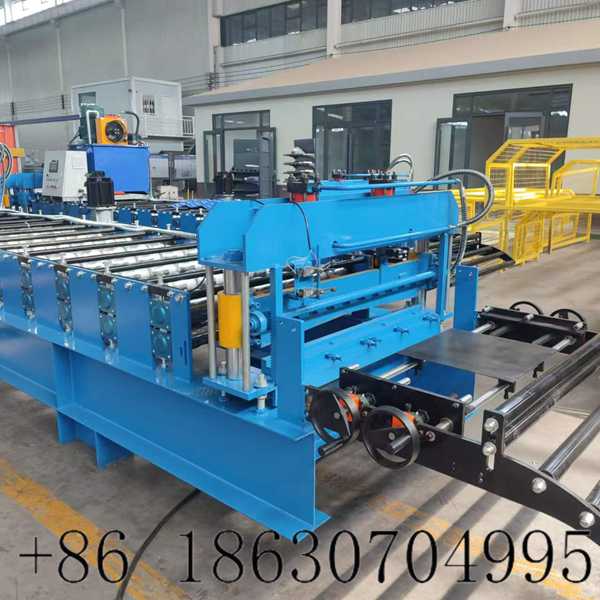

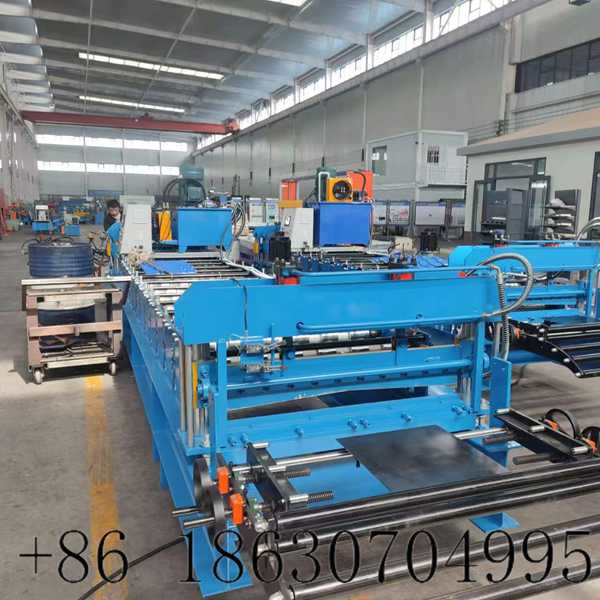

The integrated feeding platform adopts reinforced thick steel plate welding structure, which can stably convey color steel coils, galvanized steel sheets and aluminum coils without sheet deviation during high-speed operation. The feeding guide device is adjustable left and right, effectively correcting raw material offset and reducing waste rate. The whole feeding section is seamlessly connected with the forming area to realize one-stop automatic production from raw material feeding to finished tile cutting.

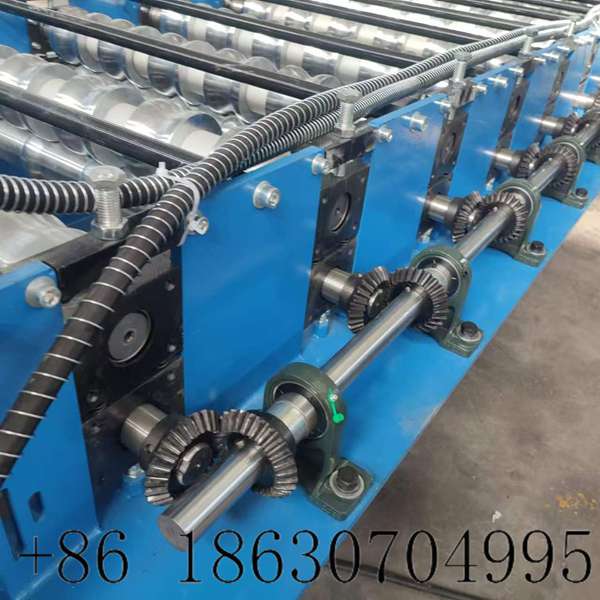

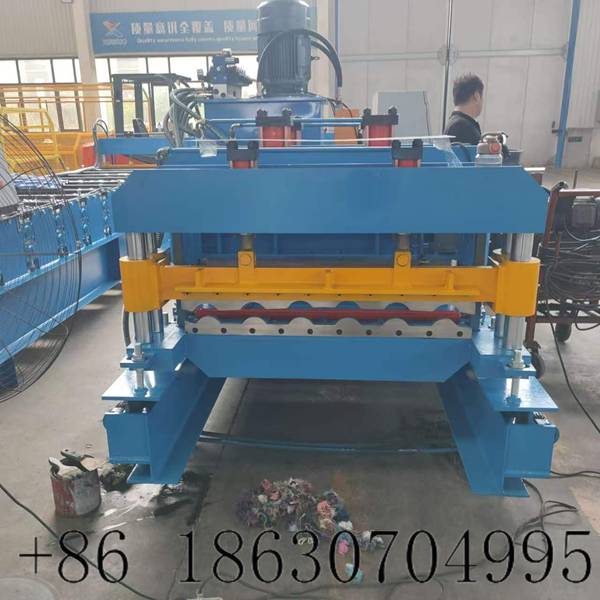

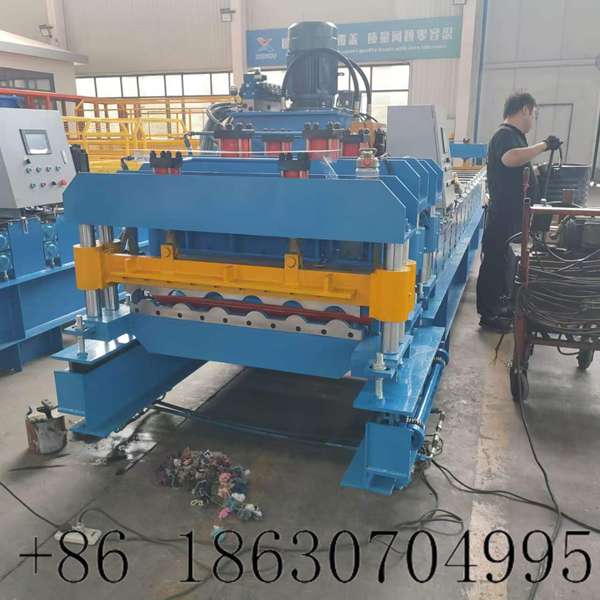

The machine frame is made of thickened H-beam and steel plate through full welding and stress relief treatment, featuring strong shock resistance and non-deformation after long-time heavy load running. The whole equipment runs with low noise and small vibration, adapting to long-shift continuous production in factory environments. Compared with ordinary tile forming equipment, our 800 glazed tile making machine optimizes the transmission layout, greatly improving running stability and extending the service life of core components.

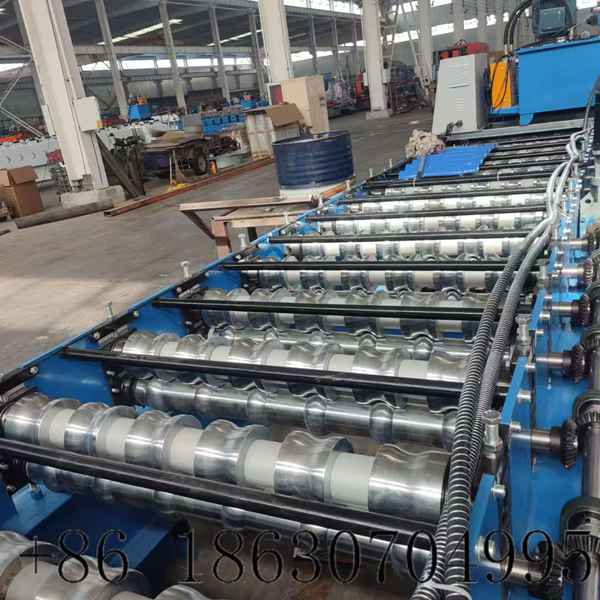

All forming rollers are forged with high-quality GCr15 bearing steel, followed by integral quenching and polishing treatment. The surface hardness reaches HRC58-62, which guarantees clear tile texture, uniform forming and long service life without scratch on the surface of colored metal sheets. Multi-pass progressive rolling design ensures that the glazed tile finished product has smooth arc lines, uniform wave height and no rebound deformation after molding.

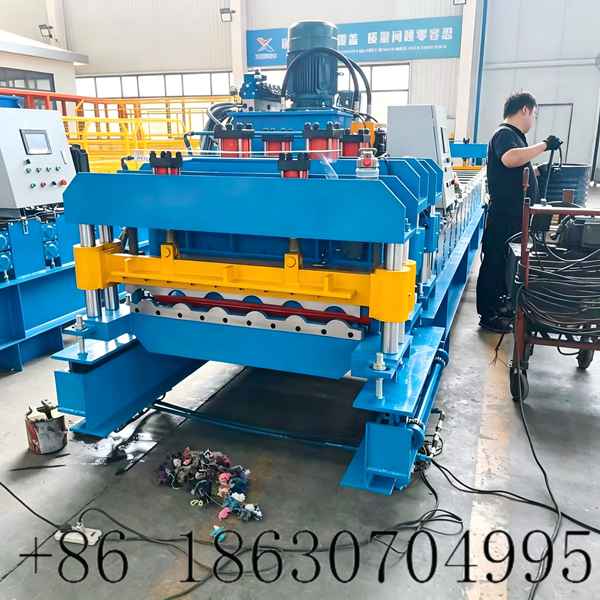

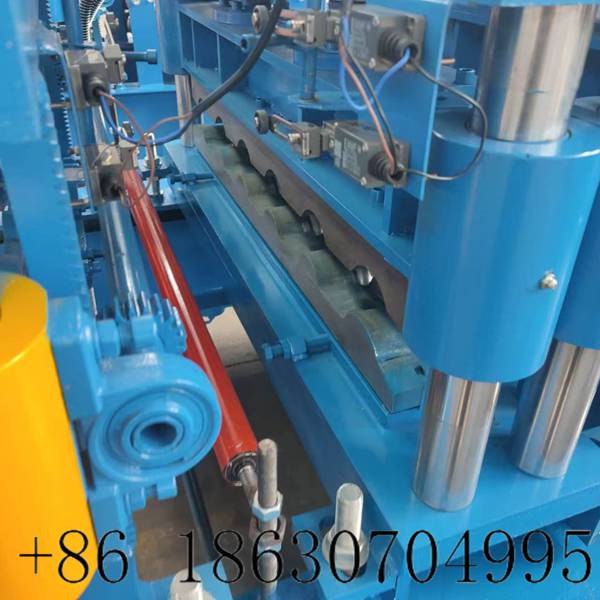

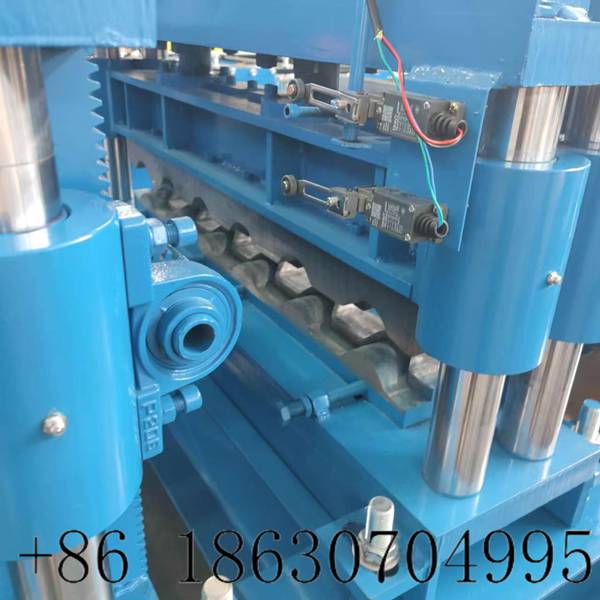

The hydraulic pressing mould is the core part for shaping the traditional glazed tile arc and decorative patterns. Equipped with fast hydraulic cutting system, it can complete stamping and cutting at fixed length automatically without manual intervention. The mould can be replaced according to customers’ personalized pattern demands, supporting customized glazed tile shapes for different regional architectural styles. The independent PLC control cabinet matches frequency conversion speed regulation, allowing operators to adjust forming speed flexibly according to production volume.

Hebei Xinnuo’s 800 glazed tile making machine supports customizable working width, forming speed and working voltage to fit market standards of Southeast Asia, Africa, South America and Eastern Europe. Every unit undergoes strict running test before delivery to eliminate running failure. We provide complete export certification documents, long-distance video technical guidance and spare parts supply service for global distributors and roofing material factories. This automatic glazed tile roll former balances high output, low failure rate and easy maintenance, which is the ideal production equipment for medium and large roofing panel manufacturers.

Main Technical Parameters of 800 Glazed Tile Making Machine
