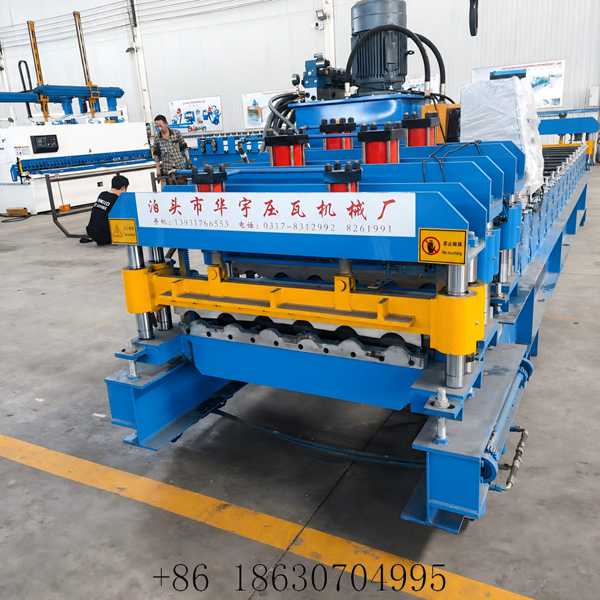

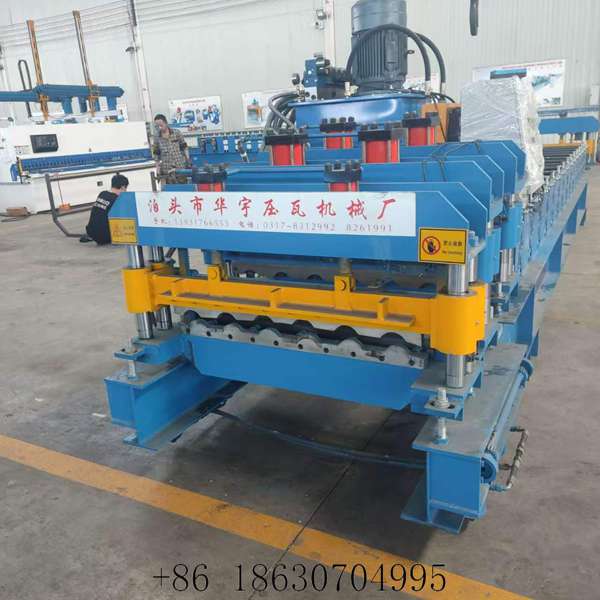

800 Glazed Tile Roll Forming Machine | Antique Tile Line

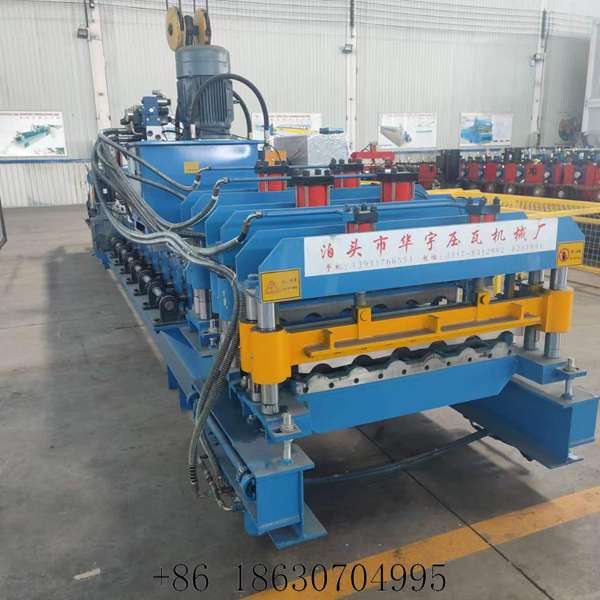

Hebei Xinnuo Roll Forming Machinery Co., Ltd. (XINNUO) has manufactured cold roll forming equipment for more than 30 years in Botou, Hebei, China. With an annual output of over 3,000 sets and exports to more than 140 countries and regions, XINNUO is a trusted supplier of roofing machinery, including antique glazed tile equipment. The 800 glazed tile roll forming machine is a proven solution for producing elegant antique-style roof tiles with a distinct pitch texture on every wave crest.

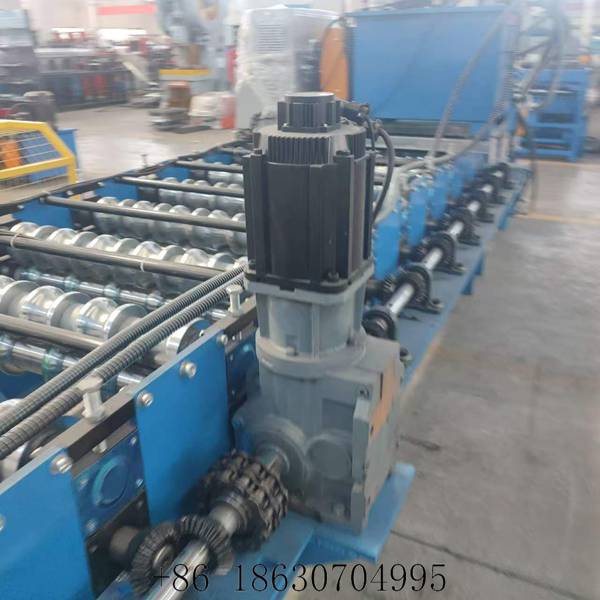

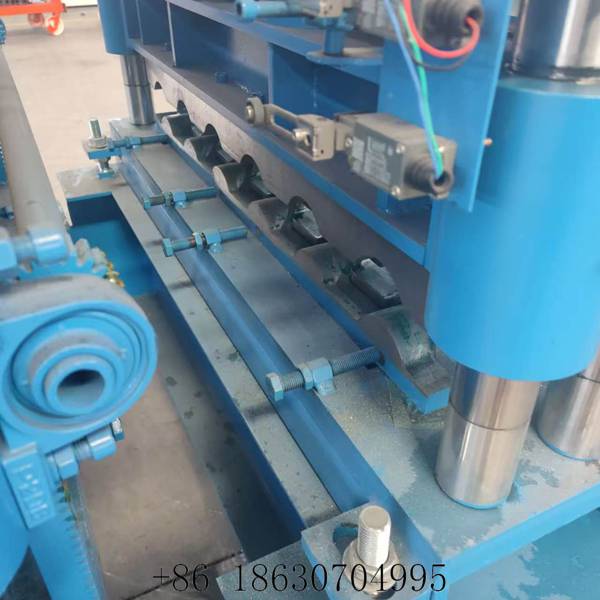

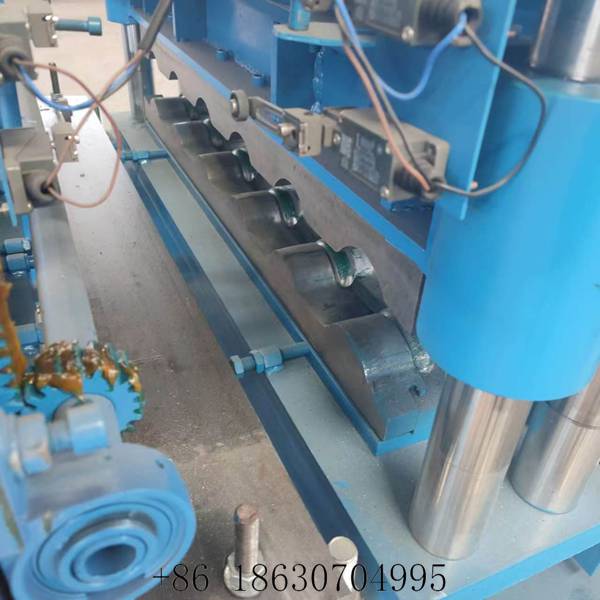

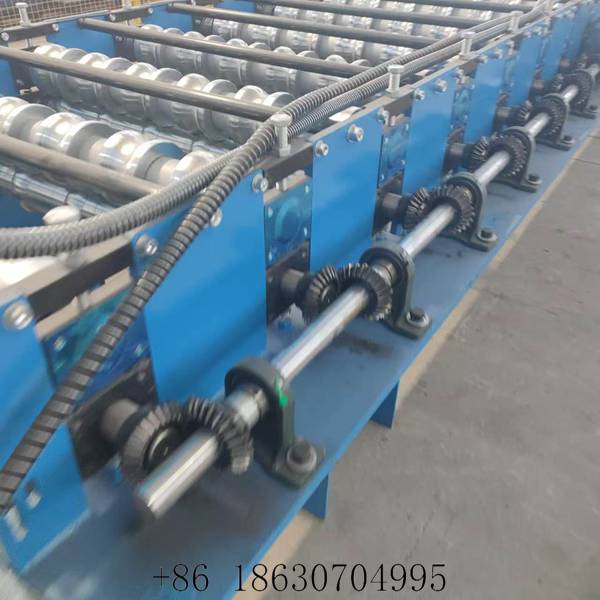

Unlike standard corrugated lines, this tile roll forming machine combines arc forming with an extra pitch-stamping unit, so each peak carries the segmented texture of traditional Chinese glazed tiles — ideal for villas, heritage-style buildings, resorts and landscape projects. Durable forming rollers forged from 45# steel and hardened to HRC 45–50° guarantee a long service life and consistent forming quality during continuous production. Automatic PLC control integrates forming, length measurement and cutting, letting one operator set parameters and monitor the whole line from a touch screen. Accurate length cutting by automatic hydraulic shear delivers precise panel lengths and clean edges, reducing material waste. A strong, stable machine frame minimizes vibration, while wide material compatibility covers color-coated steel, galvanized steel and other compatible metal coils. The optional servo motor with bevel gear drive achieves pitch positioning accuracy of ±0.5 mm and runs quieter than chain transmission.

For complete roofing systems, browse our Roof Sheet Making Machine category, or compare panel lines in the Trapezoidal Sheet Roll Forming Machine collection. Coverage width, pitch, sheet thickness and voltage can all be customized to your project, and our engineers are ready to match the right profile and provide a tailored quotation.

Key Features

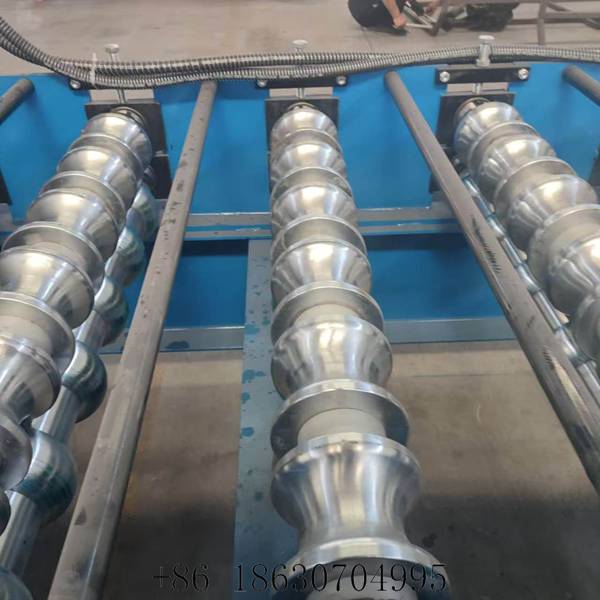

• Durable forming rollers: forged 45# steel, hardened to HRC 45–50°, long service life, consistent quality in continuous production

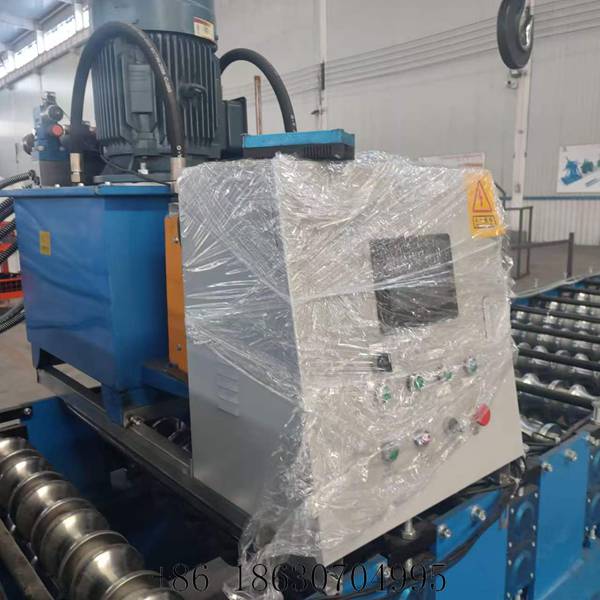

• Automatic PLC control: integrates forming, length measurement and cutting; easy parameter setting and monitoring
• Accurate length cutting: automatic hydraulic cutting, precise panel lengths, clean edges, less material waste
• Strong & stable machine frame: reinforced structure minimizes vibration, stable forming and reliable long-term production
• Wide material compatibility: color-coated steel, galvanized steel and other compatible metal coils

Technical Parameters

Swipe horizontally to view full parameters.
