Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.

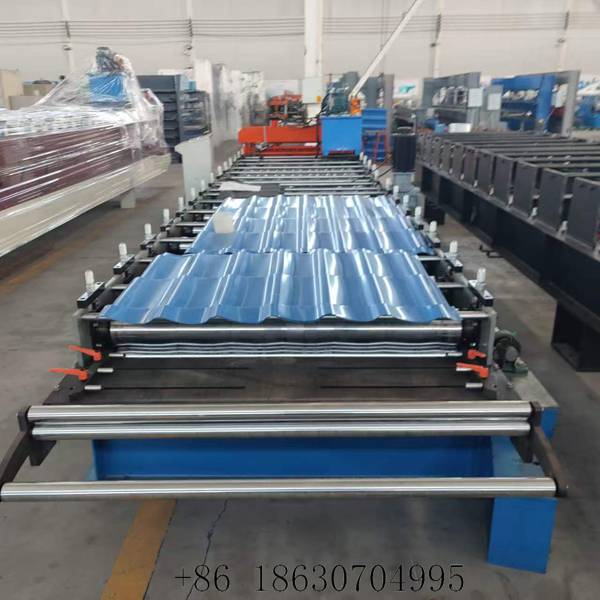

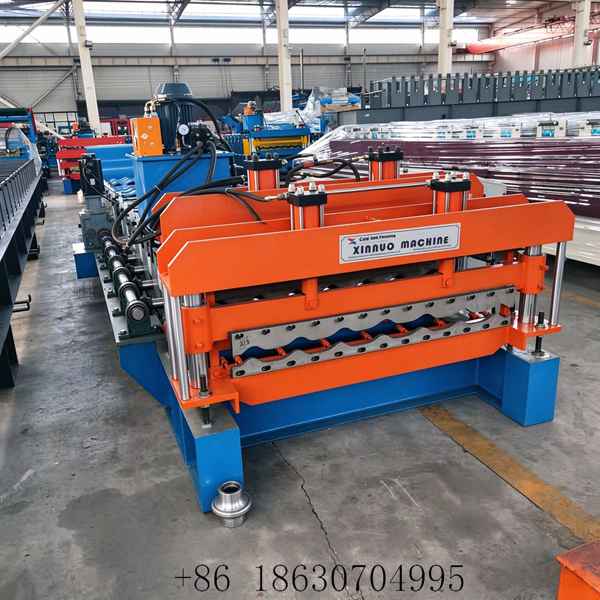

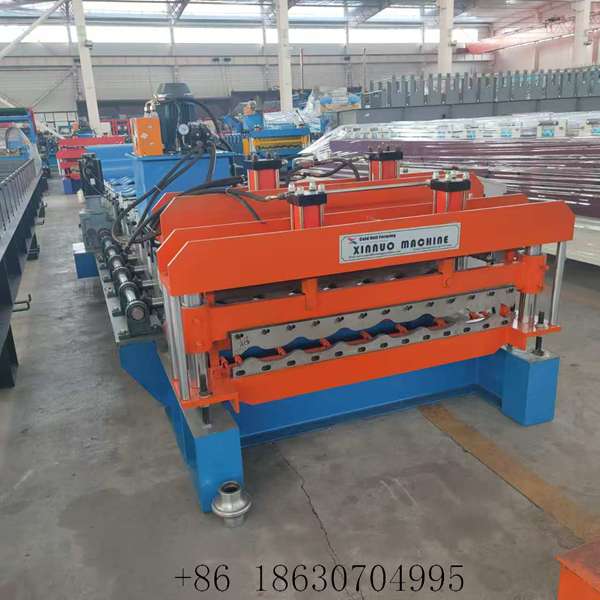

Our 1100 Arc Bias Glazed Tile Roll Forming Machine, also known as Curved Glazed-Style Metal Roof Panel Machine, is professional cold roll forming equipment developed by Hebei Xinnuo Roll Forming Machinery Co., Ltd. It manufactures beautiful curved glazed metal roof tiles widely used in villas, resorts, warehouses and all kinds of steel structure roofing projects.

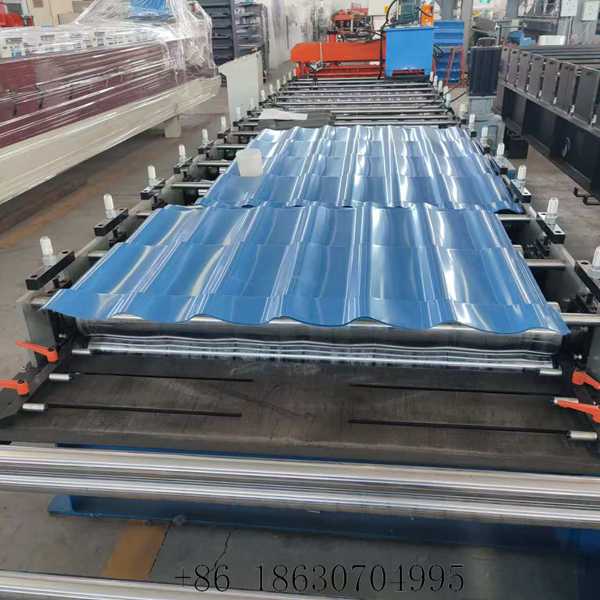

This machine adopts progressive cold roll forming technology to deliver smooth and consistent panel surfaces. Its effective finished panel width reaches 1100mm, with feeding raw material width ranging from 1200mm to 1250mm. It can process PPGI, GI and aluminum coils with thickness from 0.3mm to 0.8mm. Hydraulic cutting system guarantees high precision on panel cutting length. Equipped with PLC touch screen control system, operators can set length, quantity and speed easily; Russian or English operation interfaces are optional for global clients.

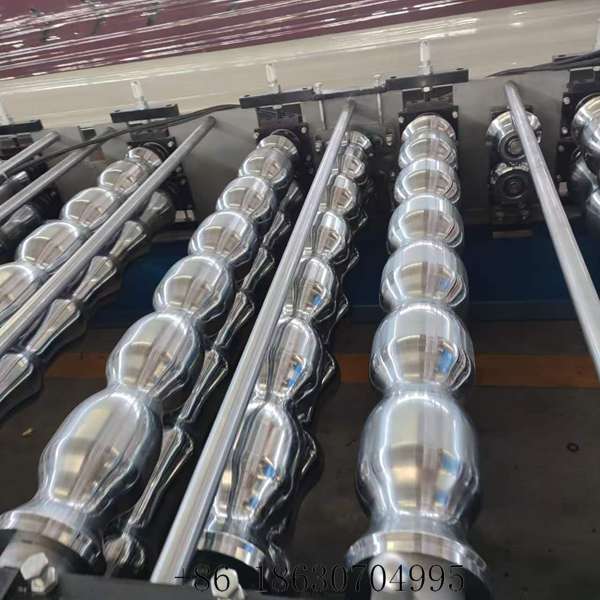

The forming rollers are made of 45# steel with chrome treatment for long service life. The stable chain and gearbox drive system reduces vibration and keeps continuous high-quality production. We support customized glazed tile profiles and molds according to customers’ drawings. This machine meets CE and ISO standards for overseas market requirements.
You may also check our C/Z Purlin Roll Forming Machine and Double Layer Roof Panel Roll Former for complete metal roofing production lines.
Swipe horizontally to view full parameters.
| Item | Specification |
|---|---|
| Machine Name | 1100 Arc Bias Glazed Tile Roll Forming Machine |
| Effective finished width | 1100mm |
| Feeding width | 1200–1250mm |
| Suitable material | PPGI / GI / Aluminum Coils |
| Material thickness | 0.3–0.8mm |
| Forming method | Progressive Cold Roll Forming |

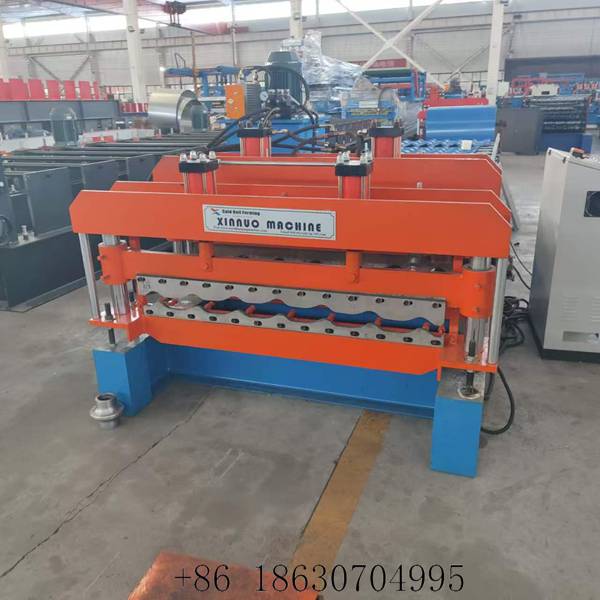

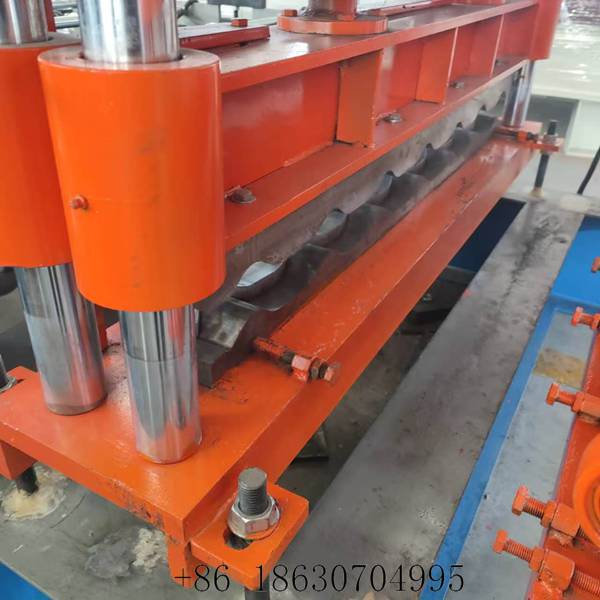

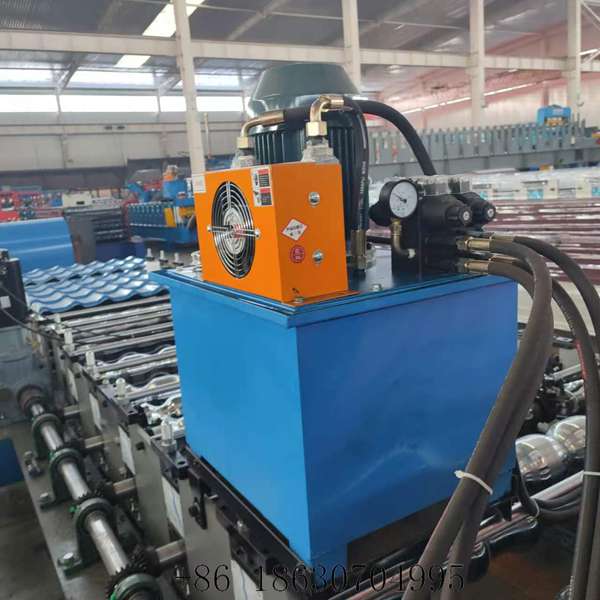

| Cutting system | Hydraulic Cutting, high length accuracy |
| Control system | PLC Touch Screen, Russian/English interface optional |
| Roller material | 45# Chromed Rollers |

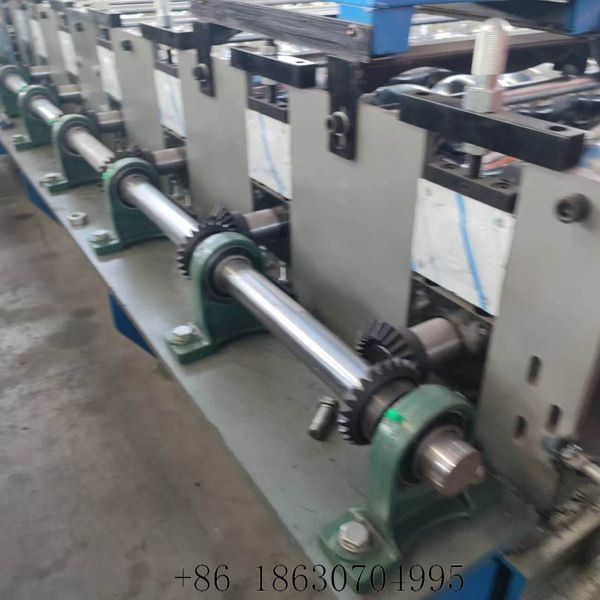

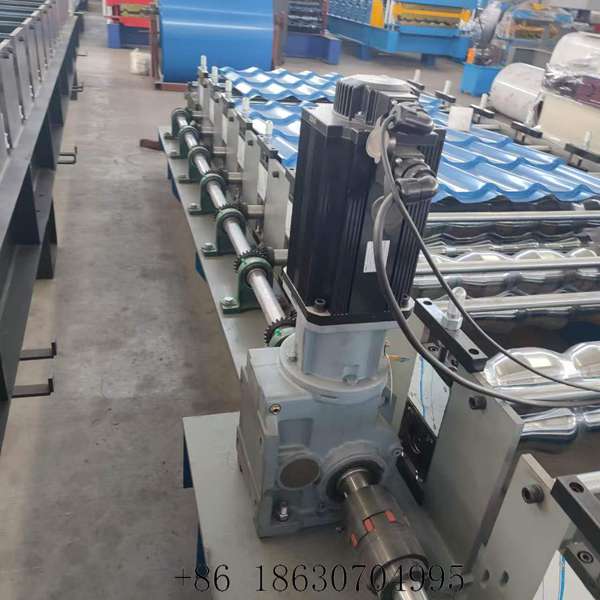

| Transmission | Chain / Gearbox Drive, stable operation |
| Profile | Customizable Glazed Tile Profile & Mold |
| Application | Villas, Warehouses, Resorts, Steel Roofs |
| Certification | CE / ISO available |
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
