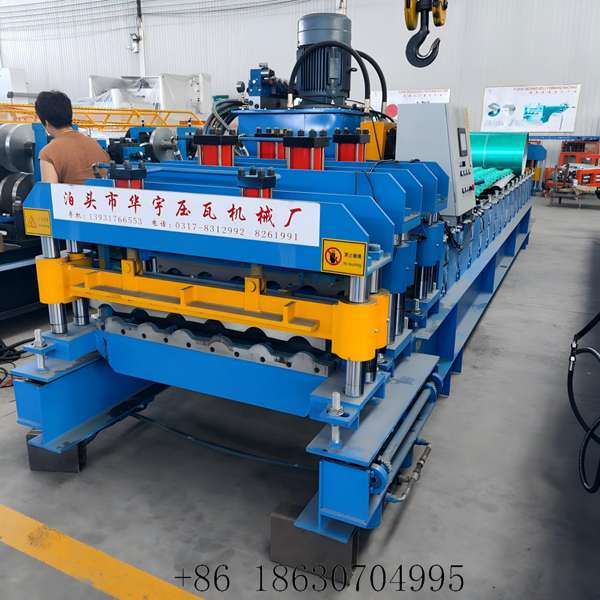

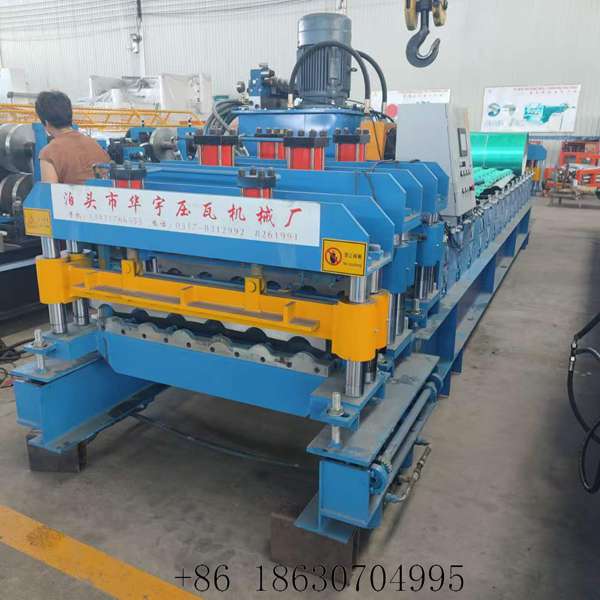

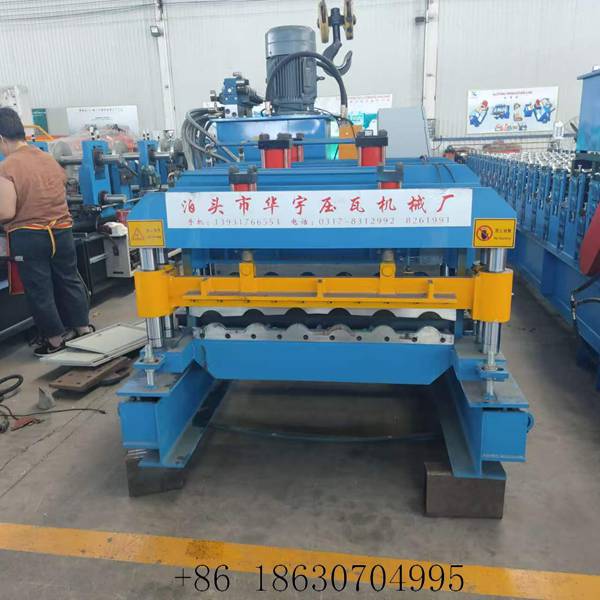

800 Glazed Roof Tile Machine | Antique Tile Line

Hebei Xinnuo Roll Forming Machinery Co., Ltd. (XINNUO) has built cold roll forming equipment for more than 30 years at our works in Botou, Hebei, China. Every year we deliver over 3,000 sets of roll forming machines to more than 140 countries and regions, backed by CE, SGS and ISO 9001 certifications. The 800 glazed roof tile machine is a proven answer for producers of antique-style glazed roof tiles: it shapes each panel with the segmented pitch texture of traditional Chinese tiles on every wave crest, giving roofs an elegant, heritage look.

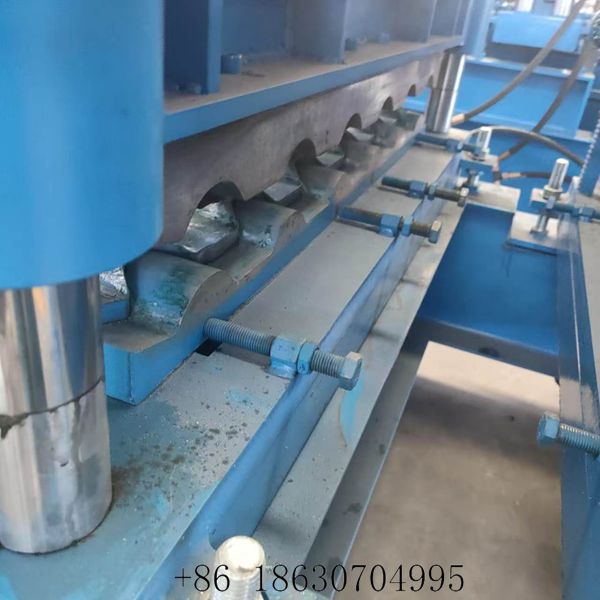

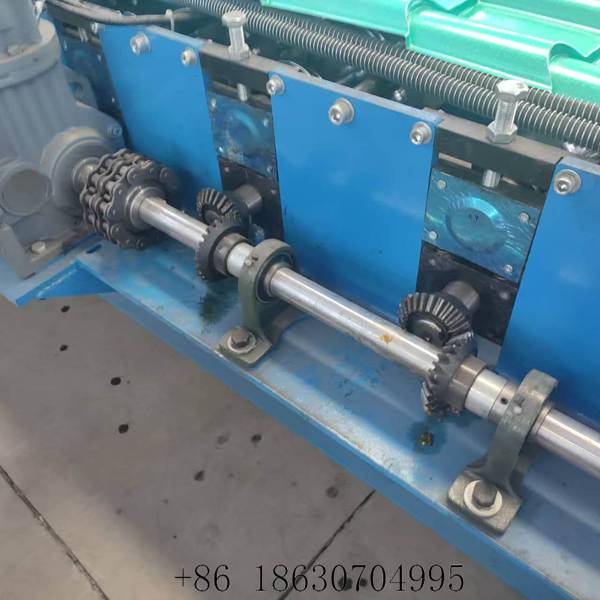

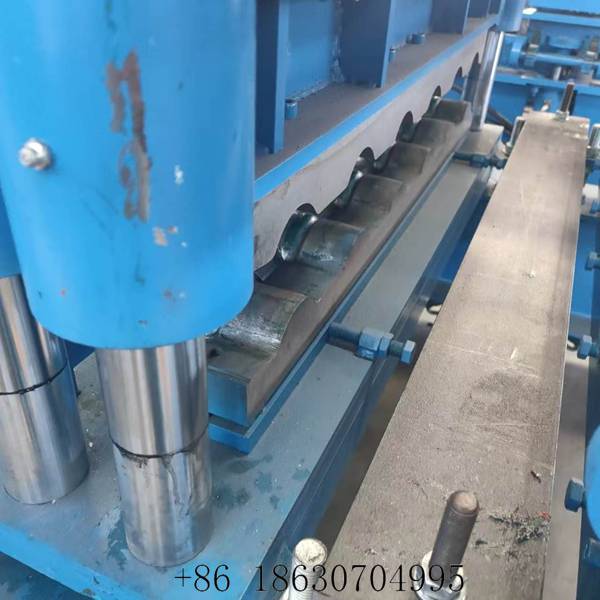

A glazed roof tile machine differs from an ordinary corrugated line in one crucial way: it combines arc forming with a dedicated pitch-stamping unit, so every peak receives a clear and uniform tile pattern. Multi-stage forming stations shape the metal progressively, which reduces surface scratches and deformation and produces smooth, clean finished panels. Precisely engineered rollers hold accurate dimensions and consistent profiles throughout continuous production, while the optional servo motor with bevel gear drive positions each pitch within ±0.5 mm — about five times more accurate than clutch designs — and runs quieter than chain transmission.

The PLC control system centralizes production settings, panel-length control and automatic operation, letting one operator set parameters and monitor the line from a touch screen. Hydraulic automatic cutting trims every panel to the preset length without stopping the forming process, cutting waste and raising output. Optimized forming stations support stable high-speed operation, which helps small workshops and large roofing plants alike increase production efficiency and reduce labor costs.

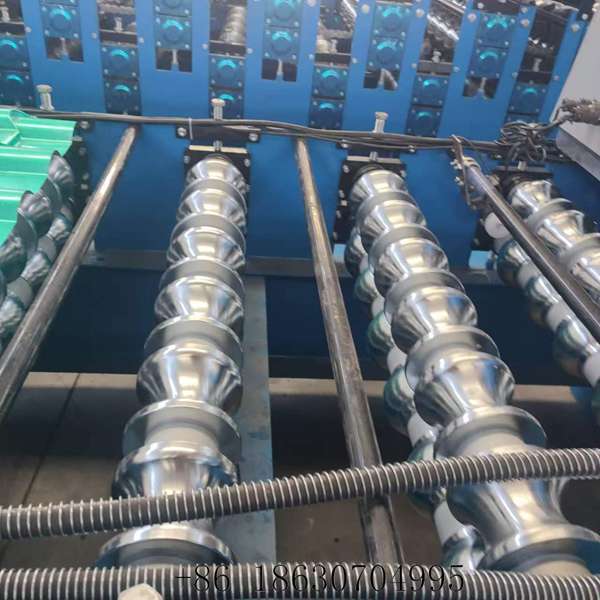

Built for years of two-shift work, the machine uses forming rollers forged from 45# steel and hardened to HRC 45–50°, with precision-ground 40Cr steel shafts mounted in a rigid welded frame machined to 0.05 mm flatness — the combination behind its excellent wear resistance and long service life. Roller sets can be customized for different glazed tile profiles, dimensions and sheet thicknesses. To compare antique and decorative roofing lines, visit our Glazed Tile Roll Forming Machine category and the Trapezoidal Roofing Sheet Roll Forming Machine collection, or contact our engineers for a tailored quotation.

Key Features

• High-precision tile forming: precisely engineered rollers keep dimensions accurate and glazed tile profiles consistent in continuous production

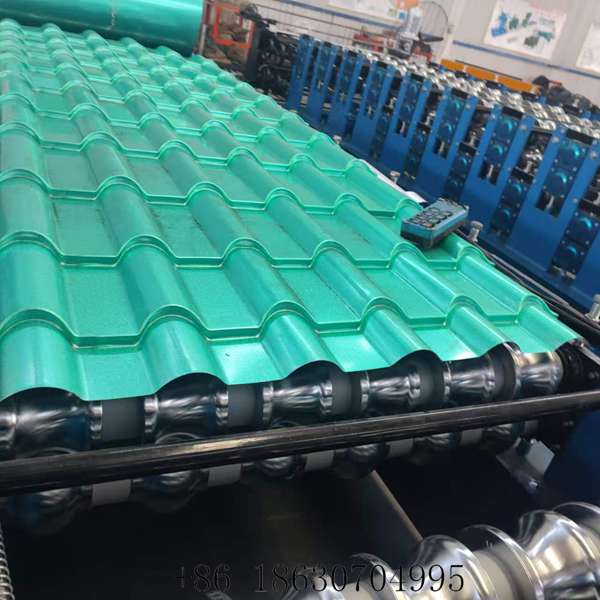

• Smooth & uniform tile surface: multi-stage forming reduces scratches and deformation for clean, attractive panels
• Fast continuous production: optimized forming stations deliver stable high-speed output, raising efficiency and lowering labor costs
• PLC automatic control: integrates production settings, length control and automatic operation for reliable one-person running

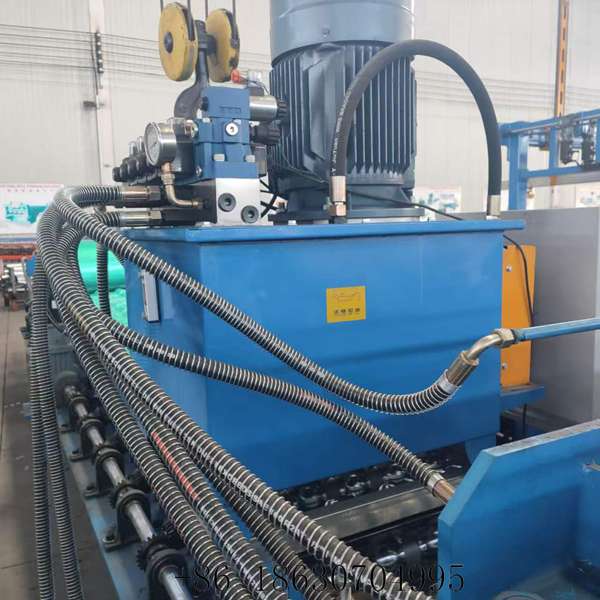

• Hydraulic automatic cutting: precise cut-to-length without stopping the forming process
• Durable forming rollers: quality materials and precision machining give excellent wear resistance and long service life
• Flexible profile customization: roller sets adapt to different glazed tile profiles, dimensions, thicknesses and customer requirements
