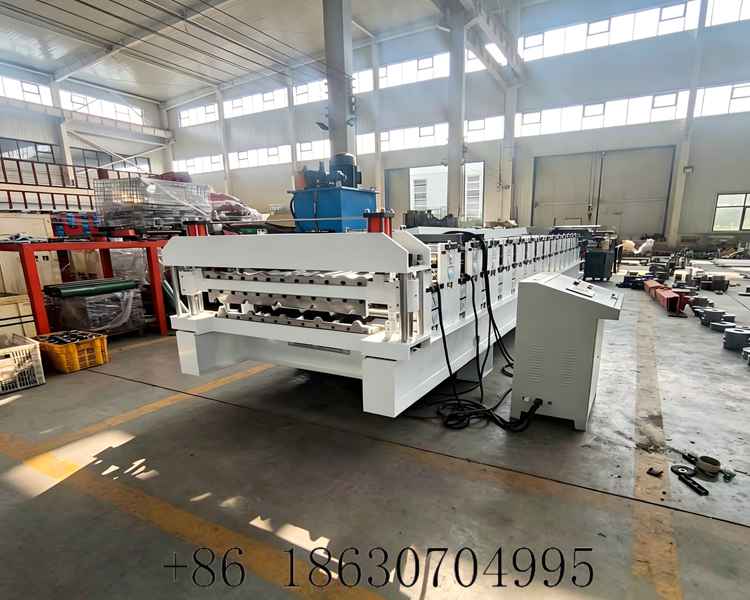

Double Layer 1000+1000 IBR Roof Roll Forming Machine

Manufacturer: Hebei Xinnuo Roll Forming Machinery Co., Ltd.

Product Introduction

Manufactured by Hebei Xinnuo Roll Forming Machinery Co., Ltd., this double layer IBR roof roll forming machine is tailor-designed to produce two kinds of 1000mm wide trapezoidal IBR roof panels in one single unit. The integrated double-layer structure solves the pain point of limited workshop space for metal processing factories, realizing two different roof profiles production without equipping two separate roll forming lines, which greatly saves floor area and initial equipment investment.

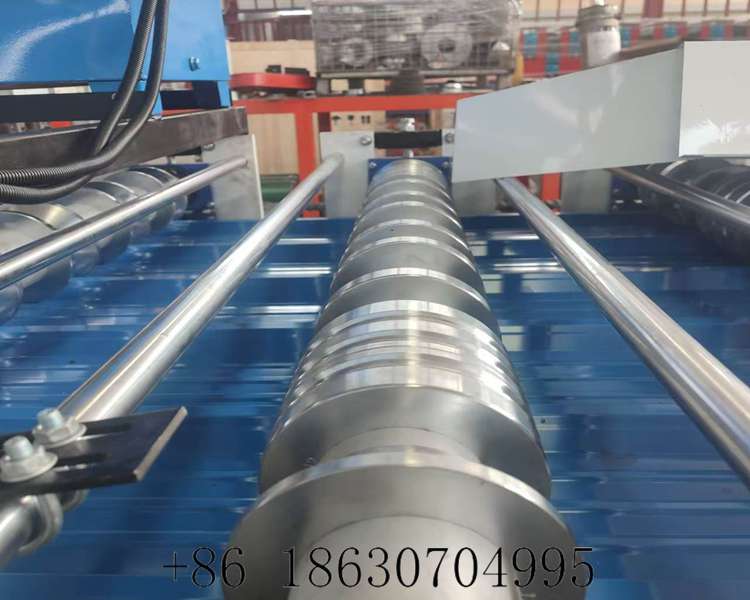

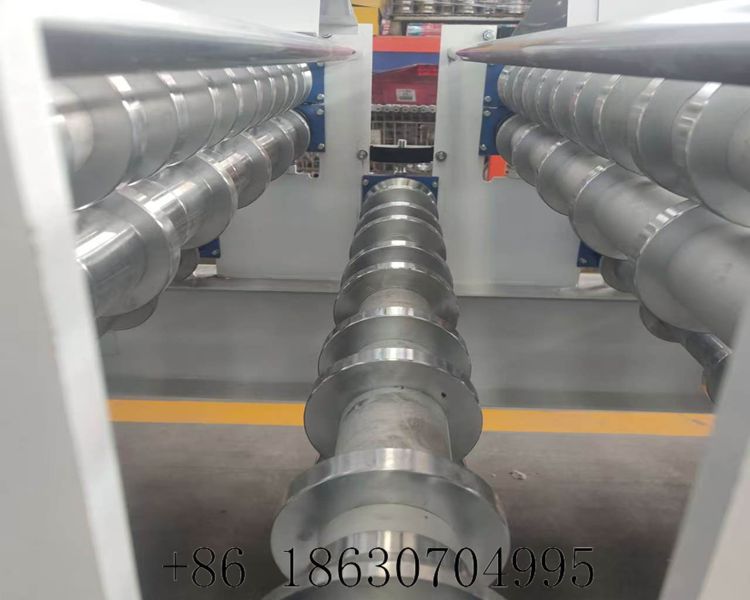

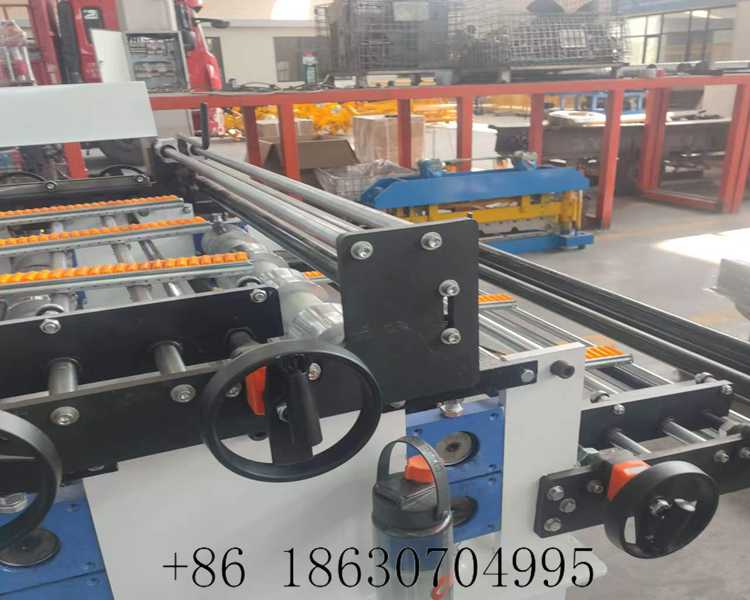

This double deck machine adopts guide post hydraulic cutting system as core configuration. Compared with ordinary single-cylinder cutting structure, vertical guide posts stabilize the cutting blade during shearing movement, reduce blade wear and extend the whole cutting service life significantly. Equipped with large precisely lathed support wheel, the equipment keeps metal sheets flat without ripples or scratches during continuous feeding; every forming roller and support wheel undergoes fine turning and polishing to guarantee smooth finished panel surface.

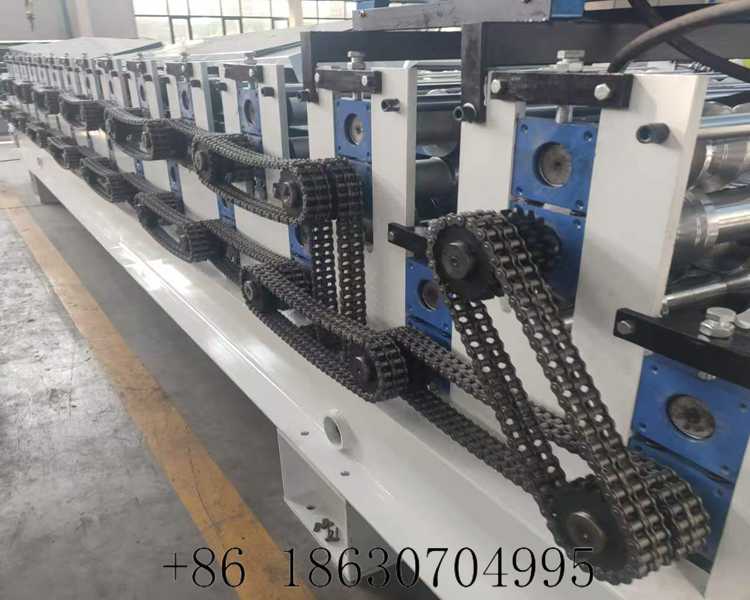

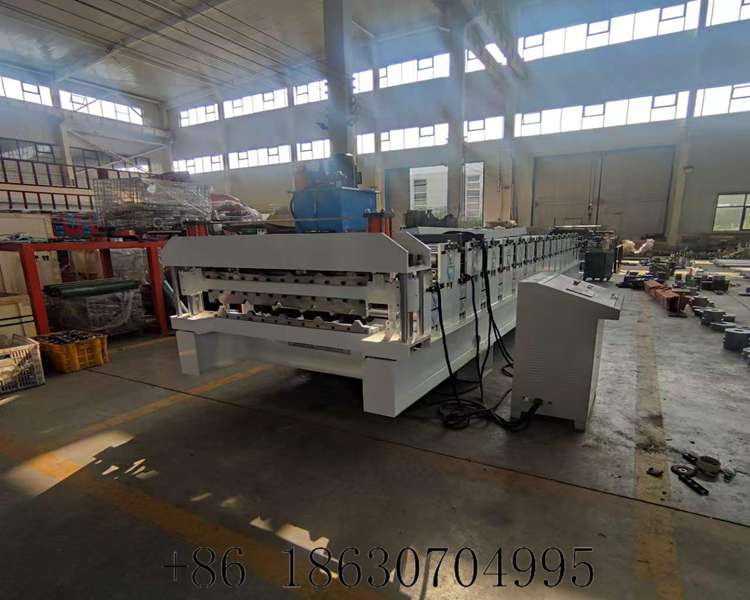

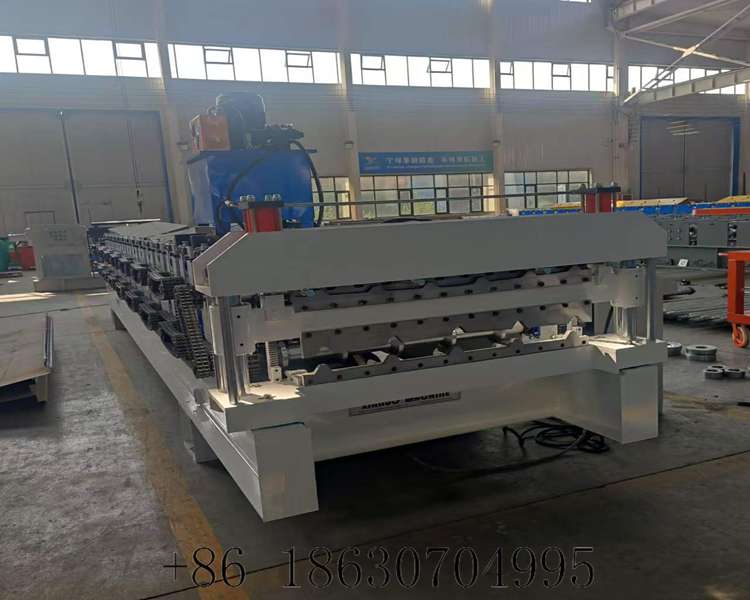

The transmission chain installed on main body of double layer IBR roof roll forming machine delivers stable power transmission for long-hour nonstop running. All operation parameters are adjusted via human-machine touch screen control cabinet, supporting fast profile switching within several minutes without complicated manual debugging. Different from lightweight roll forming equipment on market, our double layer 1000+1000 machine applies thickened fully welded heavy-load frame. The rigid body structure resists deformation under long-time heavy load operation, anti-wear and durable for years of mass production.

One machine produces two 1000mm trapezoidal IBR roof panels simultaneously, effectively boosting daily output and lowering labor, workshop and equipment purchase cost for steel construction manufacturers. This double layer IBR roof roll forming machine is widely exported to Africa, Southeast Asia and South America for factory, warehouse and stadium roofing projects. Hebei Xinnuo supplies complete after-sales service including installation guidance, technical training and long-term spare parts supply for all global distributors and end customers.

Core Selling Points

• Dual-layer integrated design, save workshop space, one machine makes two 1000mm IBR profiles
• Vertical guide post hydraulic cutting, low blade abrasion and long service life
• Precision large lathed support wheels, ensure flat and scratch-free metal panels
• PLC touch screen intelligent control, quick profile switching with simple operation
• Thickened heavy-duty welded frame, anti-deformation, durable and cost-saving high-efficiency equipment
