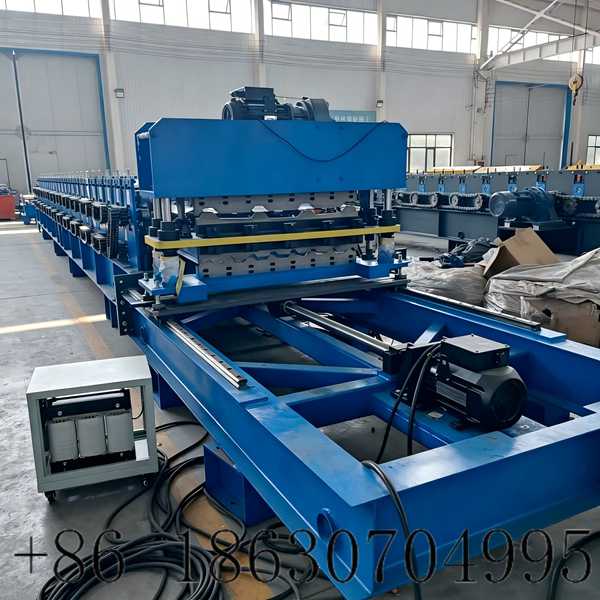

Double Layer Roll Forming Machine With

Flying Tracking Cut | Xinnuo

Product Overview For Metal Tile Manufacturers

Manufactured by Hebei Xinnuo Roll Forming Machinery Co., Ltd, our double layer roll forming machine equipped

with flying tracking cutting system acts as a powerful capacity accelerator for all color steel tile processing factories.

If you want to upgrade your production line and pursue doubled daily output without adding extra equipment, this

dual-profile trapezoidal roof panel machine is the ideal high-efficiency production equipment you are looking for.

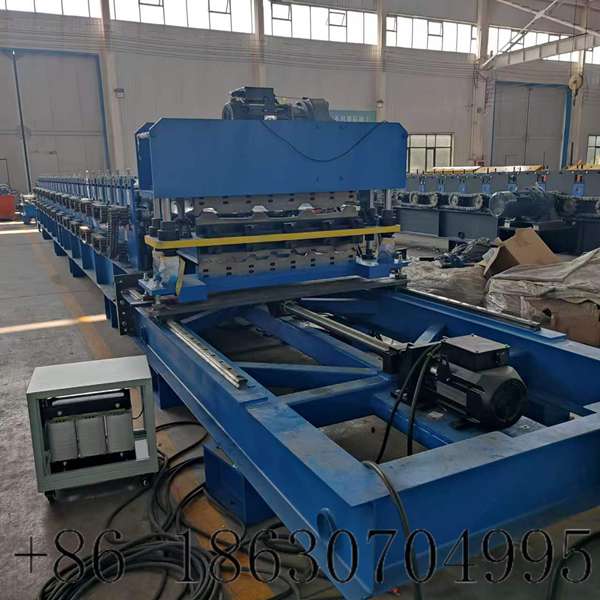

The biggest breakthrough of our double layer roll forming machine lies in advanced tracking flying cutting technology.

Traditional fixed cutting machines have to stop the whole production line when cutting metal sheets, causing long waiting

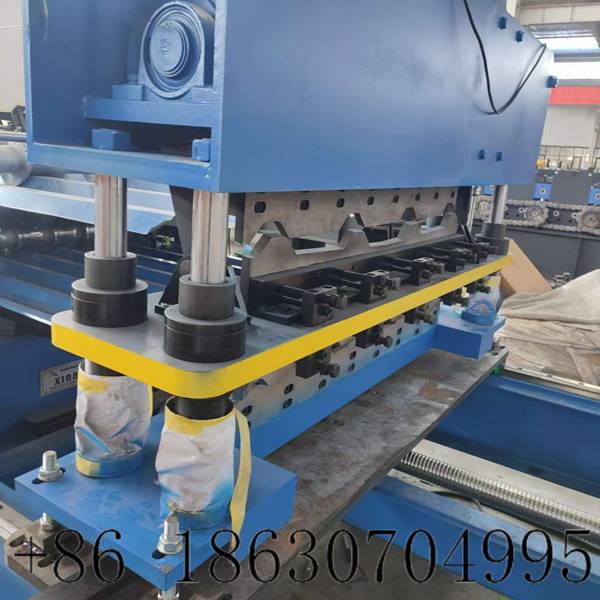

downtime and limiting overall output. Our tracking shear moves synchronously with running steel strips without line halt,

directly doubling your production speed and eliminating inefficient idle time completely.

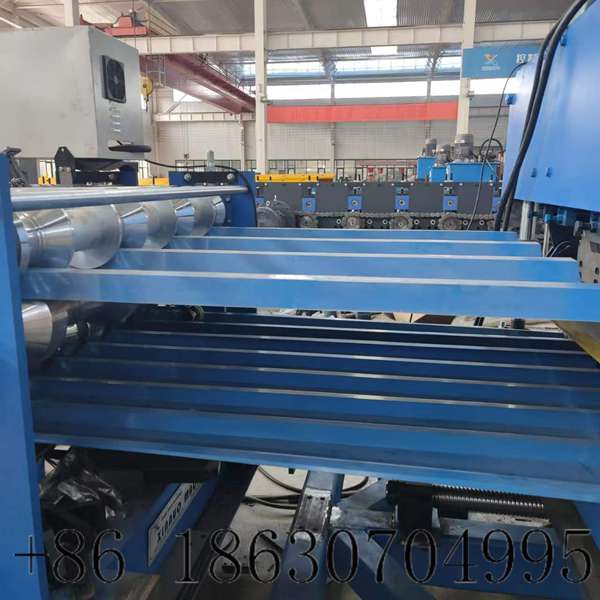

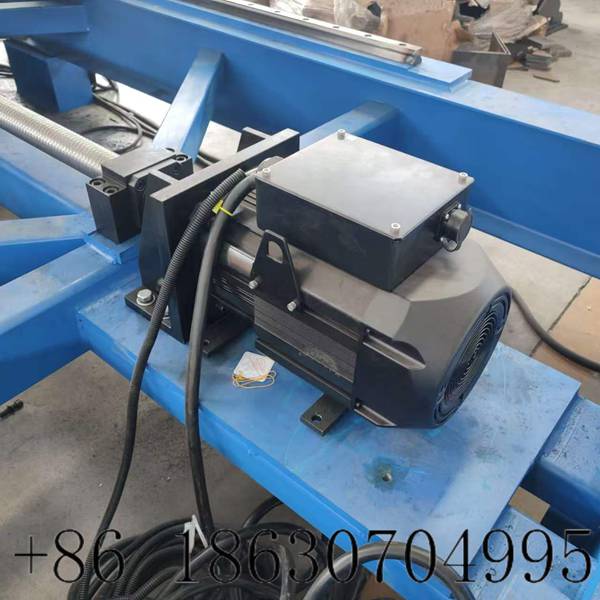

Supported by independent servo precise control system, every cutting stroke delivers smooth, burr-free and flat sheet ends,

avoiding defective products caused by uneven cutting. Another competitive highlight is the one-click double layer switching

function. Operators can freely switch between two different trapezoidal roof panel profiles on the touch screen within minutes,

bringing great flexibility to handle mixed customer orders and greatly enhancing your market order receiving competitiveness.

Reliable Structure & Cost Saving Advantages

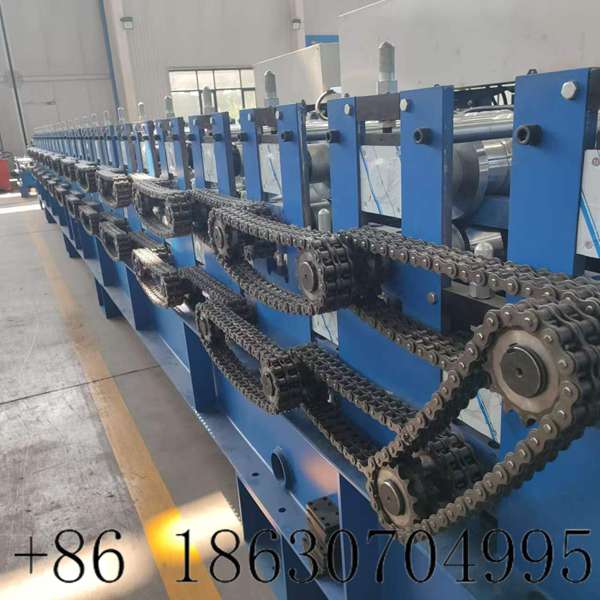

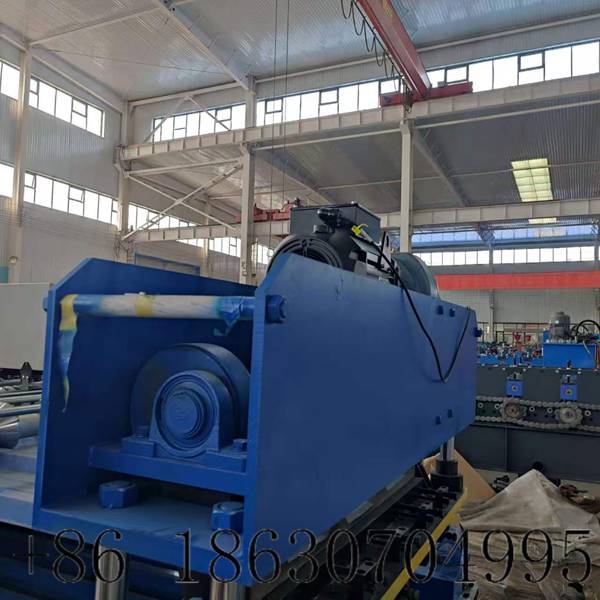

The whole production line adopts heavy-duty transmission chain to drive forming rollers, ensuring stable long-hour

continuous operation without slipping or deviation during high-speed running. The thickened feeding platform supports

stable steel coil feeding, matching perfectly with hydraulic decoilers to form a fully automatic uncoiling-forming-cutting

integrated production flow.

With full automatic one-person operation design, this double layer roll forming machine minimizes manual

monitoring requirements, effectively cutting your long-term labor expenditure to the lowest level. A single set

of equipment covers two mainstream roof panel profiles, which saves your factory space and extra investment

on a second forming machine. It is widely used for industrial plant construction, residential roof projects, agricultural

warehouse and temporary building metal tile production.
