Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.

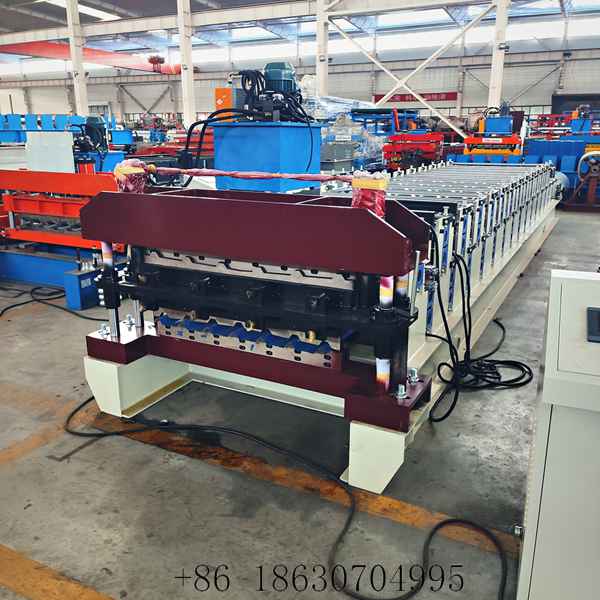

Hebei Xinnuo Roll Forming Machinery Co., Ltd. (XINNUO) has manufactured cold roll forming equipment since 1995, in Botou Economic Development Zone, Hebei, China. Our factory area covers nearly 100,000 m², with 11 large workshops for parts machining, welding, assembly and surface treatment, and more than 50 sets of high-precision CNC machine tools behind every frame we build. This 1000+1000 line is our two profiles roof panel roll former: a double layer machine that turns one coil into two different metal roof sheets.

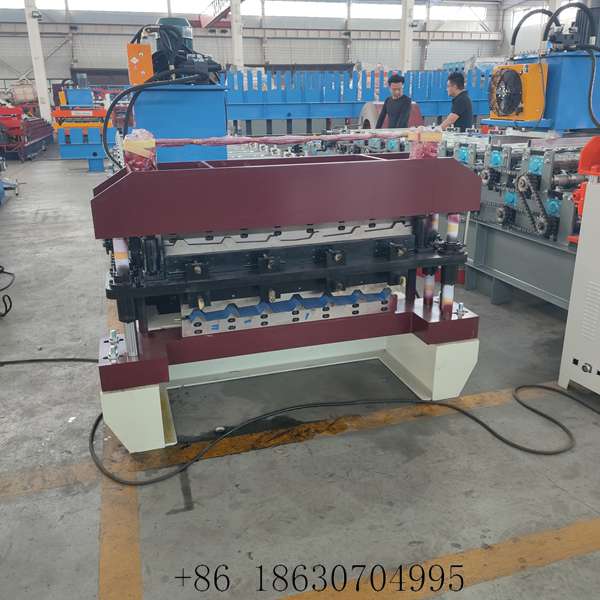

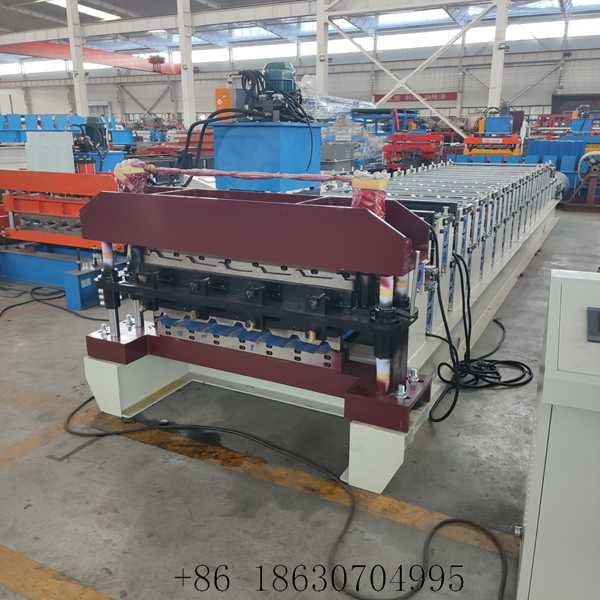

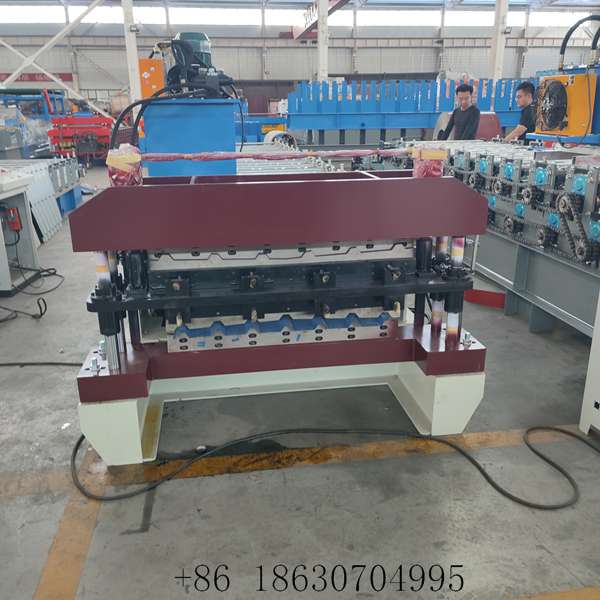

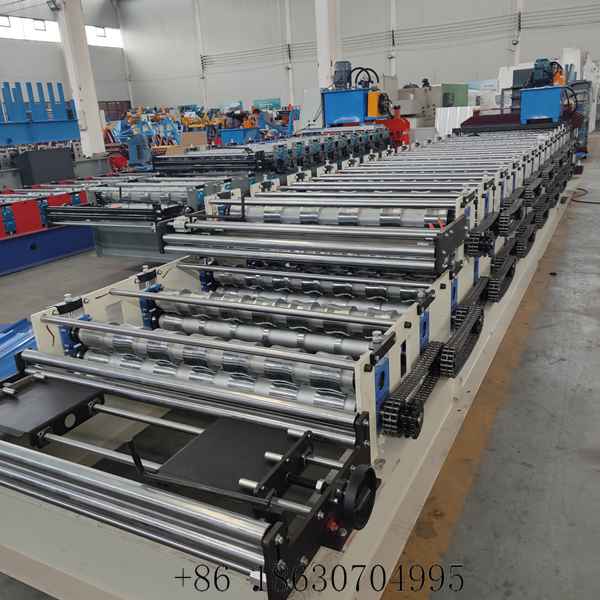

Two independent forming systems are stacked in a single frame. The upper layer runs one roof sheet profile and the lower layer runs another, both at 1000 mm working width, so one operator produces two sellable panels without buying or installing a second machine. The compact structure saves roughly half the workshop space of two separate lines, and switching production from one layer to the other takes only minutes at the control panel, with no roller change required and no second operator needed.

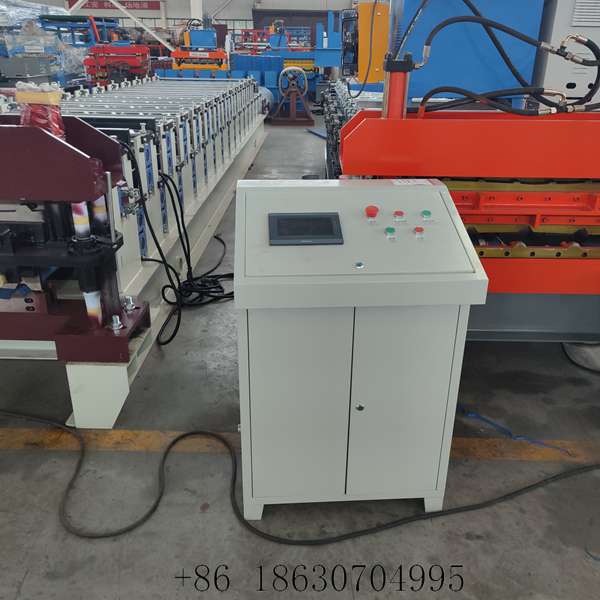

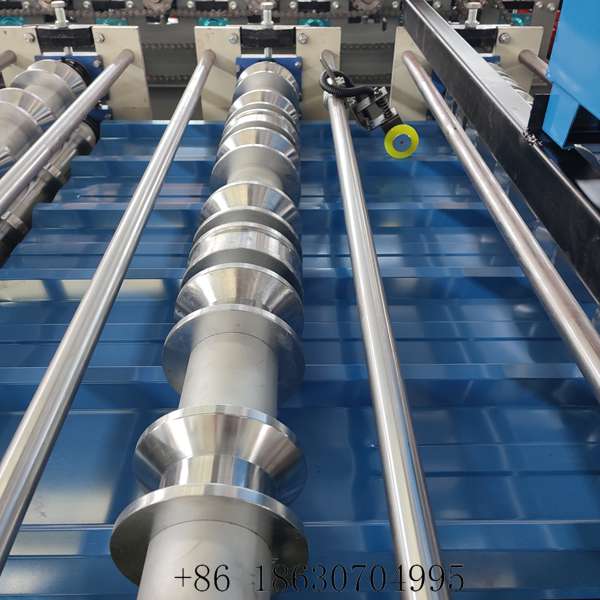

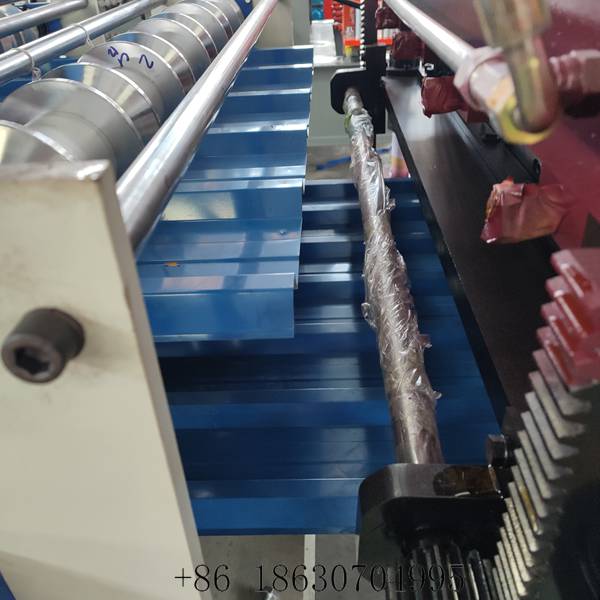

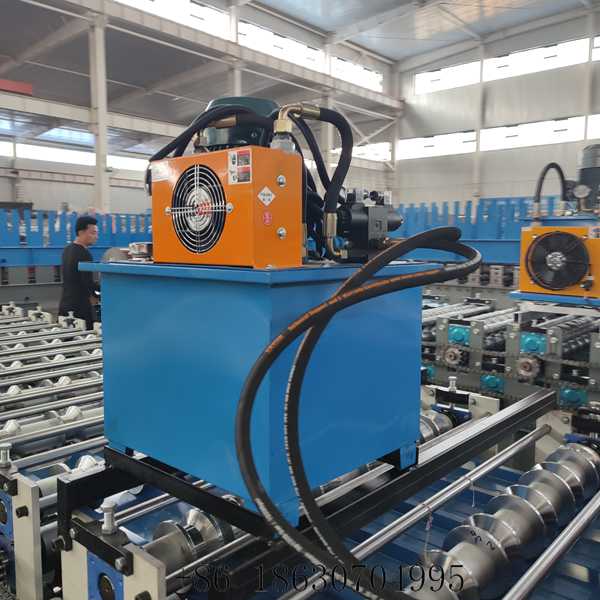

A fully automatic PLC control system with touch screen sets sheet length, production quantity and forming speed, then runs the cycle without further input. The hydraulic cutting unit shears the sheet after forming, so the cutting edge stays clean and the panel keeps its shape. Hardened, chrome-plated rollers run color steel and galvanized coils and hold profile accuracy through long production runs at full speed.
The line produces two 1000 mm metal roof panel profiles for steel structure workshops, warehouses and prefabricated buildings. Adjustable forming speed matches different capacity targets, and the machine is easy to install because the main frame arrives pre-assembled and needs no special foundation. To compare other layer combinations, browse our Double Layer Roll Forming Machine category; for single-profile lines, see the Trapezoidal Sheet Roll Forming Machine collection. Profile drawing, layer combination and voltage are customizable, with one-stop service from selection and design to installation and after-sales support.
Swipe horizontally to view full parameters.
| Parameter | Specification |
|---|---|
| Profile combination | 1000 mm + 1000 mm roof panels |
| Working layers | Two systems, one frame |
| Forming stations | 14 rows upper + 14 lower |
| Main frame | 350 mm H-beam steel |
| Forming rollers | 45# steel, chrome plated |
| Main motor power | 5.5 kW + 5.5 kW |
| Forming speed | 8 – 15 m/min |
| Material thickness | 0.3 – 0.8 mm |
| Suitable material | Color-coated, galvanized coil |
| Cutting method | Hydraulic front shear |
| Shearing blade | Cr12MoV, heat treated |
| Control system | PLC + touch screen |
| Voltage | 380 V / 50 Hz / 3-phase |
| Warranty & service | 1-year warranty + lifetime support |
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
