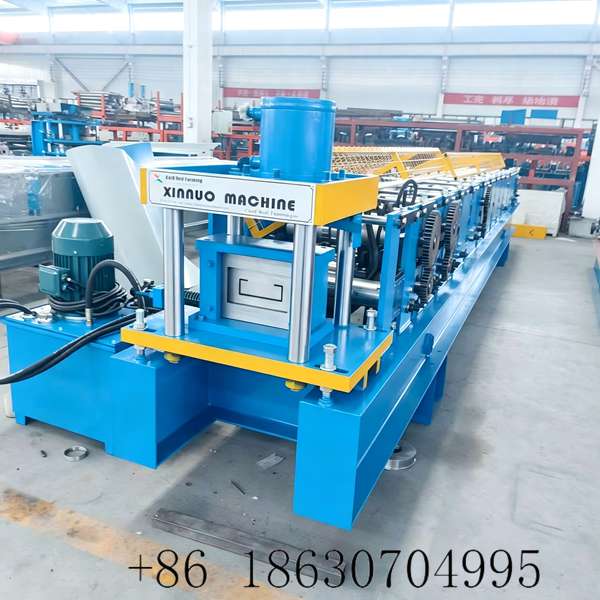

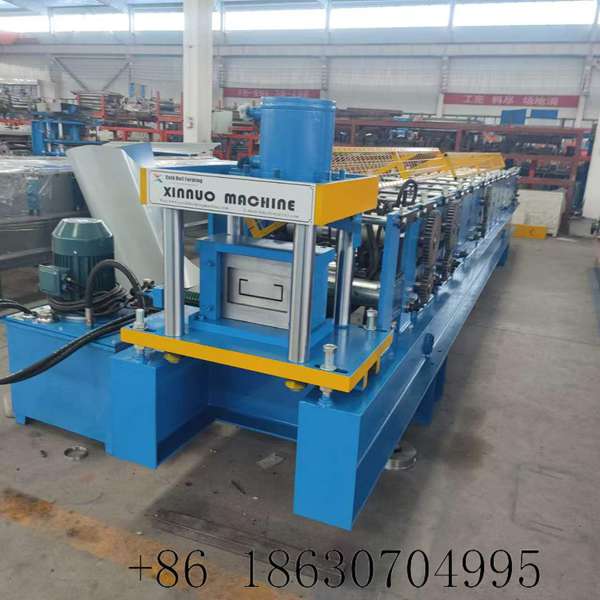

C Purlin Roll Forming Machine – Mould Type C Channel Making Equipment

Product Introduction

Manufactured by Hebei Xinnuo Roll Forming Machine Co., Ltd., a professional cold roll forming equipment factory with over 28 years of manufacturing experience, this mould-type C purlin machine is a core automated production line for steel structure construction. Our factory covers 100,000 square meters of production workshops, equipped with independent R&D labs and full CNC processing workshops, delivering reliable roll forming machinery to more than 140 countries worldwide. We focus on customized cold bending equipment solutions, and this C purlin forming machine stands out for its strong material compatibility and high-precision punching technology compared with ordinary purlin forming lines.

This C purlin forming equipment boasts ultra-wide raw material adaptability, supporting multiple raw material types including hot-rolled steel strip, hot-dipped galvanized steel coil, color coated steel and low-alloy high-strength steel. It flexibly processes steel sheets with variable thickness and width ranges, eliminating the need for frequent mould replacement when switching different purlin specifications, which greatly cuts down production downtime for metal processing factories. No matter light-duty thin gauge purlins or heavy thick-wall C channels for large warehouse roofs, this machine maintains stable forming quality without surface deformation or dimensional deviation.

The core highlight of our Xinnuo C purlin machine is the dual punching system: floating hydraulic punching and fully automatic numerical control punching. Both technologies guarantee extremely precise and neat hole positions on finished C purlins. Operators can freely set custom hole spacing via the PLC touch screen according to local construction standards, engineering drawing requirements or complex installation working conditions. Uniform punching size and consistent hole spacing ensure seamless on-site assembly of roof and wall purlins, avoiding secondary cutting or hole rework for constructors, and drastically improving overall project construction efficiency.

Reliable Drive & Cutting Mould Structure

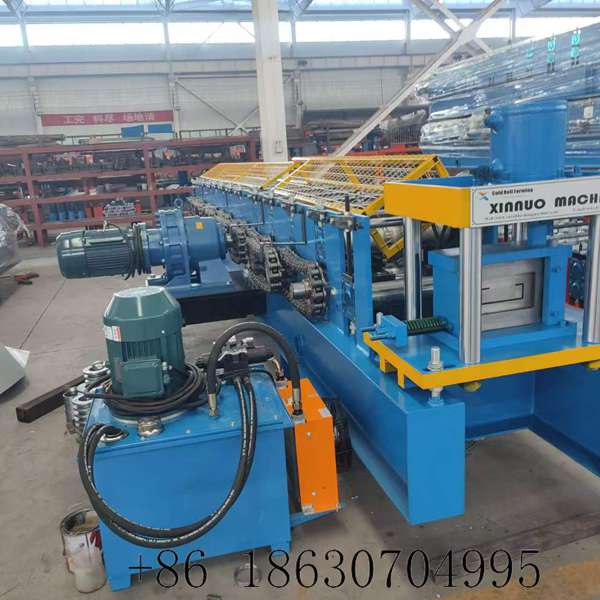

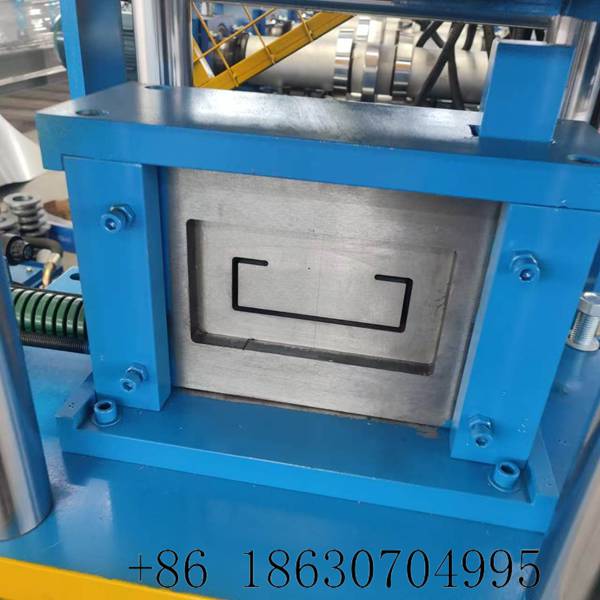

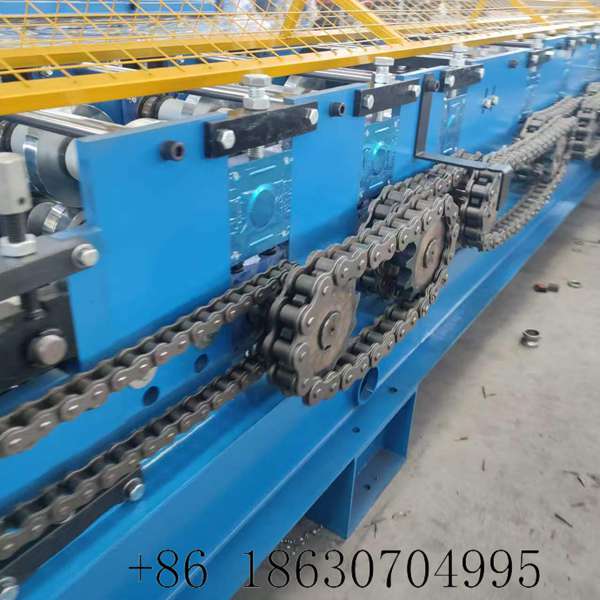

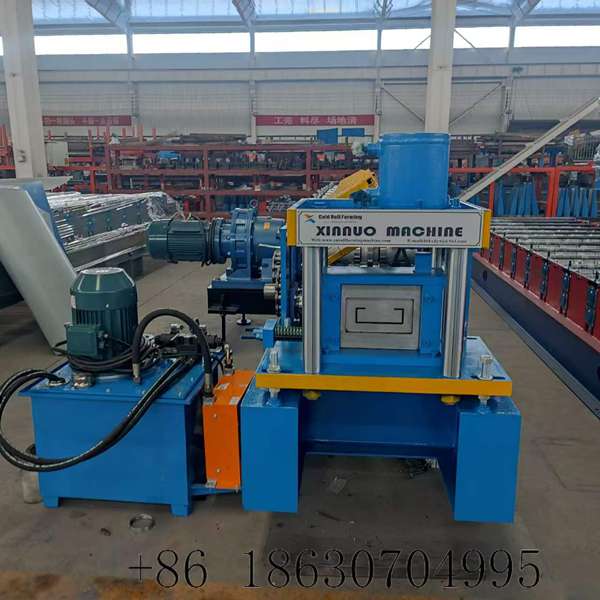

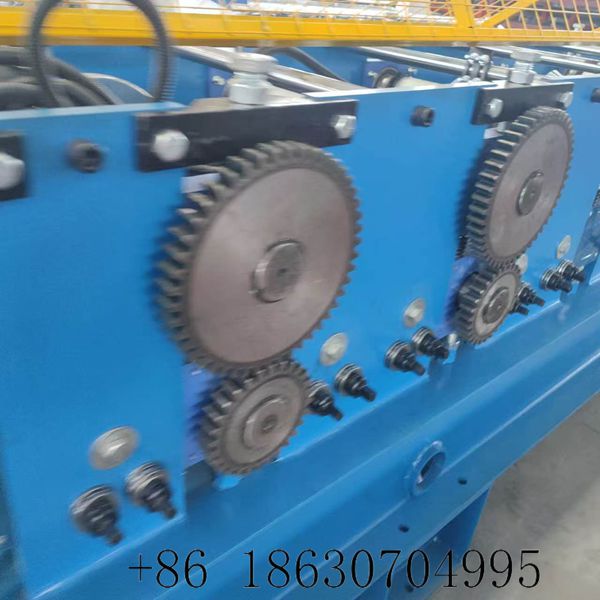

The whole production line adopts dual stable transmission structures: heavy-duty gear drive and wear-resistant chain drive, both made of quenched alloy steel for long-term 24-hour continuous operation without vibration or slipping. The hydraulic mould cutting station uses Cr12MoV quenched mould steel, delivering flat, burr-free cut-off ends for every finished C purlin profile. All core mechanical parts undergo strict aging treatment and precision machining to extend the machine’s service life and reduce maintenance costs for end users.

As one of our flagship steel structure equipment, this C purlin forming machine connects seamlessly with our other production lines. You can browse our full series of structural profile equipment via internal links: Z Purlin Roll Forming Machine and Light Steel Keel Roll Forming Machine. All Xinnuo machinery supports customized size adjustment, voltage transformation, and multi-language PLC control systems to match global market demands across South America, Southeast Asia, Africa and Europe.

Core Technical Parameter Table

After-sale Service from Xinnuo Machinery

All our C purlin roll forming machines come with a 12-month full warranty, overseas installation guidance, remote PLC debugging service and lifelong spare parts supply. Our engineering team provides 24-hour online technical support for global clients to solve production problems quickly.
