Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.

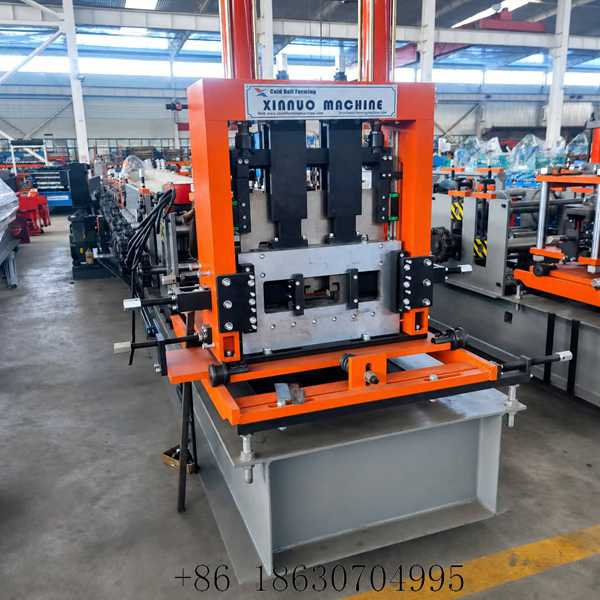

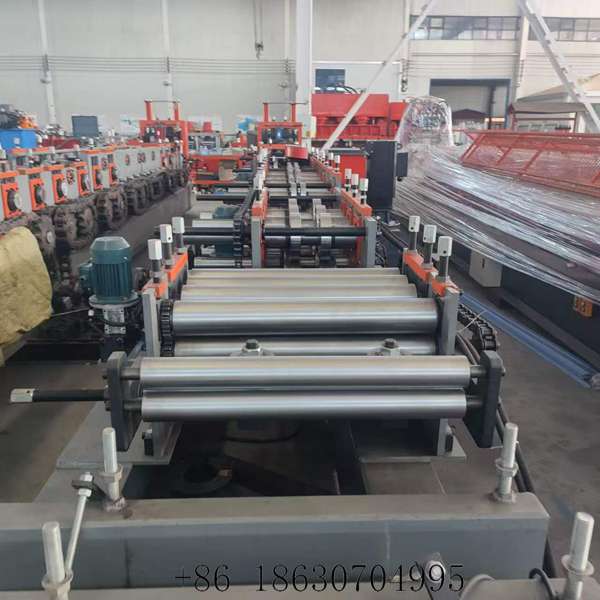

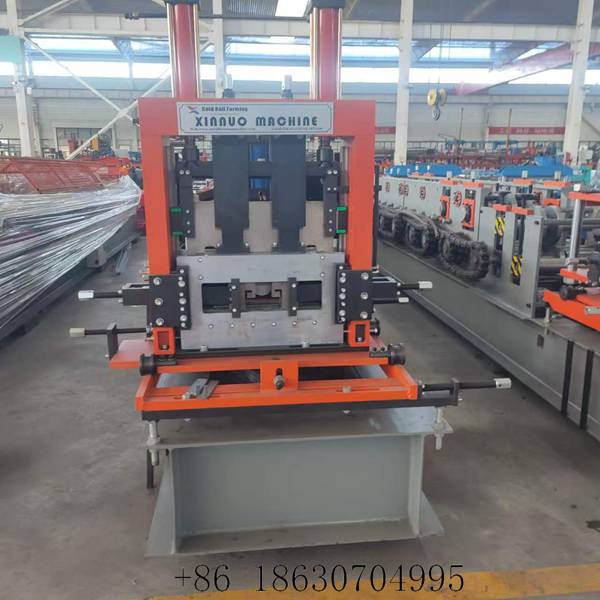

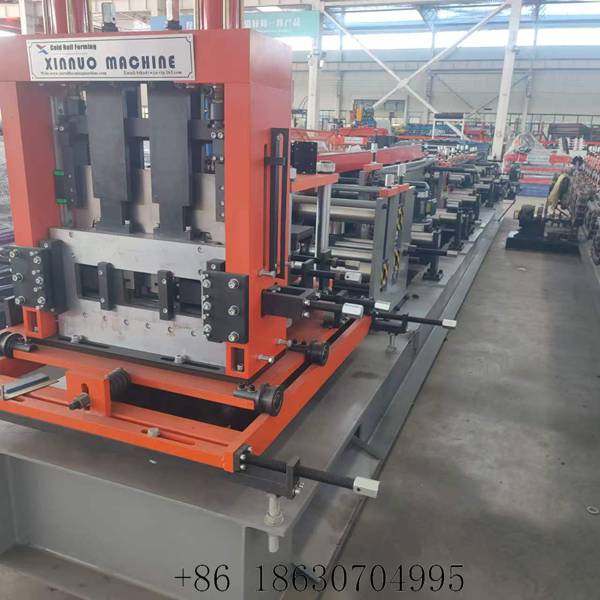

Hebei Xinnuo Roll Forming Machinery Co., Ltd. (XINNUO) has dedicated more than 30 years to cold roll forming technology, growing from the Huayu Roll Forming Machinery Factory, founded in 1995, into a high-tech manufacturer that delivers more than 3,000 sets of roll forming equipment every year. The fully automatic C purlin roll forming machine price from XINNUO is factory-direct, backed by a 12-person in-house design team, ISO9001, CE and SGS certification, and machines that are now running in more than 140 countries. In one continuous pass, this line converts steel coil into precise C-shaped purlins through automatic uncoiling, leveling, roll forming, punching and cutting — with no manual handling between stations.
Designed for steel structure workshops, prefabricated warehouse plants and professional purlin manufacturers, the machine keeps profile dimensions consistent even at high output. Precision-ground rollers, a hydraulic cutting system and a PLC-controlled production cycle work together to produce purlins that meet GB, AISI and DIN standards. To compare forming speed and station options for different output targets, browse the C Purlin Machine category on our official website.
Swipe horizontally to view full parameters.
| Item | Specification |
|---|---|
| Applicable Material | Galvanized steel, cold-rolled steel, hot-rolled steel (thickness: 0.8-3.0mm) |
| Product Profile | C-shaped steel purlins (customizable for GB, AISI, DIN standards) |
| Purlins Size Range | Height: 100-300mm; Width: 50-150mm; Web Thickness: 0.8-3.0mm |
| Forming Speed | 15-25 meters per minute (adjustable) |
| Roll Forming Stations | 12-16 stations |

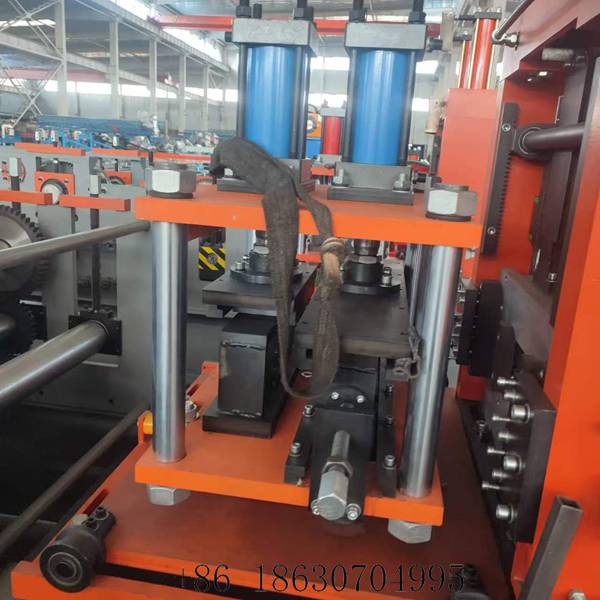

| Cutting System | Hydraulic cutting, tolerance ±0.5mm, length 1-12m |
| Decoiler Capacity | 3-5 tons (hydraulic expansion, coil inner diameter 508mm) |
| Power Supply | 380V/50Hz, 3-phase (customizable to 220V/60Hz) |
| Total Power | 15-22kW (varies by speed and options) |
| Control System | PLC with touchscreen (parameter storage, fault alarm, auto-count) |
| Machine Dimension | Approx. 8000×1500×1800mm (L×W×H) |
| Machine Weight | 4000-6000kg (depends on configuration) |

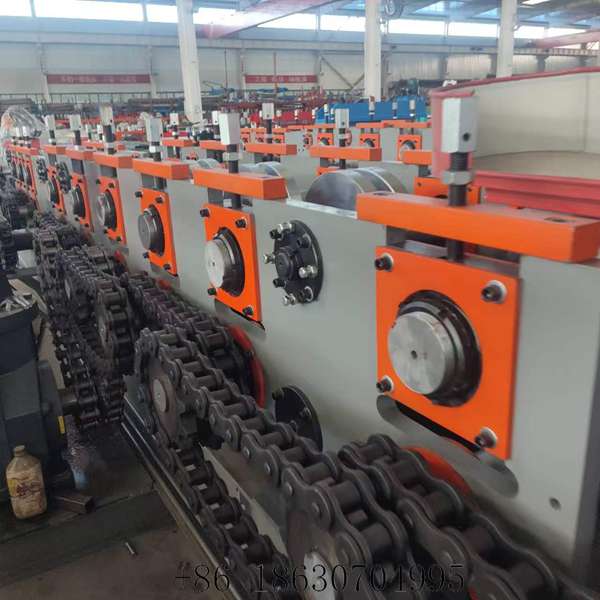

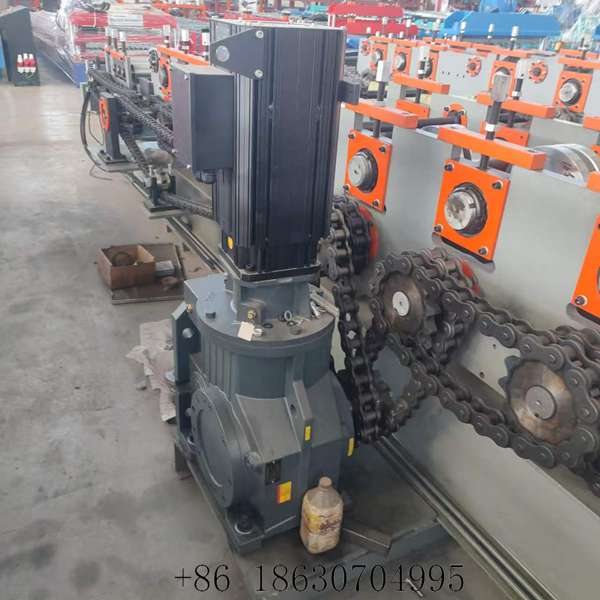

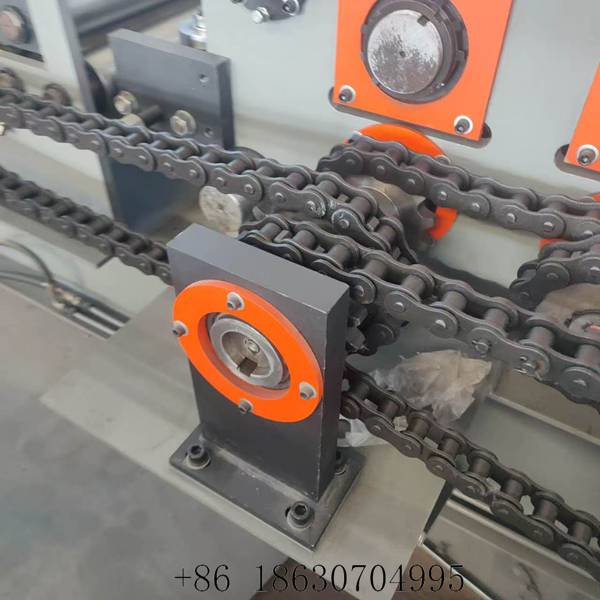

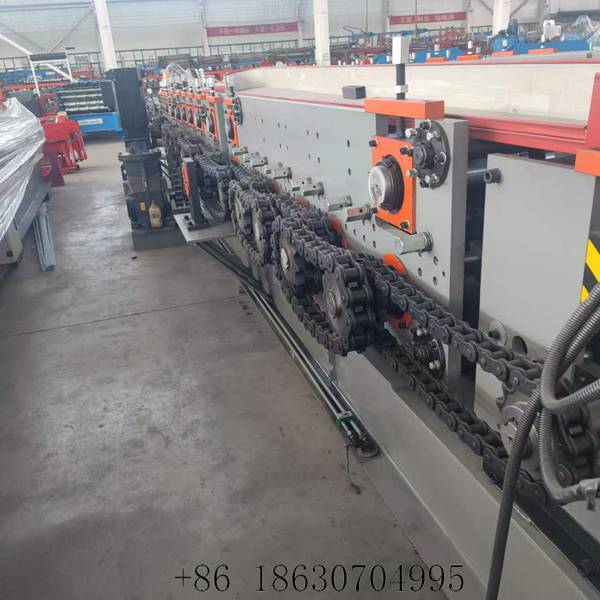

XINNUO purlin lines are built for 24-hour continuous duty with stable chain-driven transmission and reinforced frames. When a project requires both C and Z sections on one machine, the same platform can be configured for either profile — explore our C/Z Purlin Roll Forming Machine category for dual-profile solutions.
Request the latest c purlin roll forming machine price and a free production line layout proposal today. Every machine ships with full drawings, commissioning support and worldwide spare parts service from our two factory bases in Botou, Hebei.
