Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.

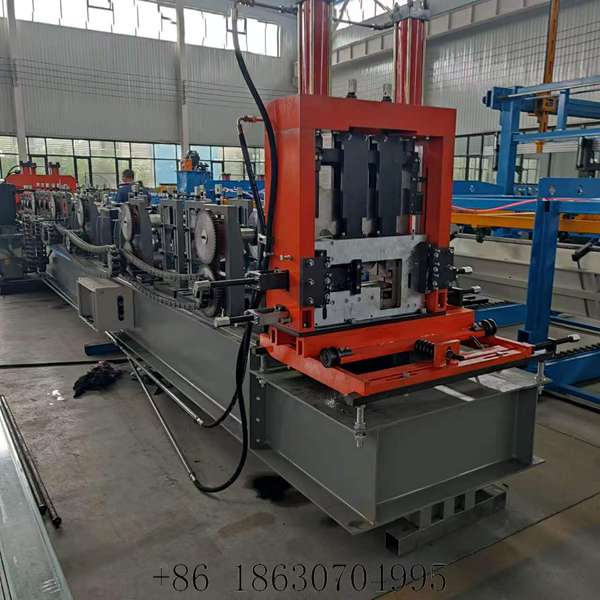

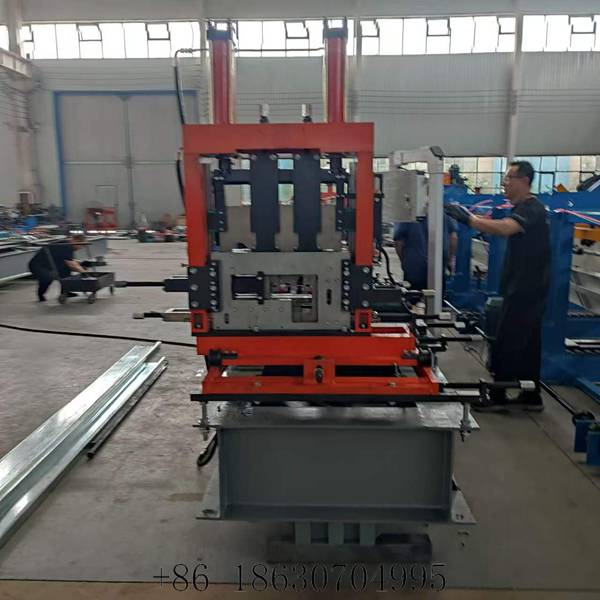

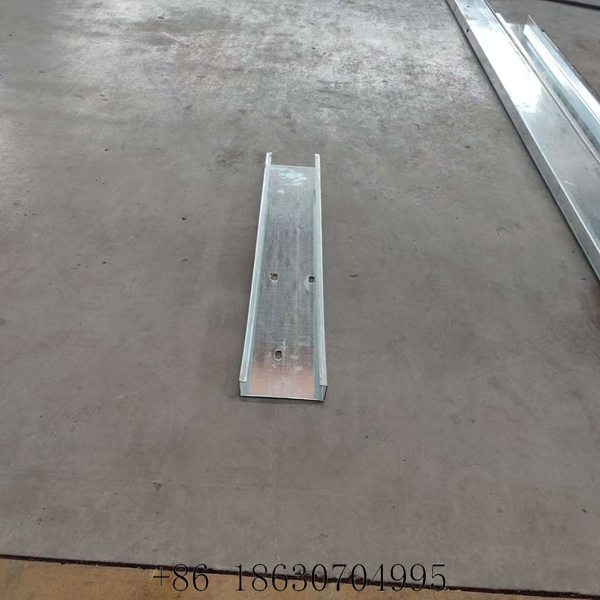

Hebei Xinnuo Roll Forming Machinery Co., Ltd. (XINNUO) has specialized in cold roll forming equipment for more than 30 years in Botou, Hebei, China, with an annual output of over 3,000 sets and exports to more than 140 countries and regions. The fully automatic c and z purlin machine is an integrated production line that forms both C and Z purlins from steel coil in one continuous process for steel-frame buildings, warehouses and factories.

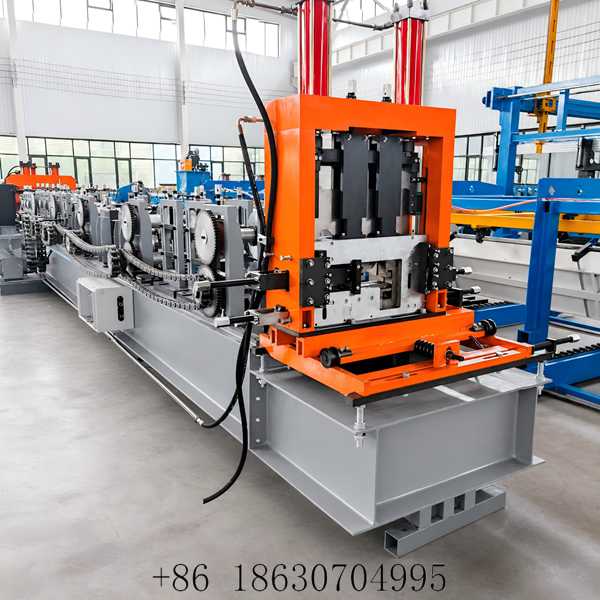

Fully automatic CZ purlin production is delivered by a complete line that integrates decoiling, leveling, punching, roll forming, cutting and automatic output for efficient continuous production. One machine for C and Z purlins means both profiles are produced on a single line, giving greater production flexibility while reducing equipment investment. Automatic profile changeover lets operators switch quickly between different C and Z profiles with minimal downtime, and automatic size adjustment through the PLC control system handles multi-size production without tedious manual setup. The integrated punching system can be configured to customer requirements, so bolt holes and connection holes are processed during the forming process itself. High-precision roll forming comes from precision-machined rollers that ensure accurate profile dimensions, consistent forming quality and smooth finished surfaces.
The line is built on a production-proven platform — archway frame, 16–20 forming stations, Φ85–100 mm 40Cr chrome-plated shafts and servo drive — with a compact footprint of 22.5 m × 2.1 m × 2.2 m. Purlins produced on this machine are widely used with roofing panels from our Roof Sheet Making Machine range; for related panel forming equipment, see the Trapezoidal Sheet Roll Forming Machine category. Send us your purlin dimensions (width, height, lip and thickness) and punching drawings, and our engineers will configure the forming stations, punching tooling and voltage for your project.
| Parameter | Specification |
|---|---|
| Machine type | Fully automatic C & Z purlin integrated line |

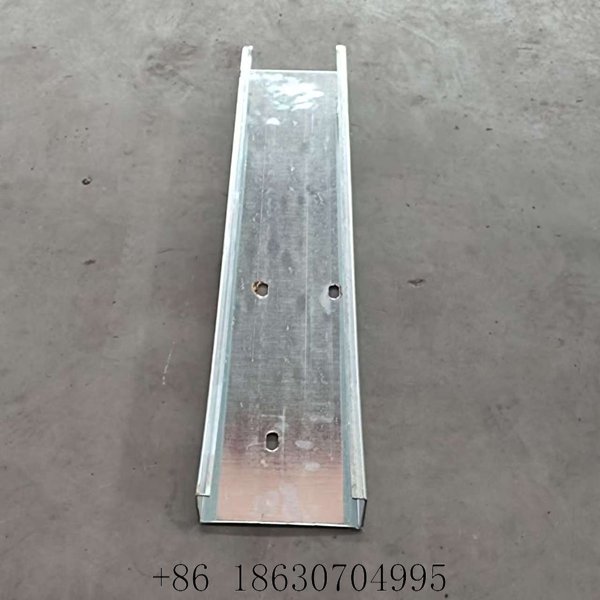

| Produced profiles | C and Z purlins (switch without changing machines) |
| Forming stations | 16 – 20 rows |
| Machine frame | Archway (牌坊) frame |
| Shaft diameter | Φ85 – Φ100 mm (40Cr, chrome plated) |

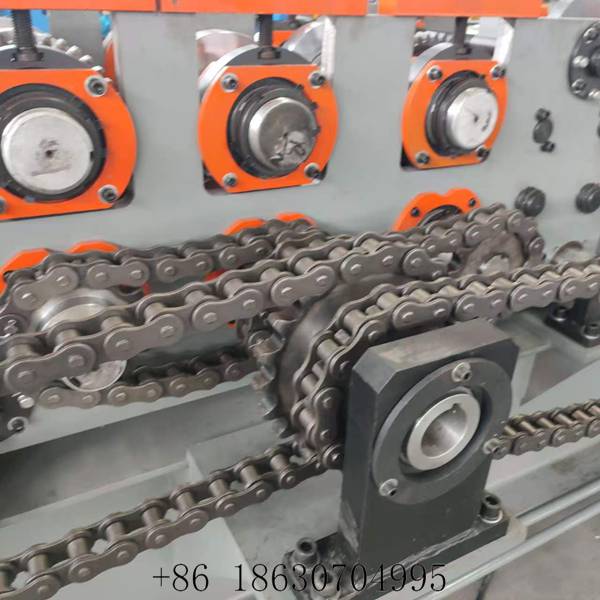

| Drive system | Servo drive, 22 – 30 kW |
| Profile range | W 50 – 406 mm × H 10 – 127 mm × L 7 – 30 mm, T 0.7 – 5.0 mm (custom) |
| Line dimensions (L × W × H) | 22.5 m × 2.1 m × 2.2 m |

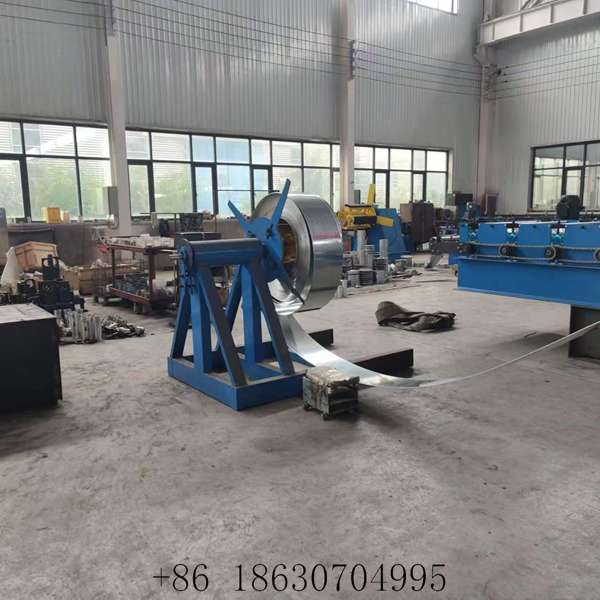

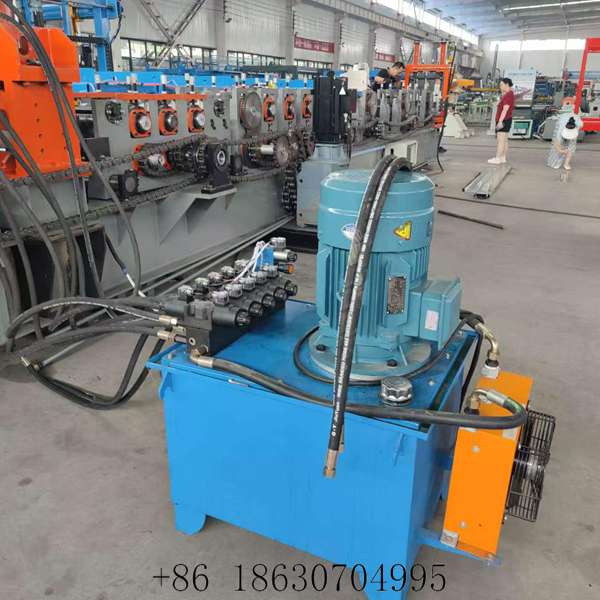

| Line components | Decoiler, leveling, punching, forming, shear, output bracket ×2, control cabinet, hydraulic pump station |

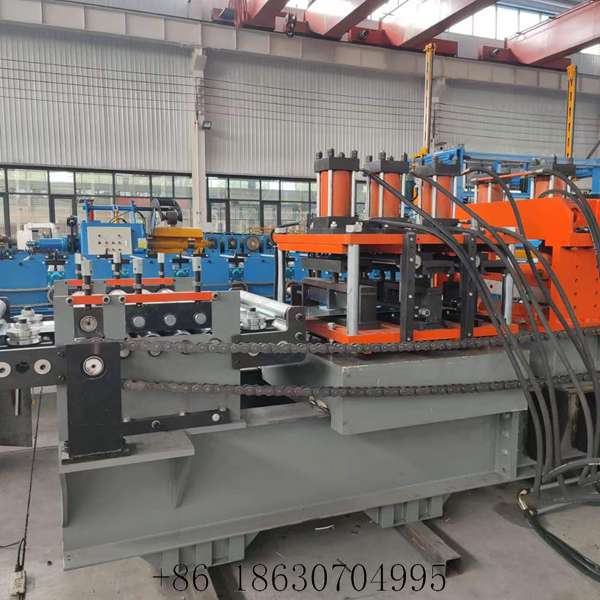

| Punching system | Integrated automatic punching per customer requirement |

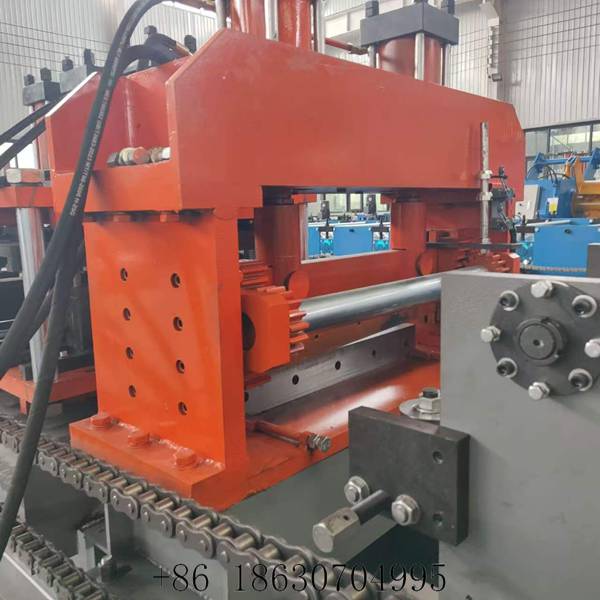

| Cutting method | Hydraulic shear (flying cut optional) |
| Control system | PLC automatic size adjustment |
| Customization | Profile dimensions, punching layout, voltage |
| Warranty | 1 year |
Swipe horizontally to view full parameters.
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
