Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.

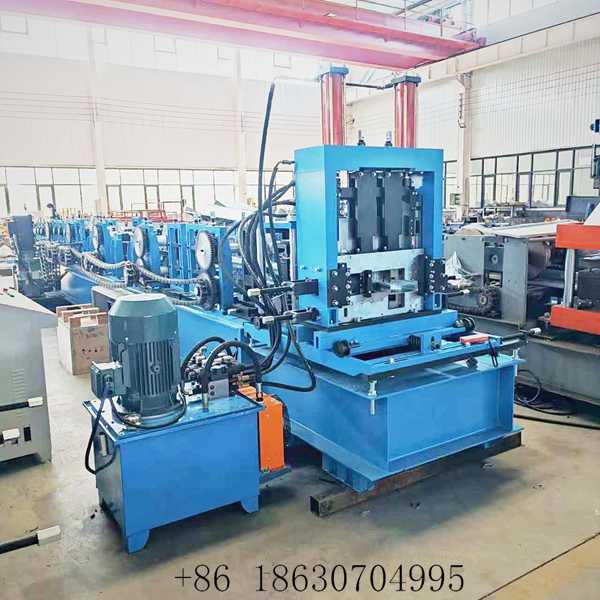

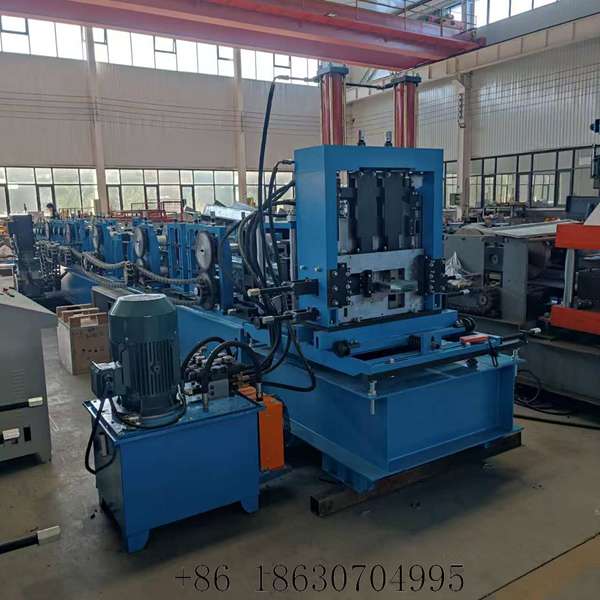

Hebei Xinnuo Roll Forming Machinery Co., Ltd. (XINNUO) has manufactured cold roll forming equipment since 1995, from a factory area of nearly 100,000 square metres and 11 workshops in Botou, Hebei Province. This fully automatic CZ purlin machine is a c profile roll forming machine that produces both C and Z purlins on one frame — no second machine or roller changeover.

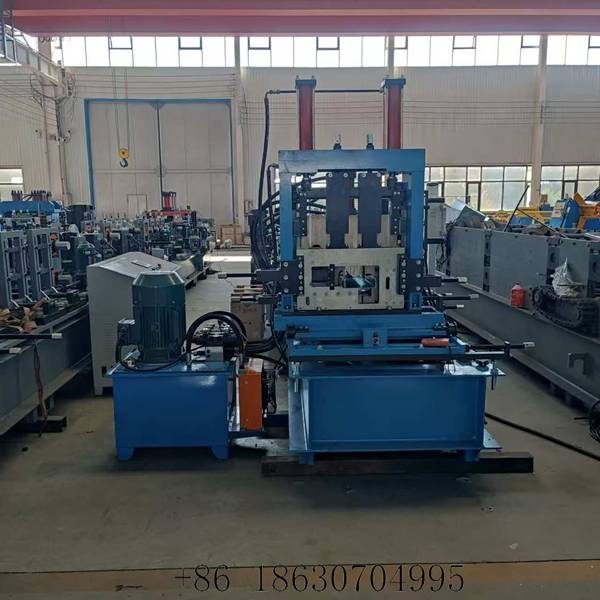

Profile change is electric. The forming stations move to the Z setting at the push of a button, so switching between C and Z takes minutes rather than hours. The machine forms purlins from 80 mm to 300 mm deep, in steel 1.5 mm to 3.0 mm thick — the range used for steel structure frames, workshops and solar mounting brackets.

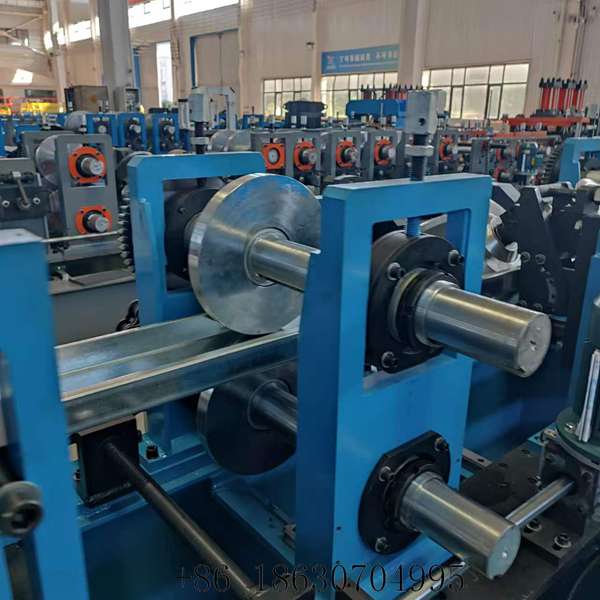

Every forming roller is hard chrome plated and precision ground, which keeps the sheet free of scratches and roller marks through long production runs. All stations sit on one pass line, so finished purlins come off straight with no twisting or camber.

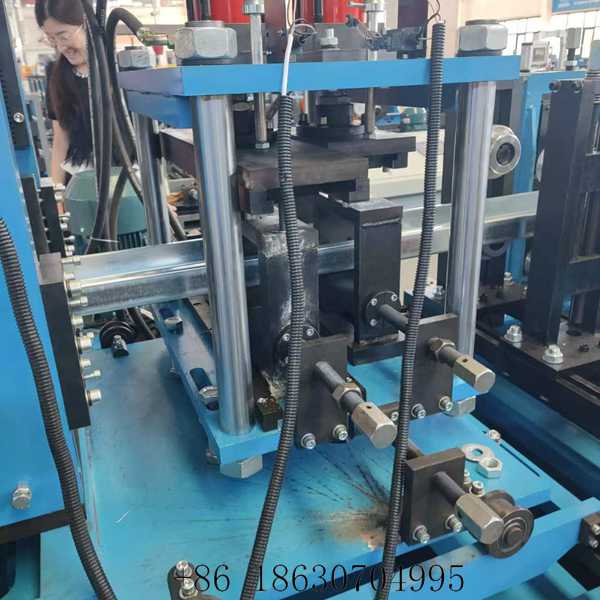

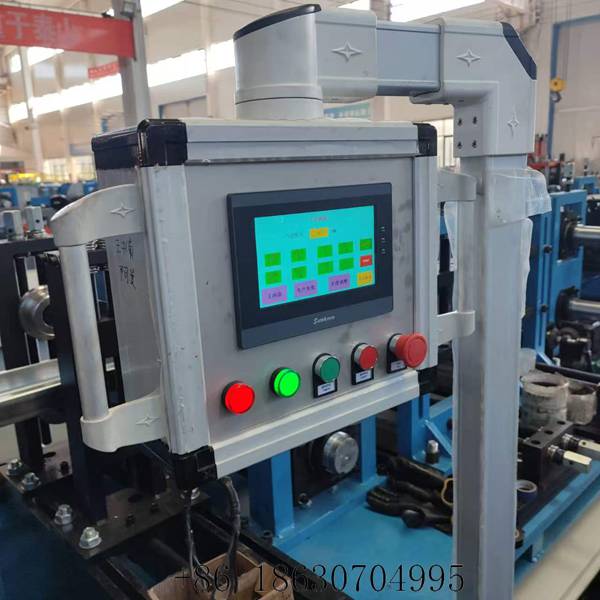

A PLC touch screen manages the line. The operator enters purlin length and quantity, and the machine runs automatic feeding, punching and cutting unaided. Front and rear punching stations are built in, so connection holes are produced in the same pass.
A heavy welded steel frame absorbs the loads of continuous rolling, which is what lets the machine run high-strength S350 galvanized steel at production speed without losing accuracy. CE is available, with overseas installation, commissioning and operator training.
To compare profile options, browse our C Purlin Machine category and the wider C/Z Purlin Roll Forming Machine range, then send us your profile drawing, coil width and daily output target — our engineers will recommend the right configuration.
Swipe horizontally to view full parameters.
| Parameter | Specification |
|---|---|
| Machine type | Fully automatic CZ purlin roll forming machine |
| Profile change | Electric quick change, C and Z |
| Purlin depth (H) | 80 – 300 mm |
| Material thickness | 1.5 – 3.0 mm |
| Material | S350 galvanized, cold-rolled and hot-rolled steel |
| Forming stations | 16 – 20 rows (per profile) |
| Roller material | Hard chrome plated, precision ground |
| Shaft diameter | Φ85 – 100 mm |
| Main power | 22 – 30 kW servo |
| Control system | PLC with touch screen, auto count and fault alarm |

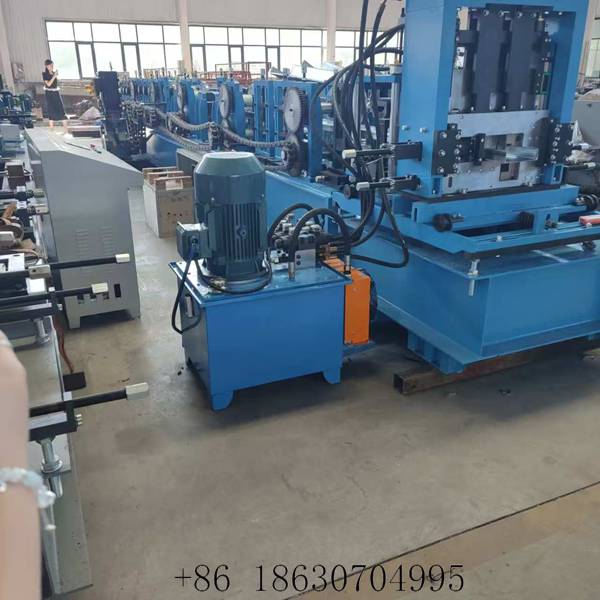

| Punching / cutting | Automatic punching (front and rear); hydraulic cutting, ±0.5 mm |
| Cutting length | 1 – 12 m |
| Power supply | 380 V / 50 Hz / 3 phase (customizable) |
| Line dimensions | Approx. 22.5 × 2.1 × 2.2 m (L × W × H) |
