Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.

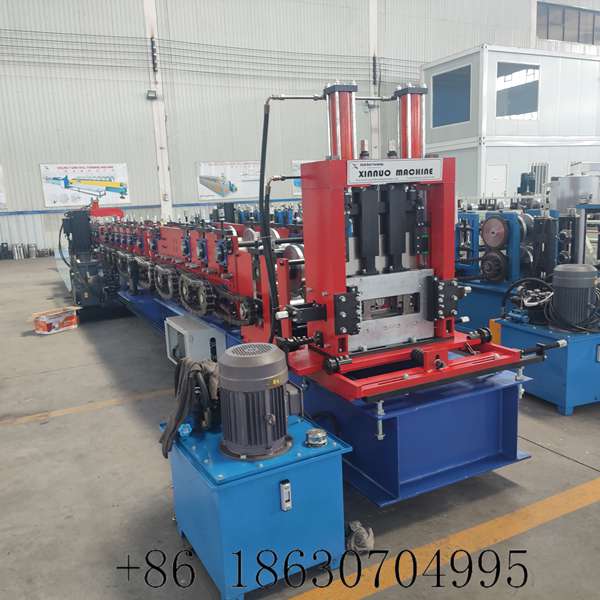

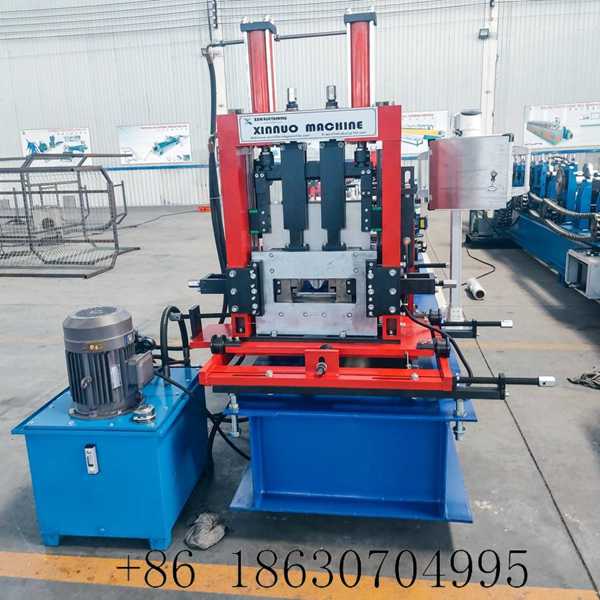

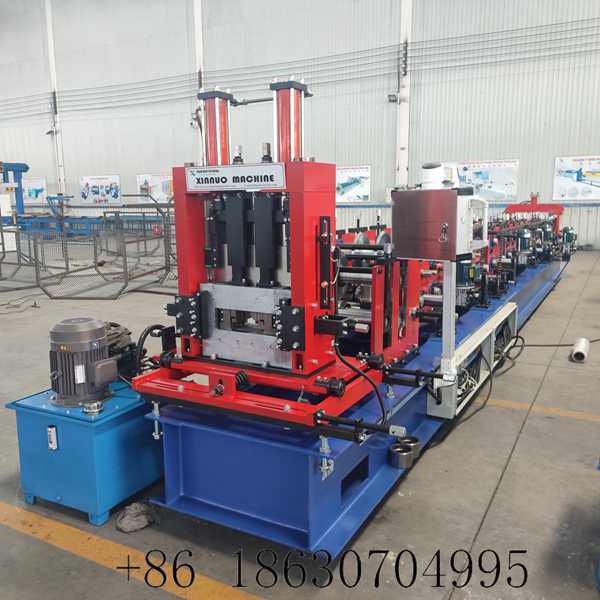

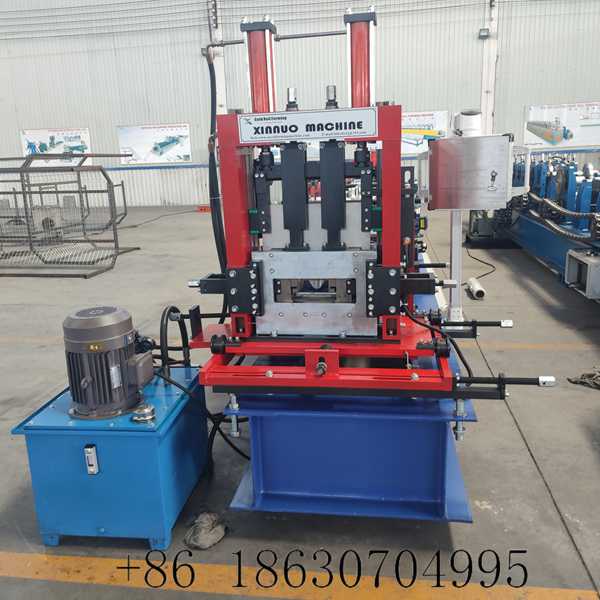

Hebei Xinnuo Roll Forming Machine Co., Ltd. (XINNUO), established in 1998 in Botou, Hebei, China, is a professional manufacturer of cold roll forming equipment. From a 100,000 square-meter production base with two modern factories, XINNUO has supplied c channel rolling machines, shutter lines, and complete metal building systems to more than 180 countries since 2002. The full-automatic purlin forming machine is a core solution for steel structure factories and industrial building projects worldwide.

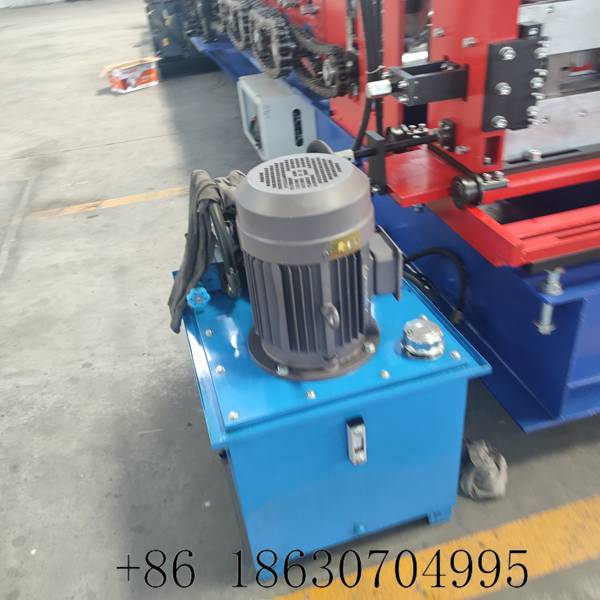

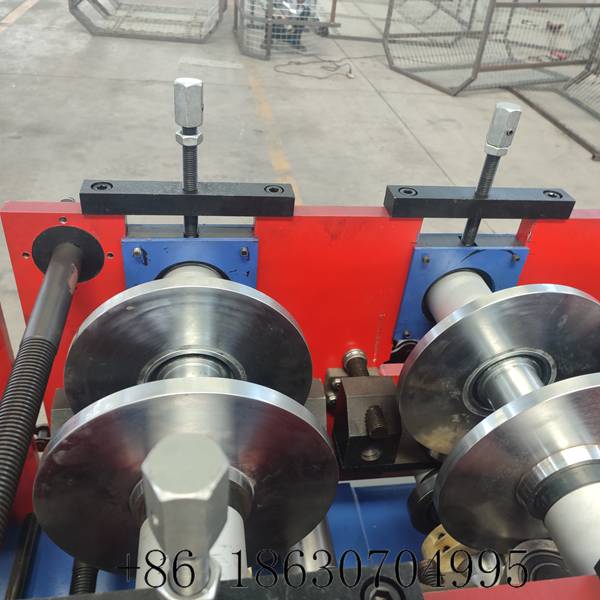

Precision is the foundation of this machine. Every roller station is precision-engineered and CNC-machined so that profiles come out with accurate dimensions, perfectly straight sections, and consistent hole positioning across long production runs. The integrated punching system uses hydraulic or servo units synchronized with the forming speed, which delivers precise hole patterns and noticeably higher productivity than offline drilling.
Built for volume, the machine reaches high production speeds that suit steel structure factories and large industrial building projects, while the heavy-duty welded steel frame keeps the line stable under continuous operation. The rigid construction reduces vibration, extends service life, and holds forming accuracy run after run, even on 24-hour production schedules. Optimized forming and cutting processes also minimize material waste, improving material utilization and lowering the cost of every finished purlin.

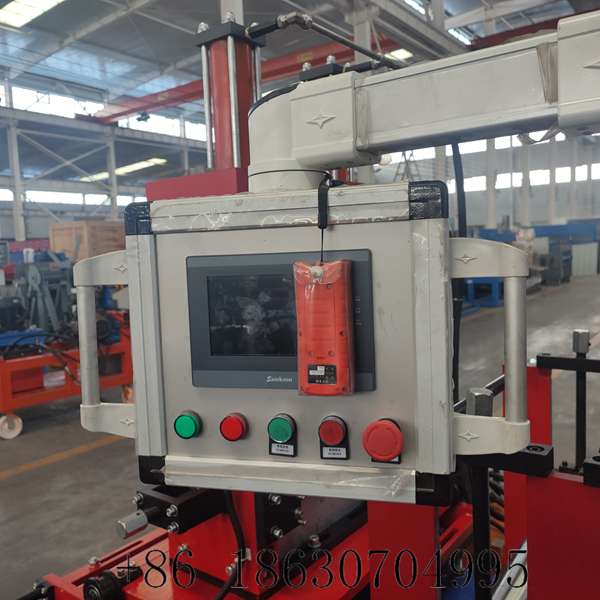

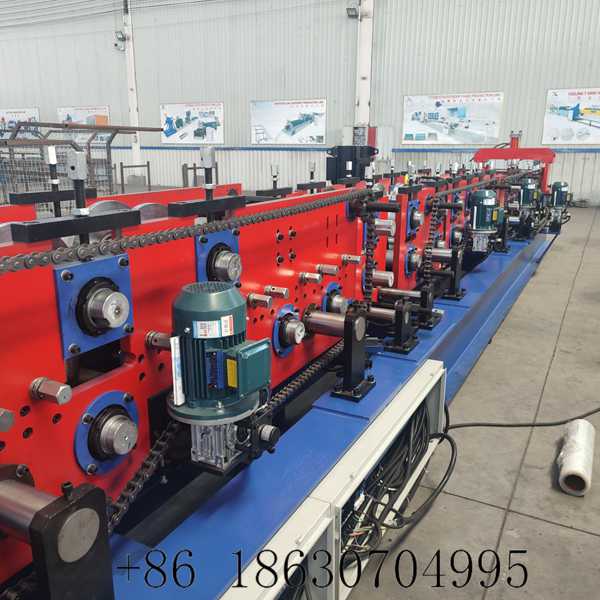

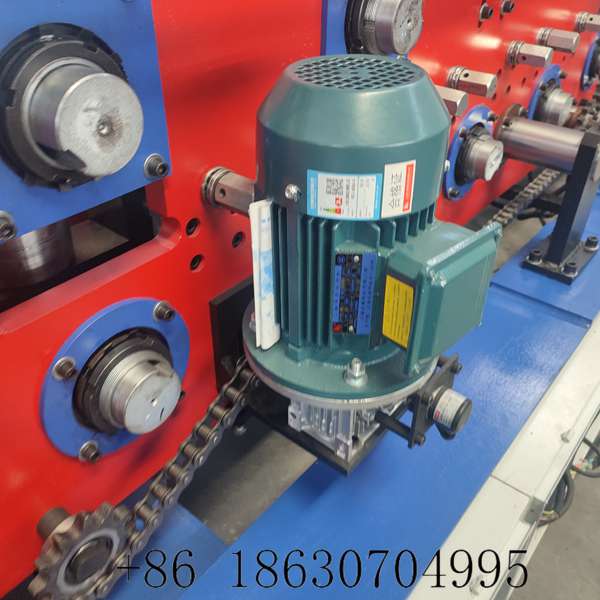

With automatic width, height, and lip adjustment, the line can switch between different C and Z purlin specifications quickly, driven by servo size-change motors and guided by the PLC control system. A single operator can manage the whole process from uncoiling to stacking. For related equipment, browse our C Purlin Machine category and the Roll Forming Machine collection to compare models, or contact our engineers with your profile dimensions for a tailored quotation.
| Parameter | Specification |
|---|---|
| Machine type | Full-automatic C/Z purlin forming machine |
| Profile type | C purlin & Z purlin (interchangeable) |
| Profile width (W) | 80 – 300 mm (customizable) |
| Profile height (H) | 40 – 120 mm |
| Lip length | 8 – 30 mm |
| Material thickness | 1.5 – 3.0 mm (customizable) |
| Suitable material | Galvanized steel / cold-rolled steel / color-coated coil |
| Production speed | 20 – 40 m/min |
| Roller stations | 16 – 20 rows, CNC precision-machined |
| Forming rollers | GCr15 bearing steel, hardened & chrome plated |
| Frame | Heavy-duty welded steel construction |
| Punching | Hydraulic / servo punching synchronized with forming |
| Size change | Automatic via servo motors (width, height & lip) |
| Cutting | Automatic PLC fixed-length cutting, ±1 – 2 mm |
| Control system | PLC + touch screen, one-worker operation |
| Main motor power (approx.) | 15 – 22 kW |
| Voltage | 380 V / 50 Hz (customizable) |
| Machine weight (approx.) | ~12 t |
Swipe horizontally to view full parameters.
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
