Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.
Hebei Xinnuo Roll Forming Machinery Co., Ltd. (XINNUO), founded in 1995 in Botou, Hebei — China's cold roll forming equipment base — is a national high-tech enterprise specializing in cold roll forming machinery. With two production bases covering over 100,000 m², an annual output of more than 3,000 sets and exports to over 140 countries and regions, XINNUO builds the fully automatic c channel making machine for steel structure plants, warehouses, prefabricated buildings and storage projects.

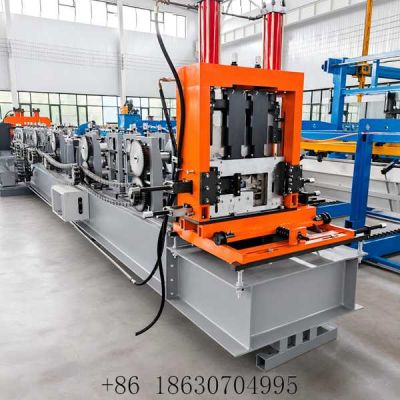

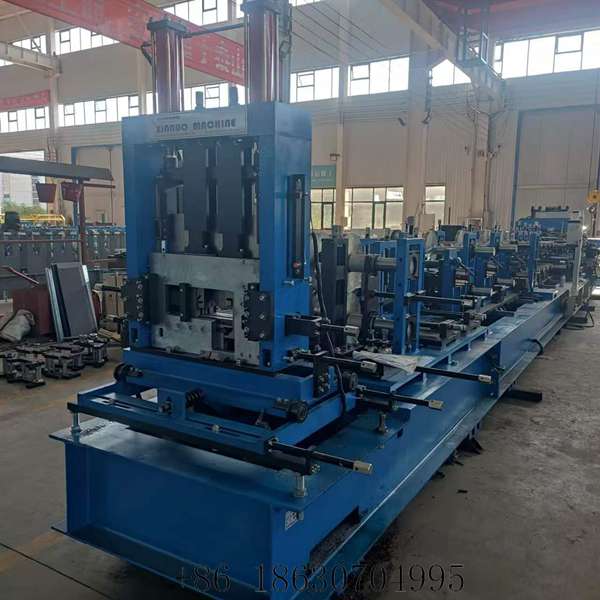

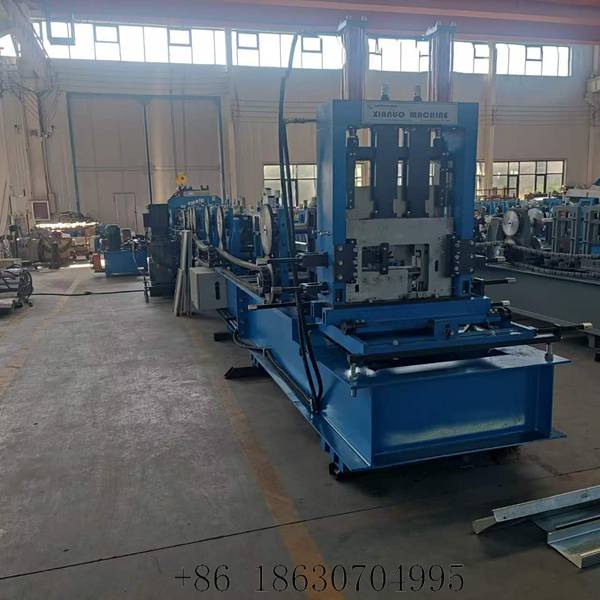

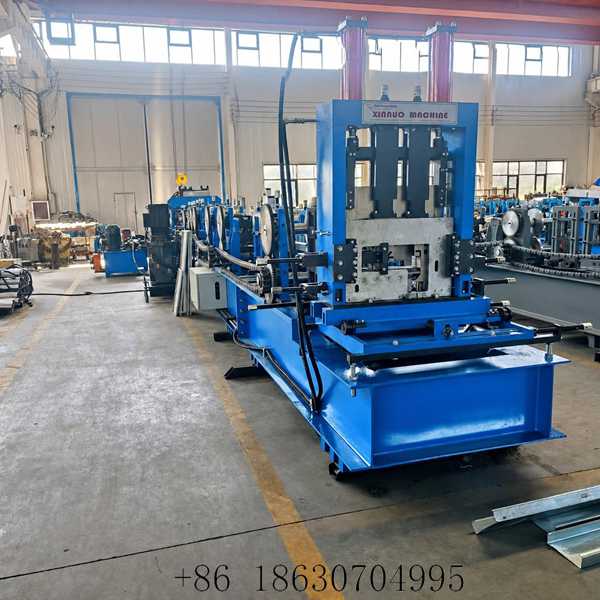

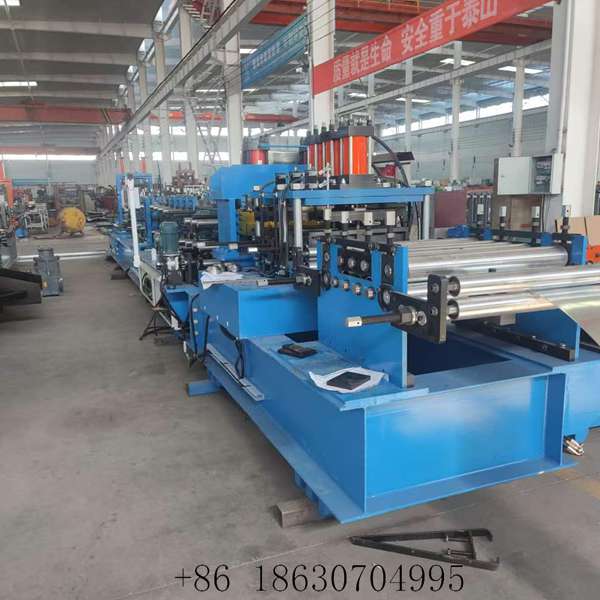

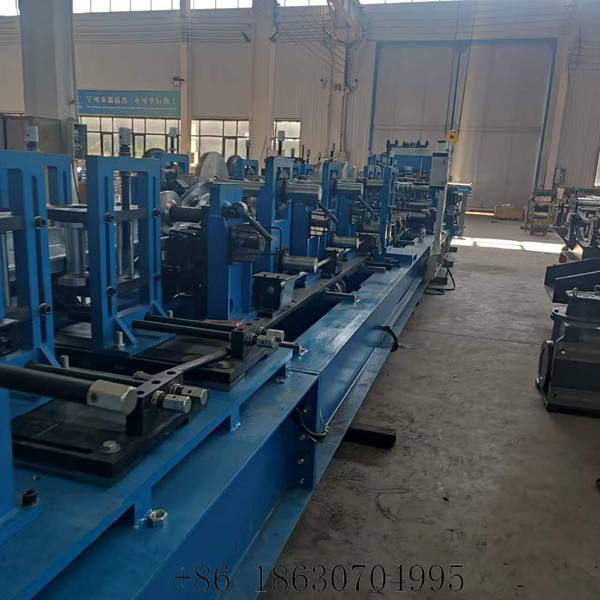

The fully automatic c channel making machine is an integrated production line that turns steel coil into finished purlins in one continuous process: automatic decoiling, leveling, punching, roll forming, cutting and output. Automatic feeding and length control reduce manual operation, while the PLC control system lets operators set production length and quantity directly on the touchscreen, improving repeatability and cutting labor costs. High-speed forming technology enables continuous production, helping manufacturers increase output without expanding their workforce.

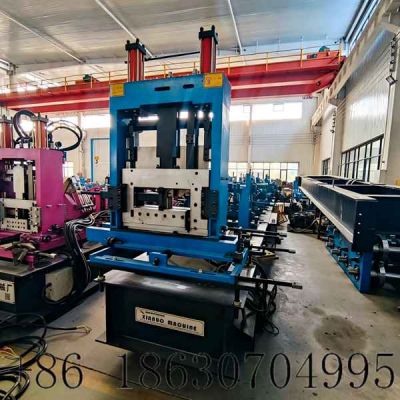

One machine, two profiles. The line can be configured for C or Z purlin production, so fabricators can take both C and Z orders without investing in a second machine. Precision-engineered rollers ensure accurate purlin profiles, consistent dimensions and smooth forming quality. Purlins from this machine match perfectly with our Purlin Roll Forming Machine range; for complete steel-frame solutions, see the Light Gauge Steel Framing Machine category. Send us your profile dimensions (width, height, lip and thickness) and punching drawings, and our engineers will configure the forming stations, punching tooling and voltage for your project.
| Parameter | Specification |
|---|---|
| Machine type | Fully automatic C/Z purlin roll forming line |
| Produced profiles | C and Z purlins (switch on one line) |
| Forming stations | 16 – 20 rows |
| Machine frame | Archway (gantry) frame |
| Shaft diameter | Φ85 – Φ100 mm (40Cr, chrome plated) |

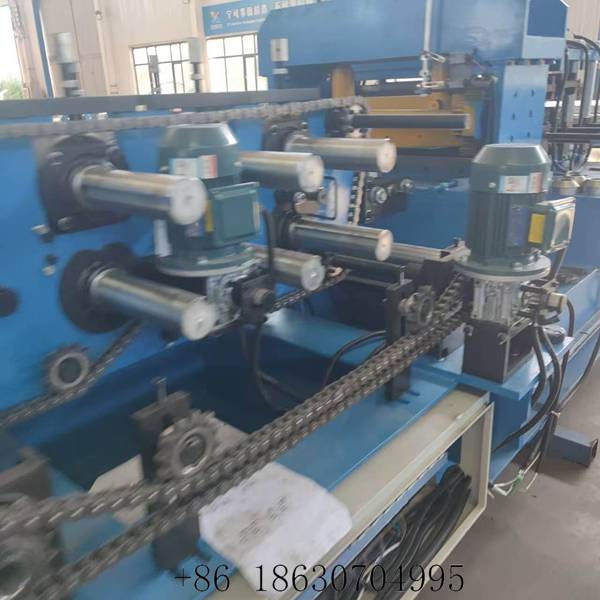

| Drive system | Servo drive, 22 – 30 kW |
| Profile range | W 50 – 406 mm × H 10 – 127 mm × L 7 – 30 mm, T 0.7 – 5.0 mm (custom) |
| Line dimensions (L × W × H) | 22.5 m × 2.1 m × 2.2 m |

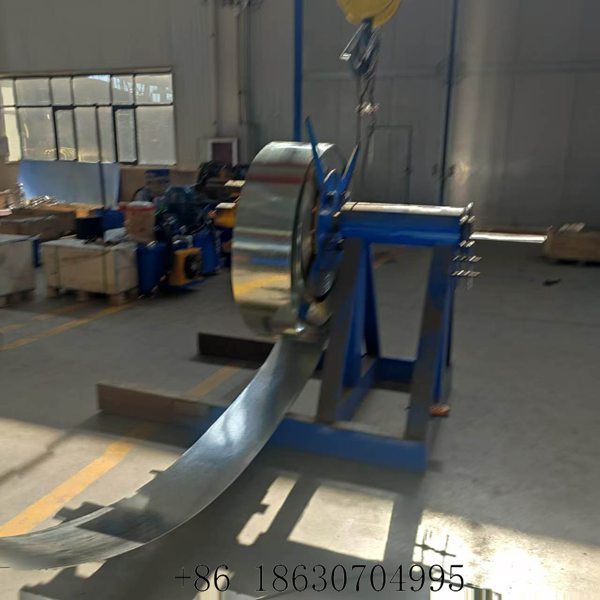

| Line components | Decoiler, leveling, punching, forming, front shear, output brackets, control cabinet, hydraulic pump station |

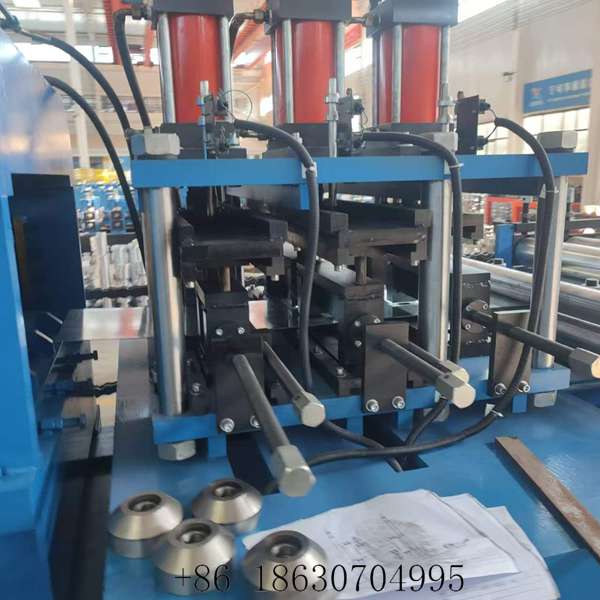

| Punching system | Integrated automatic punching per customer requirement |

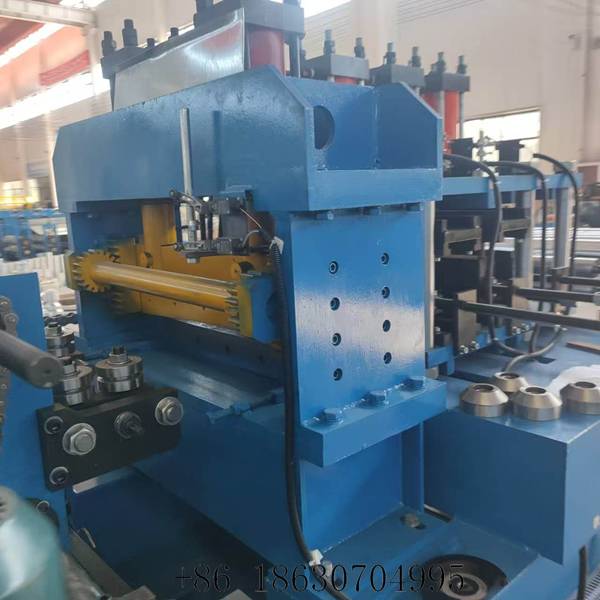

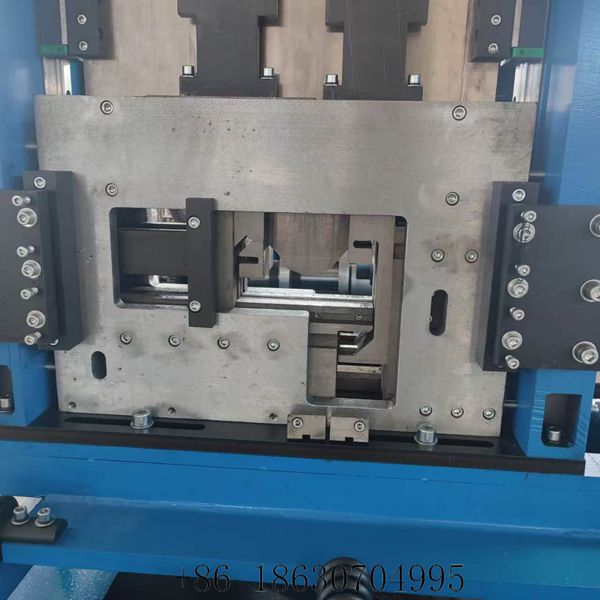

| Cutting method | Hydraulic shear (front shear) |
| Control system | PLC automatic length & quantity control |
| Length & quantity setting | Touchscreen input, automatic production |
| Customization | Profile dimensions, punching layout, voltage |
| Warranty | 1 year |
