Delivery time: 15 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.
Hebei Xinnuo Roll Forming Machinery Co., Ltd. (XINNUO) is a professional manufacturer of sheet metal forming equipment with more than 30 years of experience, tracing its roots back to 1995. Recognized as a national high-tech enterprise and a provincial specialized and innovative SME, the company is based in Botou, Hebei, China, and exports roll forming and metal working machinery to more than 140 countries and regions, supported by an annual production capacity of over 3,000 sets and a 12-engineer design team.

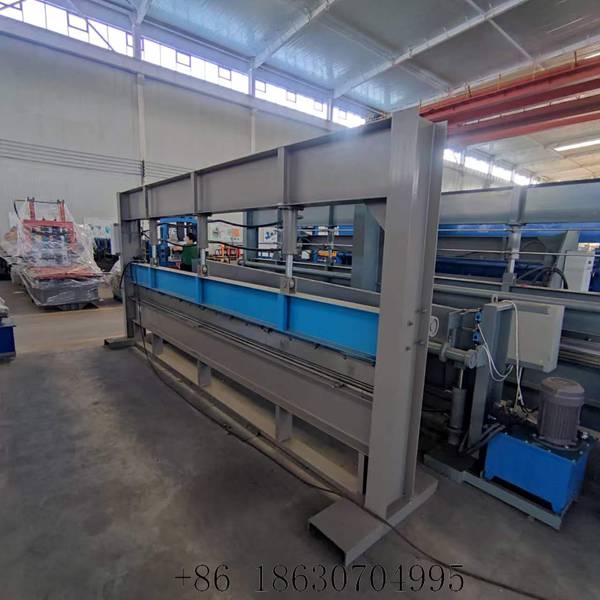

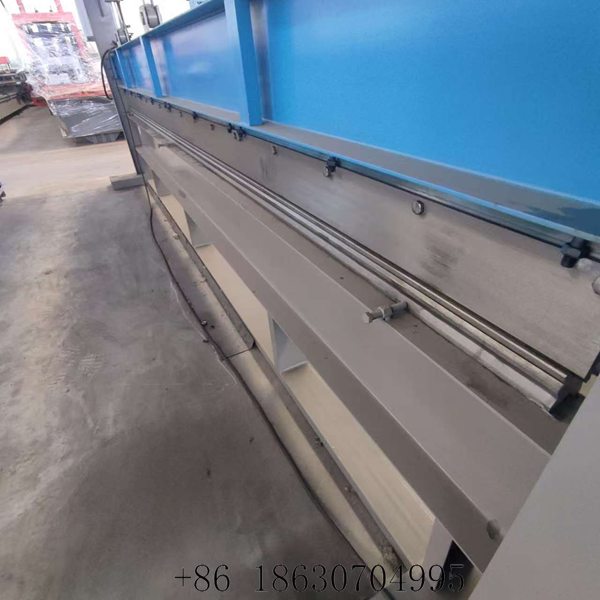

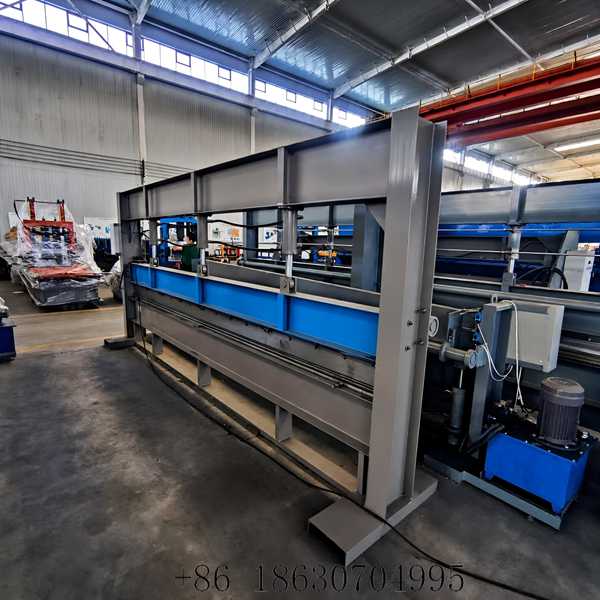

The XINNUO 4m hydraulic sheet metal bending machine is a heavy-duty CNC press brake engineered for high-precision bending of carbon steel, stainless steel, aluminum, and other metal sheets. Accurate hydraulic control keeps the bending angle consistent across the full 4,000 mm working length, while the robust welded steel frame remains stable under full load for long-term operation. The CNC control system allows easy parameter setting, so even complex jobs are fast, accurate, and fully repeatable. A fast motorized backgauge shortens positioning time, and quick tooling clamps minimize setup time between jobs.

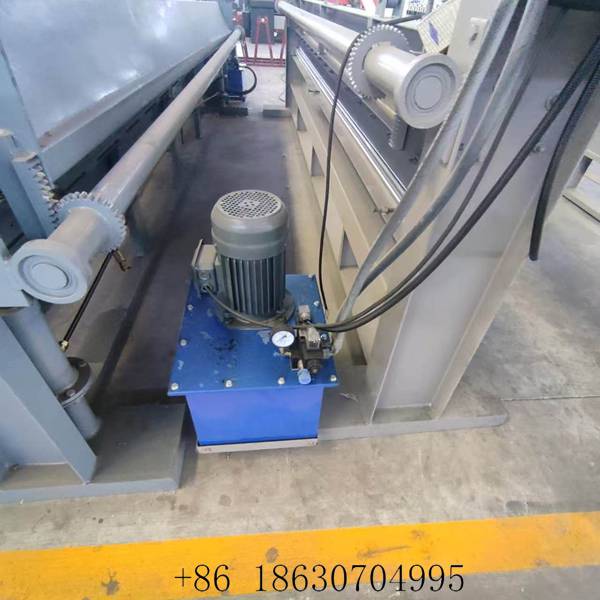

A stable hydraulic system delivers smooth and synchronized bending performance with low maintenance, and standard safety devices protect the operator. Typical applications include HVAC ducting, steel structure fabrication, metal cabinet production, shipbuilding, and general sheet metal workshops. As a full-range metal forming equipment supplier, XINNUO also offers Other Metal Forming Machines and complete Roll Forming Machine lines for construction and manufacturing projects, all backed by factory-direct pricing, global technical support, and a long-term spare parts service.
Custom configuration is always available: bending length, pressure, tooling, and control systems can be tailored to your workshop and production requirements. Tell our engineers your required tonnage, working length, voltage, and tooling, and we will recommend the right hydraulic sheet metal bending machine for your plant, with installation guidance, commissioning support, and operator training for international customers. Safety light curtains and emergency stop buttons are built in as standard for operator protection.
4m model: WC67Y-160T/4000 (bending length 4,000 mm).
| Parameter | WC67Y-40T/2500 | WC67Y-63T/2500 | WC67Y-100T/3200 | WC67Y-160T/4000 |
|---|---|---|---|---|
| Nominal force (kN) | 400 | 630 | 1000 | 1600 |
| Bending length (mm) | 2500 | 2500 | 3200 | 4000 |
| Distance between columns (mm) | 2050 | 2100 | 2650 | 3200 |
| Throat depth (mm) | 200 | 250 | 320 | 320 |
| Ram stroke (mm) | 100 | 100 | 120 | 200 |
| Max. open height (mm) | 260 | 340 | 370 | 470 |
| Main motor power (kW) | 4 | 5.5 | 7.5 | 11 |
| Control system | NC | NC / CNC | CNC | CNC |
| Machine weight (approx.) | 2.5 t | 3.8 t | 7.0 t | 11.0 t |
Swipe horizontally to view full parameters.
