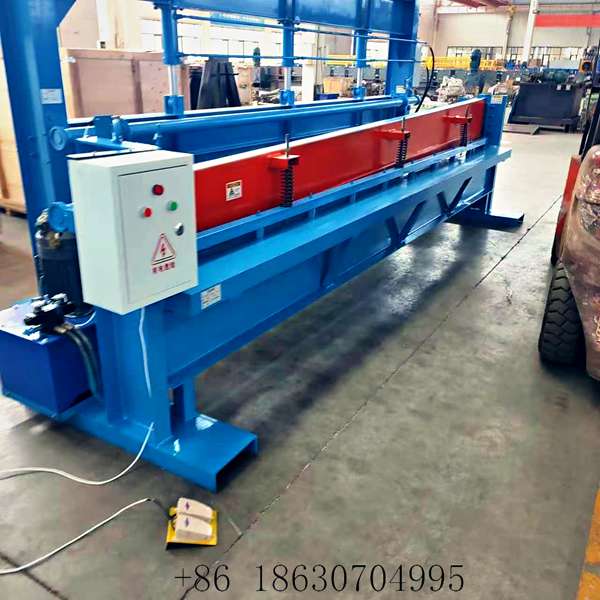

Hydraulic Sheet Shearing Machine | Hydraulic Shear for Metal Sheet Cutting

Hebei Xinnuo Roll Forming Machinery Co., Ltd. (XINNUO) has manufactured cold roll forming and sheet metal processing equipment since 1995, from a factory area of nearly 100,000 square metres and 11 large workshops in Botou, Hebei Province. More than 50 high-precision CNC machine tools support production at the factory, which has built metal processing machinery for over 30 years. This hydraulic sheet shearing machine is made for workshops that need accurate, repeatable cutting of steel plate.

The machine delivers accurate and clean cutting results. A rigid frame and precisely aligned blades keep every cut square and burr-free, so sheet dimensions stay consistent and material waste is reduced. Cutting clearance, blade angle and stroke are all adjustable, so one machine handles thin galvanized sheet and heavier carbon steel plate. Blade gap setting can be adjusted to suit different material thicknesses and processing requirements.

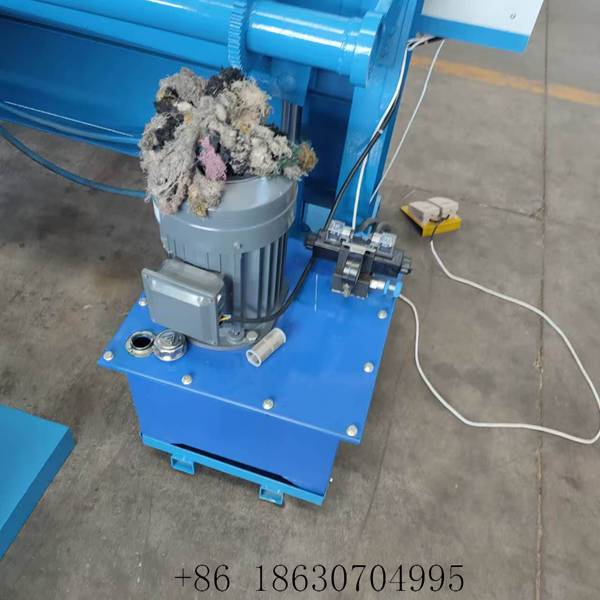

A powerful hydraulic drive system provides strong and stable cutting force. The integrated hydraulic power station, controlled through a compact valve manifold, holds pressure steady during continuous running, so the machine suits sheet metal factories and steel structure plants that cut plate all day.

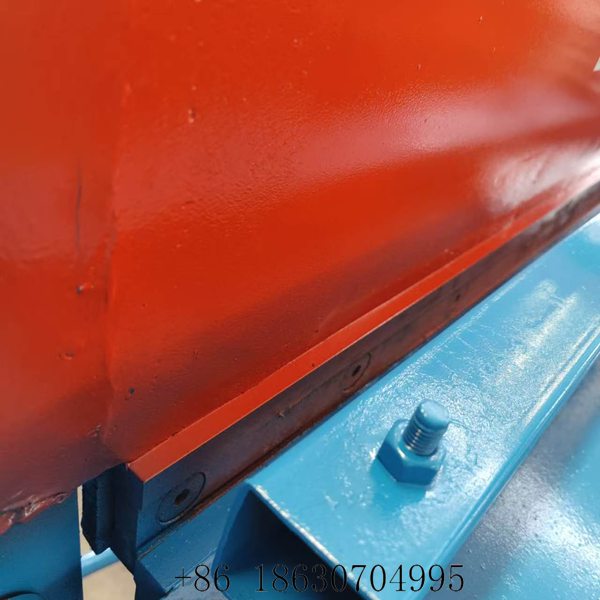

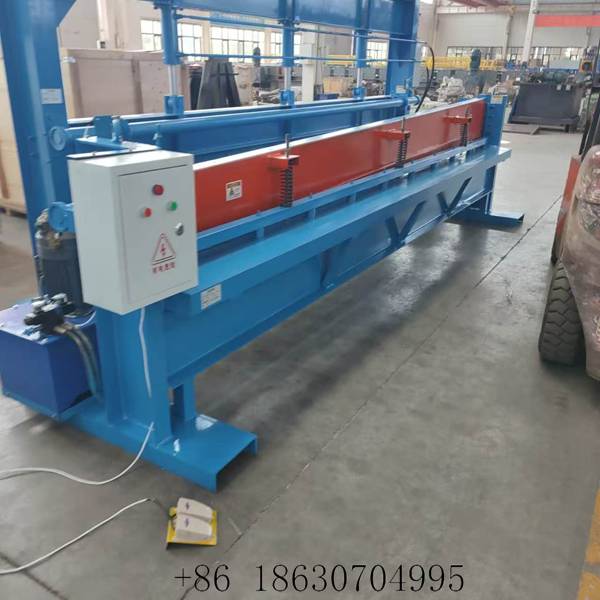

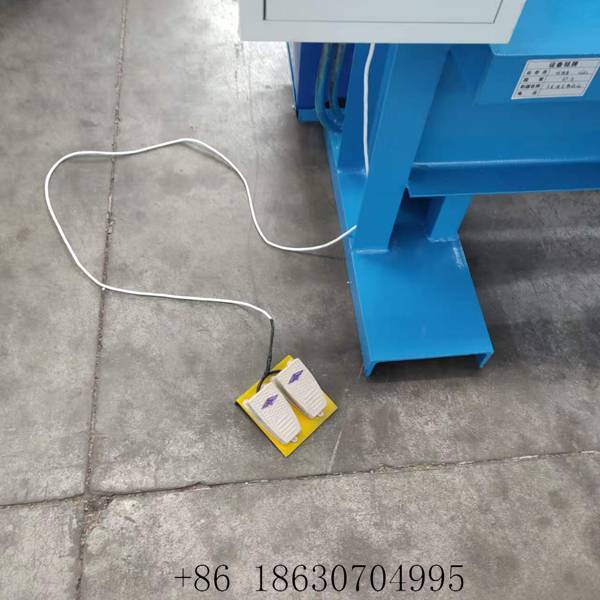

The reinforced, fully welded steel frame gives the body excellent rigidity and stability, reducing vibration and deformation under high-force cutting and protecting accuracy over years of use. High-quality shearing blades produce clean cutting edges and a long service life. A matched foot switch separates positioning from cutting: the operator lines up the plate with both hands and starts the stroke with the pedal, which improves both output and operator safety.

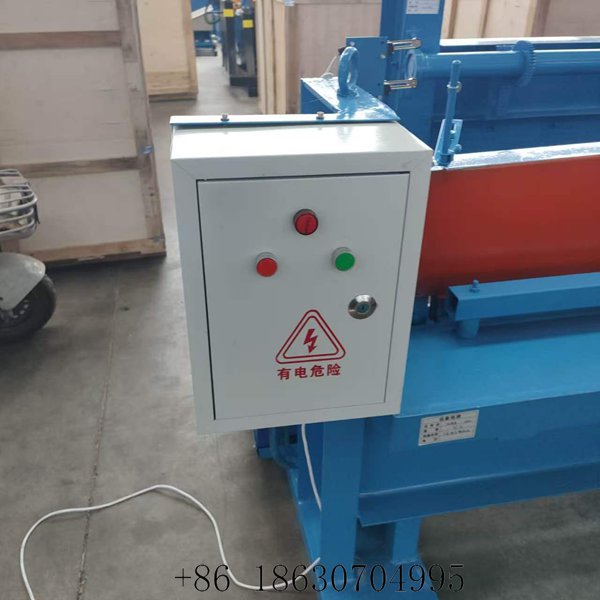

Parameters are set on the control cabinet, and accessible hydraulic parts plus quick blade changes keep maintenance simple. To compare related equipment, browse our Other Recommended Machines category, or see the Roll Forming Machine range for the forming lines this hydraulic sheet shearing machine supports. Cutting length, thickness and voltage are customizable. Send your plate specifications for a quotation.

Key Features

• High-Precision Sheet Cutting — accurate, clean cuts keep sheet dimensions consistent and reduce material waste.
• Powerful Hydraulic Drive System — strong, stable cutting force suits continuous sheet metal processing.
• Adjustable Cutting Parameters — cutting clearance, blade angle and stroke adjust to material thickness.
• Heavy-Duty Steel Frame — reinforced welded body limits vibration and deformation under high force.
• High-Quality Shearing Blades — clean cutting edges, long service life, quick blade changes.

Technical Parameters

Swipe horizontally to view full parameters.
