Delivery time: 25 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.
Hebei Xinnuo Roll Forming Machinery Co., Ltd. (XINNUO) has manufactured metal forming equipment since 1995 and has more than 30 years of industry experience. Our factory covers nearly 100,000 square meters in the Botou Economic Development Zone, Hebei, and is divided into 11 large workshops equipped with more than 50 sets of high-precision CNC machine tools. This hydraulic press brake machine is built on that manufacturing base.

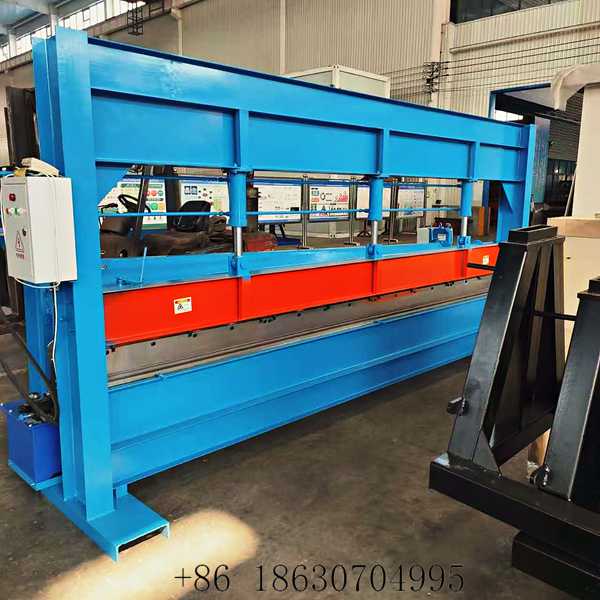

A press brake decides the quality of every bent part, so the machine has to hold its angle from the first piece to the last. Our hydraulic press brake machine delivers accurate bending angles and consistent forming results, helping you achieve high-quality finished metal components with less rework and less scrap.

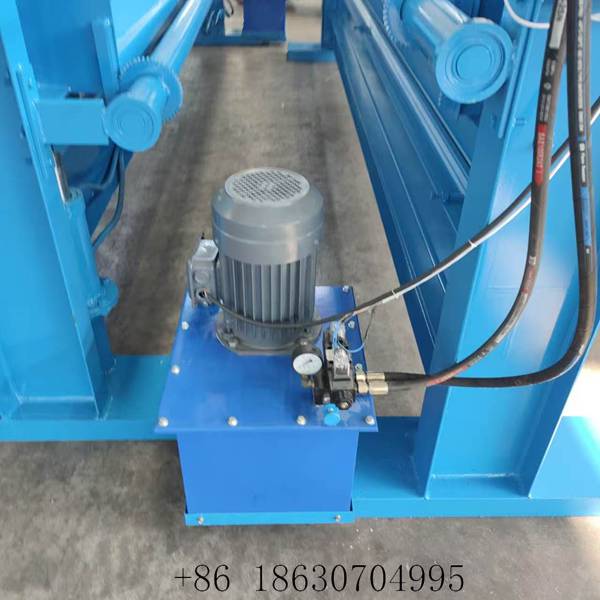

The hydraulic drive provides strong and stable bending force, which makes the machine suitable for processing various metal sheets and profiles. Because the force is generated hydraulically rather than mechanically, the bend stays smooth and the load on the tooling stays even.

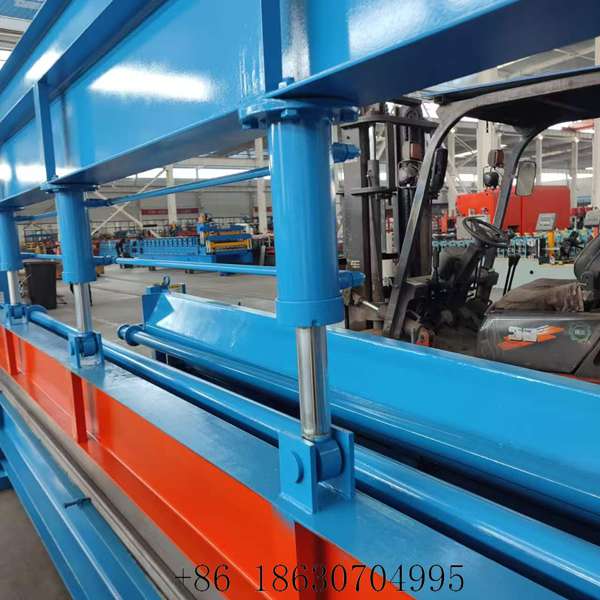

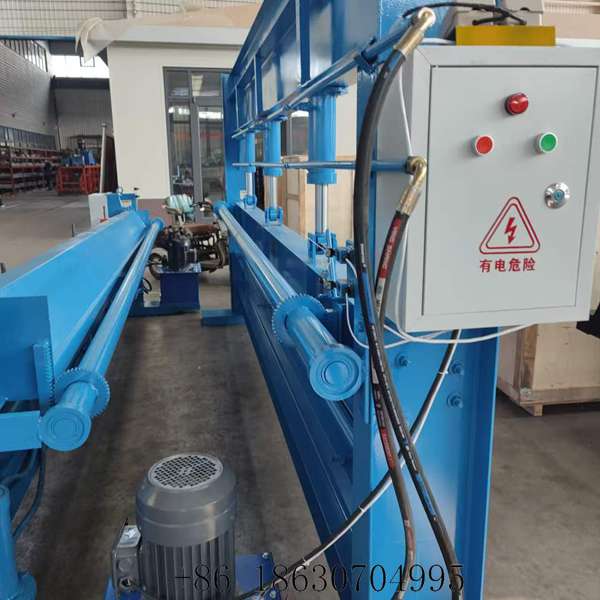

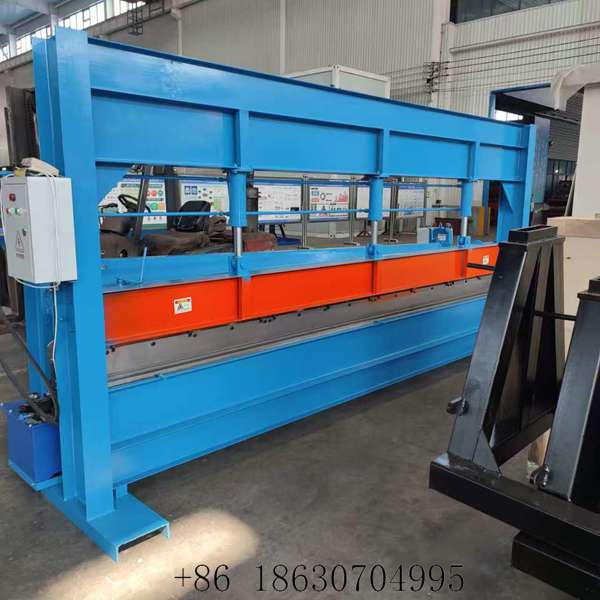

The upper beam and lower bed are carried by a reinforced steel structure that minimises deformation during high-pressure bending and ensures excellent stability during continuous operation. That rigidity protects the accuracy of the bend angle over a long production run.

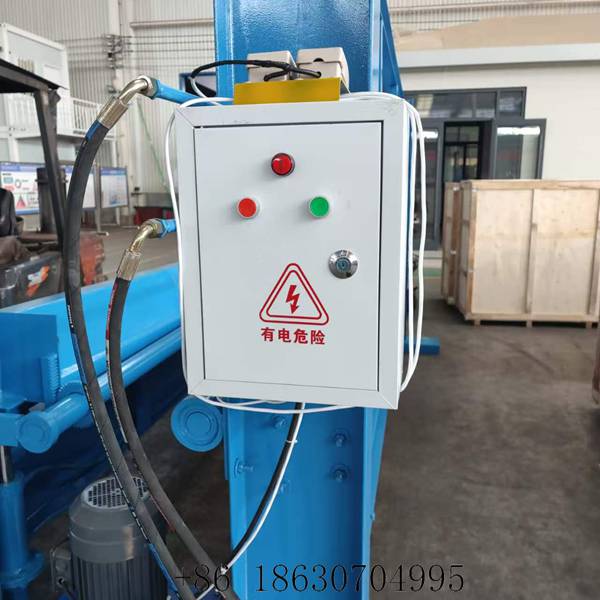

The control system allows operators to set and adjust bending parameters precisely, which improves repeatability across different production batches. High-quality tooling is designed for long-term industrial use and keeps performing reliably when you change sheet materials.
Typical applications include HVAC ducting, steel structure fabrication, metal cabinets and automotive sheet metal work. To equip a complete sheet metal workshop, XINNUO also builds the Roll Forming Machine range and other machines listed under Other Recommended Machines. Send us your sheet thickness, bending length and required tonnage, and our engineers will recommend the right configuration.
Swipe horizontally to view full parameters.
| Parameter | WC67Y-40T/2500 | WC67Y-63T/2500 | WC67Y-100T/3200 | WC67Y-160T/4000 |
|---|---|---|---|---|
| Nominal force (kN) | 400 | 630 | 1000 | 1600 |
| Bending length (mm) | 2500 | 2500 | 3200 | 4000 |
| Throat depth (mm) | 200 | 250 | 320 | 320 |
| Ram stroke (mm) | 100 | 100 | 120 | 200 |
| Max. open height (mm) | 260 | 340 | 370 | 470 |
| Main motor power (kW) | 4 | 5.5 | 7.5 | 11 |
| Control system | NC | NC / CNC | CNC | CNC |
| Machine weight (approx.) | 2.5 t | 3.8 t | 7.0 t | 11.0 t |
Tonnage, bending length, voltage and tooling are customized to your job.
