Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.
Hebei Xinnuo Roll Forming Machine Co., Ltd. (XINNUO), established in 1998 in Botou, Hebei, China, is a professional manufacturer of metal forming equipment. From a 100,000 square-meter production base with two modern factories, XINNUO has supplied CNC hydraulic press brakes, guillotine shears, and roll forming lines to more than 180 countries since 2002, backed by factory-direct pricing and global technical support. Our engineers provide installation guidance, commissioning support, and operator training with every order.

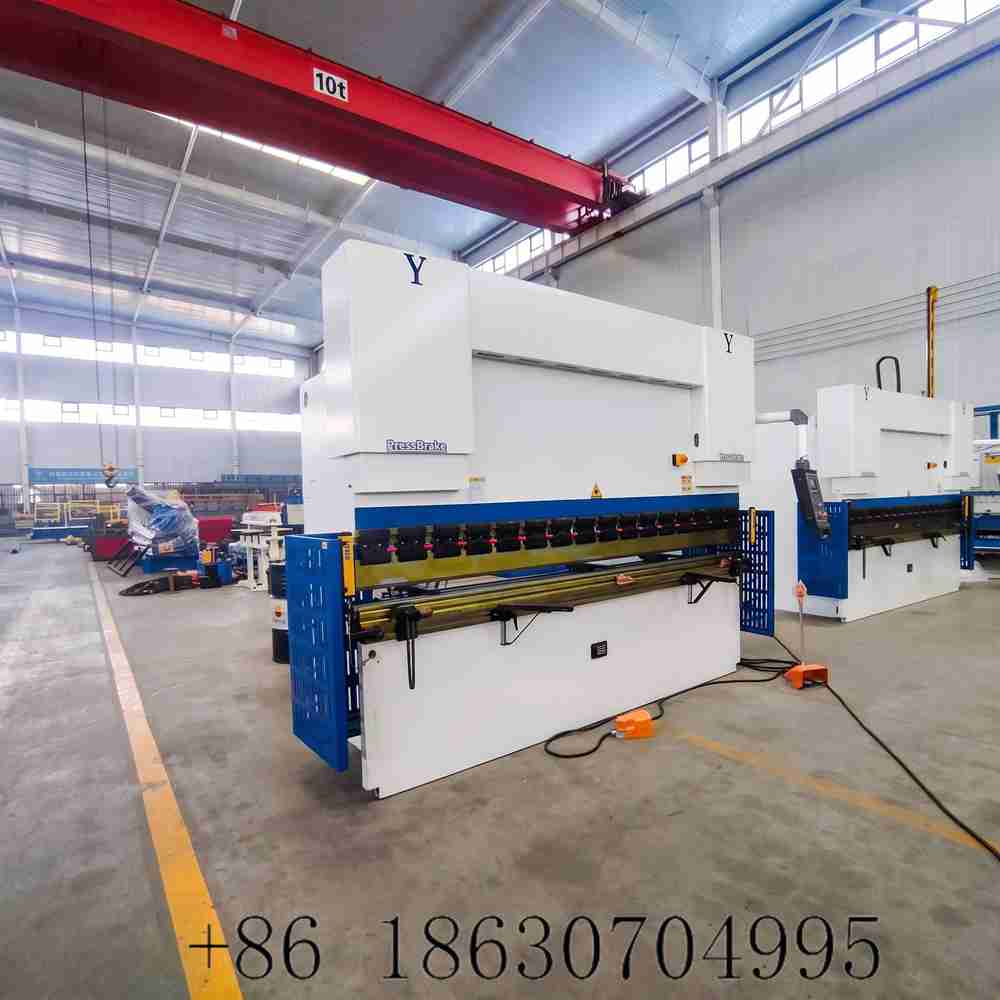

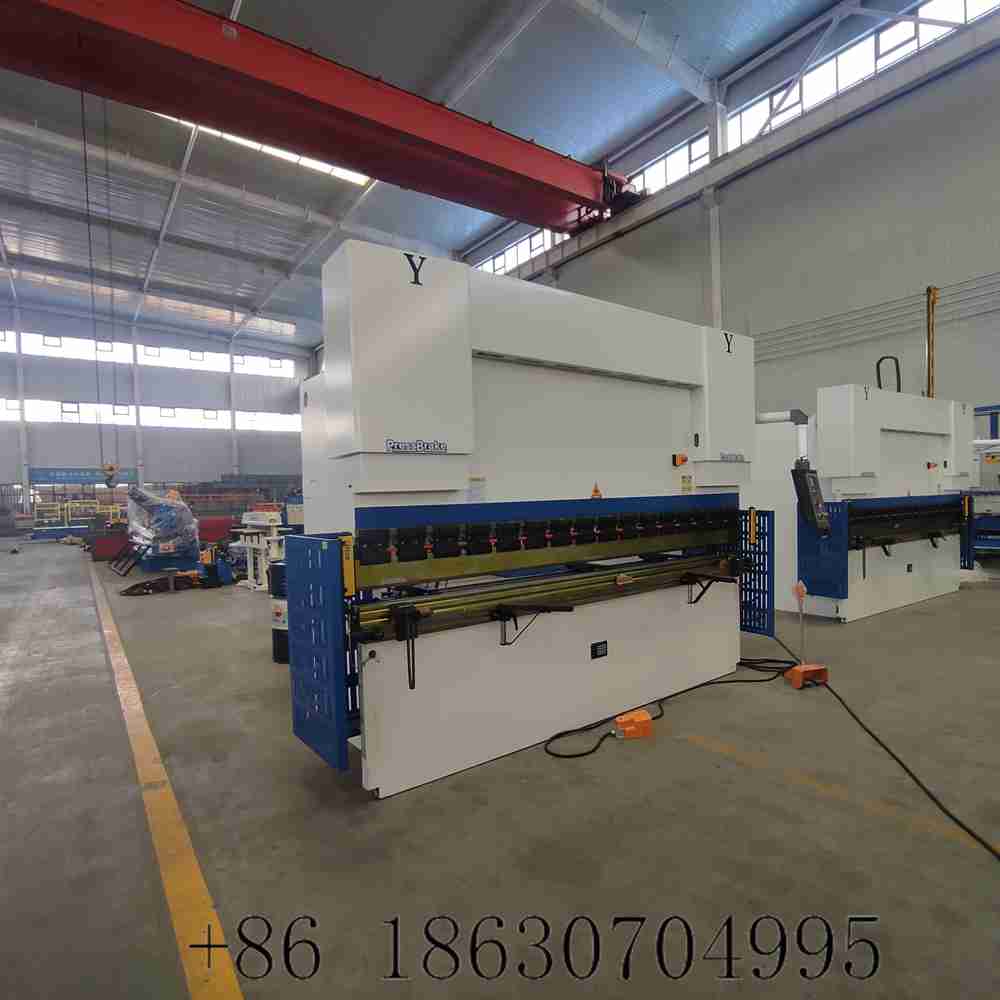

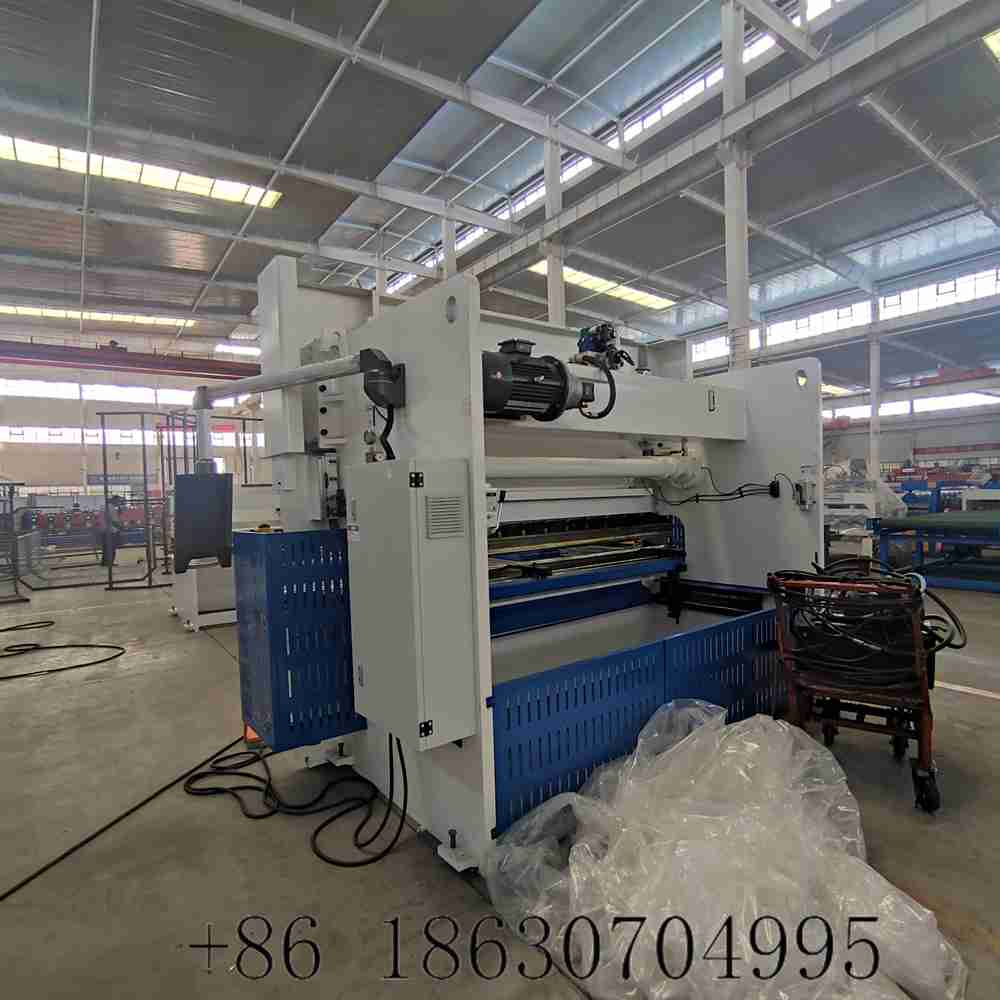

Designed for modern sheet metal fabrication, the CNC Press Brake Machine delivers high-precision bending, intelligent CNC programming, and reliable long-term performance. It helps manufacturers reduce material waste, shorten setup time, lower labor costs, and increase production capacity, making it an ideal solution for metal fabrication workshops, steel processing plants, and industrial manufacturing facilities worldwide.

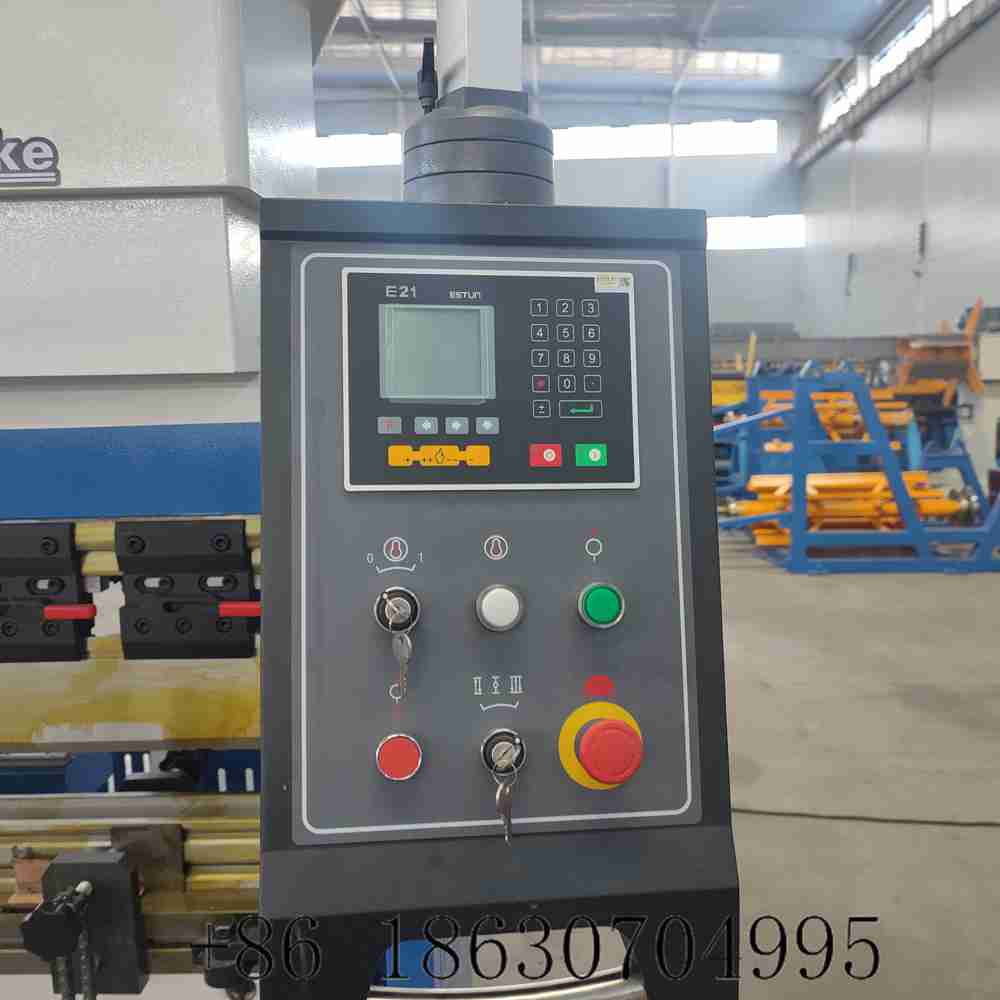

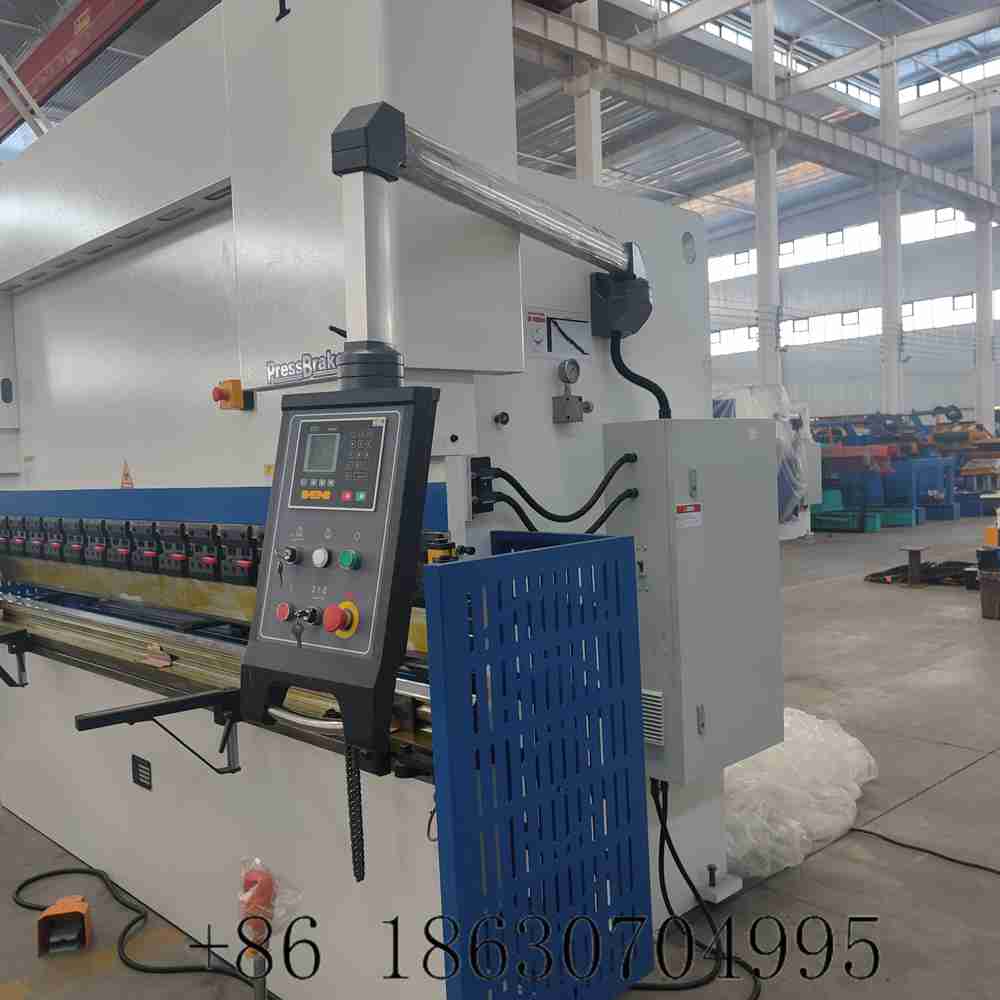

Precision hydraulic synchronization keeps bending angles consistent across the full bending length, while the heavy-duty welded frame ensures long-term stability under full load. The CNC control system supports multi-step programming, bend angle compensation, and automatic backgauge positioning, so operators can set up complex parts quickly and repeat them accurately. Bending lengths from 2500 mm to 6000 mm and tonnage from 40 t to 600 t cover most fabrication requirements.

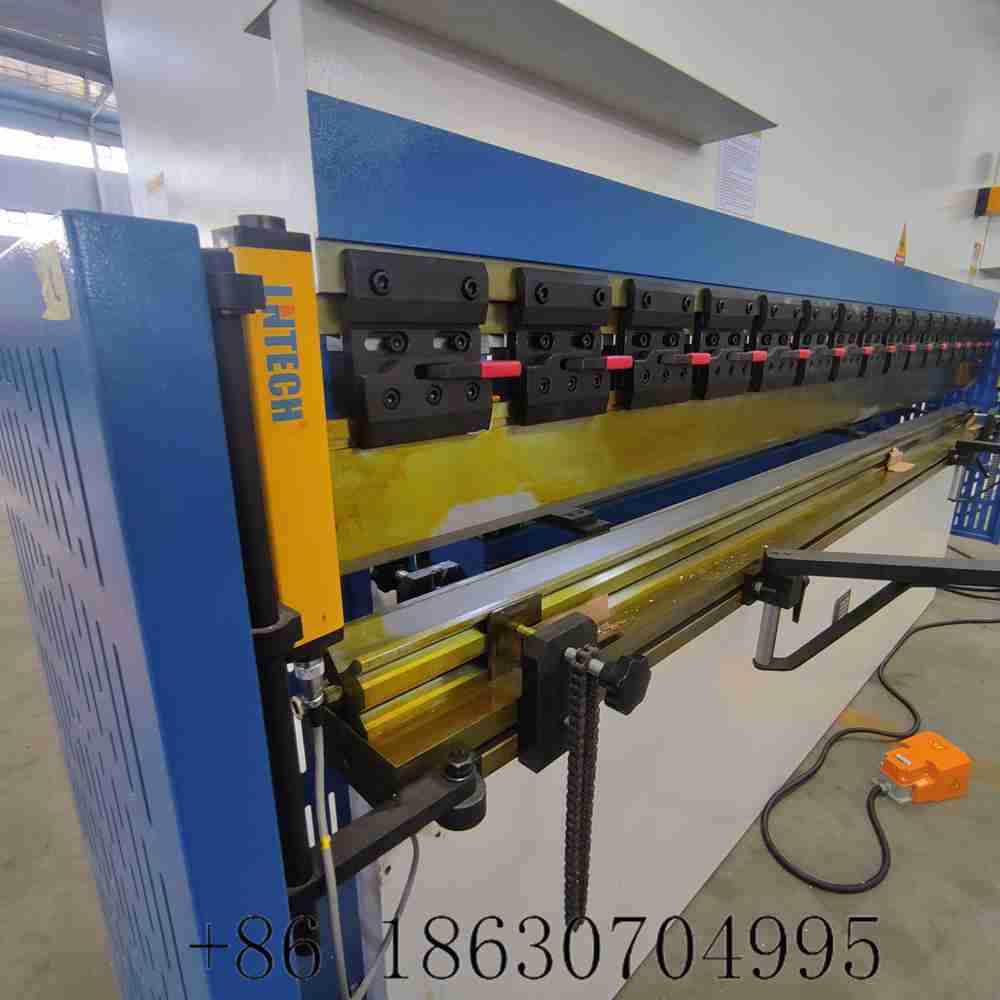

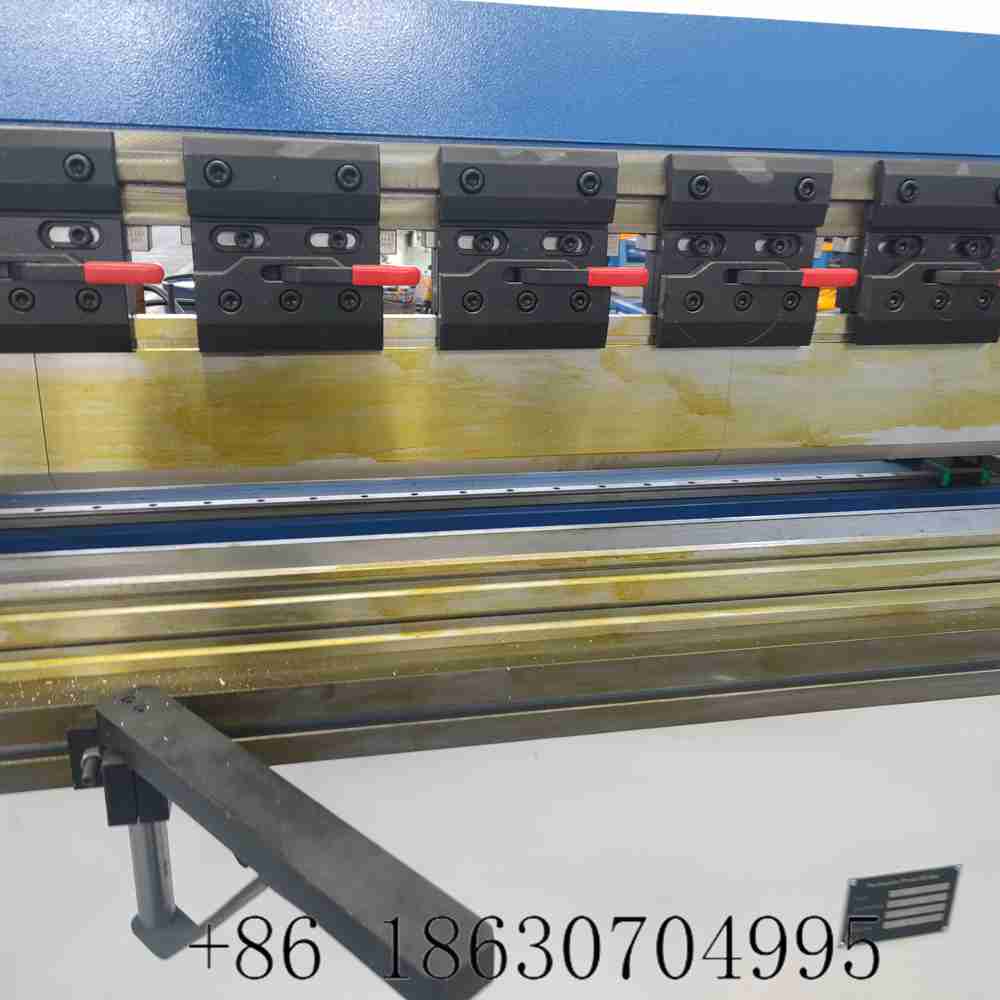

The machine bends carbon steel, stainless steel, and aluminum sheets with excellent surface finish. Quick clamping tooling shortens die changeover, and the motorized crowning table compensates for frame deflection to maintain straight bends. Safety light curtains and emergency stops protect operators, while low-maintenance hydraulic components keep running costs and downtime to a minimum.
Beyond press brakes, XINNUO manufactures a full range of metal processing equipment, including Roll Forming Machine and other sheet metal machines in the Other Recommended Machines category. Custom tonnage, bending length, voltage, and tooling options are available on request. Contact our team with your specifications for a tailored quotation and delivery plan.
| Parameter | WC67K-63T/2500 | WC67K-100T/3200 | WC67K-160T/4000 | WC67K-200T/4000 |
|---|---|---|---|---|
| Nominal force (kN) | 630 | 1000 | 1600 | 2000 |
| Bending length (mm) | 2500 | 3200 | 4000 | 4000 |
| Distance between columns (mm) | 2100 | 2600 | 3200 | 3200 |
| Throat depth (mm) | 250 | 320 | 320 | 400 |
| Ram stroke (mm) | 100 | 120 | 200 | 200 |
| Max. open height (mm) | 340 | 370 | 470 | 470 |
| Backgauge travel (mm) | 500 | 500 | 600 | 600 |
| Main motor power (kW) | 5.5 | 7.5 | 11 | 15 |
| Control system | CNC controller with automatic backgauge control | |||
| Machine weight (approx.) | 3.8 t | 7.0 t | 11.0 t | 13.0 t |
Swipe horizontally to view full parameters.
