Trapezoidal Roofing Sheet Roll Forming Machine

Our trapezoidal roofing sheet roll forming machine is engineered by Hebei Xinnuo, a professional manufacturer of cold roll forming equipment. It produces high-precision trapezoidal metal roof panels widely used in factories, warehouses, workshops and steel structure buildings. The heavy-duty H-beam steel frame guarantees stable and long-term continuous operation under heavy load conditions.

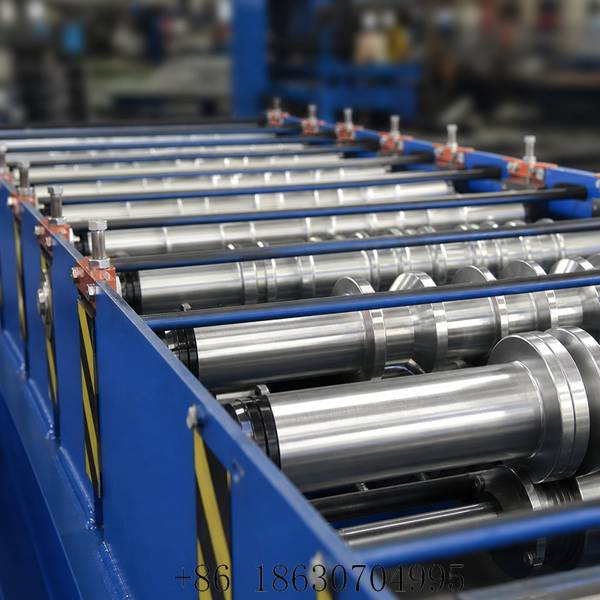

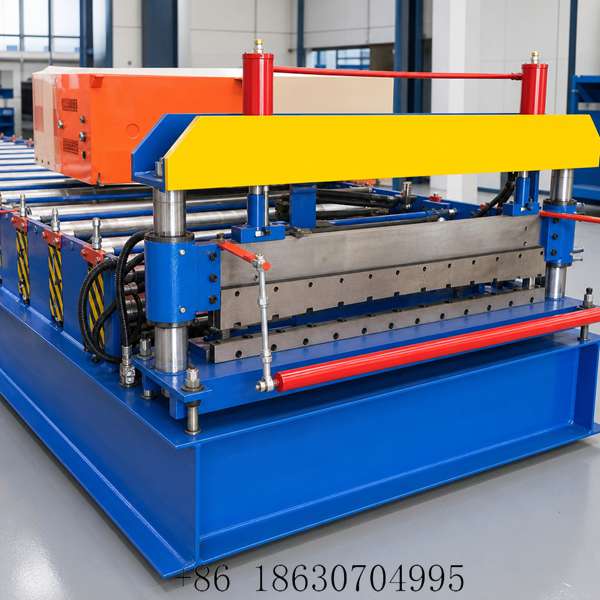

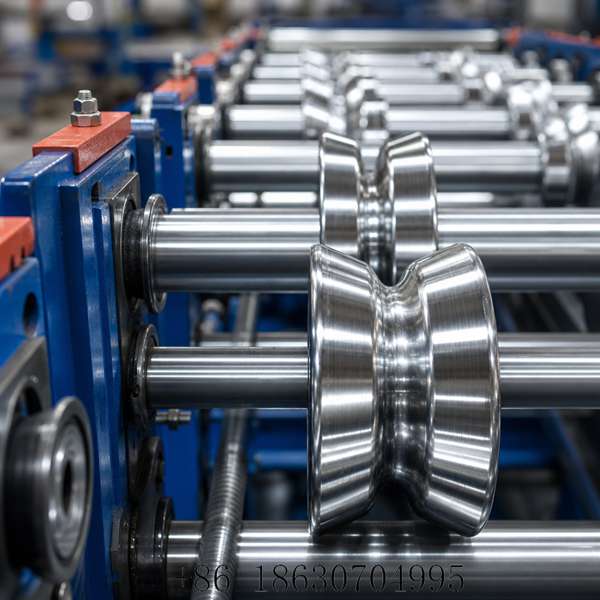

Precision rollers with hard chrome plating effectively protect the color-coated surface of metal coils from scratches. Progressive multi-pass forming technology delivers uniform trapezoidal profile across the whole sheet. Equipped with PLC + HMI touch screen, operators can easily set sheet length, production quantity and running speed. Automatic encoder length measuring system matches hydraulic cutting unit, keeping cutting accuracy within ±1-1.5 mm to reduce material waste. Stable forming speed makes it ideal for mass production of roofing sheets.

This machine works well with PPGI, GI, GL, aluminum coil and other metal raw materials. We support customizable trapezoidal profile, effective width and rib height to match local market requirements. It adopts chain drive system with solid 45# steel shafts for reliable power transmission. CE and ISO available configurations are prepared for overseas markets. We provide professional on-site installation guidance, operation training and complete after-sales support. You may also check our corrugated sheet roll forming machine and ridge cap roll forming machine for more metal roofing solutions.

Hebei Xinnuo focuses on durable cold forming machinery for global customers. Every unit undergoes strict factory testing before shipment. Our technical team offers fast remote support and spare parts supply to minimize your production downtime.
