Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.

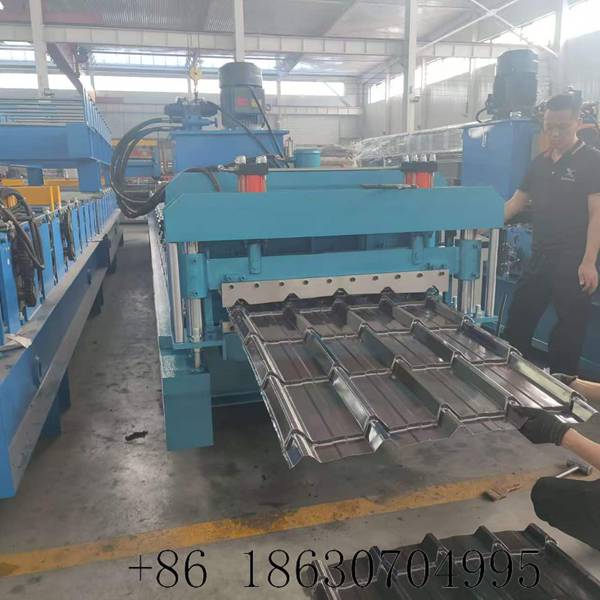

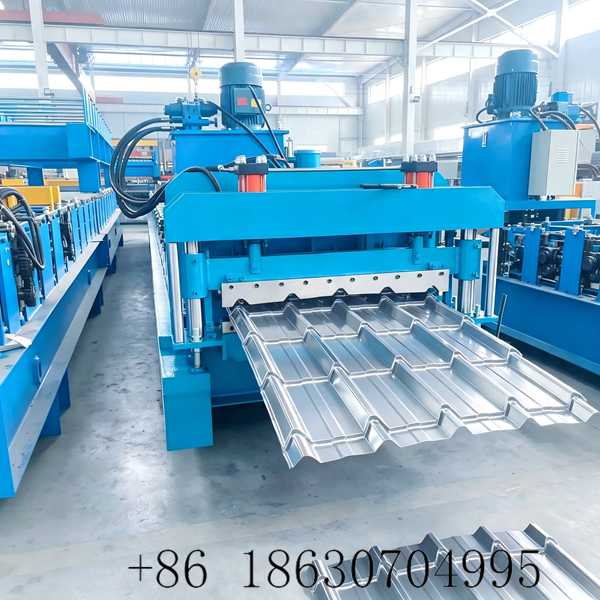

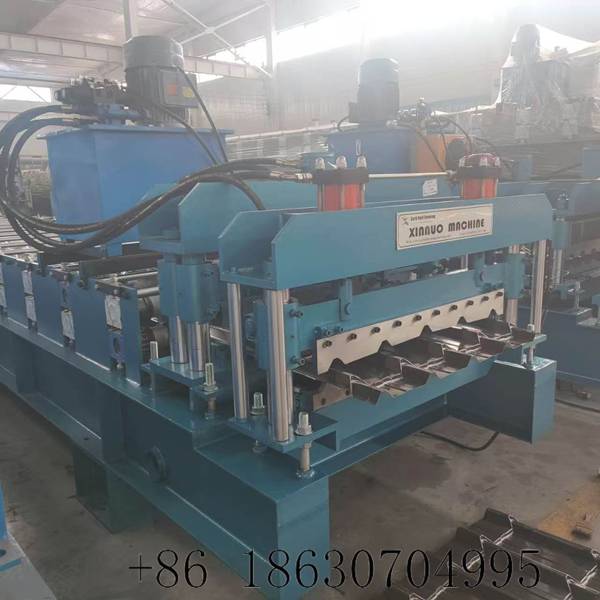

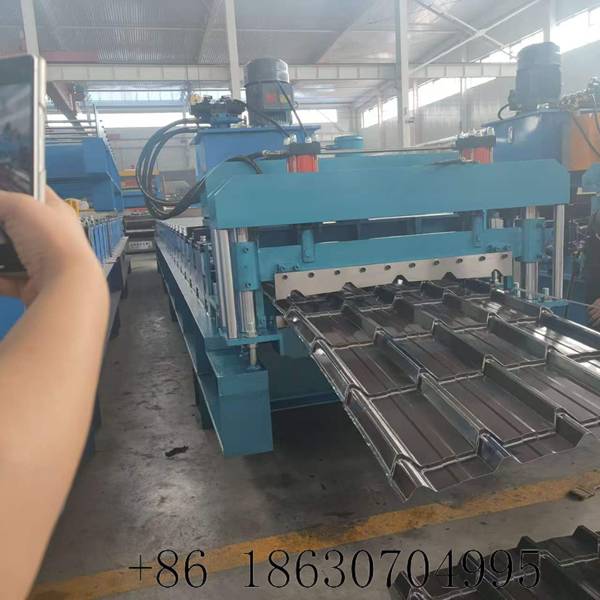

Manufactured by Hebei Xinnuo Roll Forming Machinery Co., Ltd., a veteran cold forming equipment manufacturer with over 30 years of production experience, this step tile roll forming machine is a specialized automated production line for 820 trapezoidal glazed metal roof tiles. Our factory operates a 100,000-square-meter production base equipped with full CNC machining workshops and strict quality control procedures, exporting metal roof machinery to more than 140 countries worldwide. Positioned as XN Rollform’s heavy-duty customized industrial forming line series, this tile machine targets construction factories, roofing contractors and metal processing plants pursuing lightweight, high-performance roof materials.
The biggest competitive highlight of the tiles produced by our step tile roll forming machine is ultra-light weight compared with traditional building roof materials like sintered clay tiles and cement tiles. The unit weight of finished 820 trapezoidal glazed metal tiles is merely one tenth of conventional clay or cement roof tiles. This huge weight reduction effectively lowers the overall bearing load of building roof structures, which saves raw material costs for roof support frames and expands the applicable range of low-load prefab buildings.
Beyond lightweight advantages, metal tiles made by this step tile roll forming machine feature excellent physical mechanical properties. The finished roof panel owns strong tensile strength, outstanding wind resistance and seismic performance, making it capable of resisting harsh extreme weather impacts including heavy snow, strong wind, hail storms and torrential rain. It is widely adopted for residential houses, warehouse roofs, agricultural barns, factory workshops and commercial construction projects across global high-wind and earthquake-prone areas.

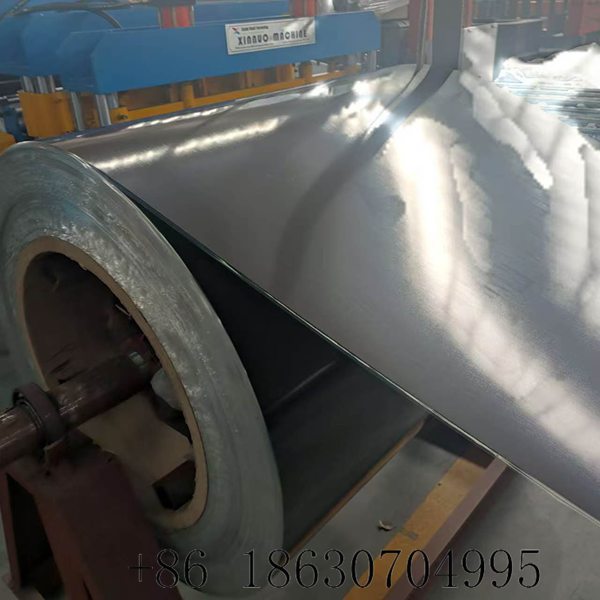

To build a full automatic tile production workshop, this step tile roll forming machine can work with matched auxiliary equipment. You can check our matched production lines via internal links: Double Layer Roof Panel Roll Forming Machine and 5 Ton Hydraulic Uncoiler. The matched 5-ton hydraulic uncoiler provides stable heavy steel coil feeding without coil slipping or deformation, perfectly supporting continuous long-time production of glazed step tiles.

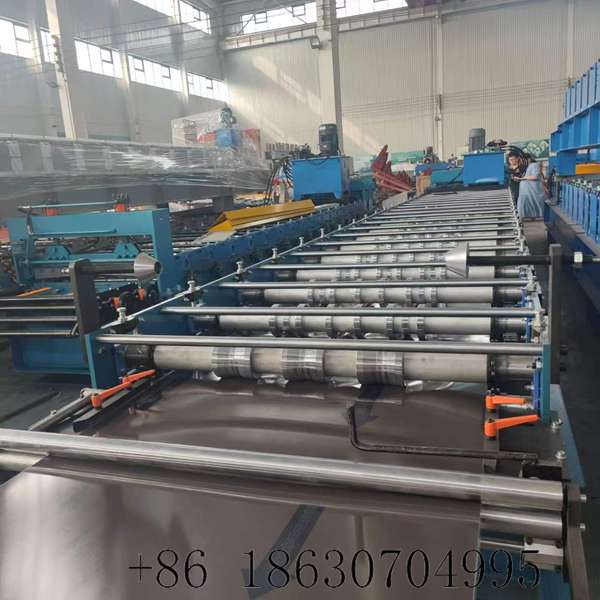

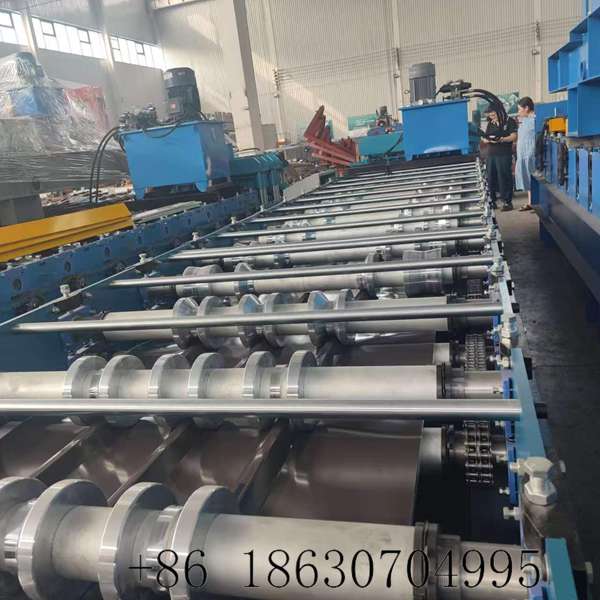

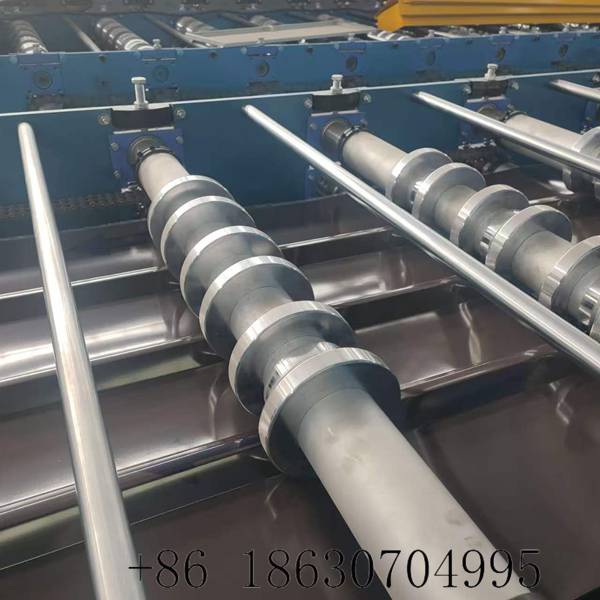

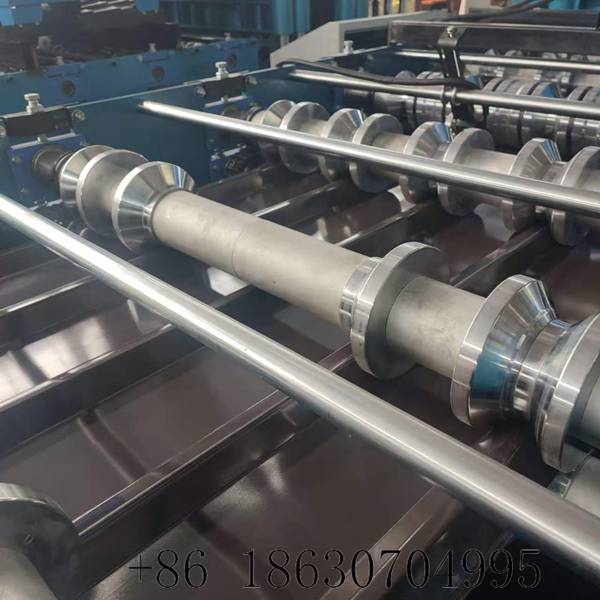

The entire forming line adopts PLC touch screen intelligent control, with adjustable forming speed and automatic fixed-length hydraulic cutting. All forming rollers are made of quenched GCr15 alloy steel for long service life and stable tile molding without surface scratches or dimensional deviation. The machine requires minimal daily maintenance and can run 24 hours continuously for mass roof tile manufacturing.
| Parameter Item | Standard Spec | Raw Material Range | Finished Tile Model | Core Power | Key Tile Performance |
|---|---|---|---|---|---|
| Product Name | Step Tile Roll Forming Machine | 0.4–0.8mm Galvanized / Color Steel Coil | 820 Trapezoidal Glazed Tile | Main Motor 7.5kw + Hydraulic 4kw | 1/10 weight of cement tile |
| Forming Speed | 8–14 m/min | Coil Width 1000/1200mm | Effective Cover Width 820mm | Custom 380V/415V 50/60Hz | High tensile strength |
| Forming Station Quantity | 28 Groups Alloy Rollers | Matched with 5T hydraulic uncoiler | Trapezoidal glazed profile | Total Power 11.5kw | Wind & earthquake resistant |
| Cutting Mode | Hydraulic Automatic Fixed-Length Cut | Max Coil Weight 5 Ton | No tile surface scratch | Siemens PLC + Touch Screen | Hail & snow impact resistance |
All step tile roll forming machines include a 12-month full machine warranty, English operation manuals, remote PLC technical debugging and lifelong spare parts supply. Our overseas engineering team provides online video installation guidance for global roof tile manufacturers.
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
