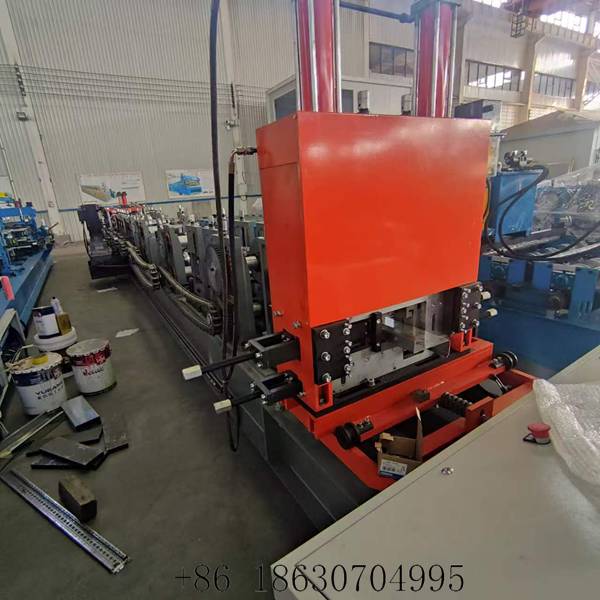

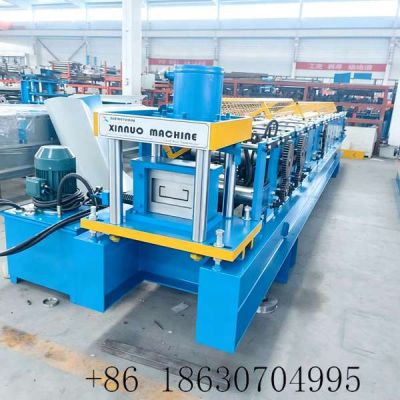

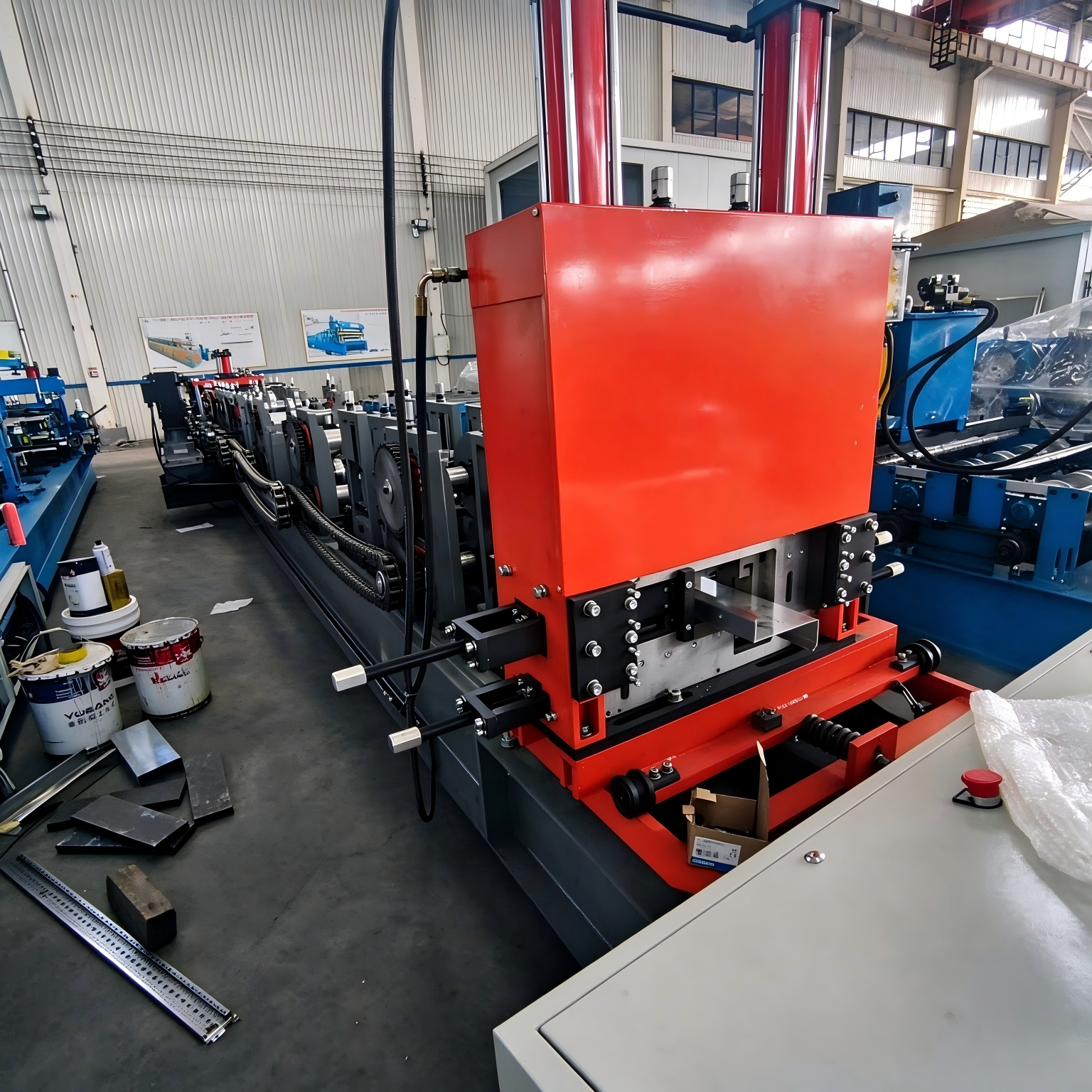

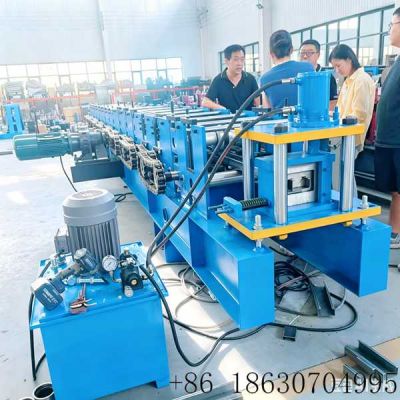

Automatic CZ Purlin Roll Forming Machine

Hebei Xinnuo offers the industrial-grade automatic CZ purlin roll forming machine engineered for modern steel building structures and solar mounting brackets. As an advanced purlin roll forming machine, this fully automated line produces standard C channels and Z purlins from 0.8 mm to 4.0 mm galvanized, PPGI, and carbon steel coils with high precision.

Key Advantages & Engineering Features

• Automatic C/Z Purlin Quick Change System: Switch between C channel and Z purlin within 3–8 minutes via touch screen, with no roller disassembly required.

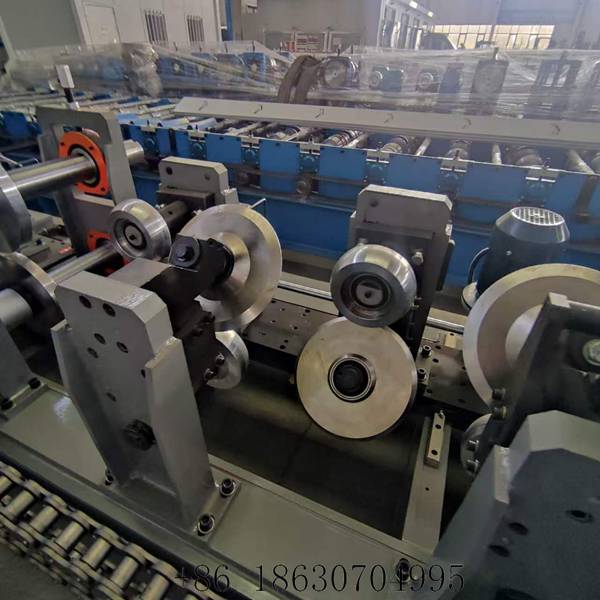

• Heat-treated Precision Roll Dies: Bearing steel rollers quenched to HRC58–62 provide superior wear resistance, smooth profile surface without scratches, and extended tooling service life.
• High Forming Precision: Forming tolerance kept within ±0.5mm with zero twisting or edge warping, ensuring seamless matching during steel structure installation.

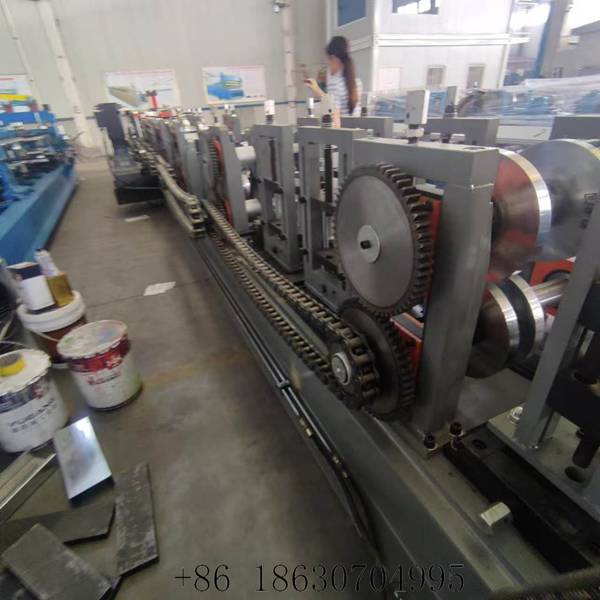

• Heavy-duty Independent Stand Frames: Rigid cast stands ensure uniform load distribution and stable forming for 0.8–4.0mm GI, PPGI, and Q235/Q355 carbon steel.

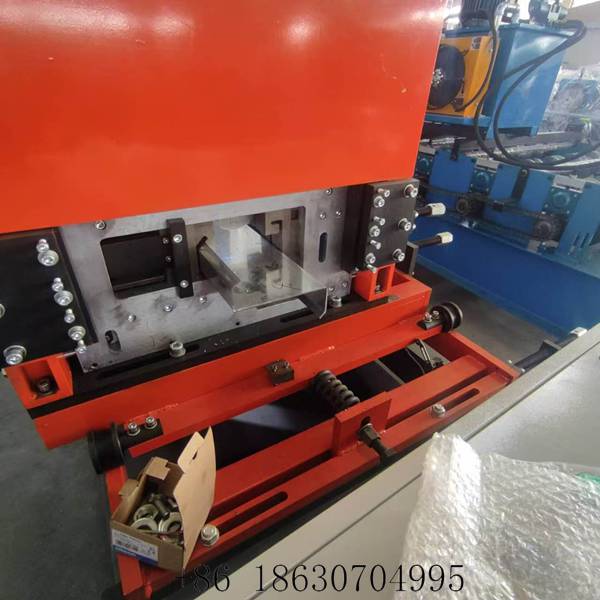

• Siemens PLC & Servo Flying Cut: Non-stop online hydraulic/servo cutting delivers clean, burr-free ends, with optional synchronized punching and embossing modules.
• Full Automatic Production Line: Integrated decoiling, leveling, roll forming, punching, flying cutting, and auto collecting operate at 8–18 m/min to minimize labor costs.
• IP54 Electrical Protection & Anti-corrosion Coating: Built for high temperature and coastal salt spray environments, ideal for global solar and commercial roofing projects.
• Complete After-sales Service: Comprehensive technical support including on-site commissioning, operator training, spare parts supply, and 24/7 remote troubleshooting.
• Technical Specifications

Swipe horizontally to view full parameters.

About Hebei Xinnuo Roll Forming Machinery

Established in 1995 in Botou Economic Development Zone, Hebei Xinnuo Roll Forming Machinery Co., Ltd. has accumulated over 30 years of manufacturing excellence. Operating across nearly 100,000 m² with 11 specialized heavy-machinery workshops and 50+ high-precision CNC machining centers, Xinnuo delivers reliable CZ purlin roll forming machine solutions and custom roll formers to contractors worldwide.
