Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.
Hebei Xinnuo Roll Forming Machine Co., Ltd. (XINNUO), established in 1998 in Botou, Hebei, China, is a professional manufacturer of cold roll forming equipment. From a 100,000 square-meter production base with two modern factories, XINNUO has supplied light gauge steel roll forming machines, purlin lines, and complete metal building systems to more than 180 countries since 2002. The Omega profile roll forming machine is one of our most popular light steel keel solutions for ceiling and partition framing.

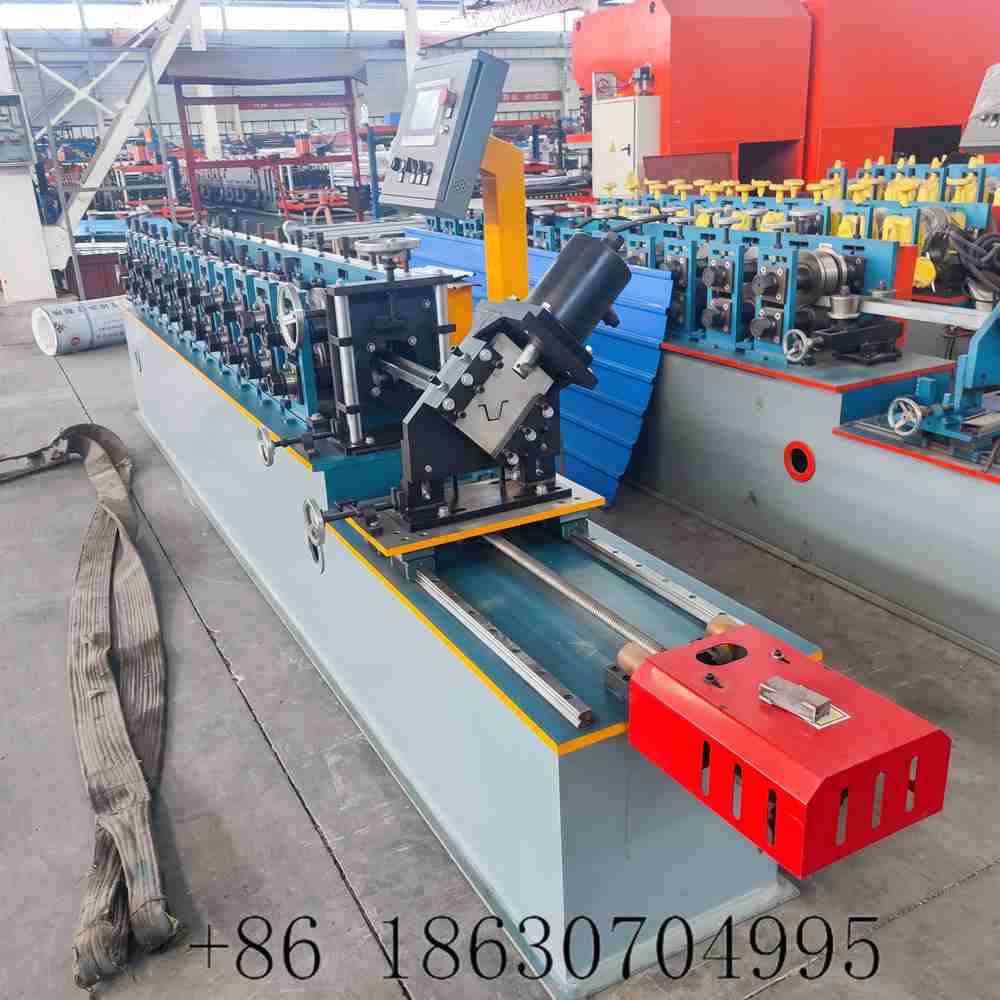

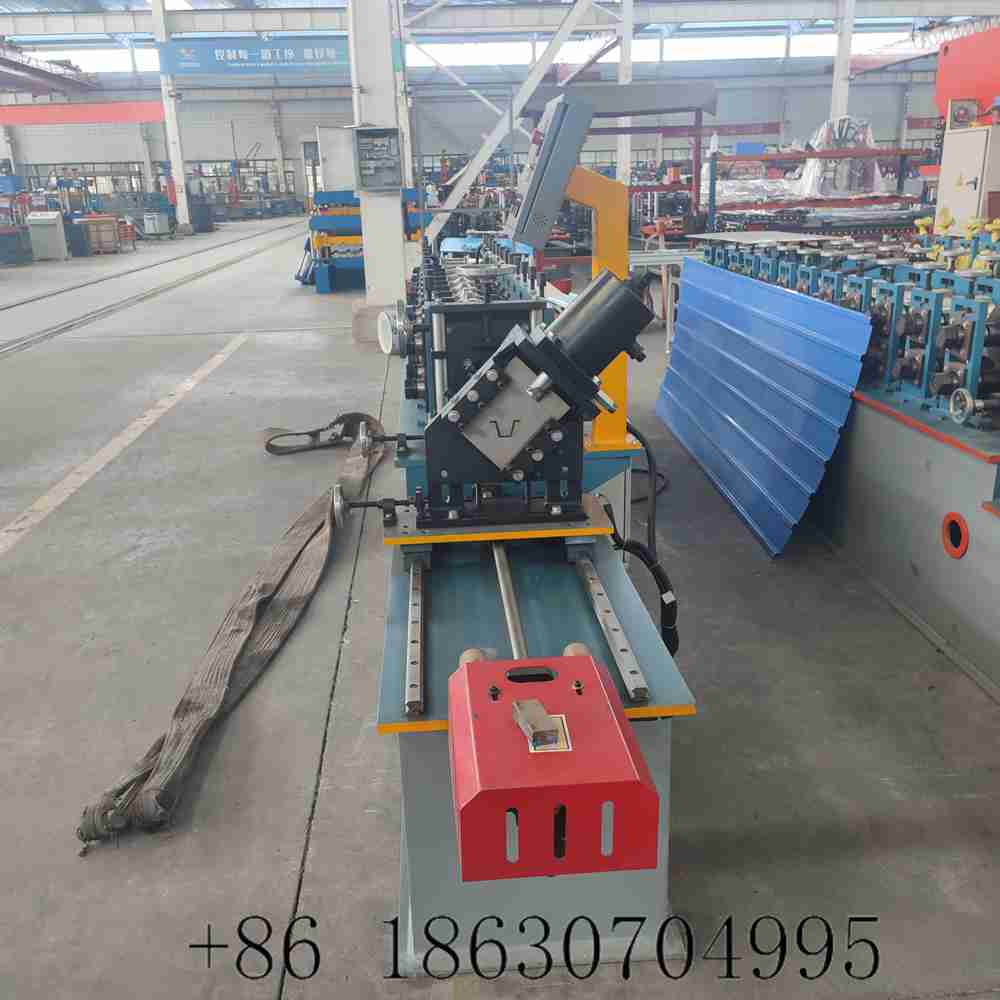

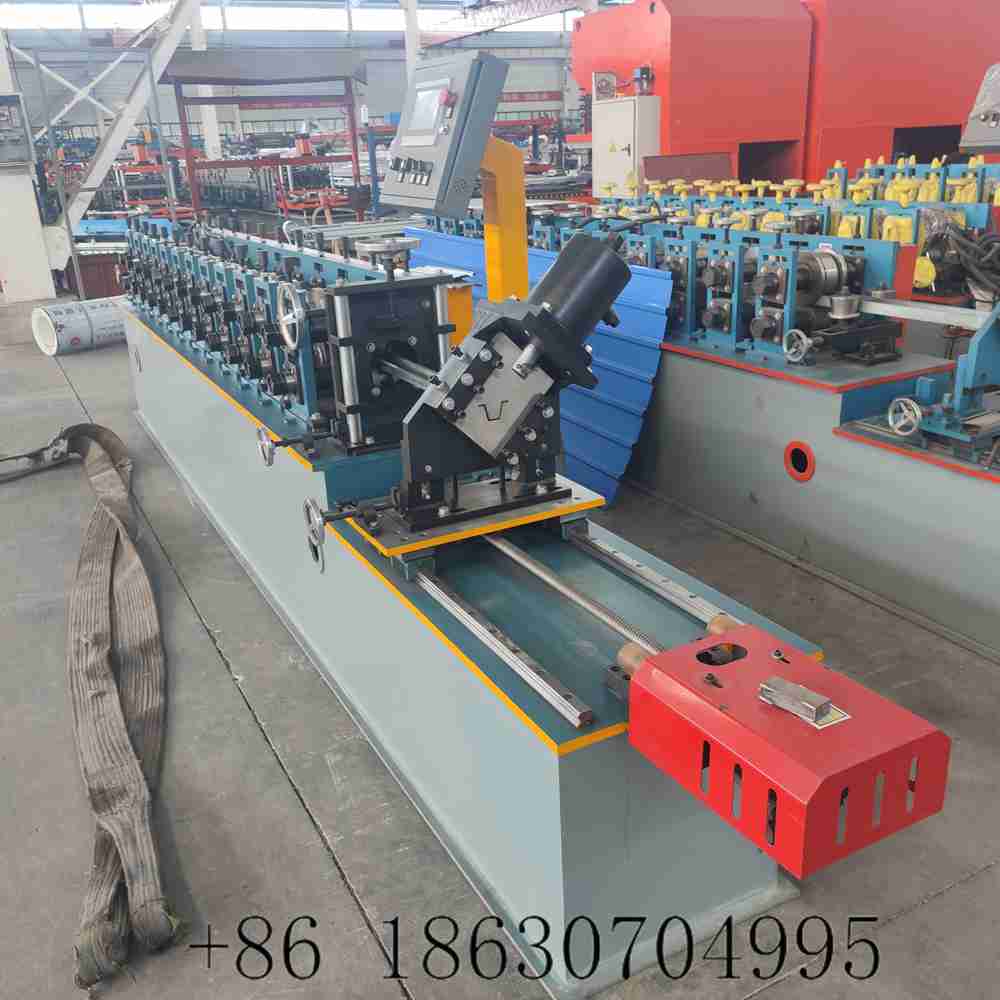

The Omega Profile Roll Forming Machine is designed for manufacturers who require high-speed production, precise profile accuracy, and reliable long-term performance. With automatic PLC control, integrated punching and cutting options, and customizable profile designs, it helps reduce labor costs, minimize material waste, and increase production capacity for light steel framing, ceiling systems, drywall structures, and prefabricated building applications.

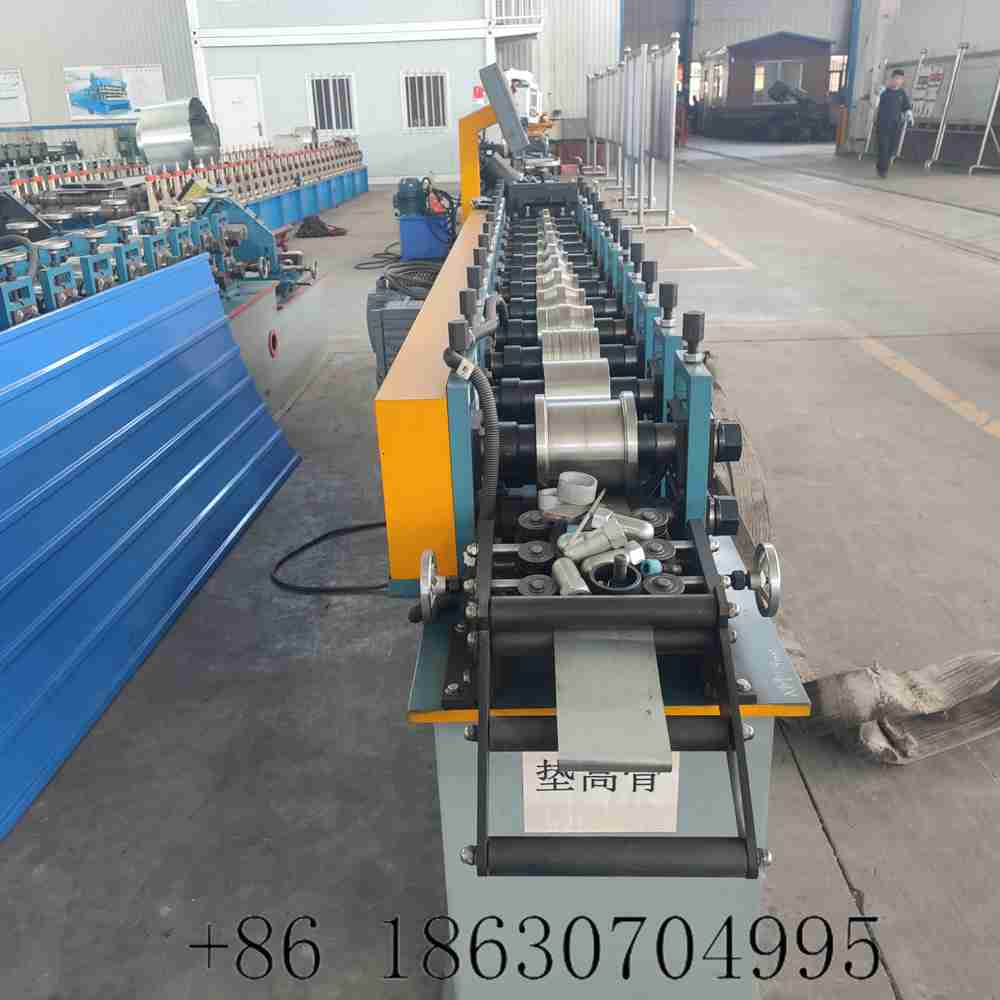

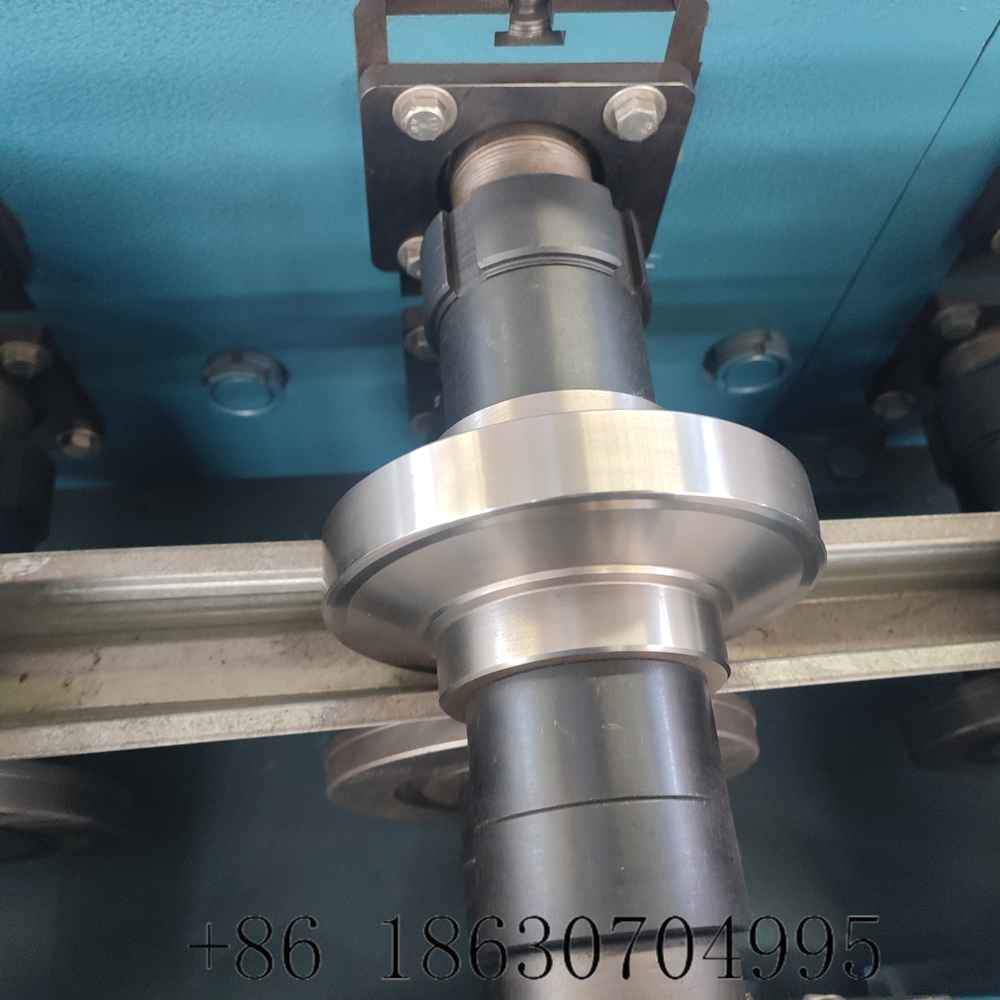

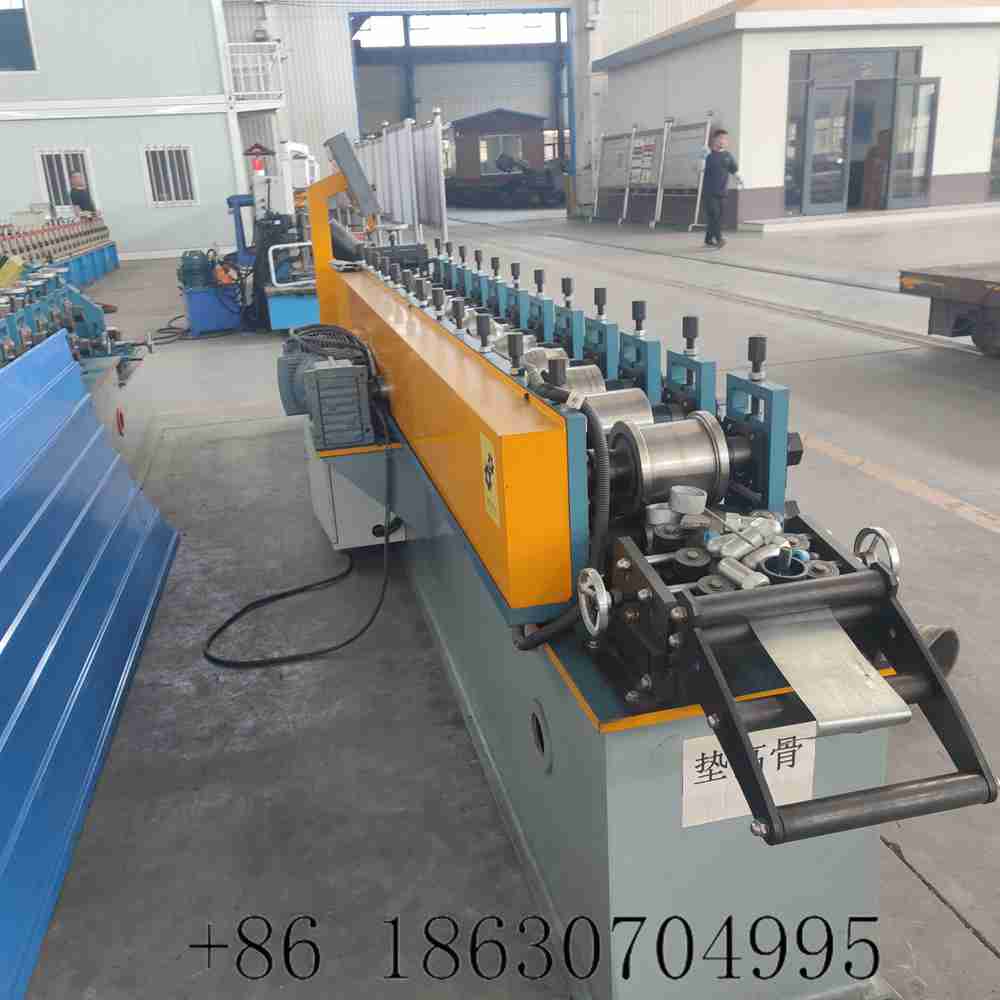

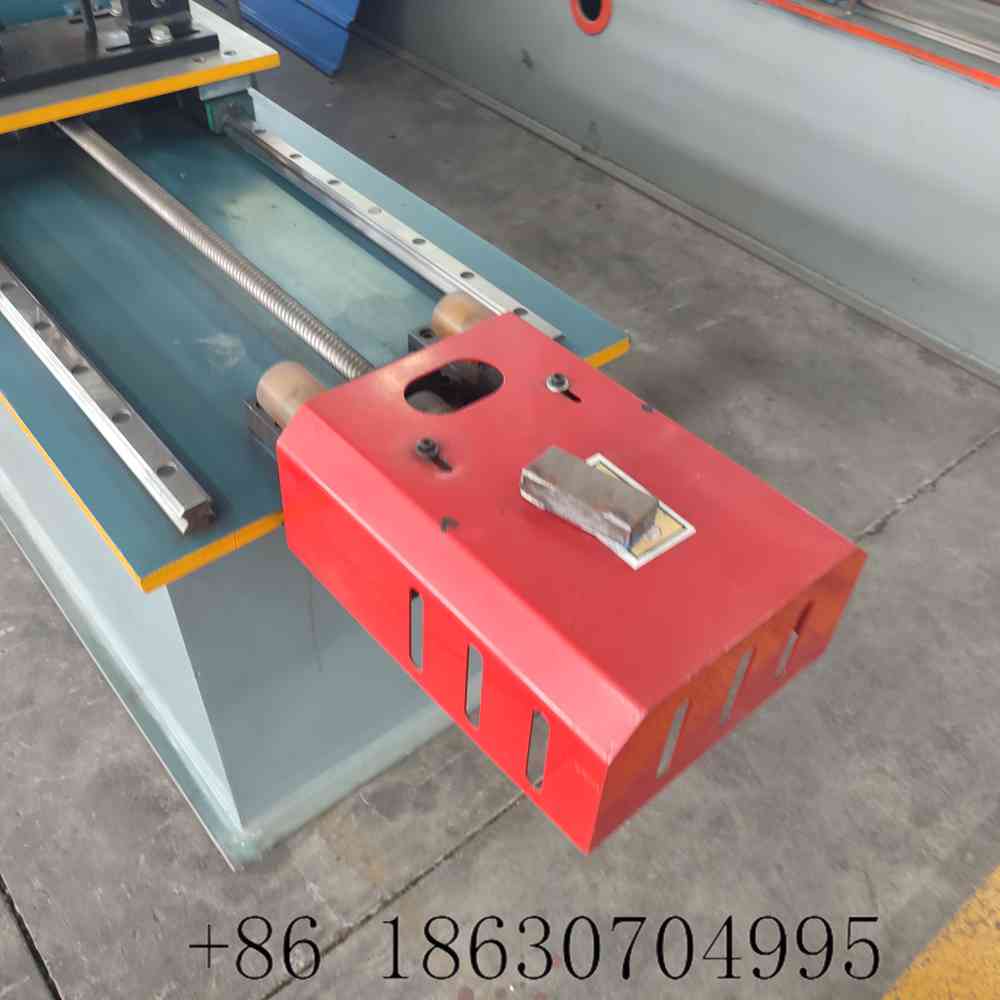

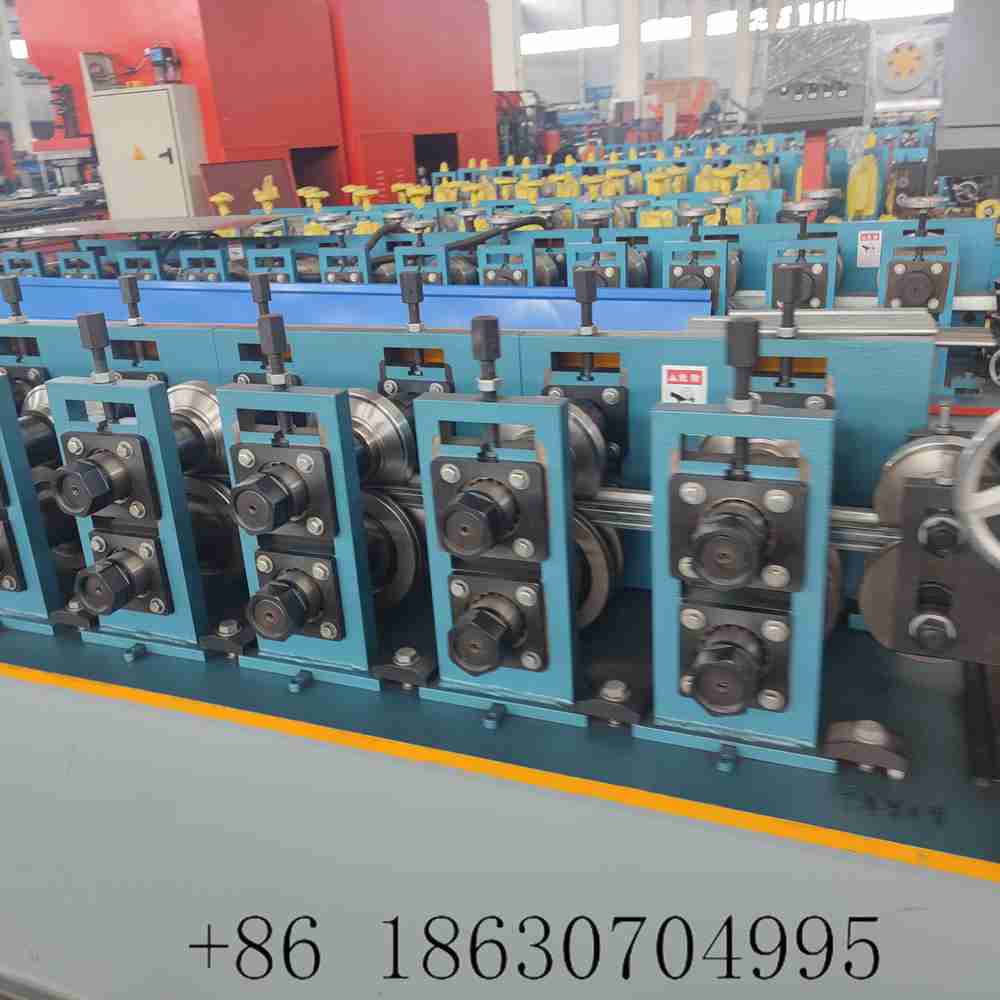

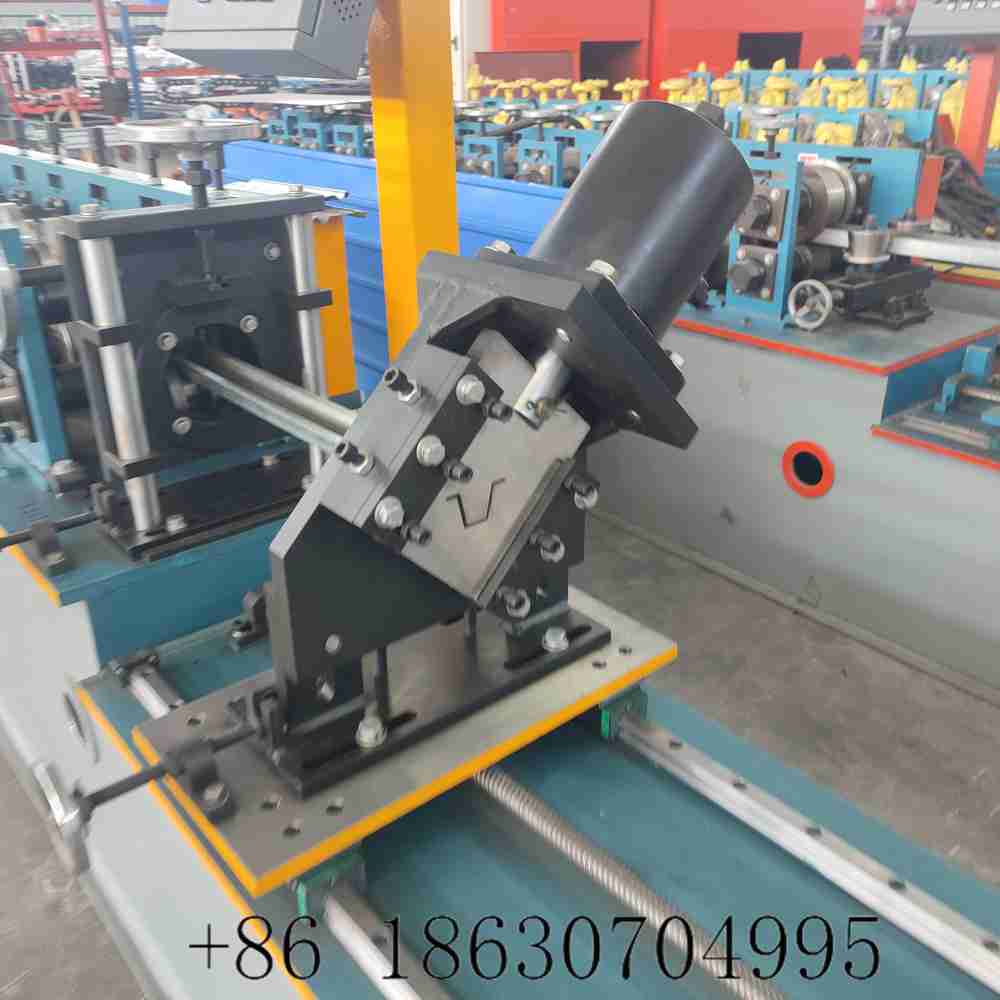

From material feeding on the entry platform, the coil passes through progressive forming rollers that gradually shape the flat strip into the omega profile. Automatic punching units create holes, slots, and notches as required, and the PLC-controlled cutting system trims profiles to exact length. Servo drive options provide precise tracking cutting for tight length tolerances, while quick roller changeover allows fast profile switching between runs. The heavy-duty welded frame and precision-ground, heat-treated rollers ensure stable 24-hour operation without profile twisting or dimension drift.
The machine handles galvanized and color-coated steel from 0.4 mm to 1.5 mm thick, with coil widths from 100 mm to 300 mm and production speeds up to 60 m/min. Profile height and width can be customized to match specific ceiling runner and stud designs. For related products, browse our Light Gauge Steel Framing Machine category and the Omega Roll Forming Machine collection. Custom punching layouts, voltages, and feeding systems are available on request, with installation guidance and operator training included.
| Parameter | Specification |
|---|---|
| Profile type | Omega (几字型) / hat-shaped light steel keel |
| Material thickness | 0.4 – 1.5 mm |
| Coil width | 100 – 300 mm (customizable) |
| Production speed | Up to 60 m/min |
| Roller stations | 12 – 18 rows (customizable) |
| Punching | Automatic hydraulic / servo punching (optional) |
| Cutting | Automatic PLC fixed-length cutting |
| Control system | PLC + touch screen |
| Drive | Servo tracking cutting (optional) |
| Voltage | 380 V / 50 Hz (customizable) |
| Machine weight (approx.) | 3.0 – 6.0 t |
Swipe horizontally to view full parameters.
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
