Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.

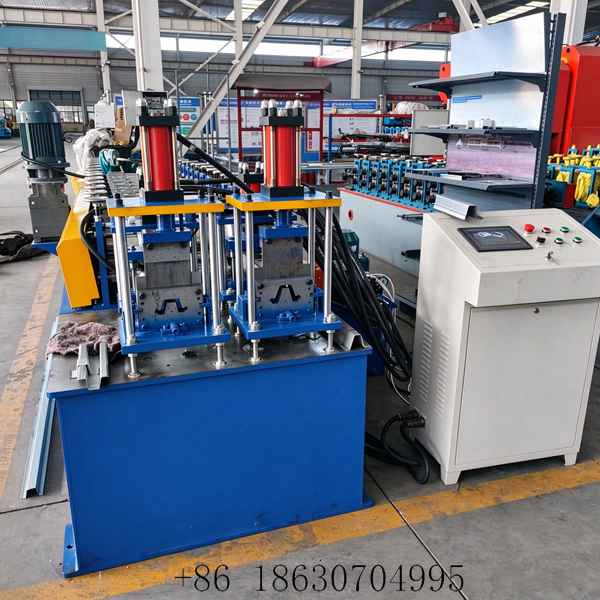

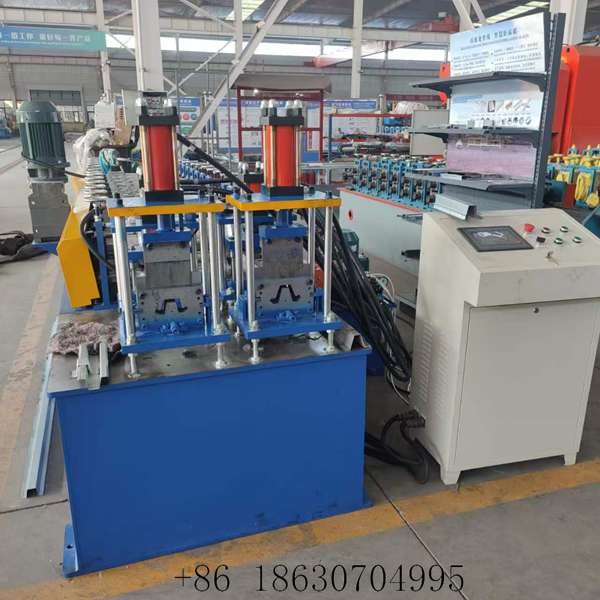

Our Double Row Hat Channel Roll Forming Machine (Dual-Row Hat Shape Keel Making Machine) is a high-efficiency cold forming equipment specially manufactured by Hebei Xinnuo Roll Forming Machinery Co., Ltd. It features two lines simultaneous output to greatly boost production capacity, ideal for manufacturing hat-type light steel keels used in suspended ceilings, wall partitions and light steel framing projects. C Z purlin roll forming machine and light steel framing machine are our related forming lines for your reference.

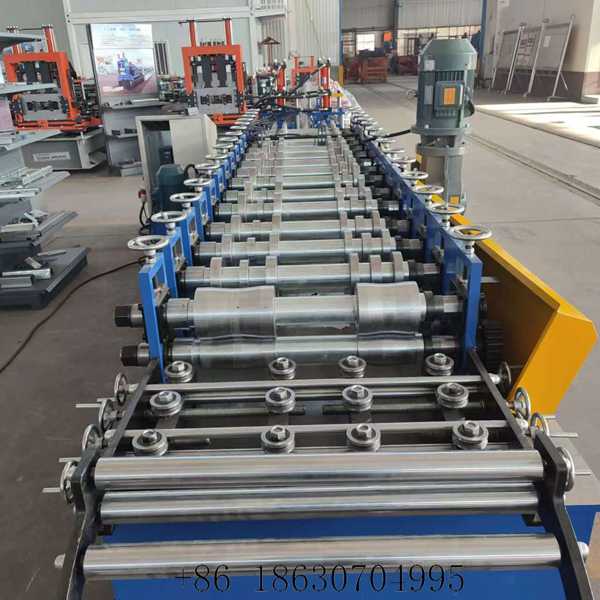

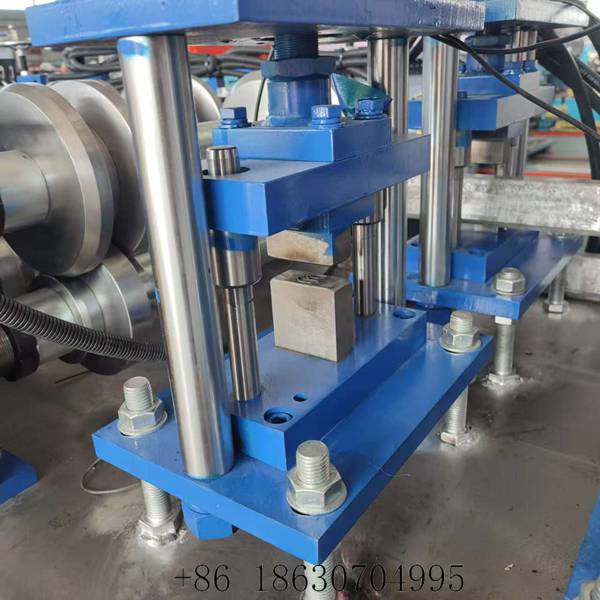

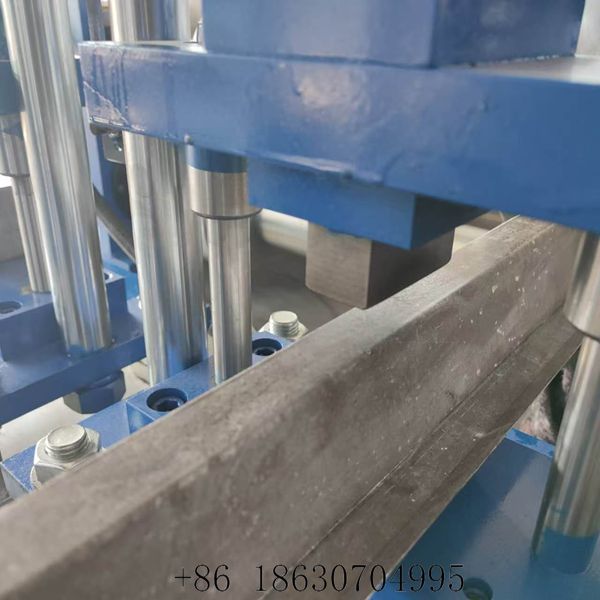

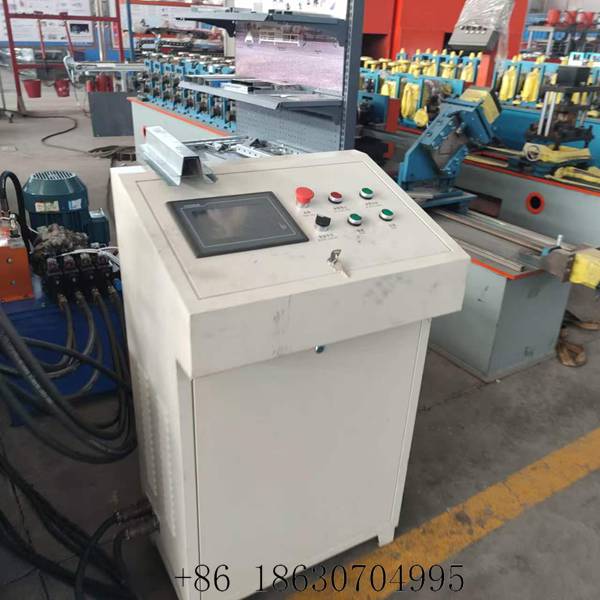

Adopting progressive cold roll forming technology, this machine ensures consistent and stable finished profiles. It is equipped with PLC touch screen control system for simple operation. The optional online punching system can complete hole fabrication during forming. Users can select hydraulic or servo flying cut unit to achieve precise fixed-length cutting.

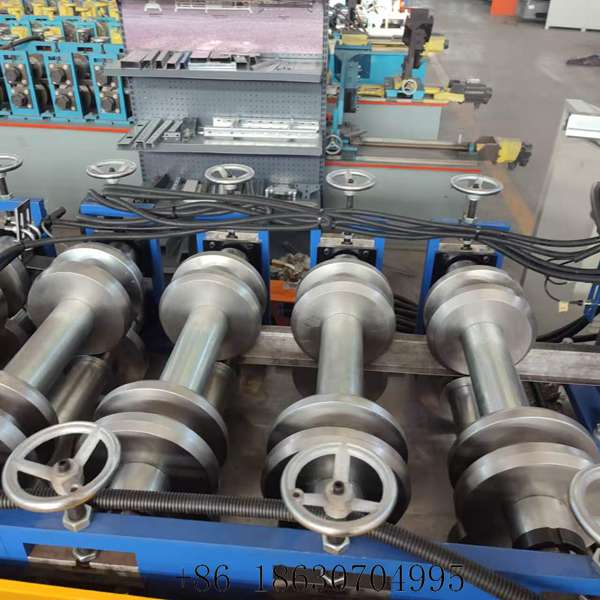

This hat keel roll former processes galvanized, cold rolled, Zn-Al-Mg steel coils. Working thickness covers 0.25mm to 1.2mm. Rollers are chromed and hardened for extended service life. The compact space-saving layout helps reduce workshop occupation and labor cost. We support custom hat cross-section profile and hole position design. CE and ISO certifications are available, with Russian or English HMI interface optional to meet global customers’ demands.
Swipe horizontally to view full parameters.
| Item | Specification |
|---|---|
| Machine Name | Double Row Hat Channel Roll Forming Machine |
| Output Mode | Two Lines Output |
| Application | Ceiling, Partition, Light Steel Framing |
| Forming Method | Progressive Cold Roll Forming |
| Control System | PLC Touch Screen Control |
| Punching | Online Punching System Optional |

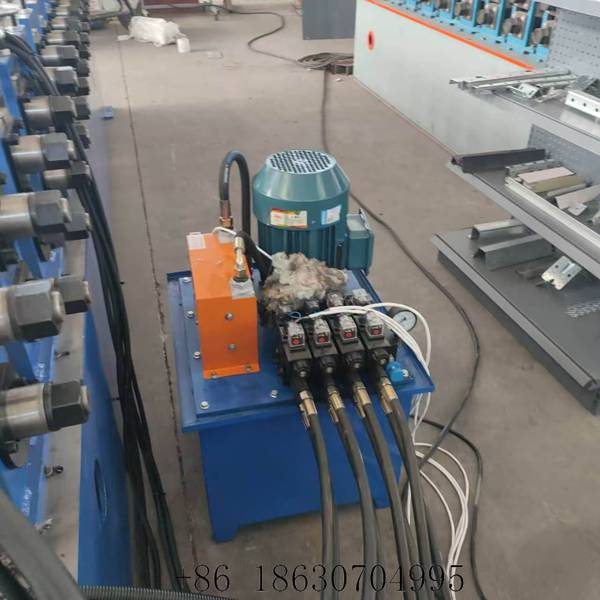

| Cutting Type | Hydraulic / Servo Flying Cut |
| Raw Material | Galvanized / Cold Rolled / Zn-Al-Mg Coils |
| Material Thickness | 0.25–1.2mm |
| Roller Feature | Chromed / Hardened Rollers, Long Service Life |

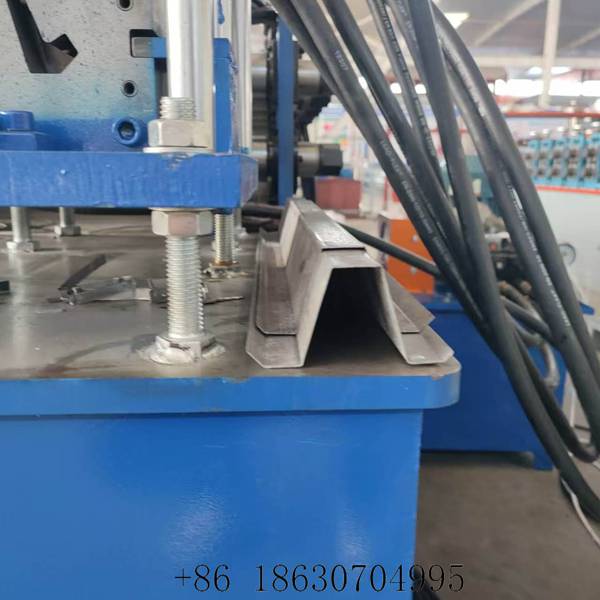

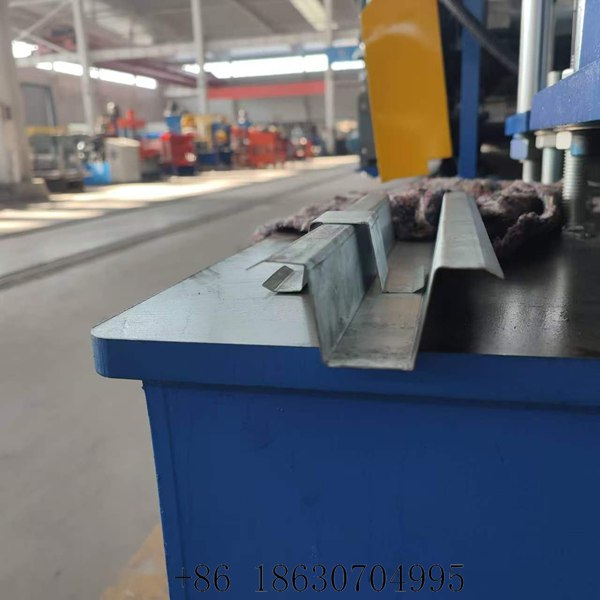

| Customization | Custom Hat Profile & Hole Position |
| Cert & Interface | CE/ISO Available; Russian/English Interface Optional |
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
