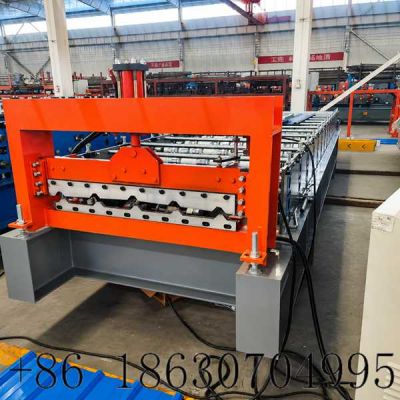

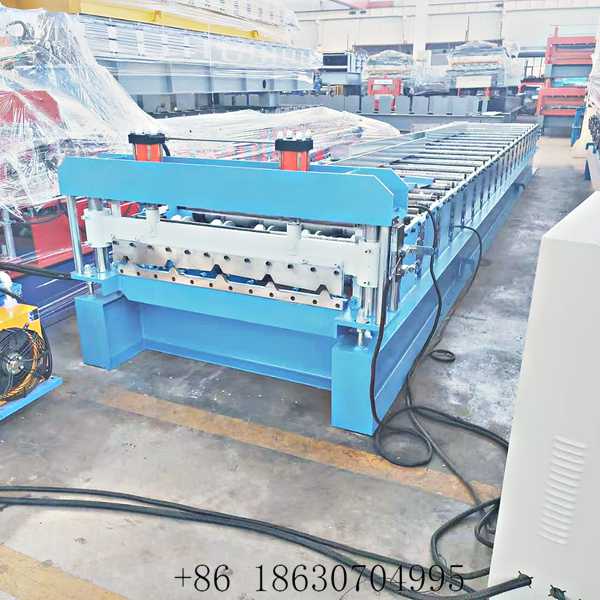

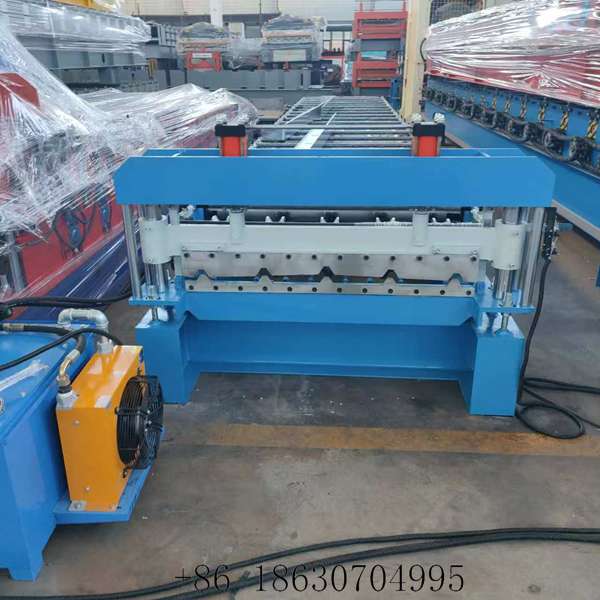

1000 Trapezoidal Metal Roof Panel Forming Machine | IBR Roof Sheet Forming Machine

Hebei Xinnuo Roll Forming Machinery Co., Ltd. (XINNUO) has been manufacturing cold roll forming equipment since 1998. Our production facilities cover more than 100,000 square metres, including two modern factories and twelve warehousing bases, and XINNUO machines have been exported to over 180 countries since 2002. Built on that experience, the 1000 trapezoidal metal roof panel forming machine is a dependable IBR roof sheet forming machine for steel structure roofing and wall cladding projects.

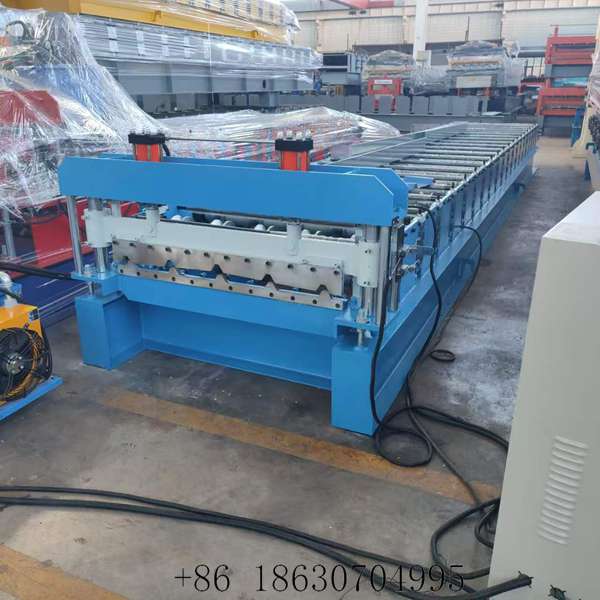

The machine produces an effective width of 1000 mm in a single pass, so one coil becomes a full run of finished trapezoidal panels with very little waste. Because the 1000 mm panel is a standard covering width in steel structure construction, the output is widely used for steel structure workshop roof & wall systems, warehouse envelopes and industrial sheds — panels that can be fixed directly onto purlins without additional on-site cutting.

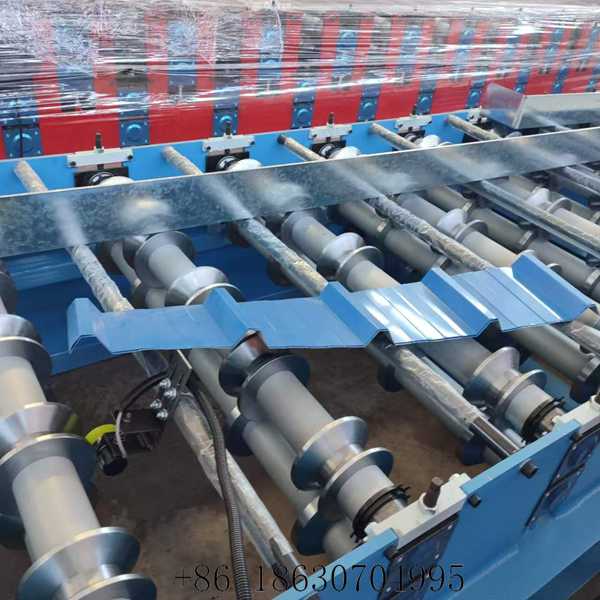

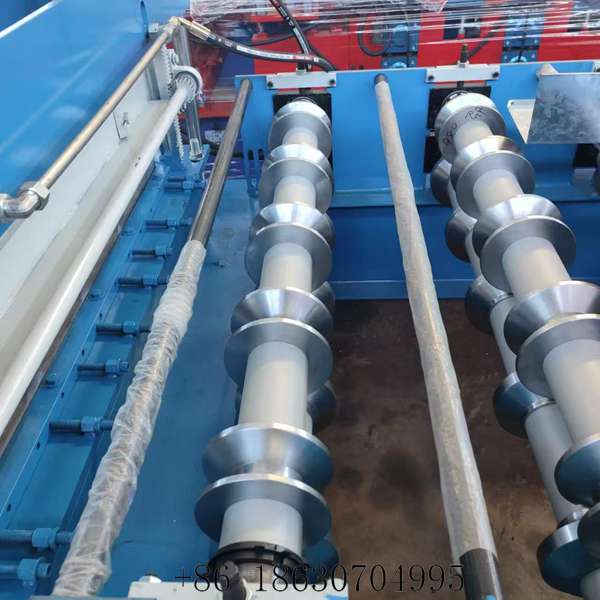

Surface quality decides whether a panel is accepted by your customer. All forming rollers are hard chrome plated, which keeps the sheet surface free of scratches and roller marks even after long production runs. Hard chrome also resists wear and corrosion, so the roller profile stays accurate and every finished panel keeps a clean, uniform appearance.

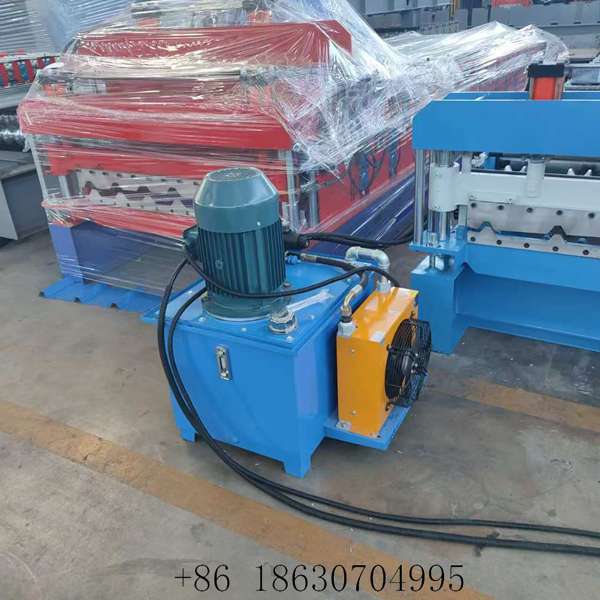

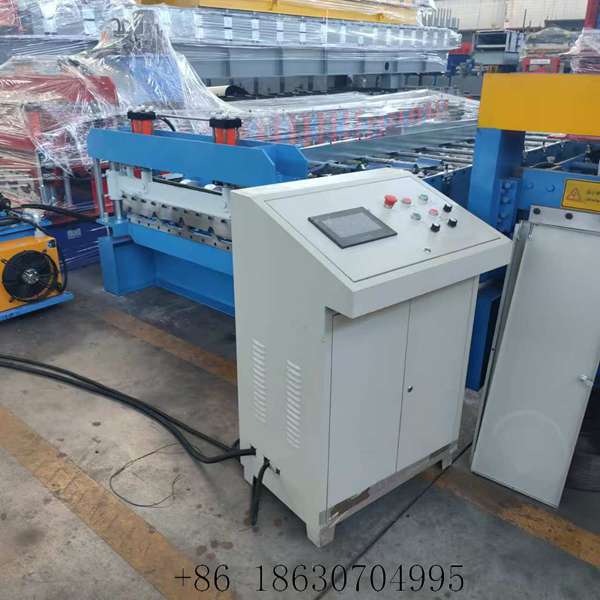

Operation is deliberately simple. A PLC touch screen control system lets the operator set panel length and production quantity, and the machine then runs automatic length cutting and counting without further intervention. Switching between batch sizes takes seconds rather than hours, which reduces dependence on skilled labour and keeps output consistent from the first panel to the last.

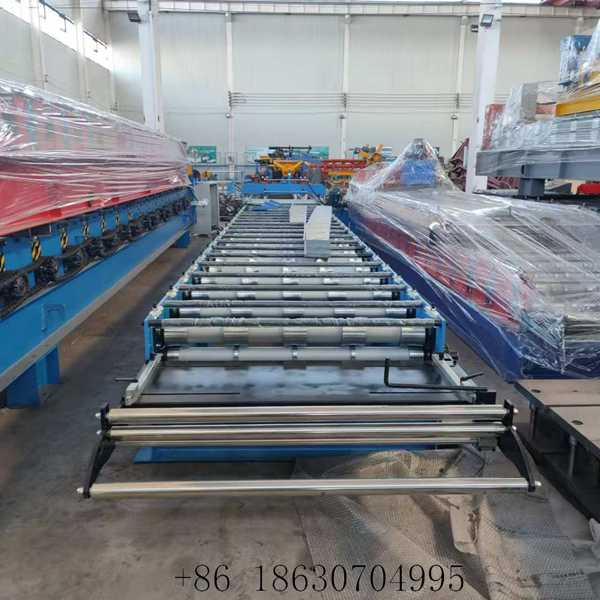

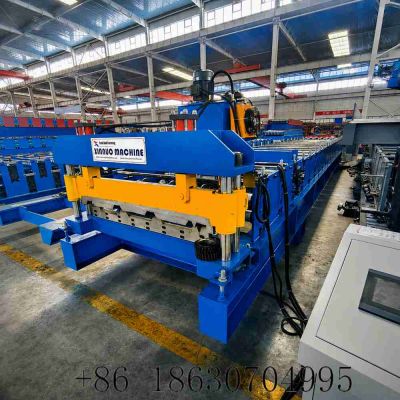

A heavy welded steel frame carries the forming stations. This rigidity absorbs the loads of continuous rolling and keeps the machine stable at production speed, protecting profile accuracy and extending service life. The outcome is steady, repeatable output with less downtime and lower maintenance cost.

The line handles PPGI, GI and GL coil from 0.3 mm to 0.8 mm thick, covering the material range used by most roofing contractors. CE certification is available, and XINNUO provides overseas installation support, commissioning and operator training so that the machine reaches full production quickly.

Every unit is factory-tested before shipment and supported by long-term spare parts supply. To compare profiles, browse our full Trapezoidal Sheet Roll Forming Machine range and the wider Roof Sheet Making Machine collection, then send us your profile drawing, coil width and daily output target — our engineers will recommend the right configuration for your market.

Key Features

• Effective width 1000 mm trapezoidal roof panel roll forming machine, widely used for steel structure workshop roof & wall systems
• Hard chrome plated rollers — no scratch on the sheet surface
• PLC touch screen control with automatic length cutting and counting for easy operation
• Heavy welded frame for stable running and a long service life
• Suitable for PPGI, GI and GL steel with thickness 0.3 – 0.8 mm
• CE available, with overseas installation support

Technical Parameters

Swipe horizontally to view full parameters.

Parameters marked as ranges are customized to your profile drawing and confirmed before the order is placed.
