Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.

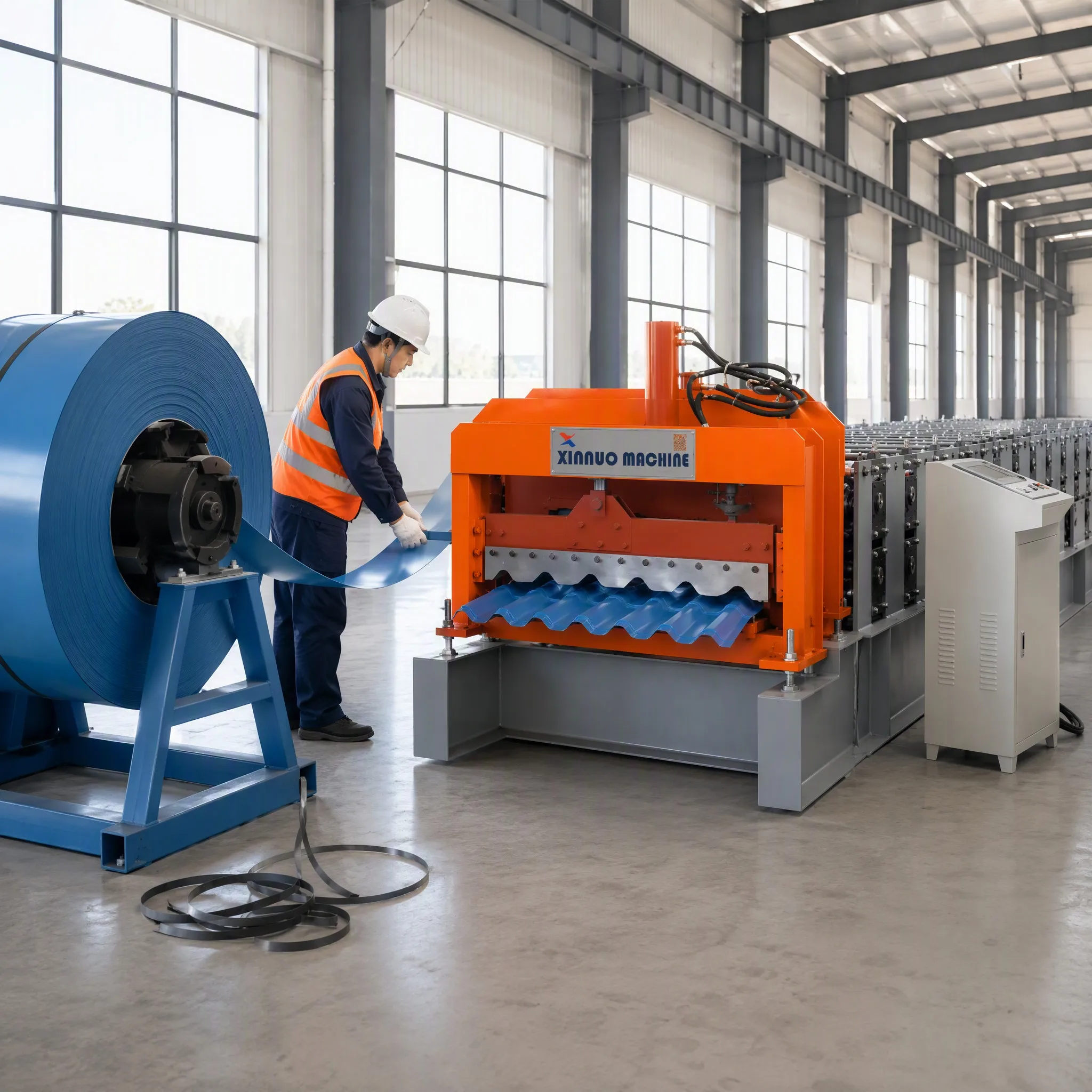

Elegant Tile Profiles, Precision Roll Forming — Made by Xinnuo

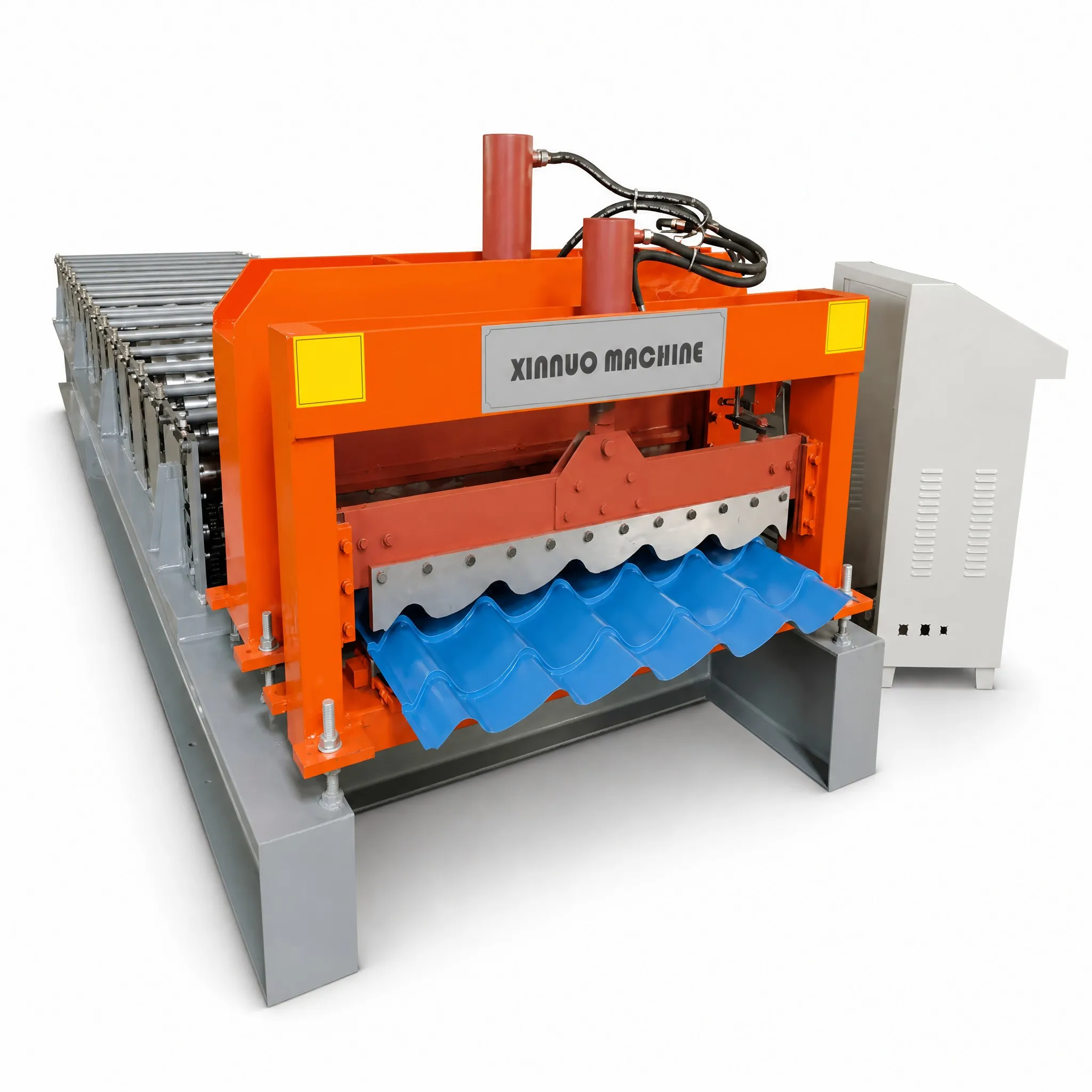

Hebei Xinnuo Roll Forming Machine Co., Ltd. has specialized in cold roll forming machinery for over 30 years. With more than 200 employees, two production bases covering 150,000 square meters and 12 professional workshops, we design and build complete roll forming lines trusted by customers around the world. Our offset-curved glazed roof tile forming machine produces elegant, wave-profile metal tiles that replicate the classic look of traditional glazed tiles while delivering the strength, weather resistance and low maintenance of modern steel roofing.

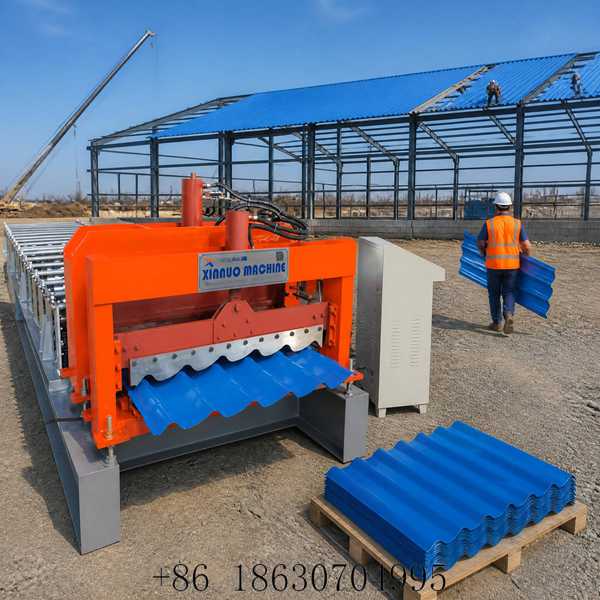

Offset-curved glazed roof tiles are widely used in residential, commercial and industrial projects — from villa roofs and traditional-style buildings in the Middle East to warehouse and factory roofing in Southeast Asia and Africa. The wave profile adds a refined, classic appearance to modern steel structures, while the metal material keeps roofs light, durable and easy to install.

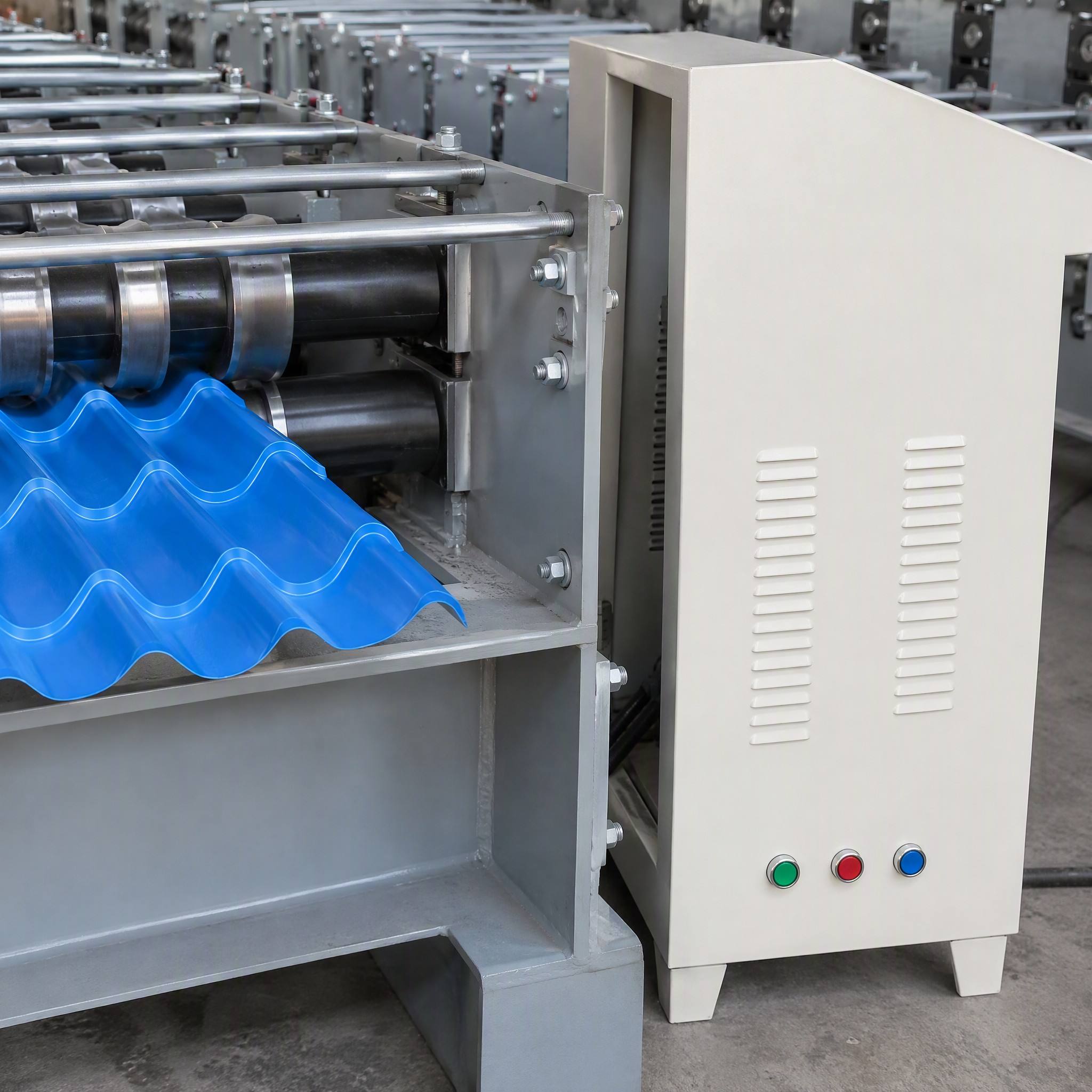

Precision Offset-Curve Forming. Specially designed forming rollers create accurate offset-curved glazed roof tiles with smooth and consistent profiles.

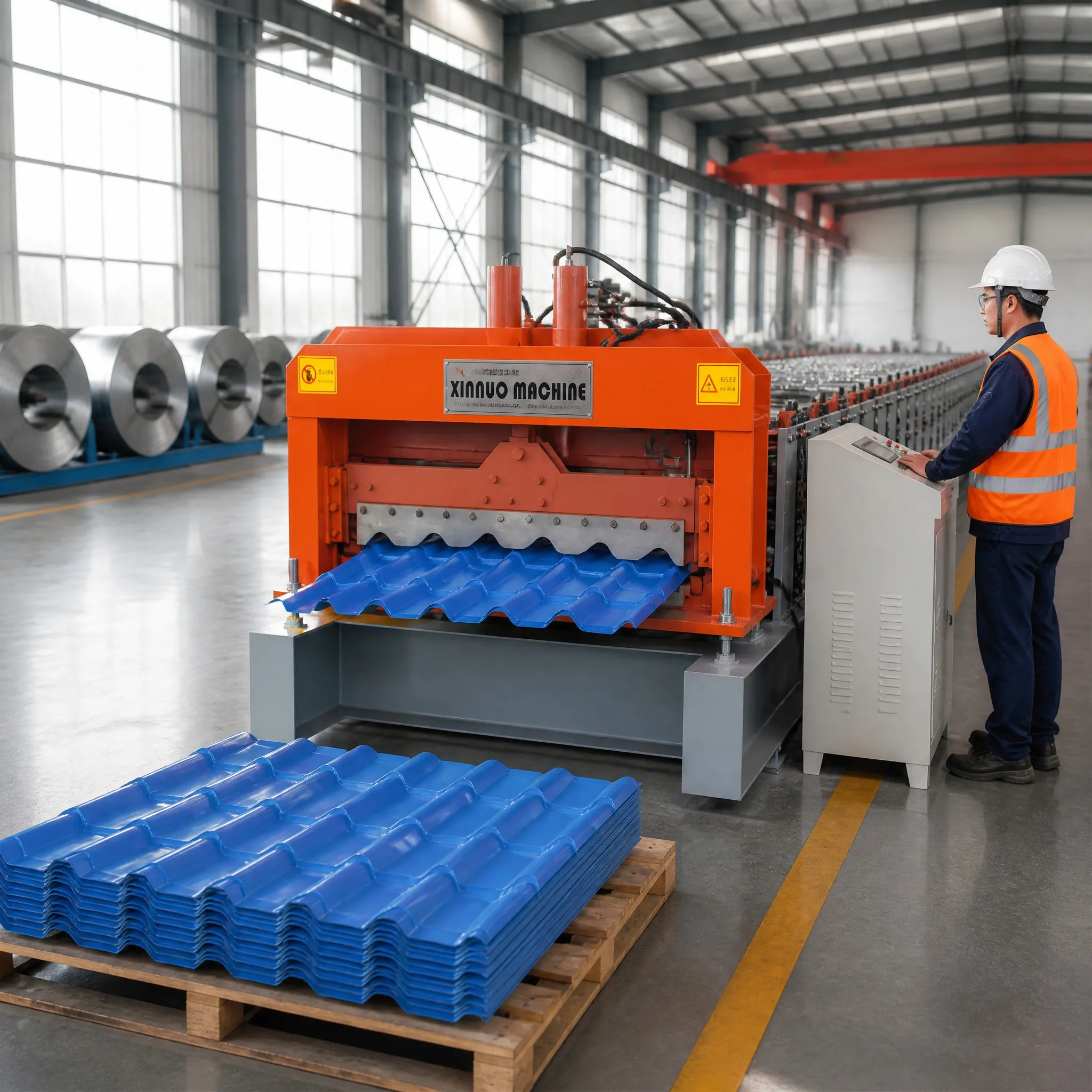

Stable High-Speed Production. Continuous roll forming technology ensures stable output and improves production efficiency for large-volume orders.
Customizable Tile Profiles. The machine can be customized for different offset-curved tile shapes, dimensions, and material specifications, so you can respond quickly to regional market trends.
High-Precision Roller System. Precision-machined rollers provide uniform forming results while reducing surface scratches and profile deformation.
Automatic PLC Control. The PLC control system allows easy parameter setting, automatic production, length measurement, and precise cutting — reducing labor cost while improving accuracy.
Strong & Durable Machine Frame. A reinforced machine structure minimizes vibration during operation and maintains forming accuracy over long-term production.
From our complete glazed tile roll forming machine range to full roof panel production lines, Xinnuo provides turnkey solutions from raw steel coil to finished profiles.
The table below shows the standard configuration of our glazed roof tile forming machine. All parameters can be adjusted to match your tile profile, coil width and site requirements.
Swipe horizontally to view full parameters.
| Parameter | Specification |
|---|---|
| Suitable Material | Color aluminum-zinc steel coil |
| Forming Stations | 14 rows |
| Overall Dimensions (L×W×H) | 7.5 × 1.5 × 1.6 m |
| Main Motor Power | 4 kW |
| Hydraulic Pump Motor | 4 kW |
| Sheet Thickness | 0.3 – 0.8 mm |
| Production Speed | 3 – 5 m/min |
| Roller Diameter | Approx. Ø70 mm |
| Roller Material | 45# forged steel, chrome plated |
| Machine Weight | Approx. 4,200 kg |
| Main Frame Structure | 350H beam |
| Side Plate Thickness | 16 mm |

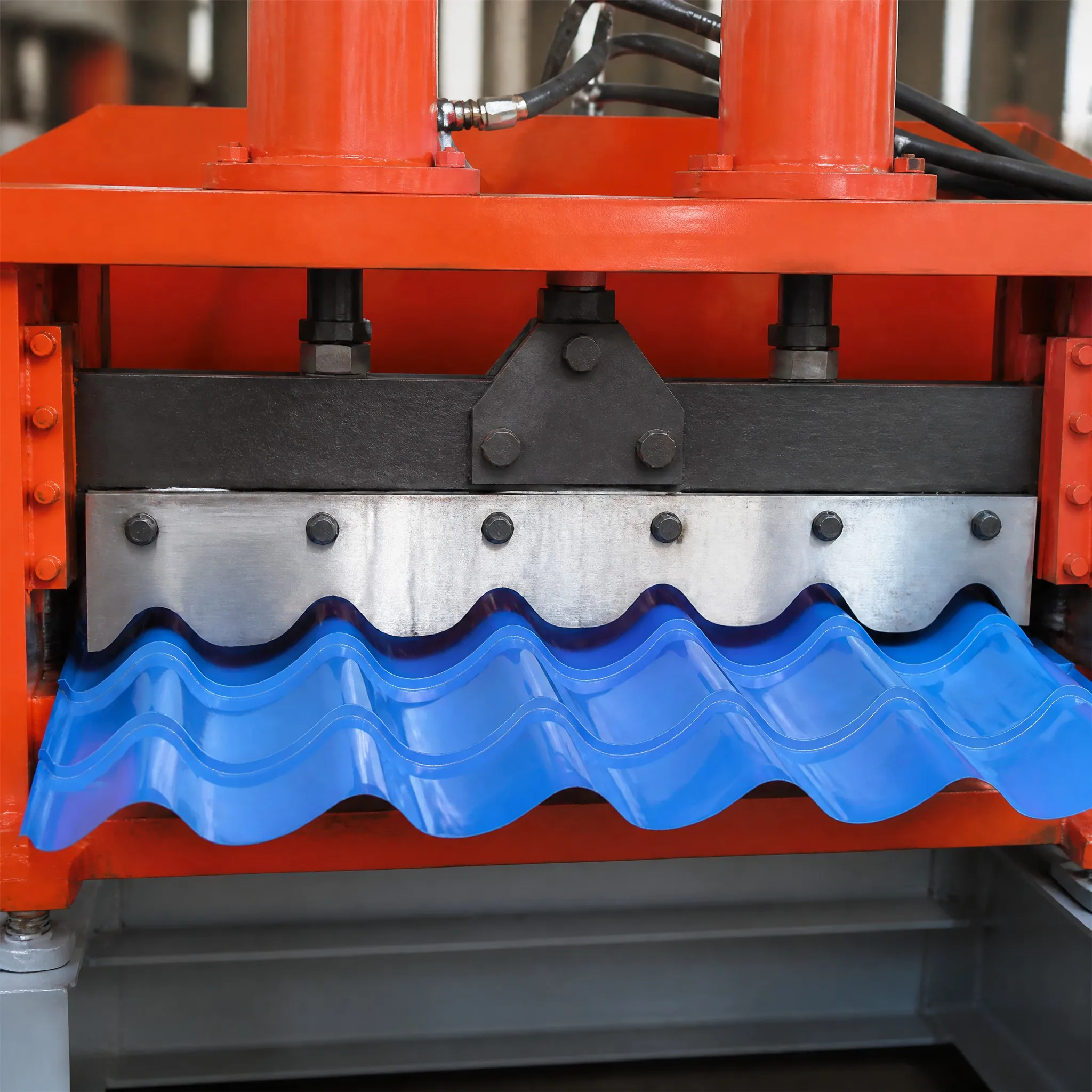

| Cutting Blade | Cr12 alloy steel, hardened |
| Forming Accuracy | ±1.0 mm |
| Length Tolerance | ±2 mm |
| Drive Mode | Motor drive, 1-inch chain & sprocket |
| Control System | PLC (Delta), Delta inverter, Delta touch screen |
| Voltage | 380V, 50Hz, 3-phase (customizable) |
Note: parameters shown are typical configurations; the final configuration depends on your tile profile, coil width and site requirements.
With GB, ISO 9001 and CE-standard quality control, a responsive after-sales network and lifetime technical support, Xinnuo is your reliable partner for high-quality roofing profile production. Contact our team today for a tailored quotation and machine layout proposal.
