Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.

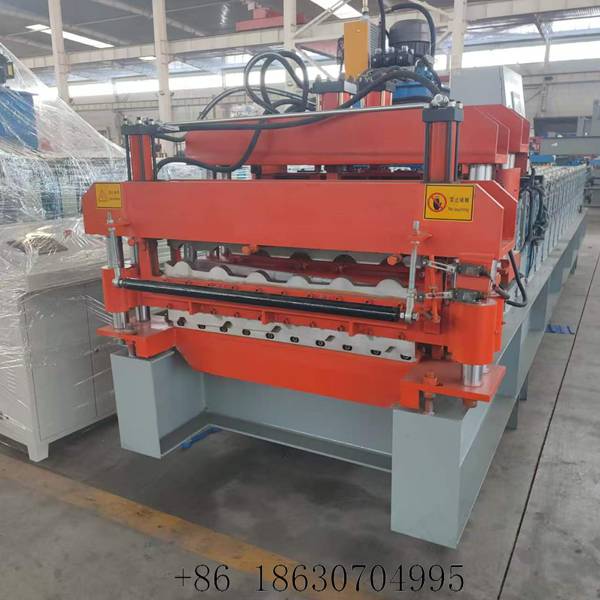

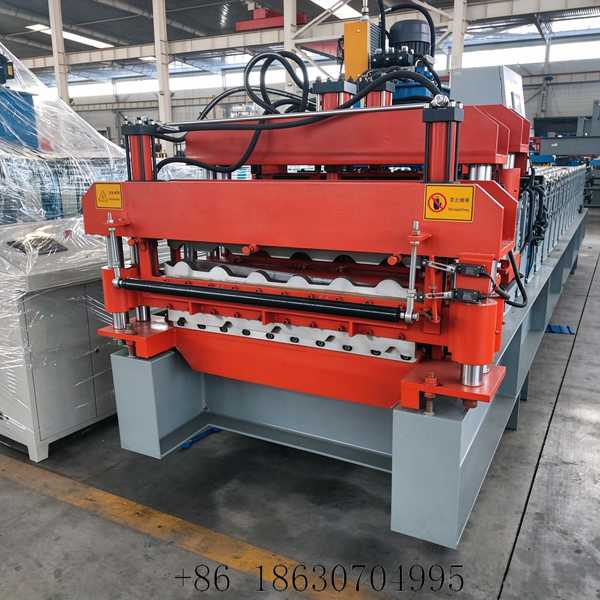

The double layer trapezoidal glazed tile roll forming machine is a cost-effective dual-profile metal roof panel production solution manufactured by Hebei Xinnuo Roll Forming Machinery. One machine makes two roof profiles, effectively saving factory workshop space. The glazed tile profile delivers elegant decorative roofing, while the trapezoidal panel serves industrial roofing projects.

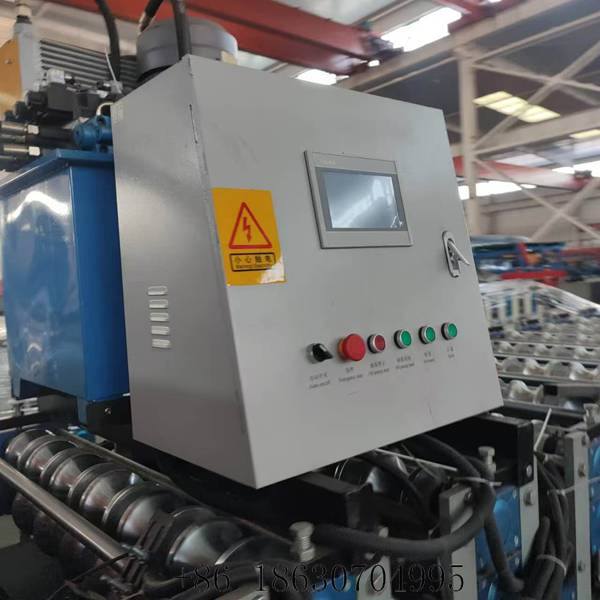

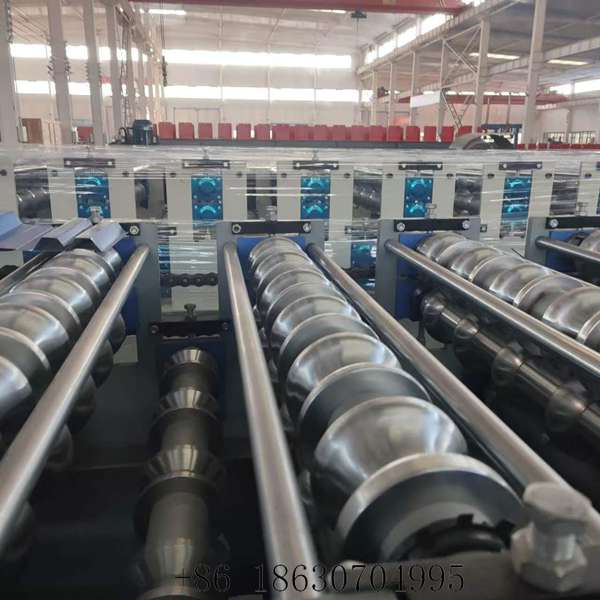

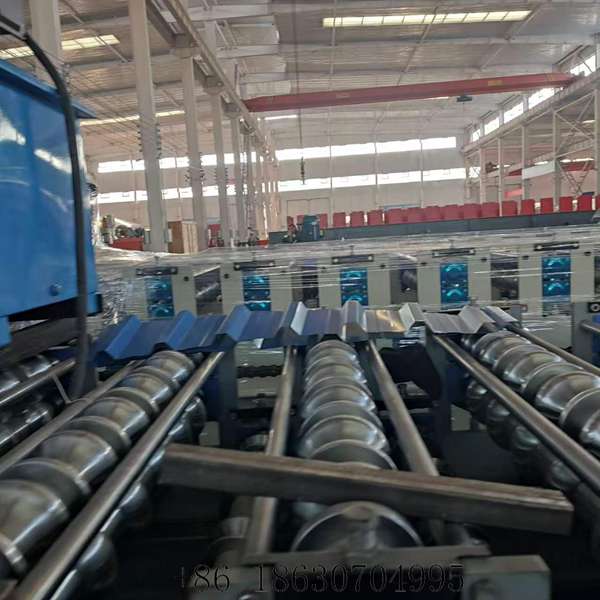

This equipment supports optional feeding width of 1000mm or 1200–1250mm, compatible with PPGI, GI, GL and aluminum coils from 0.3mm to 0.8mm thickness. Adopting progressive cold roll forming technology, it outputs smooth and consistent metal panels. The machine uses 45# chromed rollers fitted with solid shafts for long service life. It is equipped with PLC touch screen control for simple operation, paired with hydraulic cutting system to guarantee high length cutting accuracy.

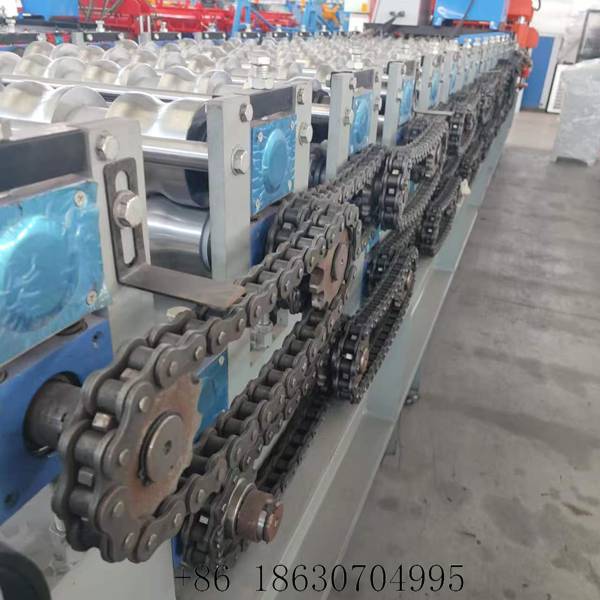

Power transmission is available with chain or gearbox drive to maintain stable continuous production. Both glazed tile and trapezoidal profiles can be customized according to client drawings. CE and ISO certifications are available, and operation interfaces support Russian and English language options.
Related products: C/Z Purlin Roll Forming Machine & Standing Seam Roof Panel Machine
Swipe horizontally to view full parameters.
| Item | Specification |
|---|---|
| Product Name | Double Layer Trapezoidal + Glazed Tile Roll Forming Machine |
| Feeding Width | 1000mm / 1200–1250mm Optional |
| Material | PPGI / GI / GL / Aluminum Coils |
| Material Thickness | 0.3–0.8 mm |
| Roller Material | 45# Chromed Rollers with Solid Shaft |
| Control System | PLC Touch Screen, Russian/English Interface Optional |

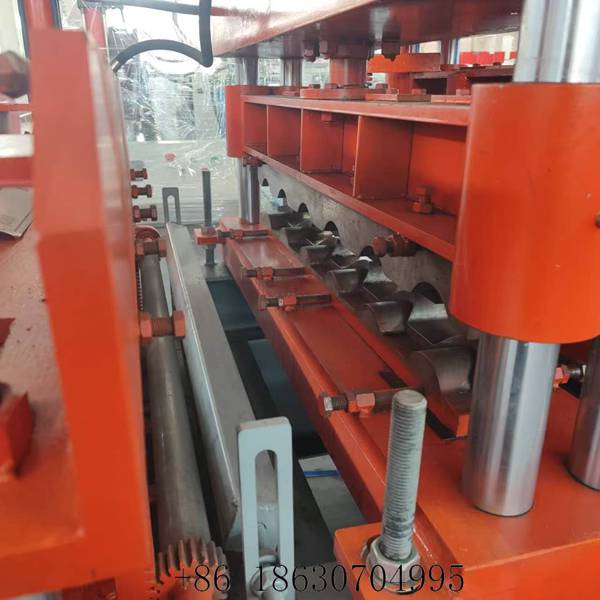

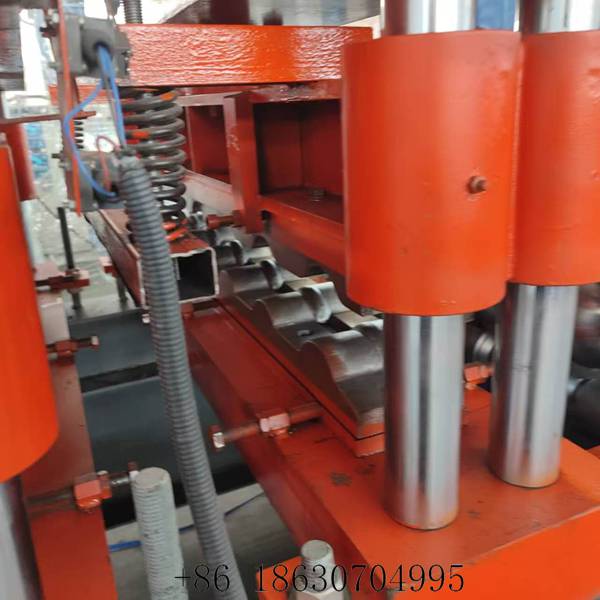

| Cutting Type | Hydraulic Cutting, High Length Accuracy |
| Drive System | Chain / Gearbox Drive |
| Profile | Customizable Glazed Tile & Trapezoidal Profiles |
| Certification | CE / ISO Available |
Hebei Xinnuo Roll Forming Machinery specializes in custom cold roll forming lines for metal roofing, wall panels and structural profiles. Contact us for profile drawings, factory test videos and quotation.
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
