Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.
Hebei Xinnuo Roll Forming Machine Co., Ltd. (XINNUO), established in 1998 in Botou, Hebei, China, is a professional double layer roofing sheet machine manufacturer and a leading supplier of cold roll forming equipment. From a 100,000 square-meter production base with two modern factories, XINNUO has supplied roll forming lines and complete metal building systems to more than 180 countries since 2002. The 1020+1000 double-layer metal roof panel forming machine is one of our most requested two-in-one solutions for roofing sheet producers.

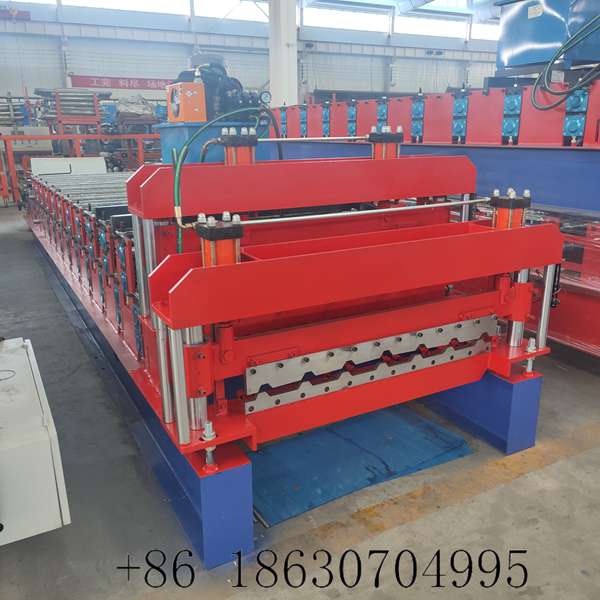

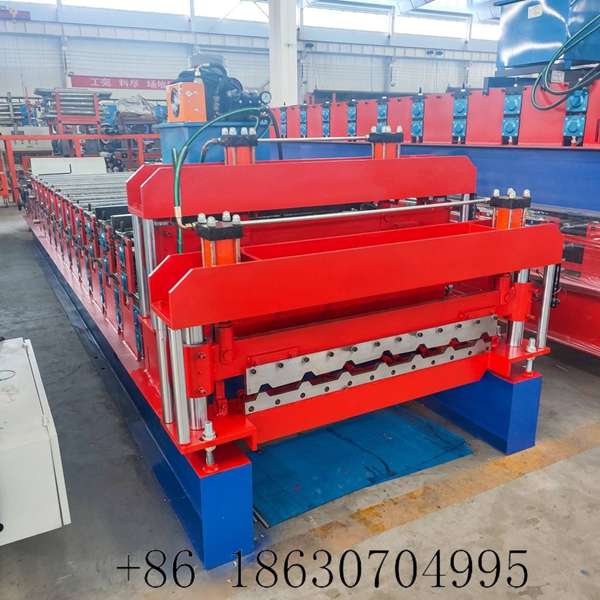

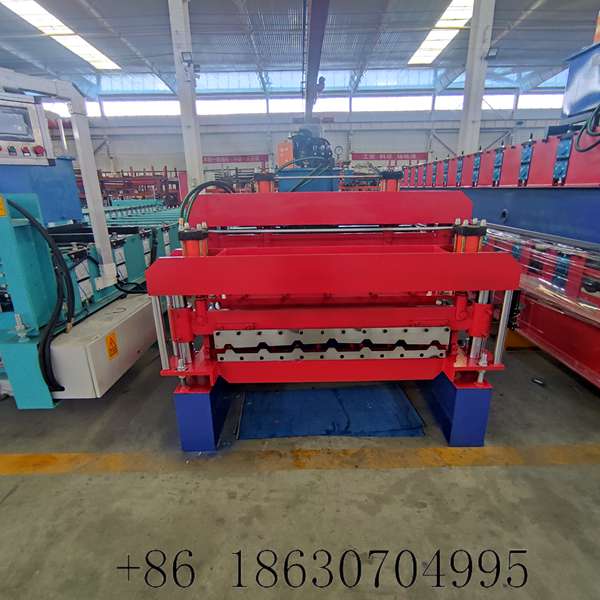

This machine integrates two complete forming lines in one frame: it produces both the 1020 mm and 1000 mm trapezoidal roofing sheet profiles with a single machine. Instead of buying two separate roll formers, fabricators run one double-layer unit and switch the material path between the upper and lower roller sets when the profile changes. The result is a significant reduction in equipment investment and factory floor space, which is especially valuable for workshops where space is limited.

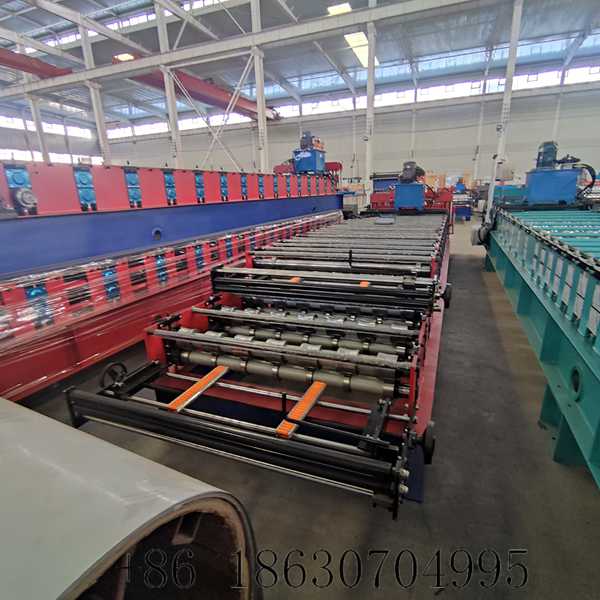

Profile switching is fast and simple. The changeover between the 1020 and 1000 profiles is guided through the control system, so downtime between runs stays short and production flexibility improves. Operation is fully automatic under PLC control: feeding, forming, length measuring, and hydraulic cutting run in one continuous sequence with minimal manual labor, keeping output stable and consistent day after day.

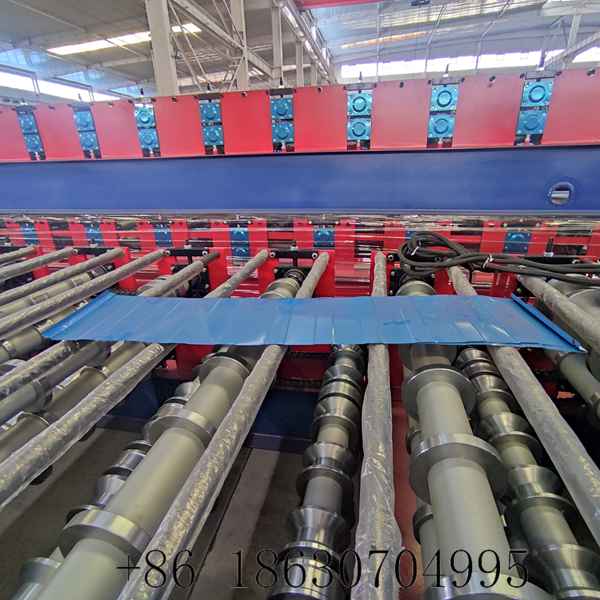

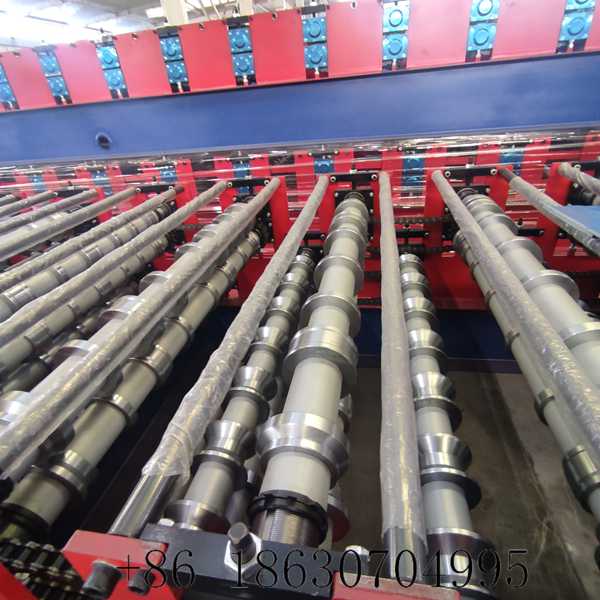

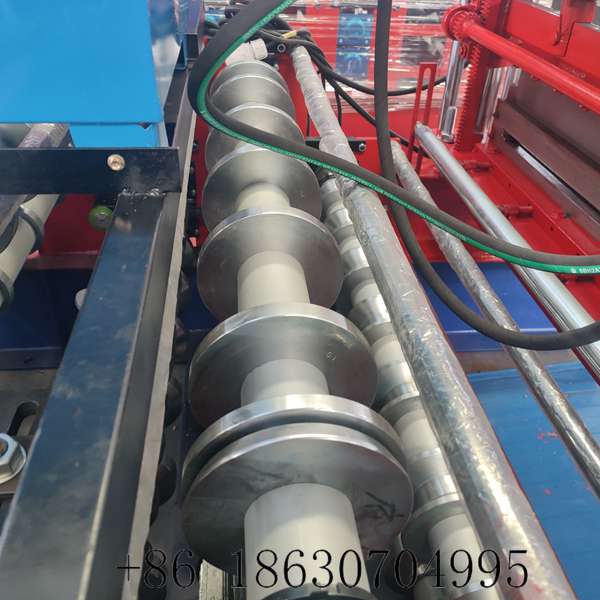

Every forming roller is precision-machined to guarantee accurate profile dimensions, smooth surfaces, and excellent roofing sheet quality, while the hydraulic cutting system provides clean, burr-free cuts with synchronized length control for uniform finished panels. As a professional double layer roofing sheet machine manufacturer, XINNUO includes installation guidance and operator training with every line. For related equipment, browse our Roll Forming Machine category and the Other Recommended Machines collection to compare models, or contact our engineers with your profile requirements for a tailored quotation.
| Parameter | Specification |
|---|---|
| Machine type | Double-layer metal roof panel forming machine (1020 + 1000) |
| Profiles in one machine | 1020 trapezoidal & 1000 trapezoidal roofing sheet |
| Effective width | 1020 mm / 1000 mm |
| Material thickness | 0.3 – 0.8 mm |
| Suitable material | Color-coated steel / galvanized steel coil |
| Production speed | 10 – 20 m/min |
| Roller stations | 12 – 14 rows per layer (e.g. 12+12) |
| Frame | Heavy-duty steel structure, double-layer stacked |
| Drive system | Chain drive |

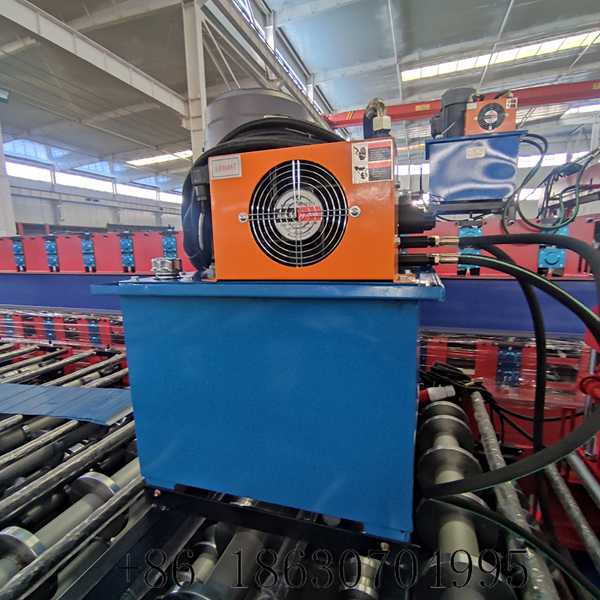

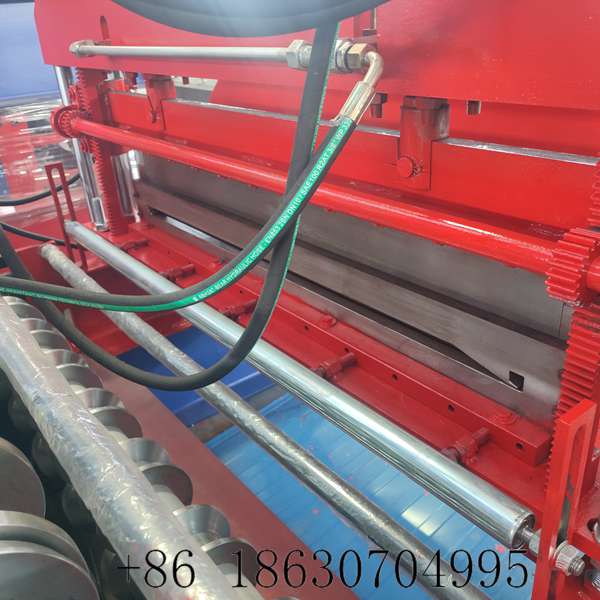

| Cutting | Hydraulic cutting with synchronized length control |
| Profile switching | Via control system, in minutes |

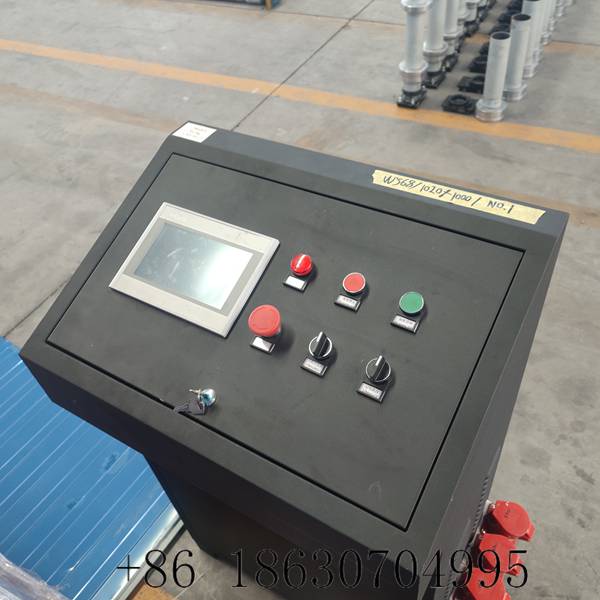

| Control system | PLC + touch screen, fully automatic |
| Electrical cabinet | Included |
| Main motor power (approx.) | 7.5 – 11 kW |
| Voltage | 380 V / 50 Hz (customizable) |
| Machine weight (approx.) | 7 – 10 t |
Swipe horizontally to view full parameters.
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
