800+900 Double Layer Metal Roofing Panel Forming Machine

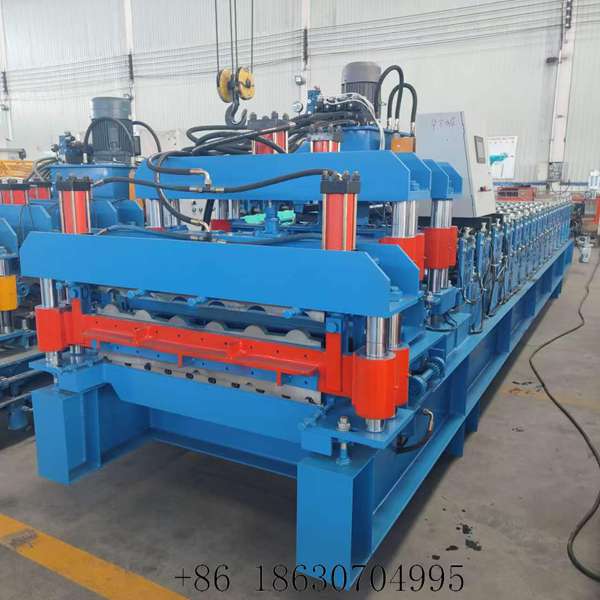

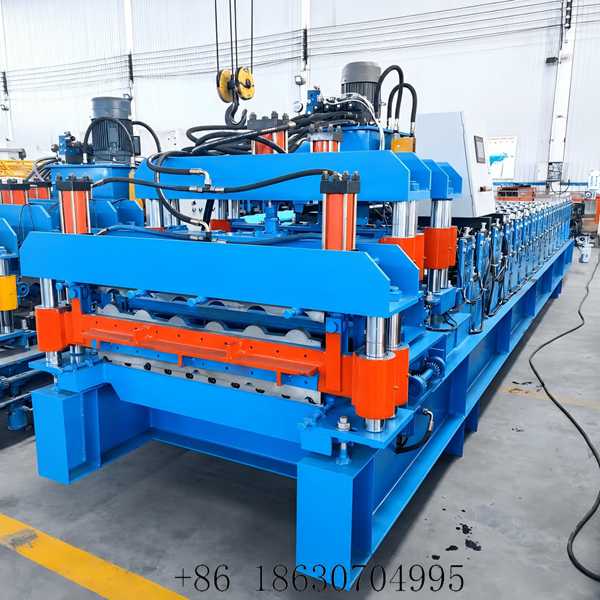

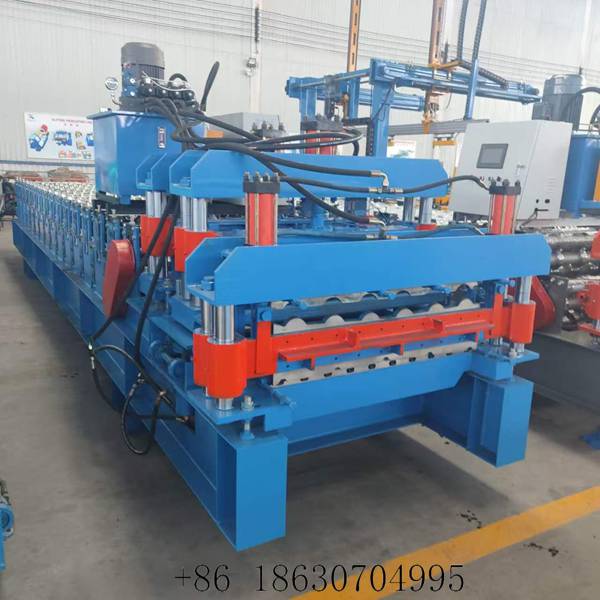

Hebei Xinnuo Roll Forming Machinery Co., Ltd. (XINNUO), founded in 1995 in Botou, Hebei — China's cold roll forming equipment industrial base, is a national high-tech enterprise running two production bases of over 100,000 m² with ISO9001 and CE certifications, exporting to more than 140 countries and regions. The 800+900 double layer metal roofing panel forming machine is one of our most popular two-in-one systems: two complete forming lines are stacked in a single frame to produce both 800 mm and 900 mm trapezoidal roofing panels with one machine.

Instead of investing in two separate machines, fabricators run a single double layer roofing machine and switch the material path between the upper 800 mm and lower 900 mm roller sets when the production plan changes. Each profile has its own independent forming system, which makes profile selection and production more convenient, with changeover downtime of only about 5–15 minutes. The double-layer configuration combines two production capabilities into one compact machine body, saving 40–60% of valuable workshop space and significantly reducing equipment investment for roof panel manufacturers.

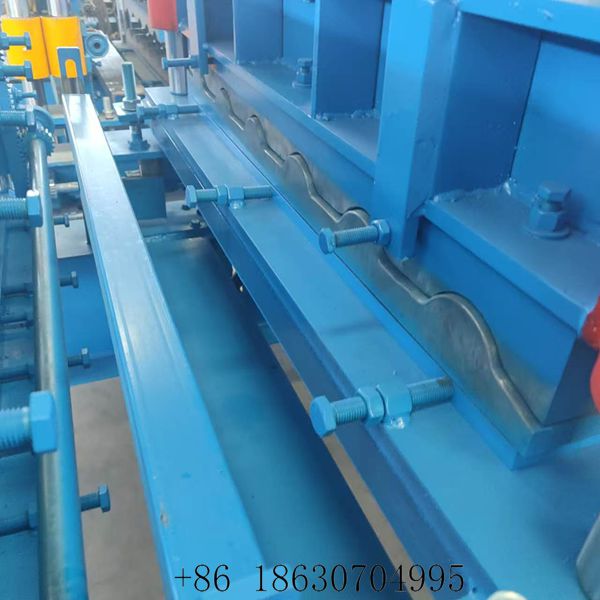

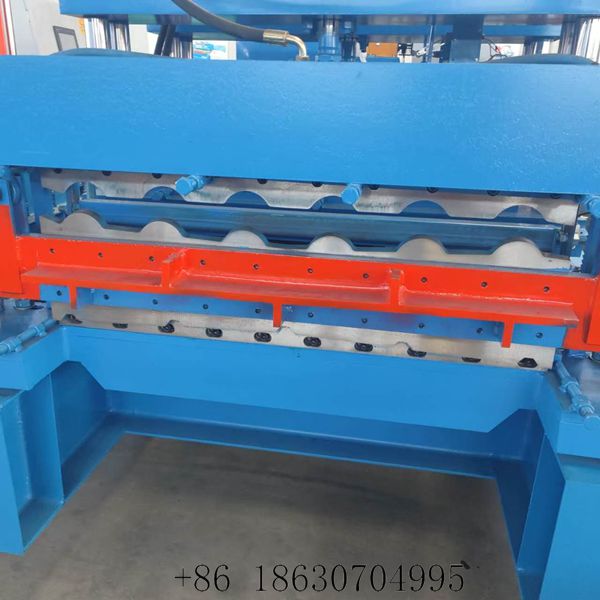

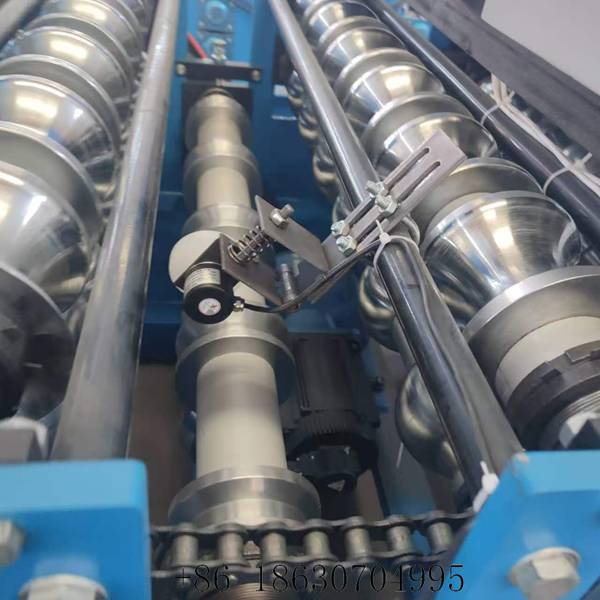

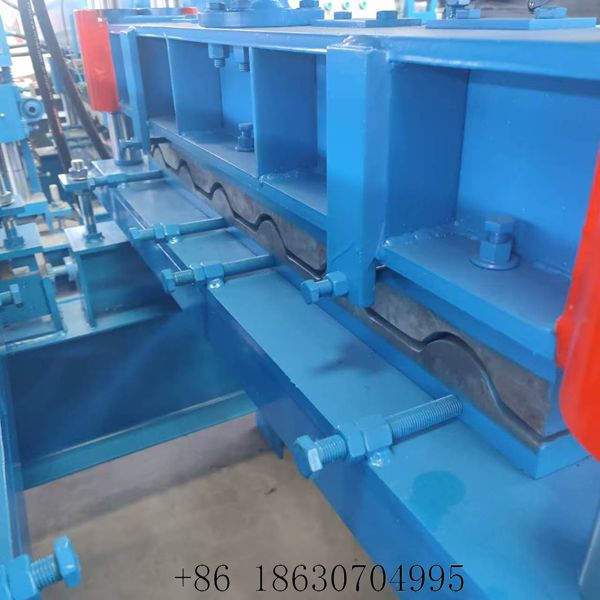

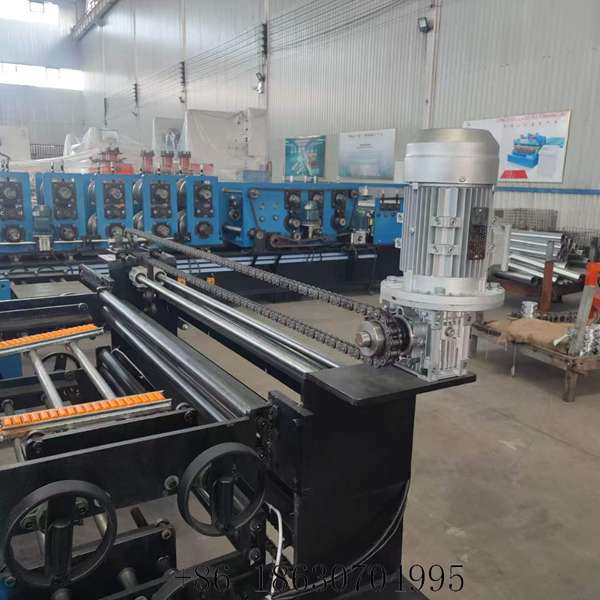

Precision-engineered, chrome-plated rollers ensure accurate dimensions, consistent profiles and smooth finished roofing sheets. Continuous roll forming supports fast and stable production for both small and large orders. The intelligent PLC system allows easy control of forming speed, sheet length, production quantity and other parameters, while the front shearing unit cuts each panel automatically to the programmed length. Combined with an automatic electric decoiler machine and simple material handling, the line runs continuously from steel coil to finished roofing sheet with only one or two operators.

Working with 0.3–1.2 mm color-coated or galvanized steel coil, the machine makes roofing and wall panels for workshops, warehouses, steel structure plants and prefabricated buildings. For other profile combinations, browse our Double Layer Roll Forming Machine category; if a single trapezoidal profile is enough for your project, compare models in the Trapezoidal Sheet Roll Forming Machine collection. Covering width, sheet thickness, cutting length and voltage are all customizable, and XINNUO provides one-stop service from profile selection and drawing design to installation, commissioning and lifetime technical support. Contact us for a tailored quotation.

Key Features

• Two Roofing Profiles in One Machine — produces both 800 mm and 900 mm metal roofing profiles, allowing flexible production without investing in two separate machines.
• Independent Forming Systems — each profile has its own forming section, making profile selection and production more convenient.
• Space-Saving Configuration — the two-layer design combines two production capabilities into one machine, helping save valuable workshop space.
• High-Precision Forming — precision-engineered rollers ensure accurate dimensions, consistent profiles and smooth finished roofing sheets.
• Fast & Stable Production — continuous roll forming supports efficient production and stable output for both small and large orders.

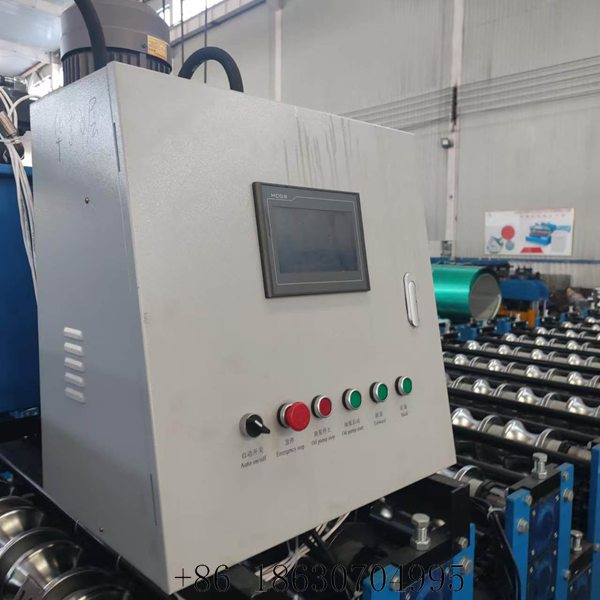

• PLC Automatic Control — the intelligent PLC system allows easy control of forming speed, sheet length, production quantity and other parameters.

Technical Parameters

Swipe horizontally to view full parameters.
