Delivery time: 60 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.

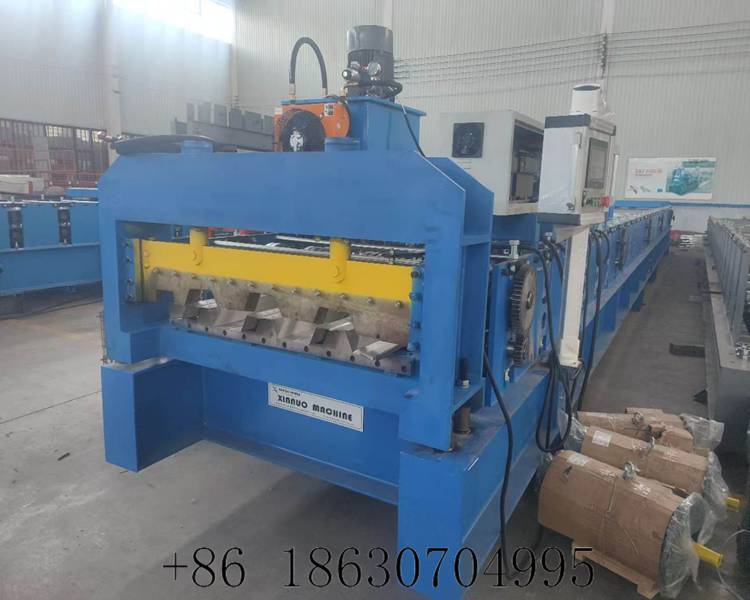

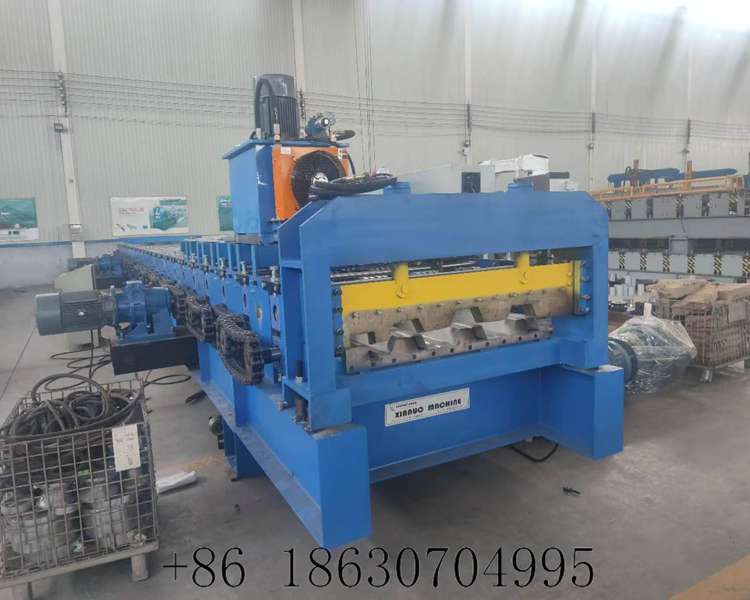

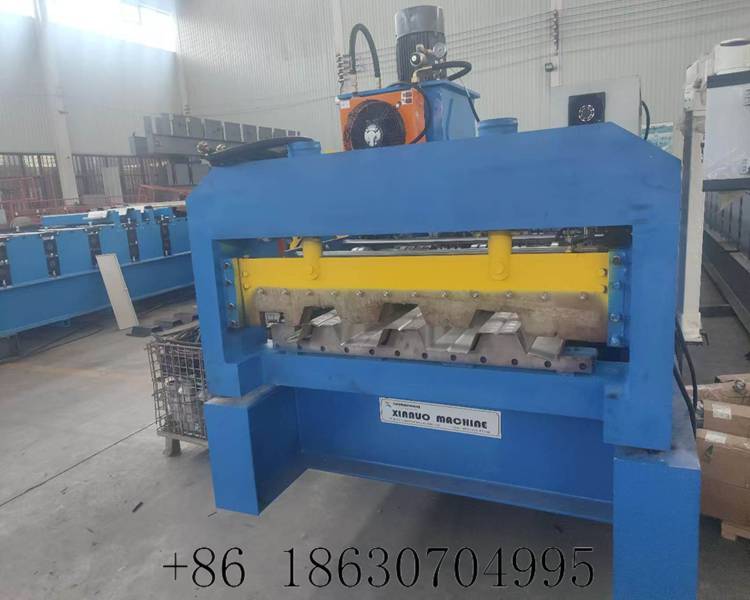

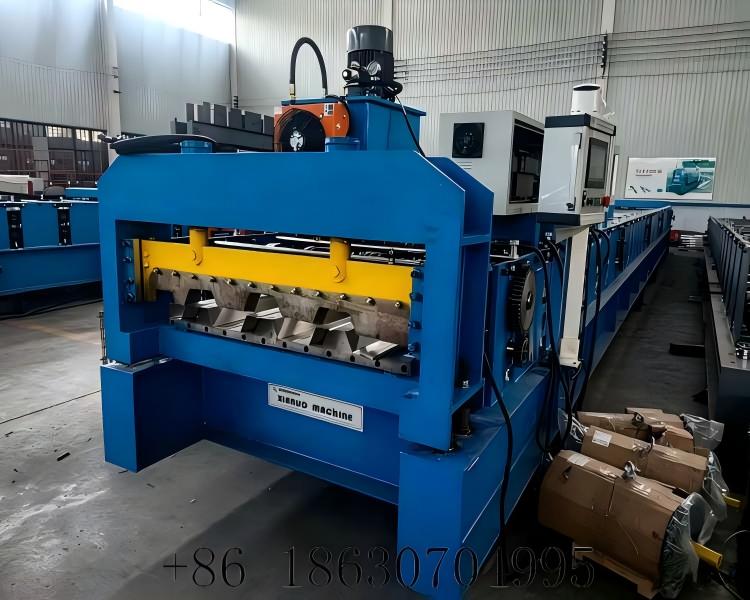

Hebei Xinnuo Roll Forming Machinery Co., Ltd. is a reliable Chinese manufacturer specializing in customized cold roll forming equipment for global construction metal panels. Our 950 deck roll former is specially designed to match El Salvador’s local steel structure engineering standards, producing standard 950mm steel floor deck panels with stable forming performance and high precision. This machine has become popular among local building material factories, engineering contractors and steel structure companies in El Salvador for its stable running and low maintenance cost.

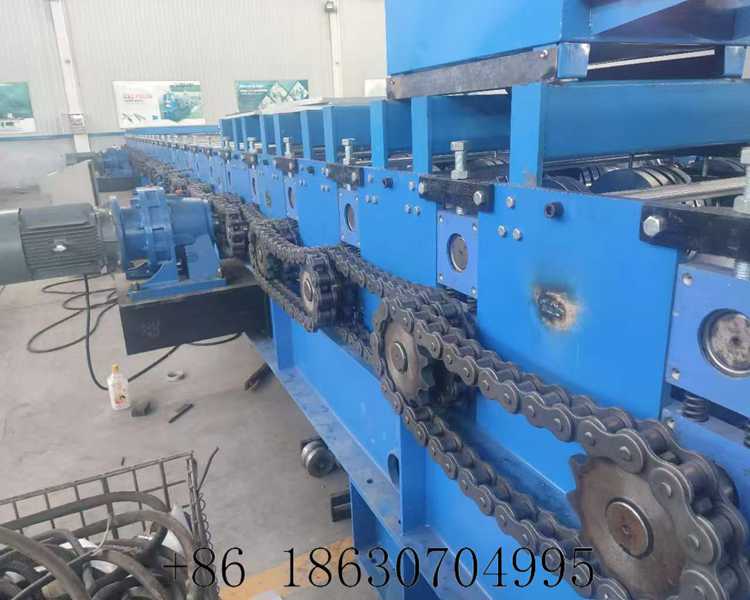

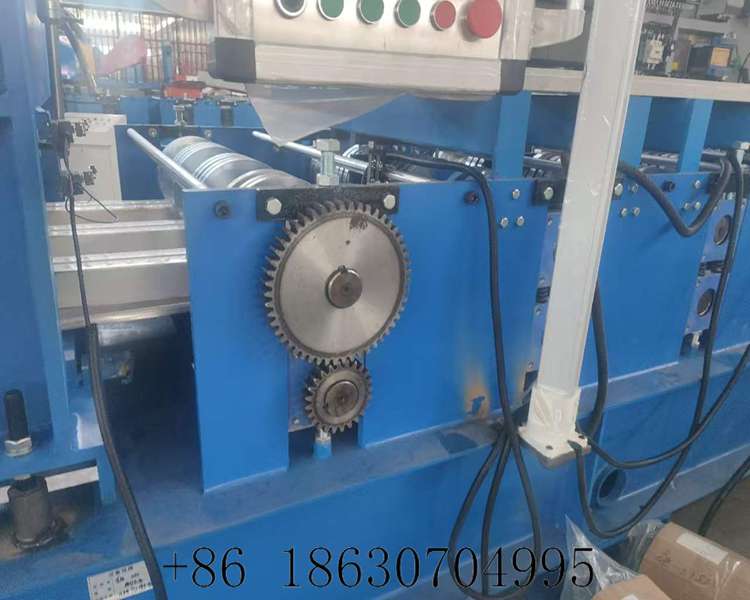

The whole production line adopts fully automatic PLC touch screen control system, which can finish coil feeding, continuous rolling forming, hydraulic fixed-length cutting automatically. It supports galvanized steel coil raw materials with thickness from 0.7mm to 1.6mm, meeting all mainstream floor slab production demands of mid-rise and high-rise buildings in Central America. All core transmission components are made of wear-resistant alloy steel for long-time continuous production.
The steel floor deck panels produced by our El Salvador 950 deck roll former bring revolutionary advantages to on-site construction. Once laid, the panels can immediately form a firm and safe working platform, perfectly matching the fast construction rhythm of modern steel structure projects. Different from traditional concrete floor slabs, these metal floor decks eliminate complicated formwork supporting and formwork removal procedures completely. Multi-layer steel structure installation and layered concrete pouring can be carried out crosswise at the same time, forming a smooth assembly construction flow.
Compared with traditional construction techniques, the construction speed using our 950 steel floor deck can be increased by 3 to 5 times, and the overall project construction period can be shortened by 30% to 80%. This obvious efficiency improvement greatly reduces labor costs and shortens project delivery time, which is the core competitive advantage for local builders in El Salvador to win more engineering orders.
Xinnuo provides full set export service for El Salvador customers, including local voltage customization, CE certification documents for customs clearance, overseas installation guidance and long-term spare parts supply. Our 950 deck roll former can be matched with uncoiler and stacking machine to build a full automatic production line. Whether you are a metal panel manufacturer or a large construction enterprise, our equipment can help you improve production capacity and project efficiency significantly.
| Parameter Item | Technical Specification |
|---|---|
| Finished panel effective width | 950mm (El Salvador standard floor deck) |
| Applicable raw material | Galvanized steel coil, GI steel sheet |
| Material thickness range | 0.7mm – 1.6mm |
| Forming production speed | 10 – 16 m/min |

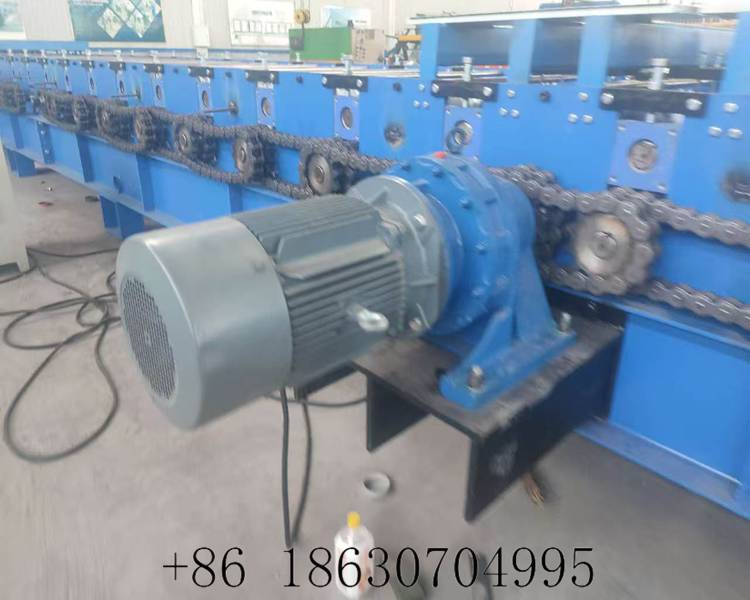

| Main drive motor power | 7.5 KW |
| Hydraulic cutting power | 4 KW |

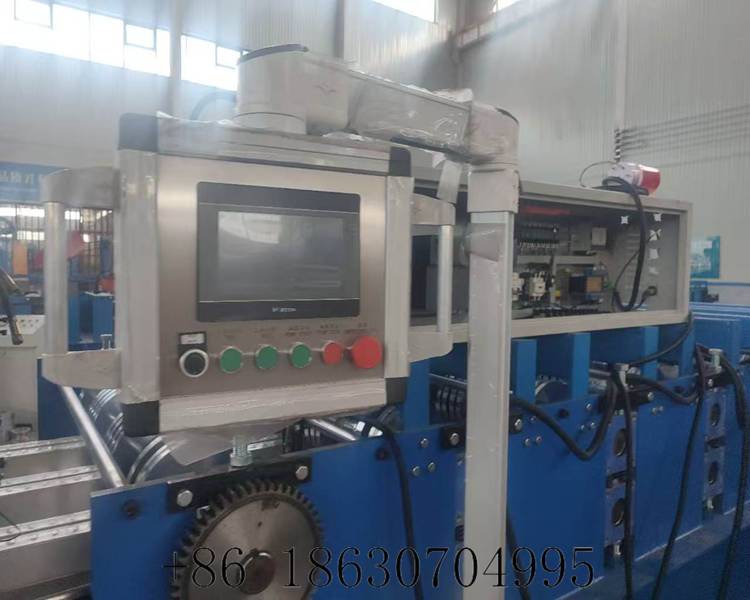

| Control mode | PLC automatic control + touch screen operation |
| Cutting method | Hydraulic fixed-length cutting |

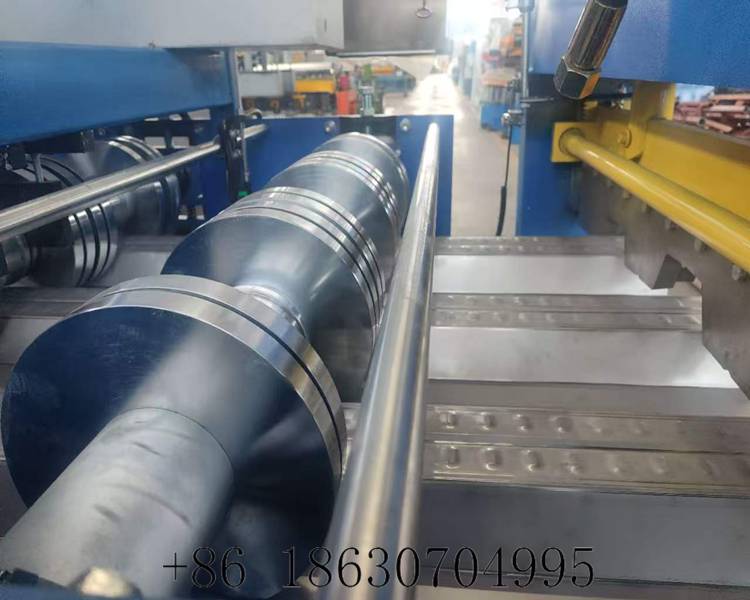

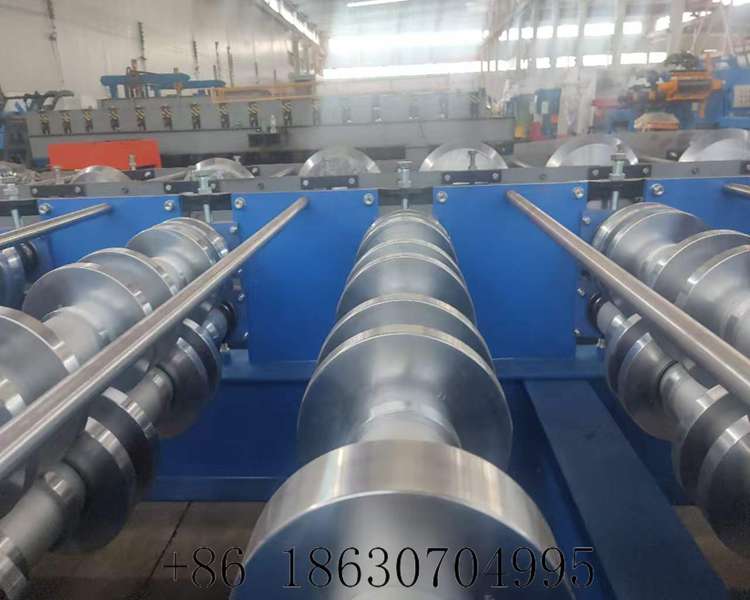

| Roller material | 45# steel with hard chrome plating & quenching |
| Total machine weight | Approx 15 Tons |
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
