Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.
Hebei Xinnuo Roll Forming Machine Co., Ltd. (XINNUO), established in 1998 in Botou, Hebei, China, is a professional manufacturer of cold roll forming equipment. From a 100,000 square-meter production base with two modern factories, XINNUO has supplied c channel roll forming machines, shutter lines, and complete metal building systems to more than 180 countries since 2002. The full-automatic C/Z purlin machine is one of our most popular structural steel solutions for warehouses, factories, and solar mounting structures.

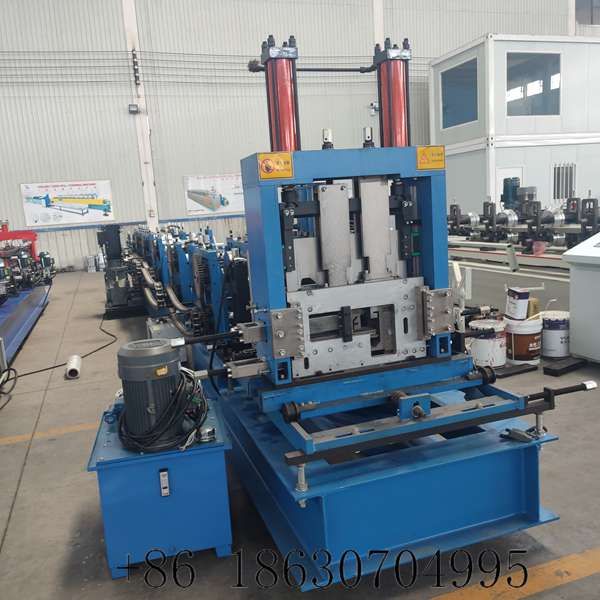

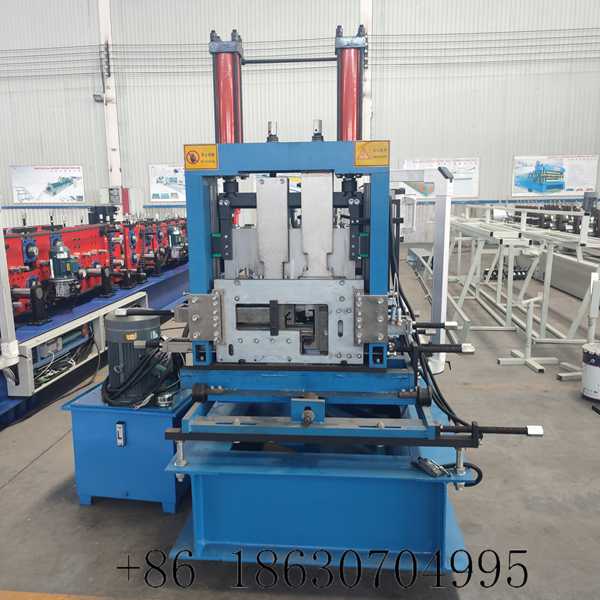

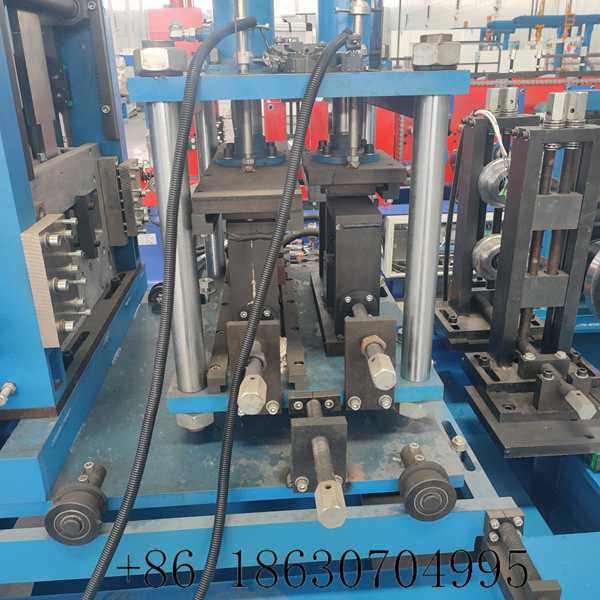

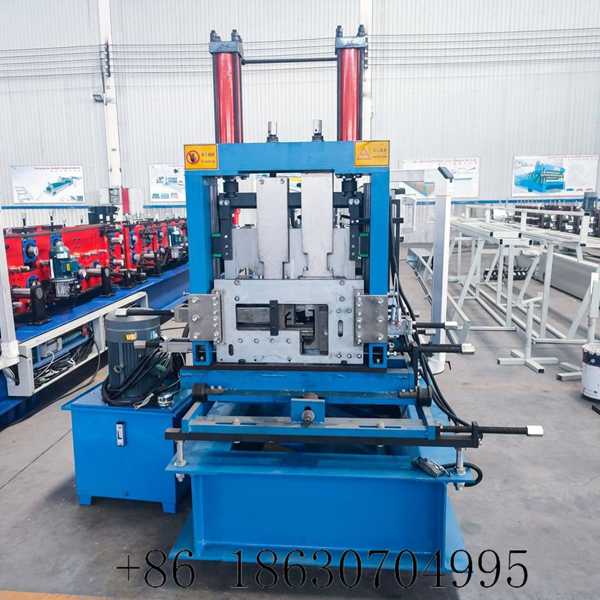

Designed for steel fabricators who need high output with minimal labor, the machine runs under fully automatic PLC control. Feeding, punching, forming, cutting, and stacking are all completed automatically in one continuous line, so a single operator can supervise the whole production process. The automatic punching unit creates bolt holes and notches inline as the profile moves through the forming section, while the PLC-controlled cutting system trims each purlin to exact length.
A key advantage of this machine is its C/Z interchangeable design. One machine produces both C and Z purlins on the same line, which reduces equipment investment and saves valuable factory space. Profile width, height, and lip length are adjusted automatically through the control system, allowing fast switching between different purlin specifications within minutes. This flexibility makes short production runs practical and keeps changeover downtime to a minimum.

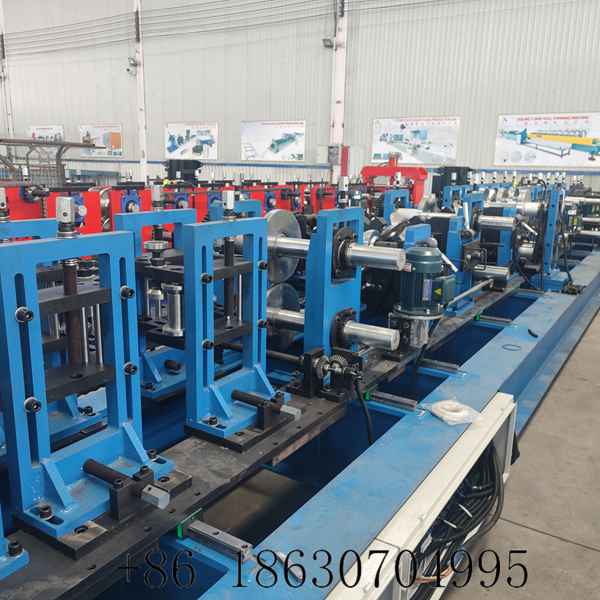

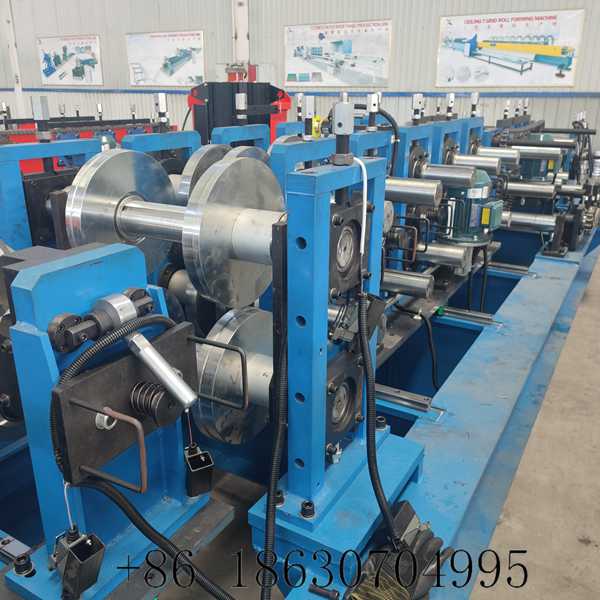

The machine is built on a heavy-duty archway (gantry) side plate frame with precision-ground GCr15 bearing steel rollers, which guarantees stable forming accuracy and a long service life. All electrical and hydraulic components are selected for 24-hour continuous operation. For related equipment, browse our C Purlin Machine category and the Roll Forming Machine collection to compare models, or contact our engineers with your profile dimensions for a tailored quotation.
| Parameter | Specification |
|---|---|
| Machine type | Full-automatic C/Z interchangeable purlin roll forming machine |
| Profile type | C purlin & Z purlin (interchangeable) |
| Profile width (W) | 80 – 300 mm (customizable) |
| Profile height (H) | 40 – 120 mm |
| Lip length | 8 – 30 mm |
| Material thickness | 1.5 – 3.0 mm (customizable) |
| Suitable material | Galvanized steel / cold-rolled steel / color-coated coil |
| Production speed | 15 – 40 m/min |

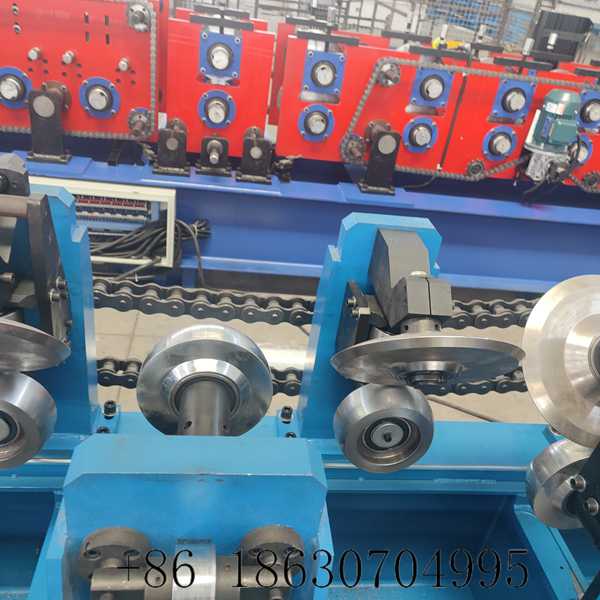

| Forming rollers | GCr15 bearing steel, hardened & chrome plated |
| Roller stations | 16 – 20 rows |
| Frame | Heavy-duty archway (gantry) side plate frame |
| Shaft | 40Cr steel, precision ground, Φ80 – 100 mm |
| Punching | Automatic hydraulic punching unit (inline) |
| Cutting | Automatic PLC fixed-length cutting, ±1 – 2 mm |
| Size change | Automatic width & height adjustment within minutes |

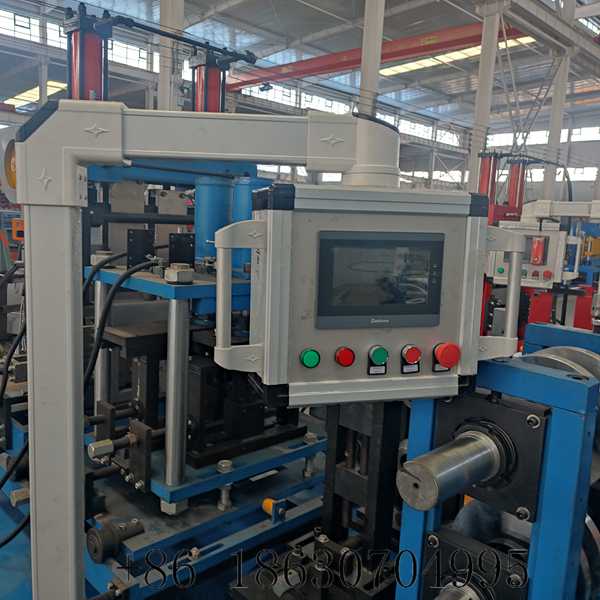

| Control system | PLC + touch screen, one-worker operation |
| Main motor power (approx.) | 15 – 22 kW |
| Voltage | 380 V / 50 Hz (customizable) |
| Machine weight (approx.) | ~12 t |
Swipe horizontally to view full parameters.
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
